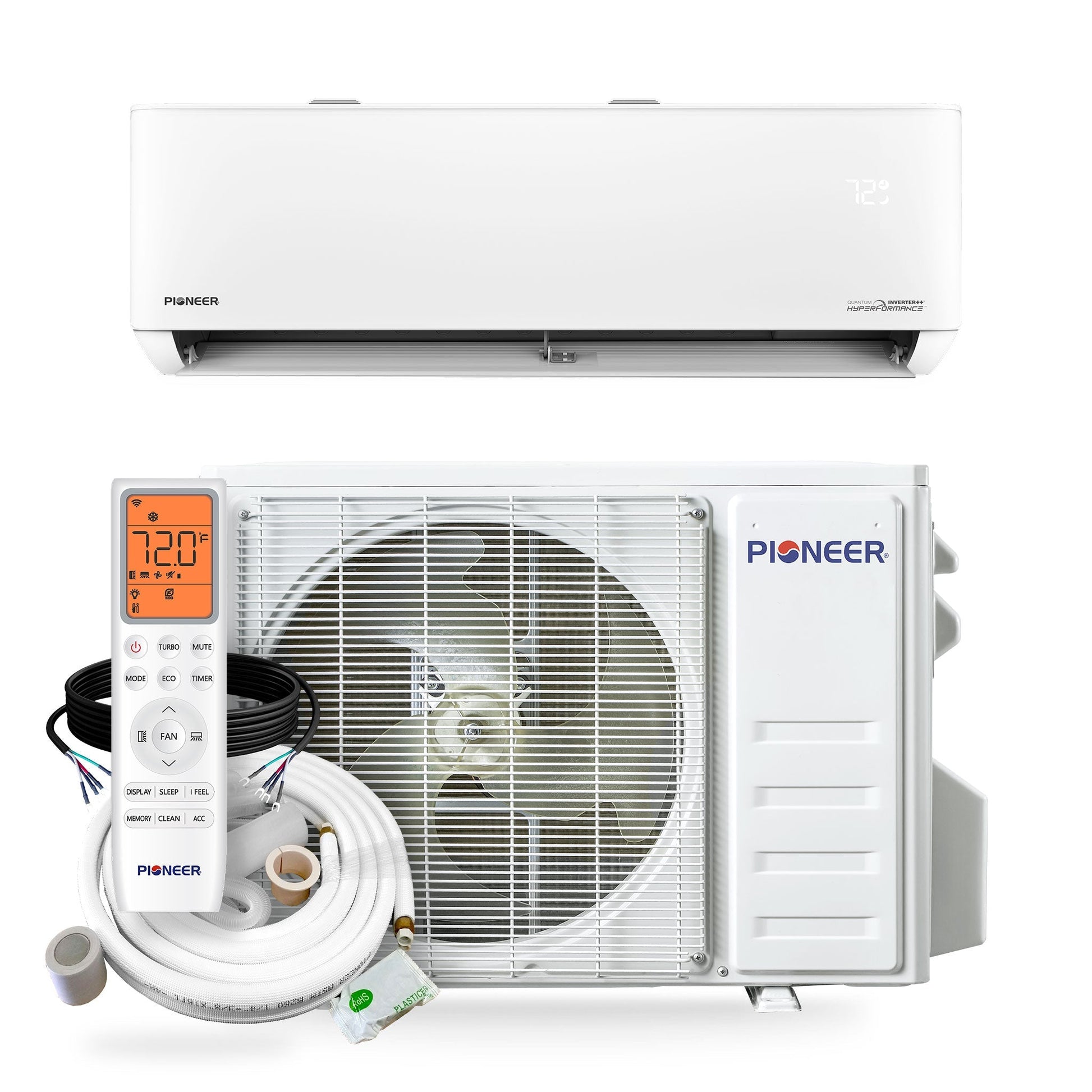

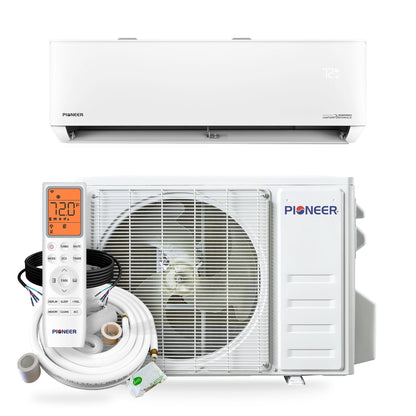

Pioneer Quantum Hyperformance 24,000 BTU 23 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Hyper Heat Pump Full Set - WYT024GLSI25RH
- Ultimate Efficiency Quantum Hyperformance™ Ductless Mini Split Heat Pump System
- Cooling capacity: 24,000 BTU/H with 23 SEER2 / 12 EER2 efficiency
- Heating capacity: 24,000 BTU/H with 10.0 HSPF2 / 3.5 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
-

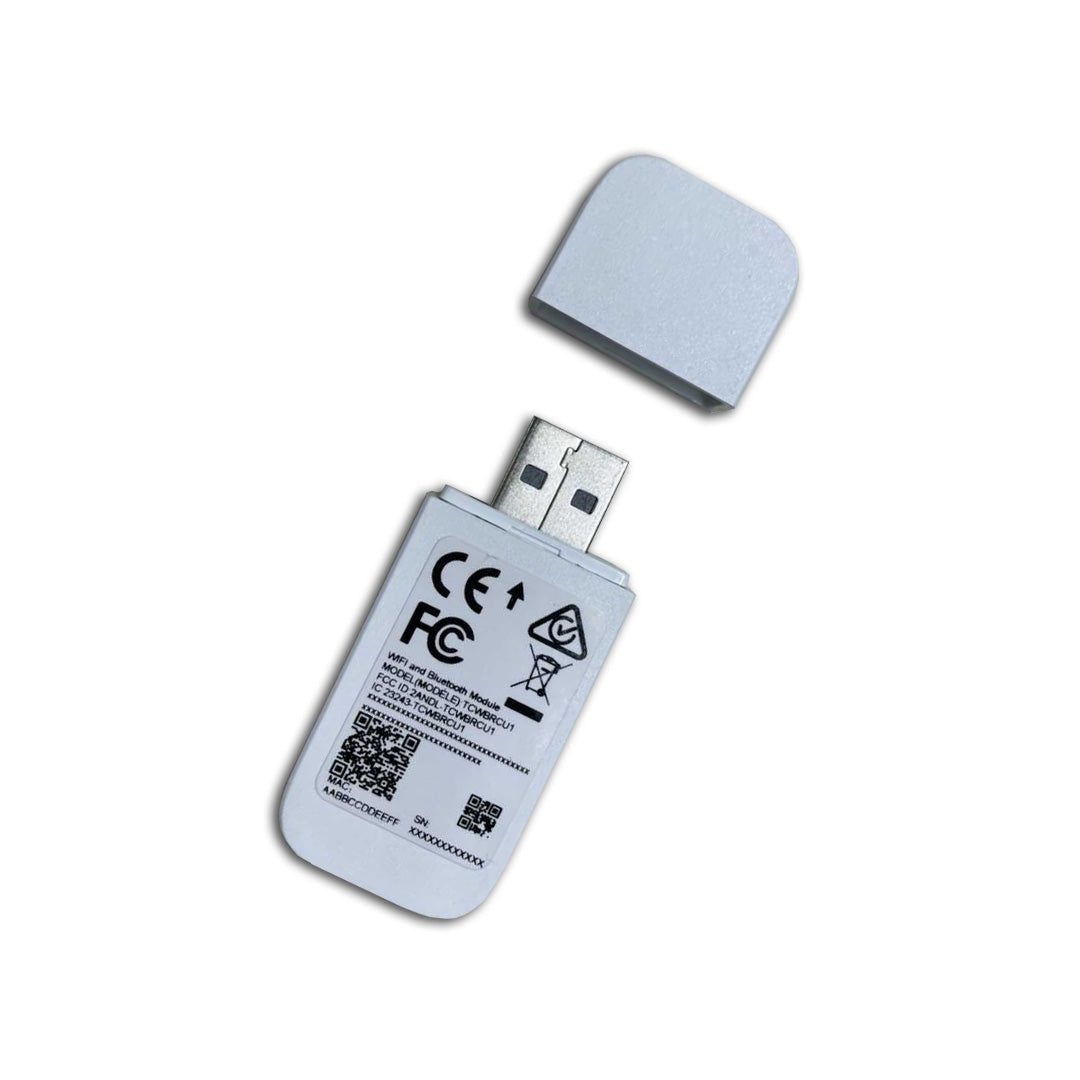

Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
-
Extreme Climate Operation (As low as -22°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

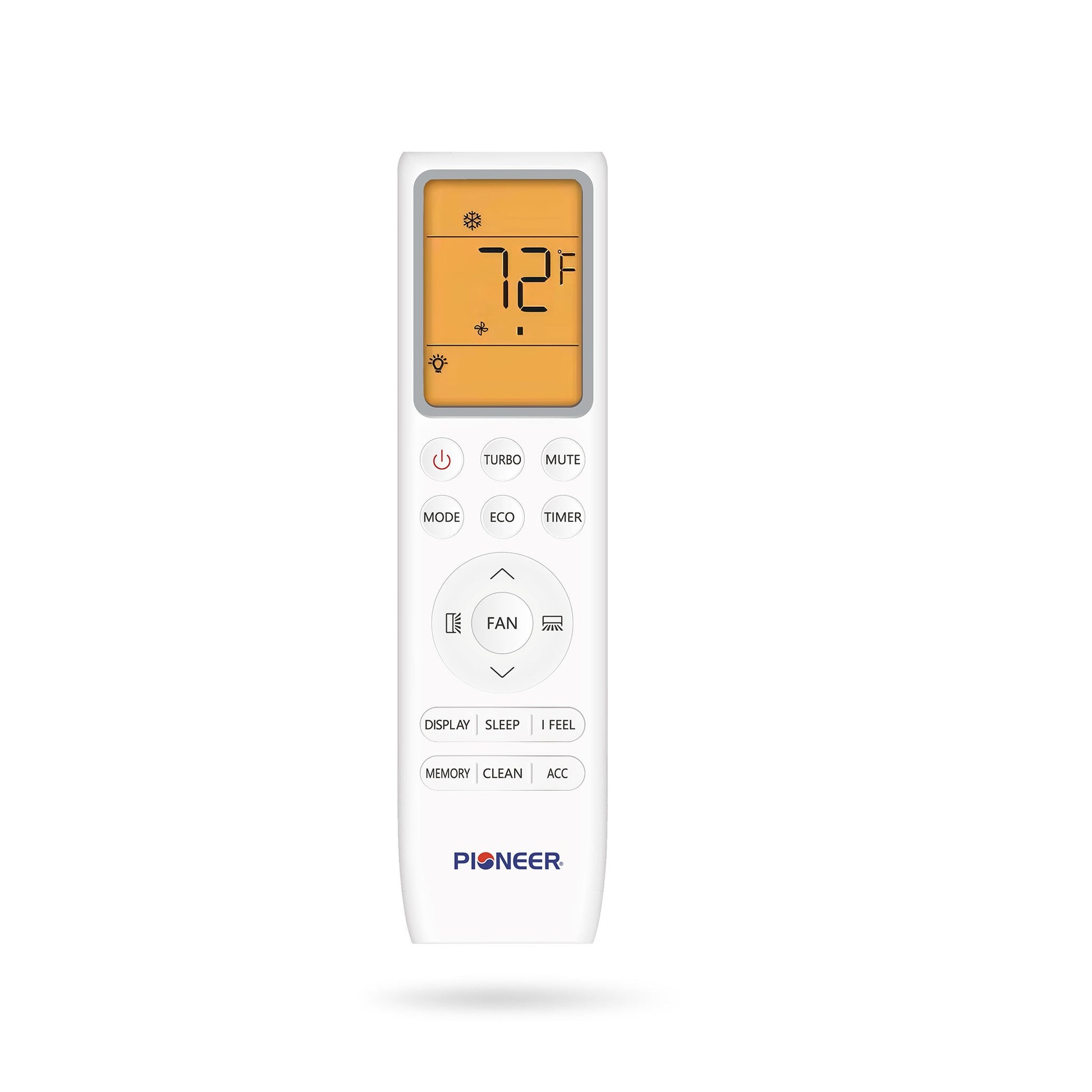

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Performance
-

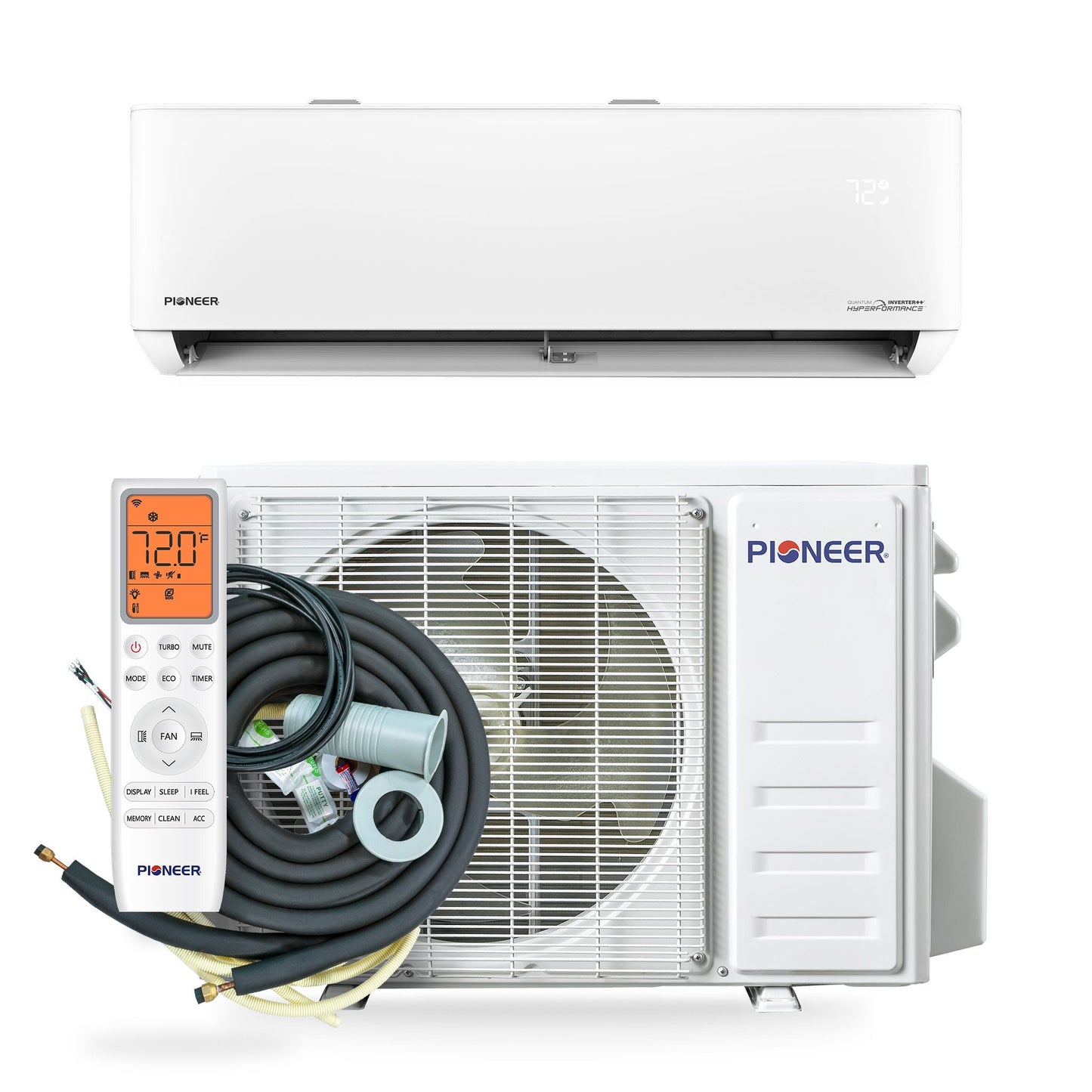

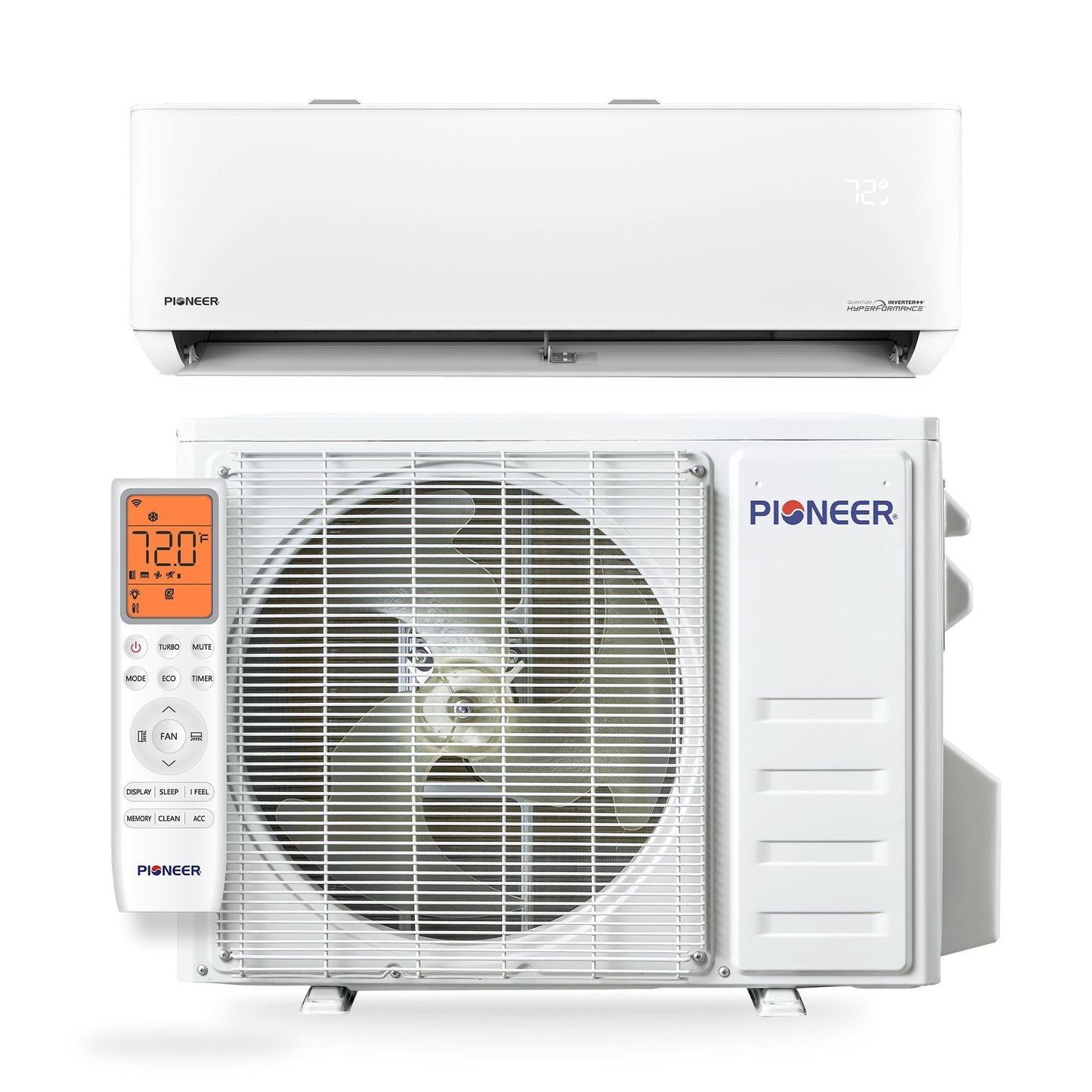

System Kit
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Rated Capacity: 24,000 BTU/h
-
Cooling Capacity Range: 4,800~25,200 BTU/h
-
Cooling SEER2: 23.0 BTU/W.h
-
Cooling EER2: 12.0 BTU/W.h
-
Heating Rated Capacity: 24,000 BTU/h
-
Heating Capacity Range: 4,800~26,900 BTU/h
-
Heating HSPF2 (Region IV): 10.0 / 9.0 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.5 / 1.8 W/W
-
Refrigerant Type: R454b
-
Recommended Room Size: 750~1,000 Sq.F
-
Minimum Room Size: 63 sq ft
-
Minimum Installation Height: 6 ft
-

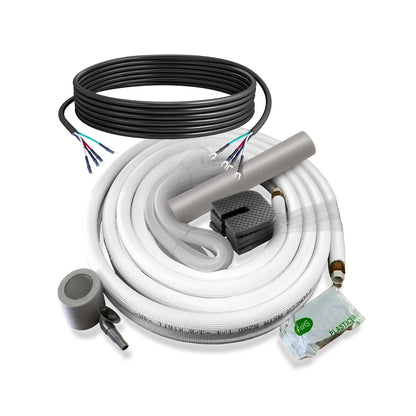

Piping Diameter: 1/4 x 5/8"
-
AHRI Reference: 217048757
-

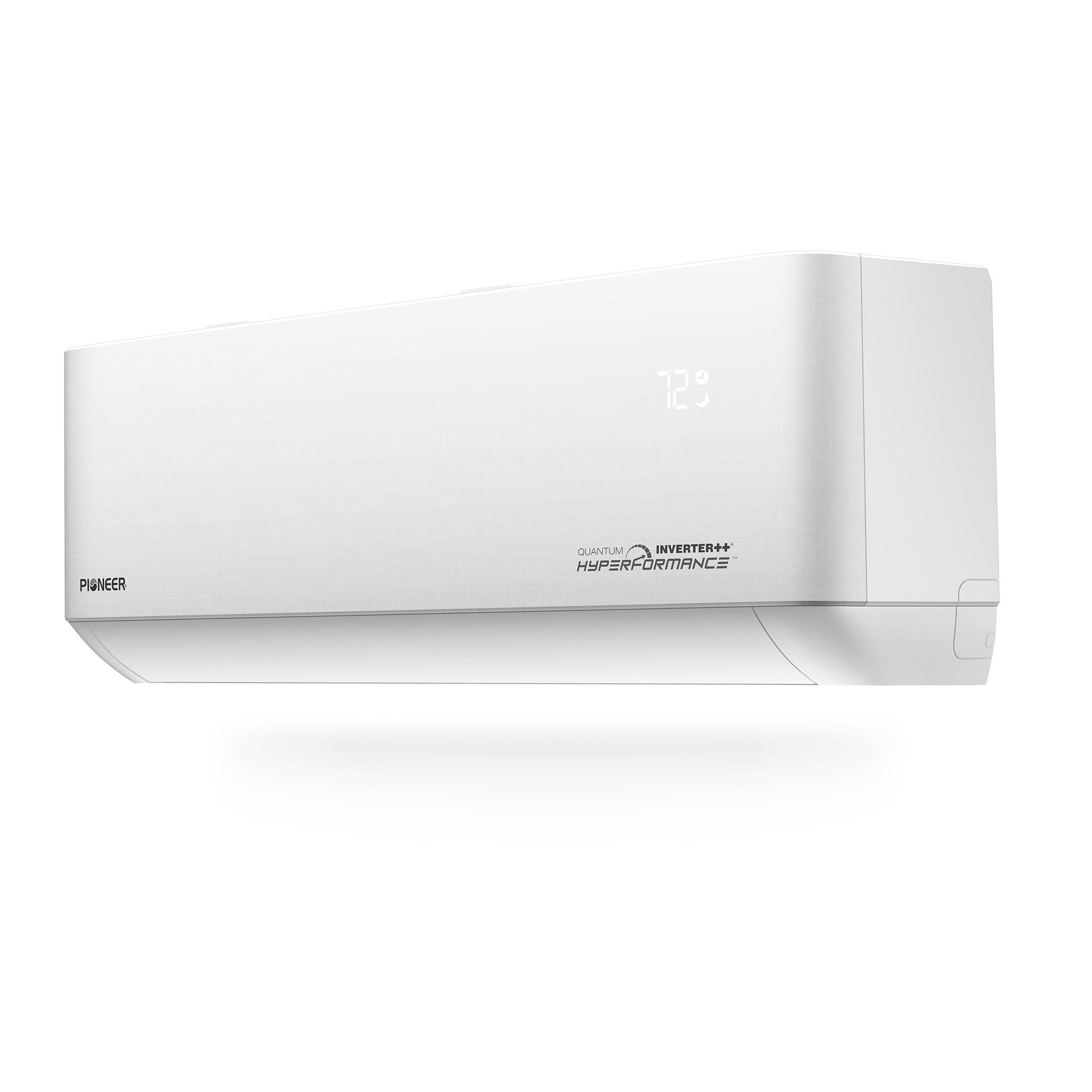

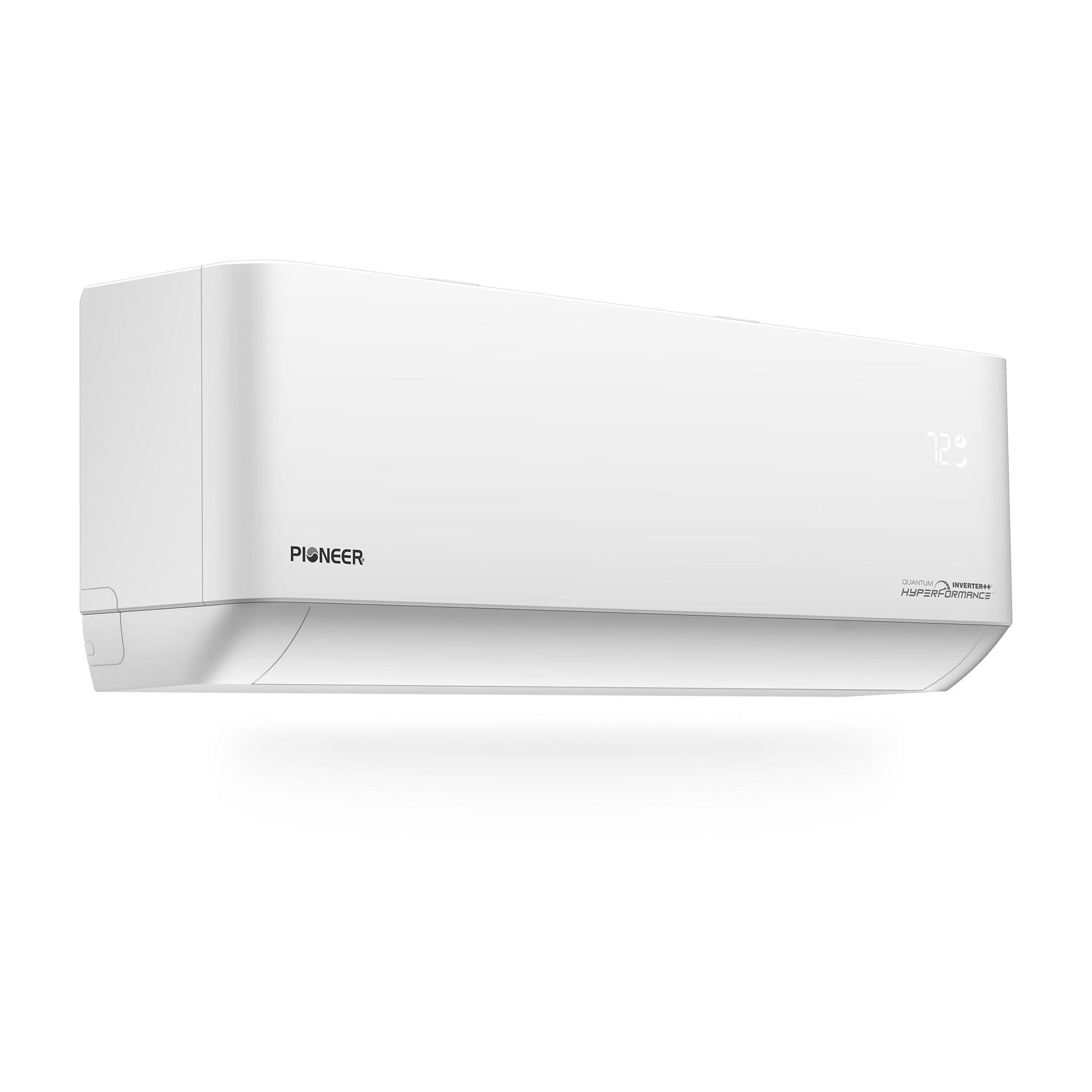

Indoor Unit
-
Part Number: WT024GLSI25HLH
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 735/676/529/423/394 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 49/47/42/37/32 dB(A)
-
Product Dimensions (WDH): 43"-1/8 x 8"-3/4 x 13"-1/8 Inches
-
Carton Dimensions (WDH): 45"-7/8 x 11"-5/8 x 16" Inches
-
Net / Gross Weight: 30.9 / 35.3 lbs.
-

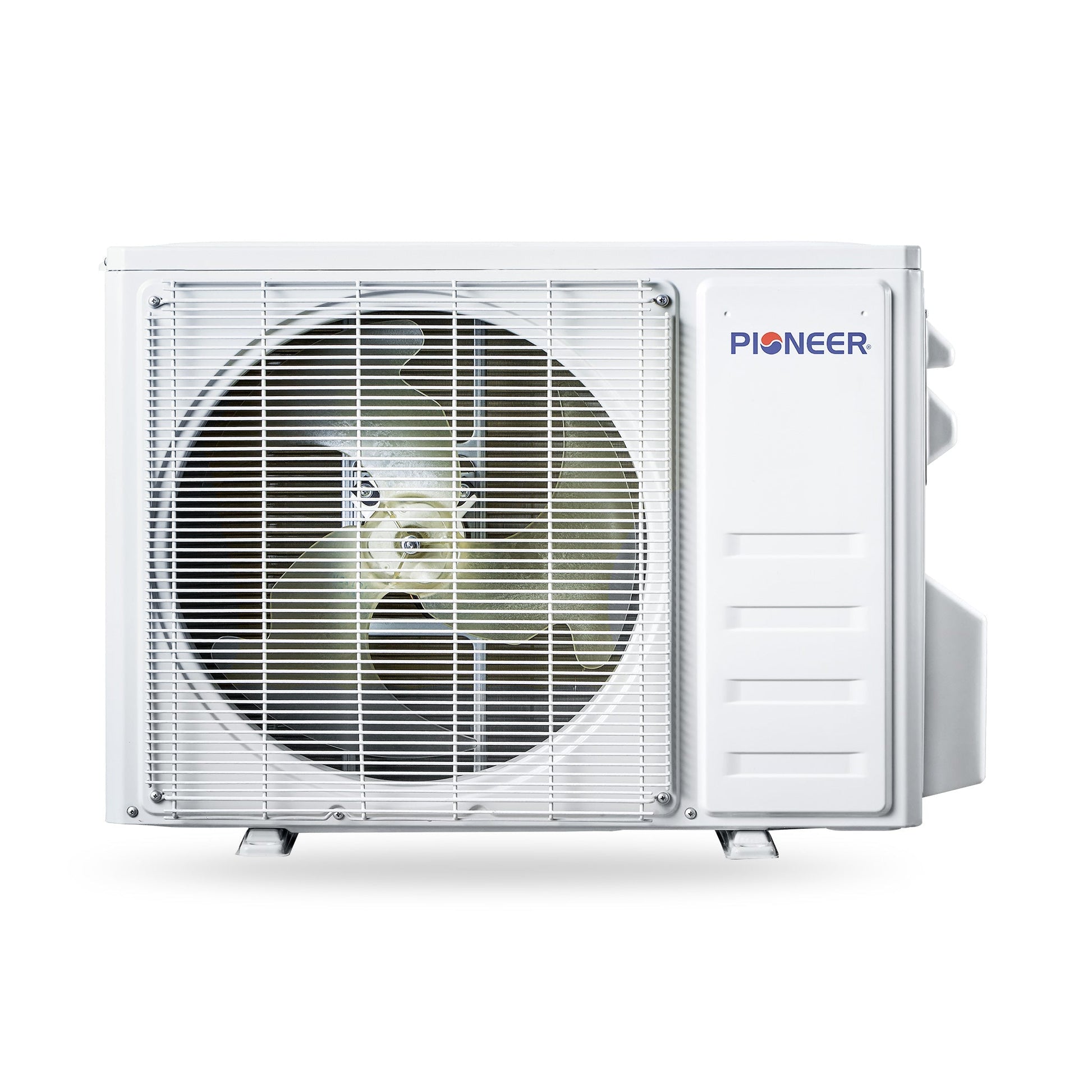

Outdoor Unit
-
Part Number: YN024GLSI25RPH
-
Breaker Needed: 30A (double-pole)
-
Sound Level: 61 dB(A)
-
Net Dimensions (WDH): 38"-1/2 x 16"-5/8 x 31"-5/8 Inches
-
Carton Dimensions (WDH): 40"-1/4 x 18"-7/8 x 31"-7/8 Inches
-
Net / Gross Weight: 108.0 / 116.8 lbs.
Dimension Chart
What Our Experts Think
-
24,000 BTU capacity ideal for large rooms, open-concept spaces, or small commercial areas.
-
High-efficiency 23 SEER2 rating saves energy and reduces utility costs.
-
Energy Star certified for environmentally friendly performance.
-
High-wall ductless design provides quiet, space-saving installation.
-
Inverter Hyper Heat pump delivers year-round heating and cooling, even in extreme temperatures.
Q&A
Q: Is this a full mini-split system?
A: Yes, it includes both indoor and outdoor units for a complete setup.
Q: Does it support heating as well as cooling?
A: Yes, the Hyper Heat pump provides efficient heating in cold climates.
Q: Is it energy efficient?
A: Absolutely—23 SEER2 rating and Energy Star certification ensure optimal efficiency.
Maintenance Tips
-
Clean air filters every 4–6 weeks to maintain airflow and efficiency.
-
Wipe indoor unit surfaces regularly to prevent dust buildup.
-
Keep outdoor condenser clear of debris for optimal performance.
-
Schedule annual professional maintenance to ensure long-term reliability
