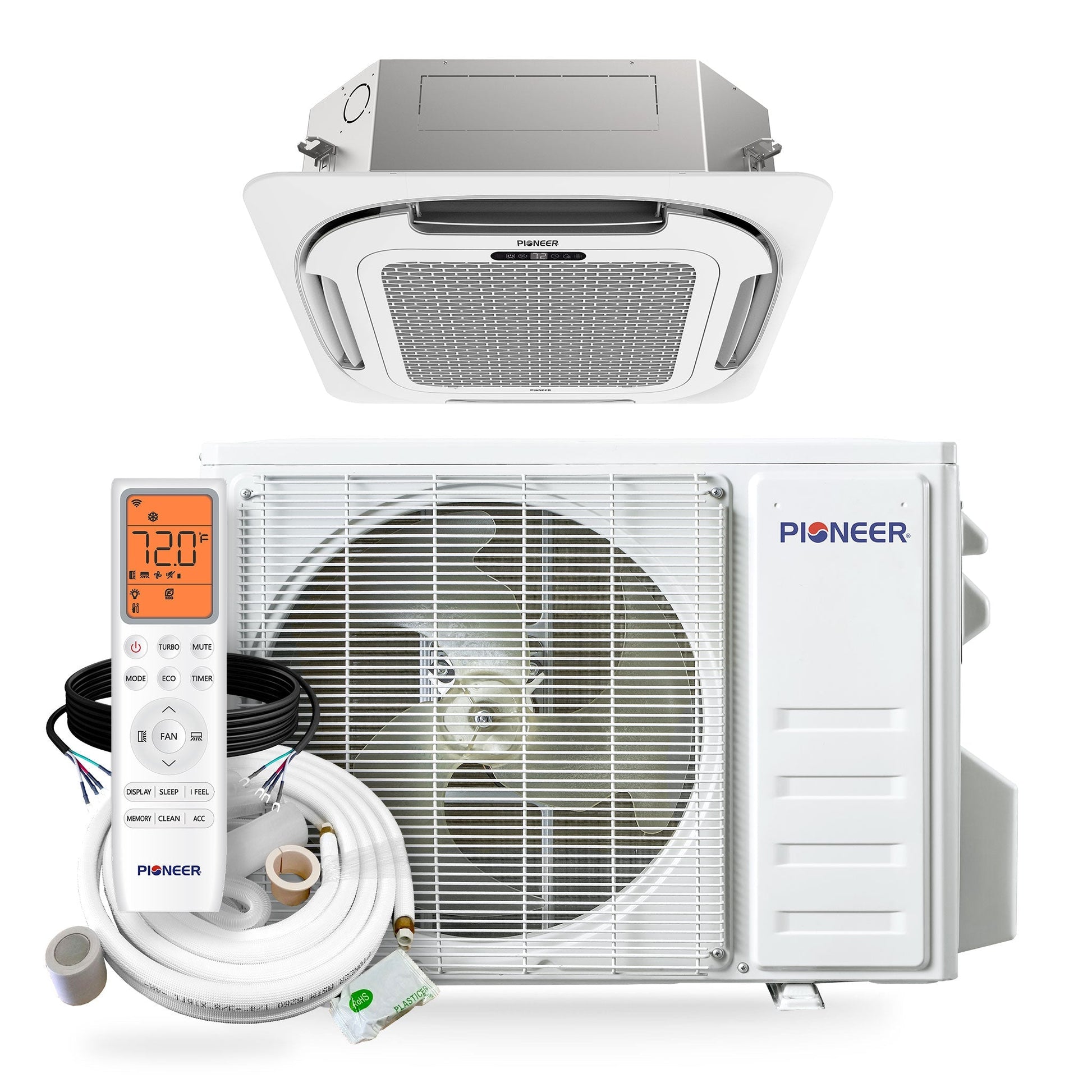

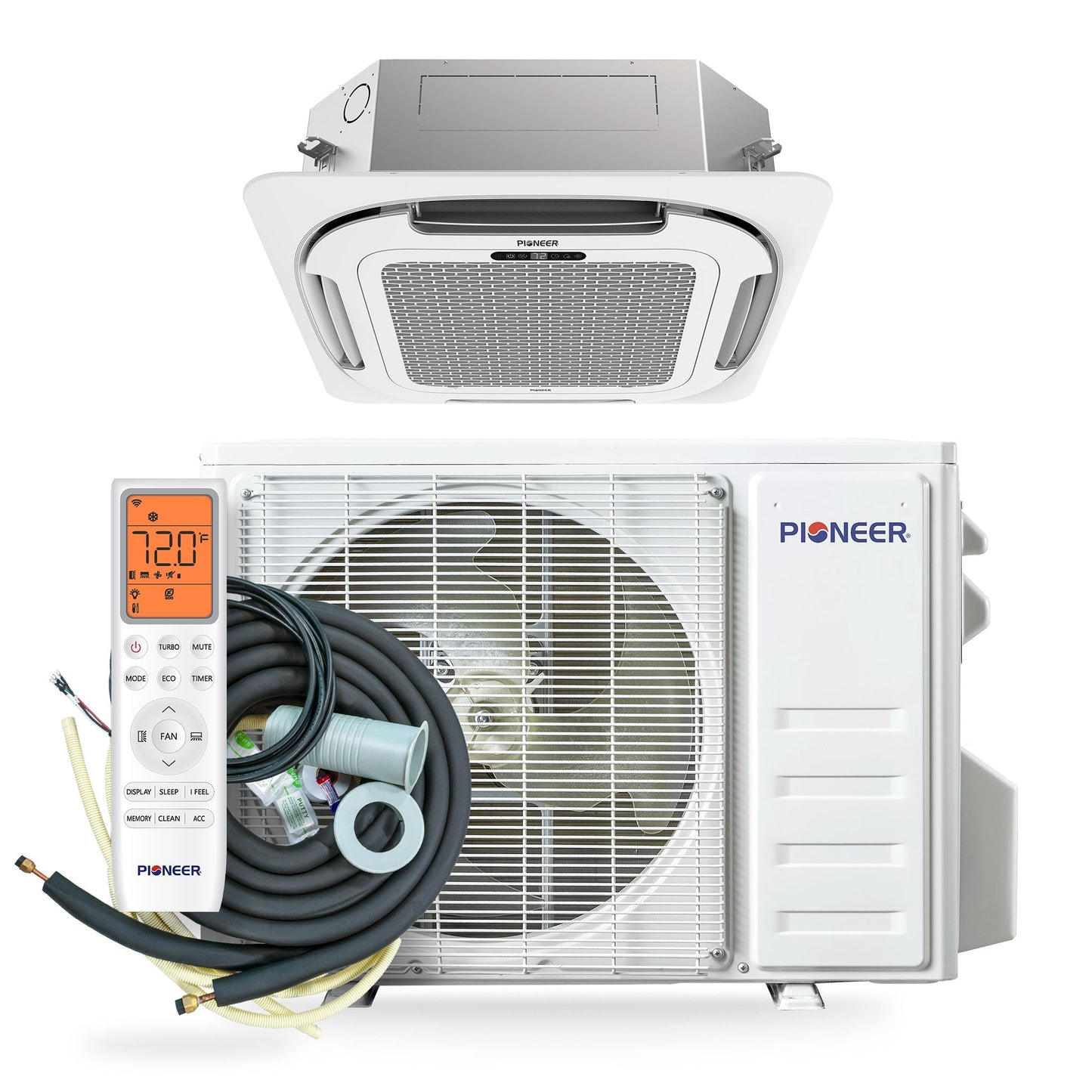

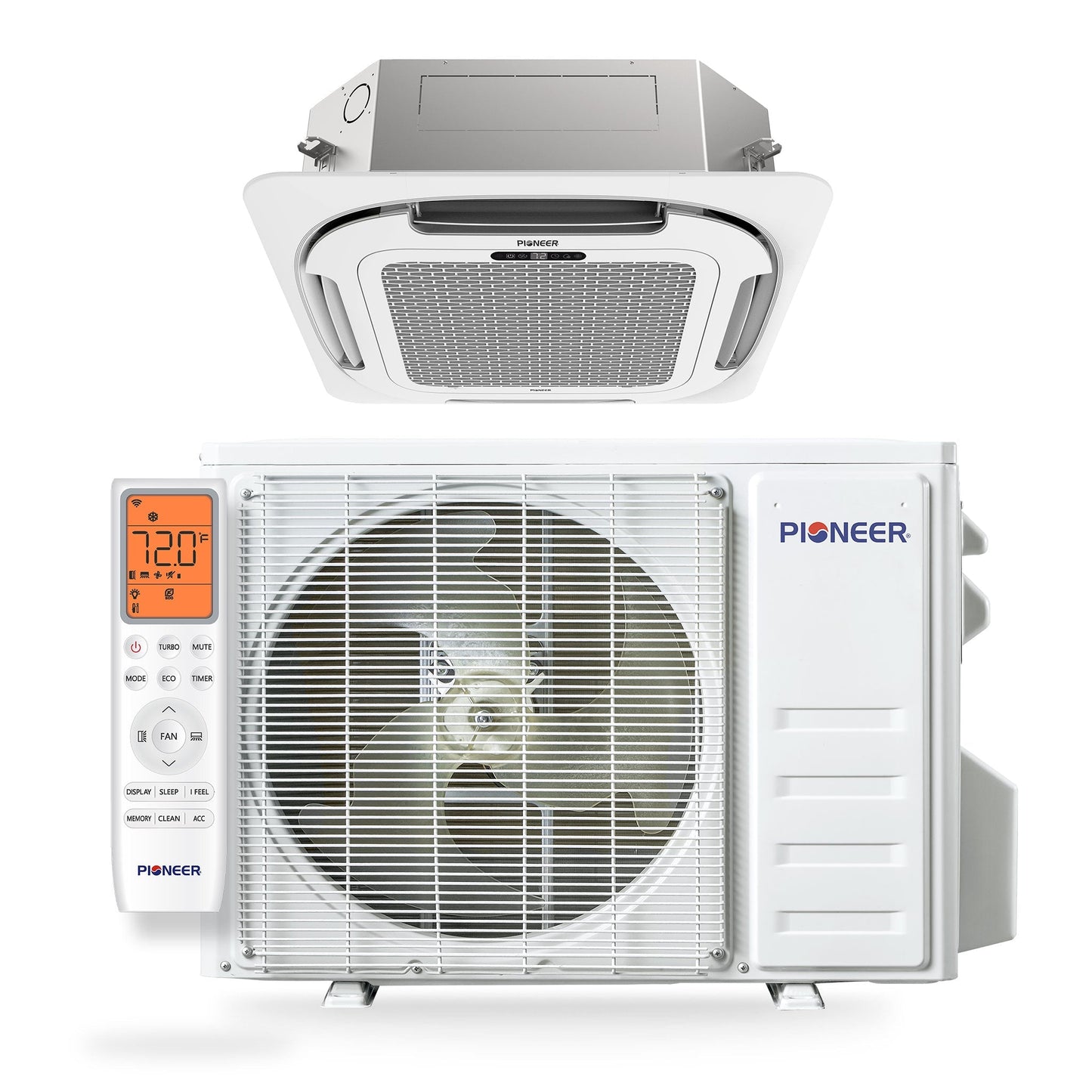

Pioneer Quantum Ultra 12,000 BTU 22 SEER2 230V Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set - CYT012GLSI24RL
- High Efficiency Quantum Ultra Ceiling Cassette Split Heat Pump System
- Cooling capacity: 12,000 BTU/H with 22 SEER2 / 11.7 EER2 efficiency
- Heating capacity: 12,500 BTU/H with 9.5 HSPF2 / 3.6 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
-
Ceiling Cassette Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
-
Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

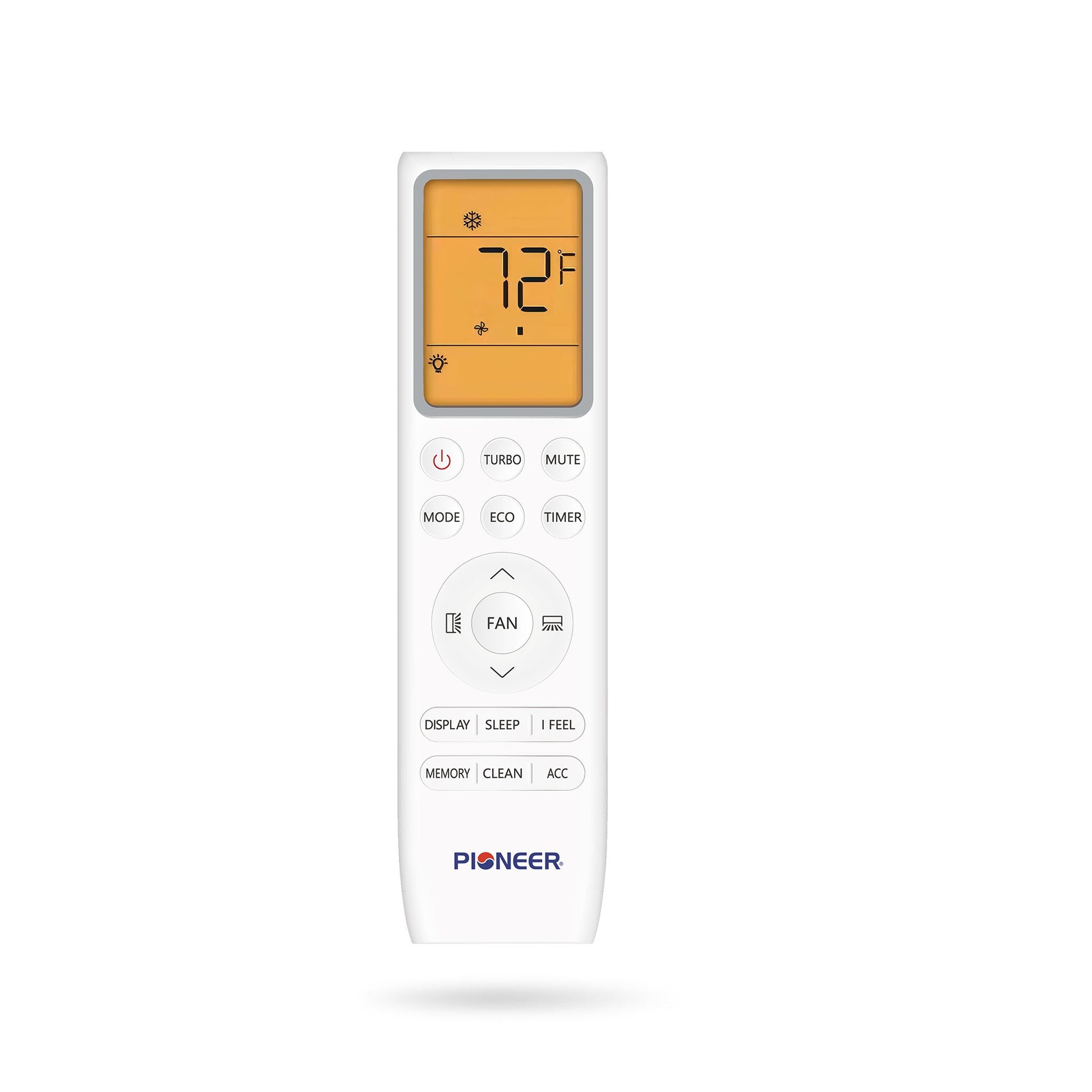

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Performance
-
System Kit
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Rated Capacity: 12,000 BTU/h
-
Cooling Capacity Range: 2,000~13,600 BTU/h
-
Cooling SEER2: 22.0 BTU/W.h
-
Cooling EER2: 11.7 BTU/W.h
-
Heating Rated Capacity: 12,500 BTU/h
-
Heating Capacity Range: 3,100~12,700 BTU/h
-
Heating HSPF2 (Region IV): 9.5 / 8.5 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.6 / 1.9 W/W
-
Refrigerant Type: R454b
-
Suitable Area: 350~500 Sq.F
-
AHRI Reference: 217048759
-

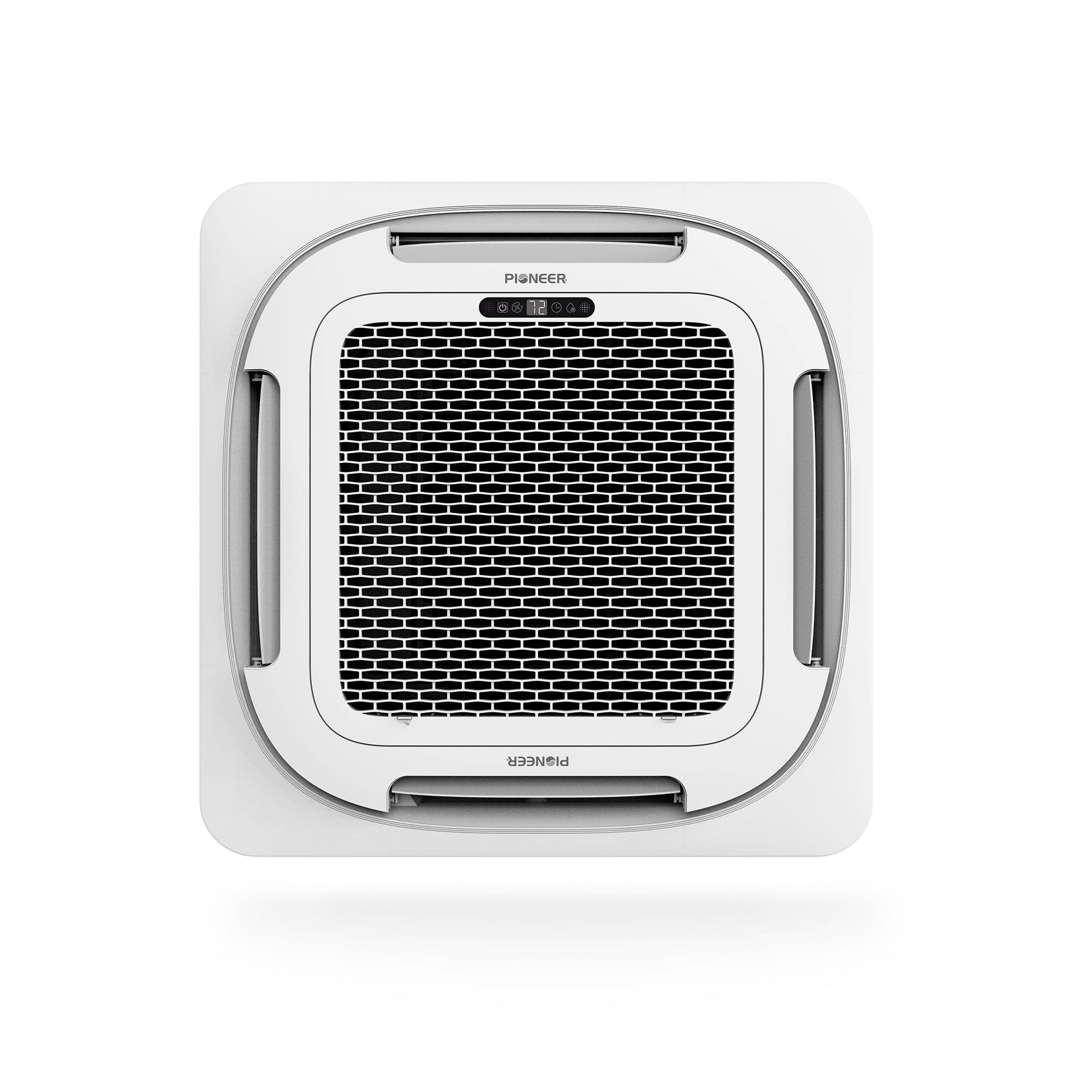

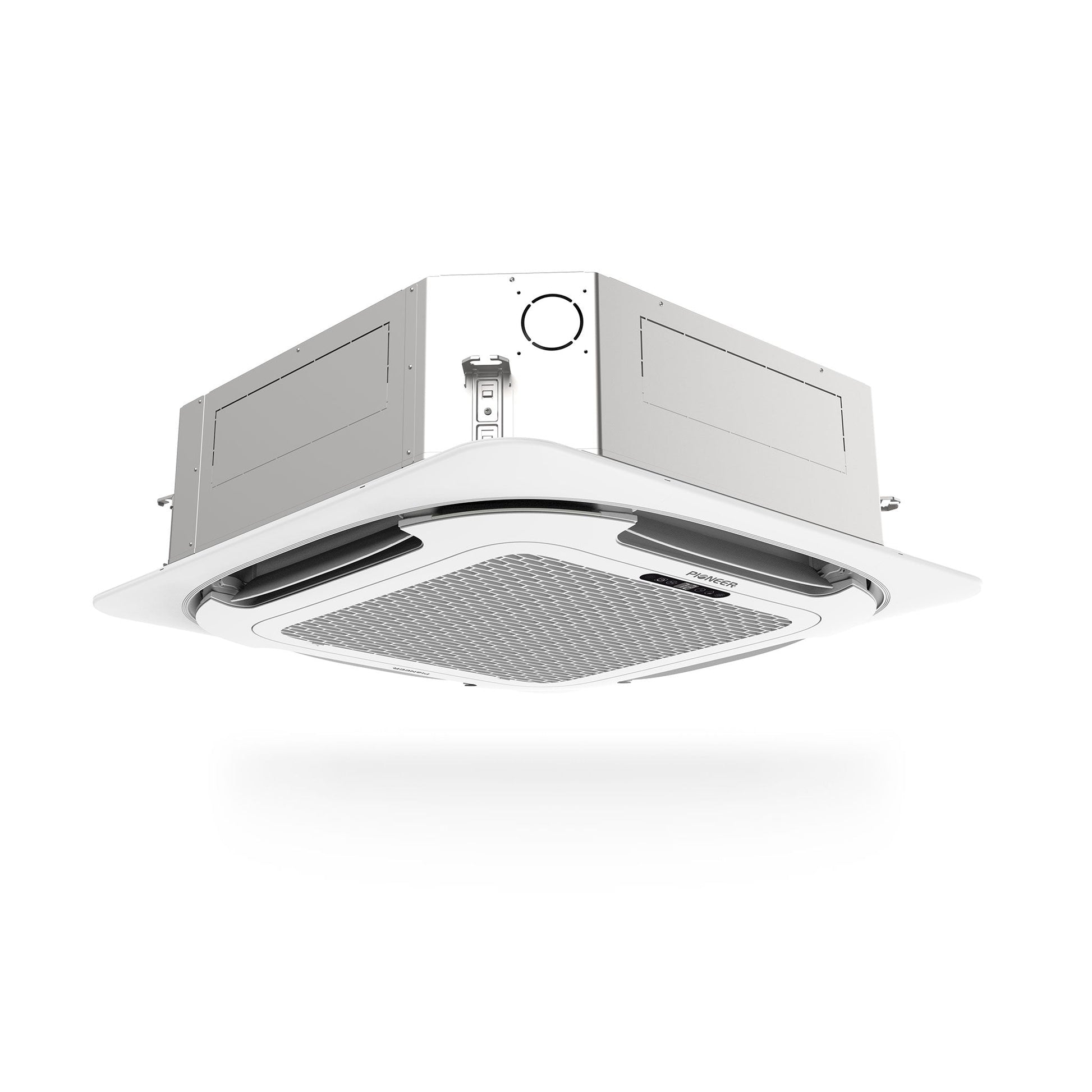

Indoor Unit
-
Part Number: CT012GLSILCFHG
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 500/470/411/323/205 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 46/44/36/32/30 dB(A)
-
Product Dimensions (WDH): 22"-1/2 x 22"-1/2 x 9"-5/8 Inches
-
Carton Dimensions (WDH): 28"-1/4 x 25"-7/8 x 11"-7/8 Inches
-
Net / Gross Weight: 32.0 / 38.6 lbs
-
Decorative Panel
-
Part Number: CT0918DPNL
-
Product Dimensions (WDH): 25"-5/8 x 25"-5/8 x 2"-3/8
-
Carton Dimensions (WDH): 28"-7/8 x 28"-7/8 x 4"-3/8
-
Net / Gross Weight: 6.0 / 9.5 lbs
-

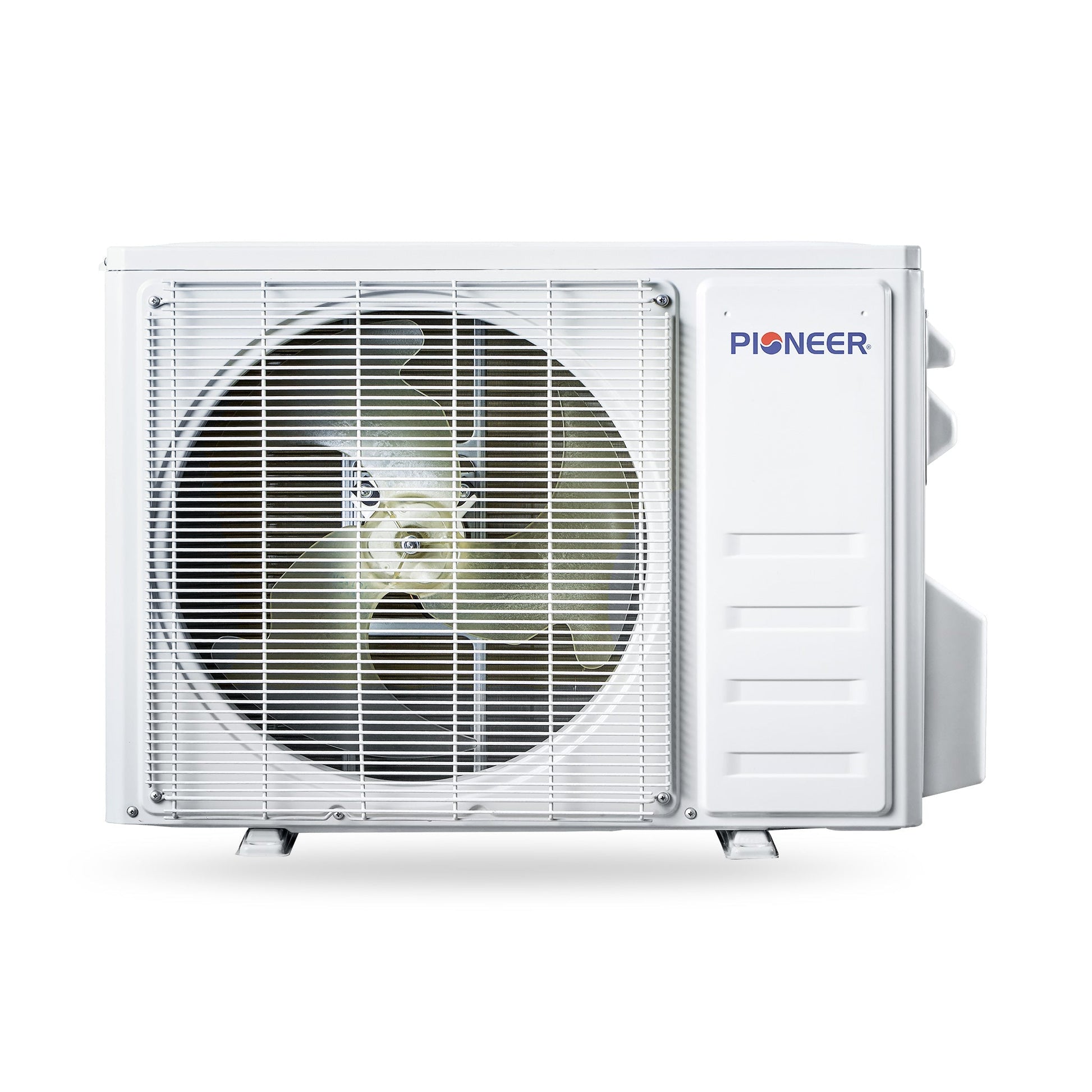

Outdoor Unit
-
Part Number: YN012GLSI24RPG
-
Breaker Needed: 15A (double-pole)
-
Sound Level: 52 dB(A)
-
Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
-
Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches
-
Net / Gross Weight: 58.4 / 65.0 lbs.
Dimension Chart
What Our Experts Think
-
12,000 BTU capacity ideal for medium-sized rooms.
-
22 SEER2 efficiency ensures energy savings and reduced operational costs.
-
Ceiling cassette design provides 4-way airflow for even temperature distribution.
-
Inverter heat pump delivers reliable heating and cooling year-round.
-

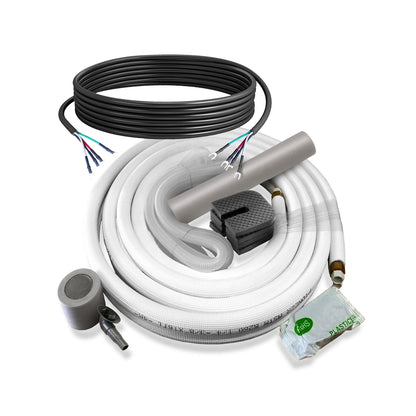

Full set includes both indoor and outdoor units for easy installation.
Q&A
Q: What room size is suitable for this system?
A: Recommended for spaces up to 500–600 sq. ft., depending on insulation.
Q: Does it provide both heating and cooling?
A: Yes, the inverter heat pump provides year-round climate control.
Q: Can it be installed in a ceiling?
A: Yes, the ceiling cassette design is perfect for ceiling-mounted installations.
Maintenance Tips
-
Clean air filters monthly for optimal airflow and performance.
-
Ensure ceiling vents are free from dust and debris.
-
Keep the outdoor condenser area clear for efficient operation.
-
Schedule annual professional servicing for long-term reliability.
