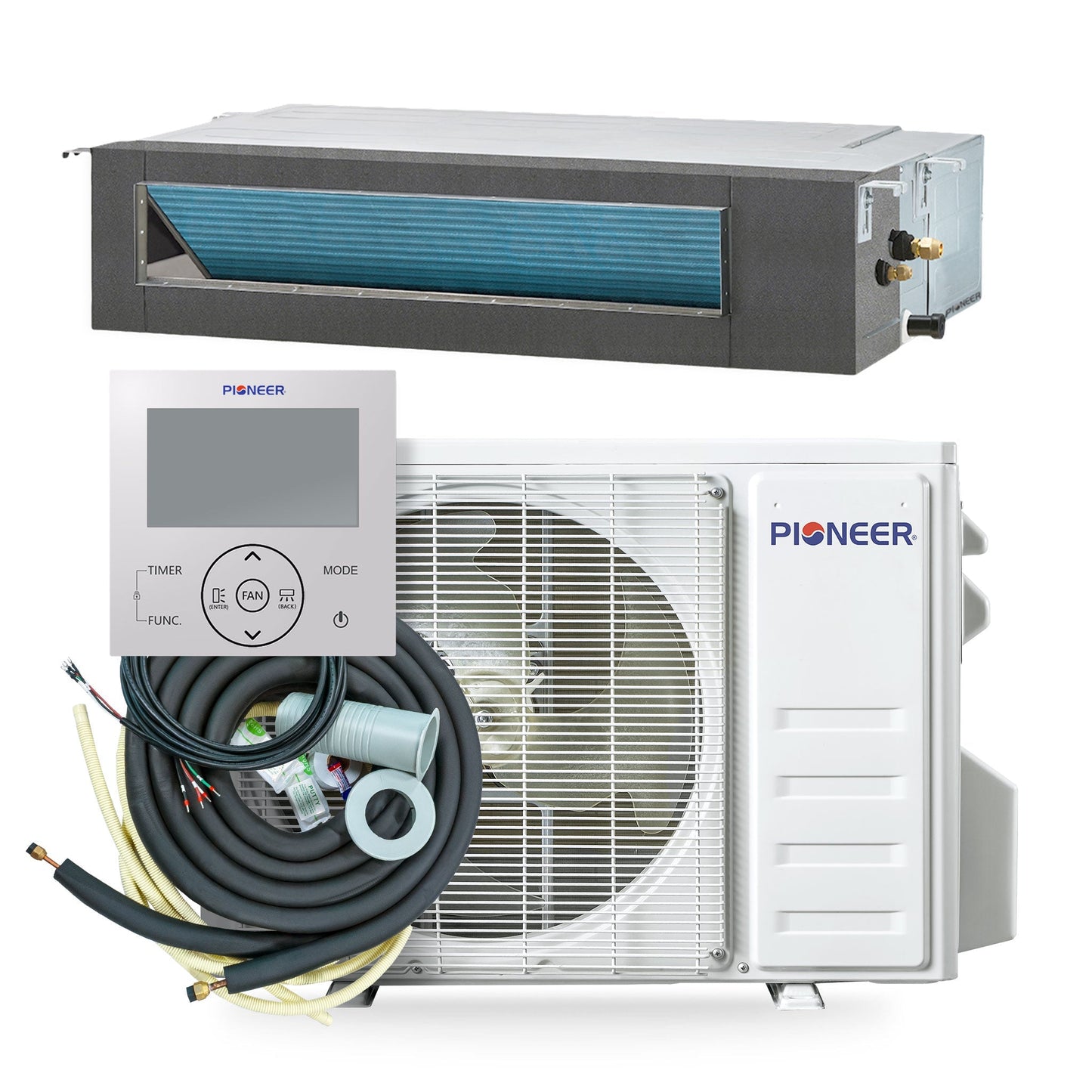

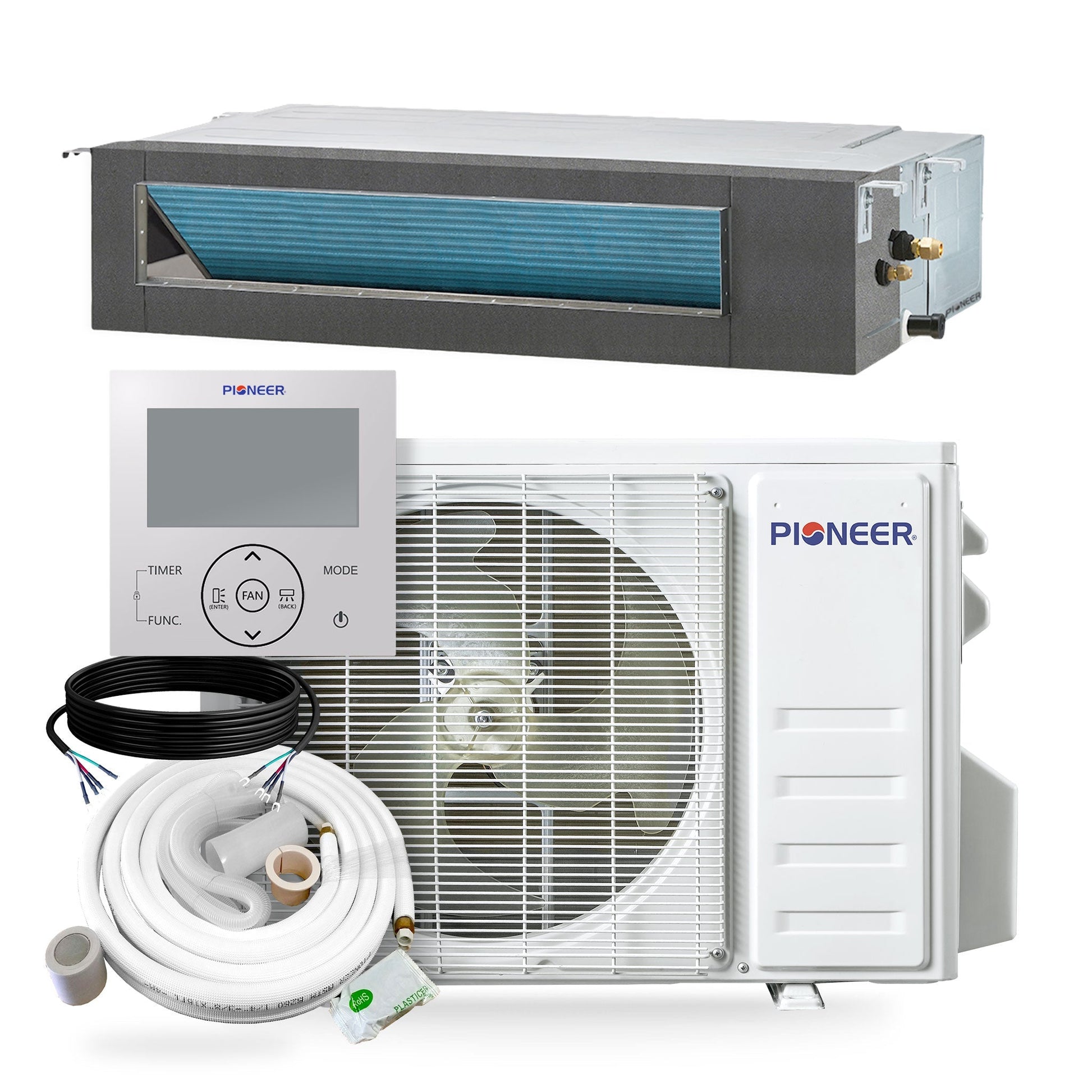

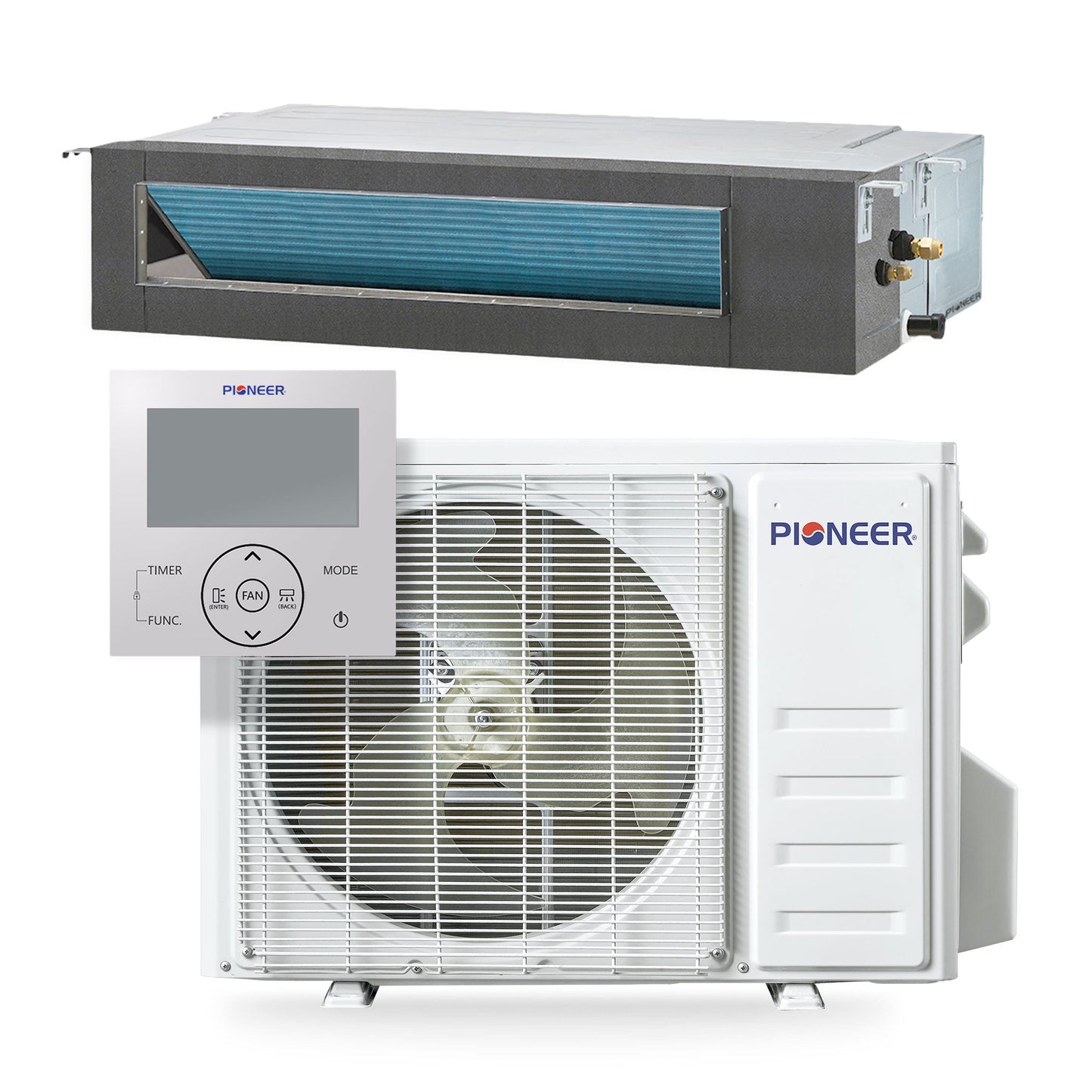

Pioneer Quantum Ultra 24,000 BTU 19 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set - RYT024GLSI24RL-10F
- High Efficiency Quantum Ultra Ceiling Concealed Ducted Split Heat Pump System
- Cooling capacity: 22,000 BTU/H with 19 SEER2 / 11.7 EER2 efficiency
- Heating capacity: 25,000 BTU/H with 9.5 HSPF2 / 3.2 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
-
Ceiling Concealed Mounted Ducted Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
-
Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

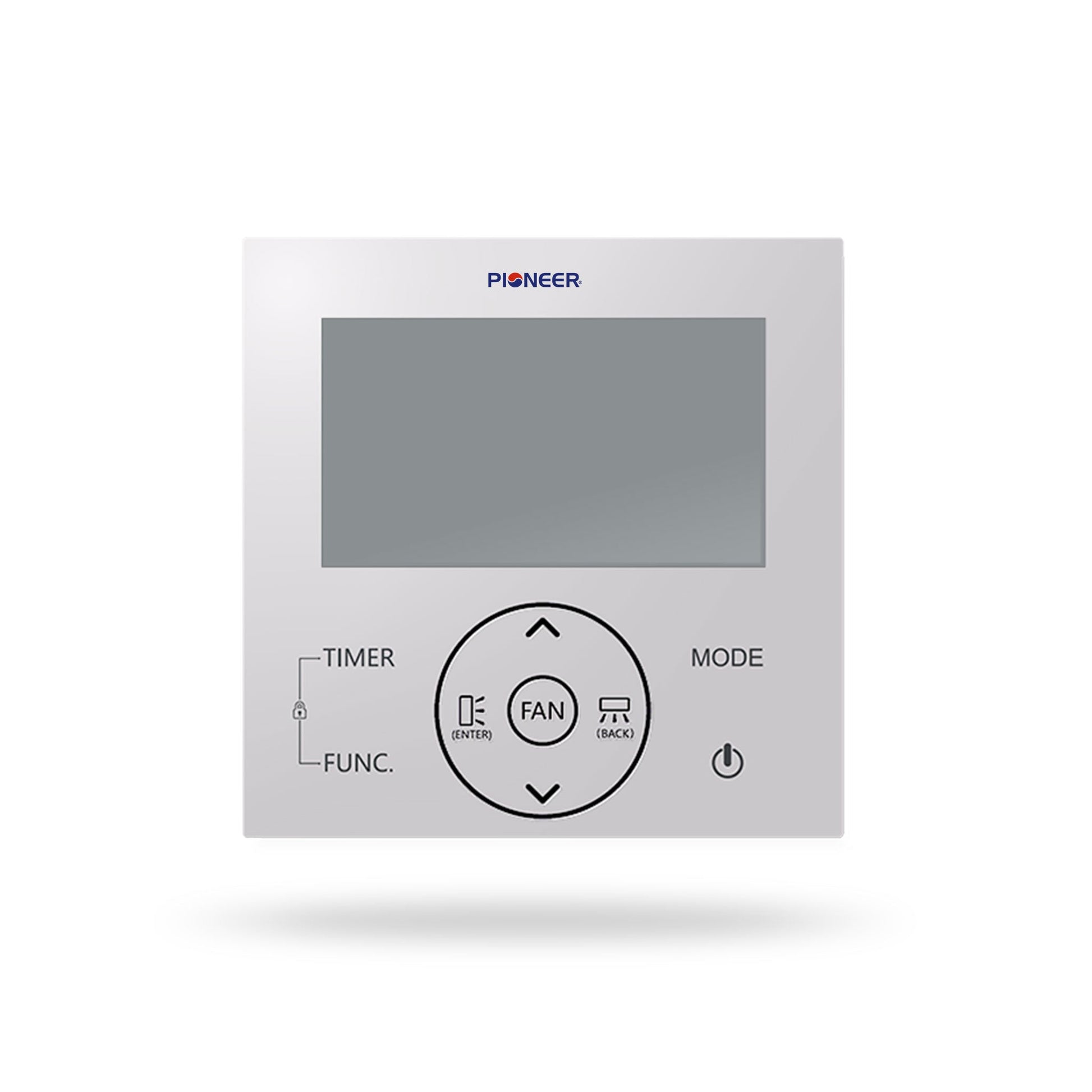

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Performance
-
System Kit
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Rated Capacity: 22,000 BTU/h
-
Cooling Capacity Range: 7,550~24,600 BTU/h
-
Cooling SEER2: 19.0 BTU/W.h
-
Cooling EER2: 11.7 BTU/W.h
-
Heating Rated Capacity: 25,000 BTU/h
-
Heating Capacity Range: 8,700~28,500 BTU/h
-
Heating HSPF2 (Region IV): 9.5 / 8.5 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.2 / 2.0 W/W
-
Refrigerant Type: R454b
-
Suitable Area: 750~1,000 Sq.F
-
AHRI Reference: 217048765
-
Indoor Unit
-
Part Number: RT024GLSILSFHG
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 741/623/558/529/470 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 41/38/34 dB(A)
-
Product Dimensions (WDH): 43"-1/4 x 17"-3/4 x 7"-7/8 Inches
-
Carton Dimensions (WDH): 50"-3/4 x 22"-1/4 x 9"-7/8 Inches
-
Net / Gross Weight: 50.7 / 58.4 lbs.
-

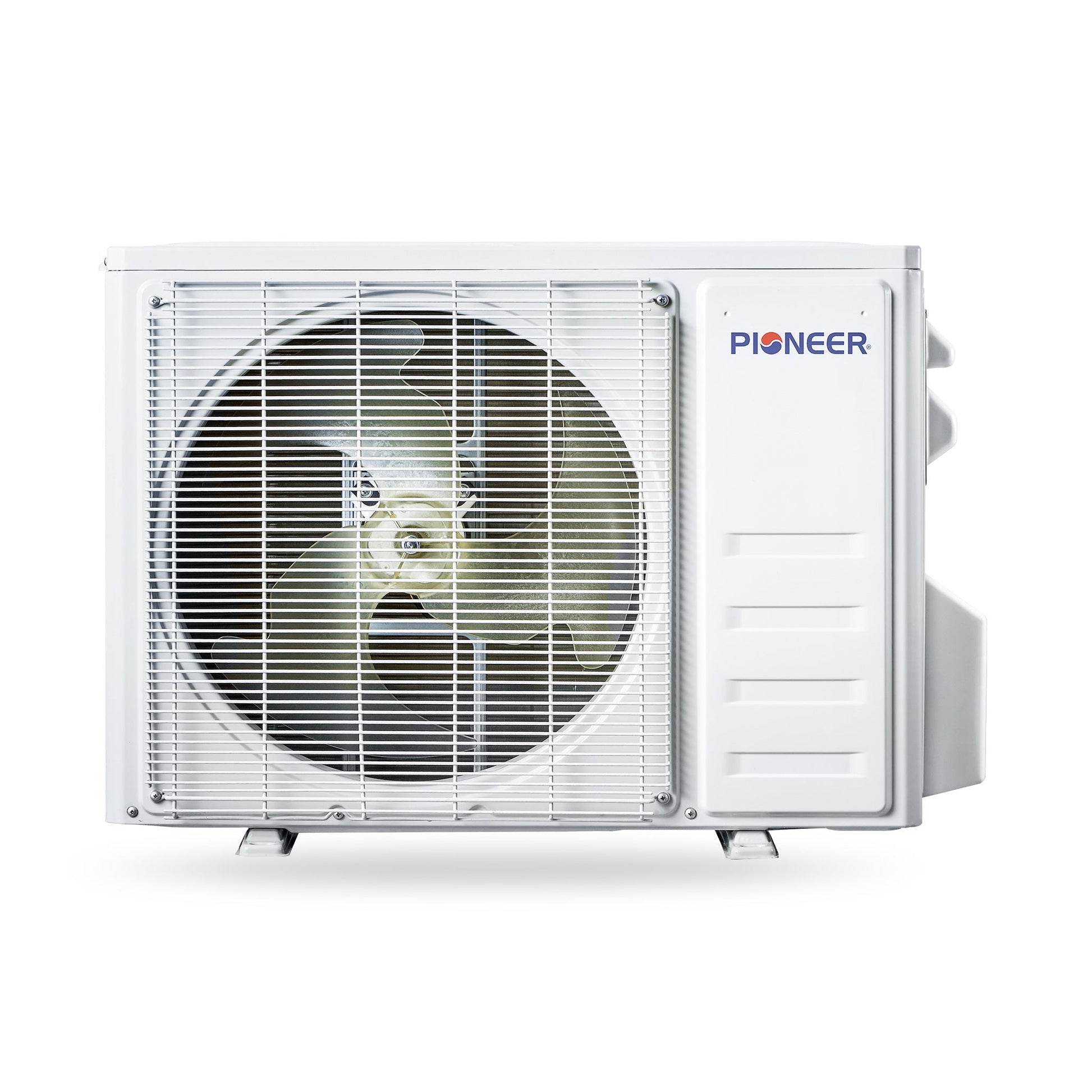

Outdoor Unit
-
Part Number: YN024GLSI24RPG
-
Breaker Needed: 20A (double-pole)
-
Sound Level: 54 dB(A)
-
Net Dimensions (WDH): 38"-1/2 x 16"-5/8 x 31"-5/8 Inches
-
Carton Dimensions (WDH): 40"-1/4 x 18"-7/8 x 31"-7/8 Inches
-
Net / Gross Weight: 104.7 / 119.0 lbs.
Dimension Chart
What Our Experts Think
-
24,000 BTU capacity perfect for medium to large rooms or commercial spaces.
-
High-efficiency 19 SEER2 rating reduces energy consumption.
-
Ceiling concealed ducted design offers discreet, space-saving installation.
-
Inverter heat pump provides reliable heating and cooling year-round.
-
Full set includes indoor and outdoor units for complete installation.
Q&A
Q: What room size is this unit suitable for?
A: Ideal for spaces up to 1,200 sq. ft., depending on insulation.
Q: Does it provide both heating and cooling?
A: Yes, the inverter heat pump ensures year-round comfort.
Q: Is it a full system?
A: Yes, it includes both indoor and outdoor units for complete installation.
Maintenance Tips
-
Clean or replace filters every 4–6 weeks to maintain airflow.
-
Inspect duct connections periodically for leaks or blockages.
-
Ensure condensate drain lines are clear to prevent water buildup.
-
Schedule professional servicing annually for peak efficiency.
