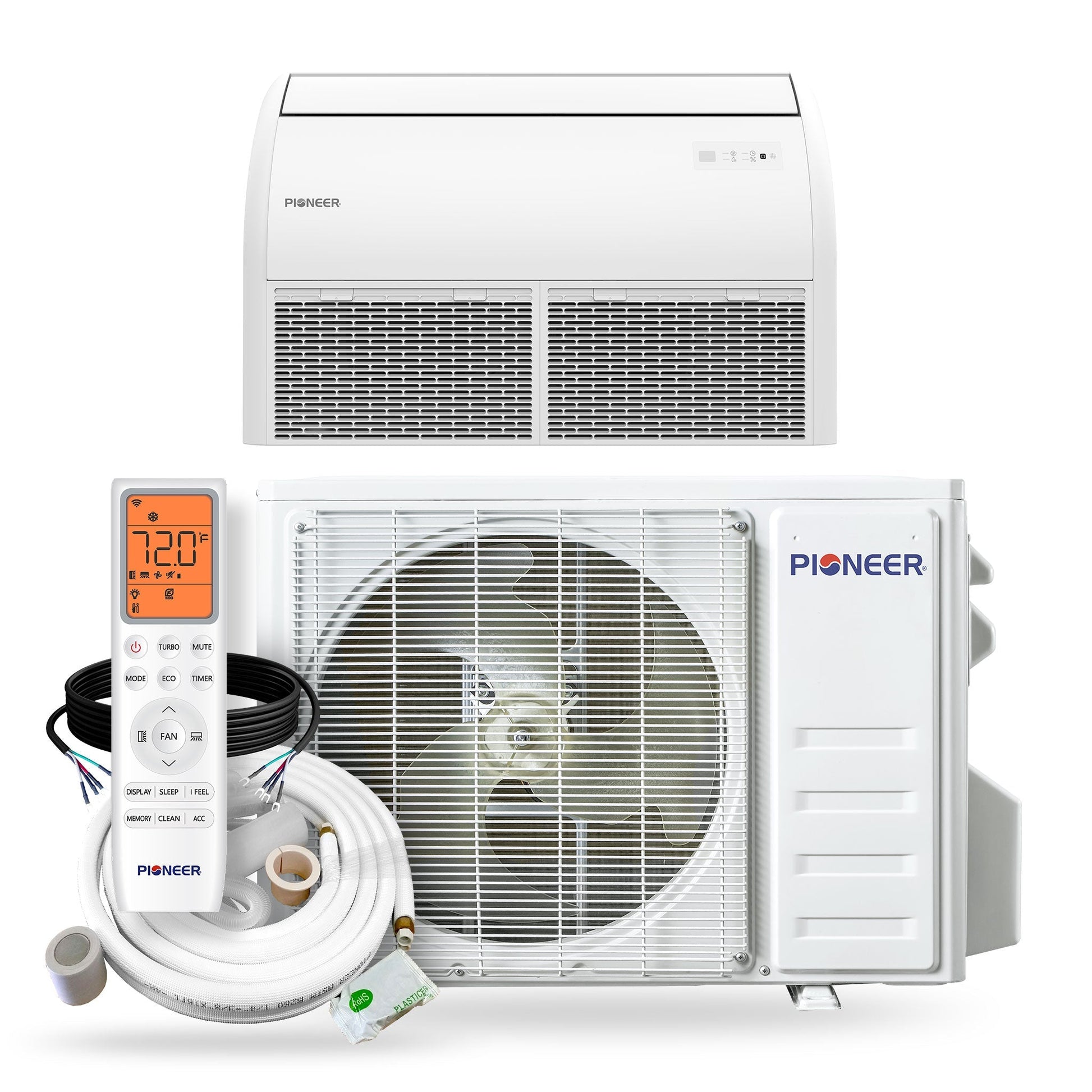

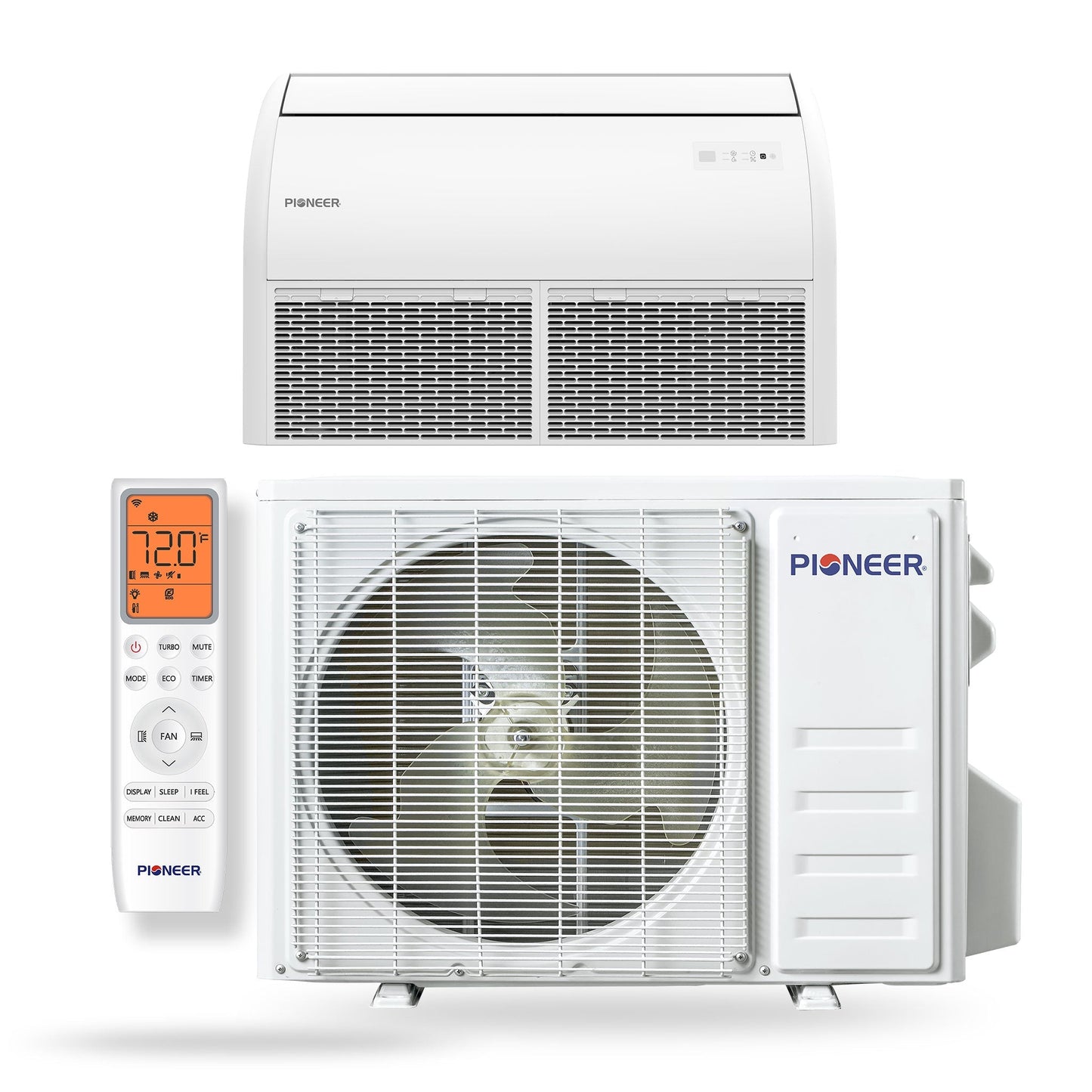

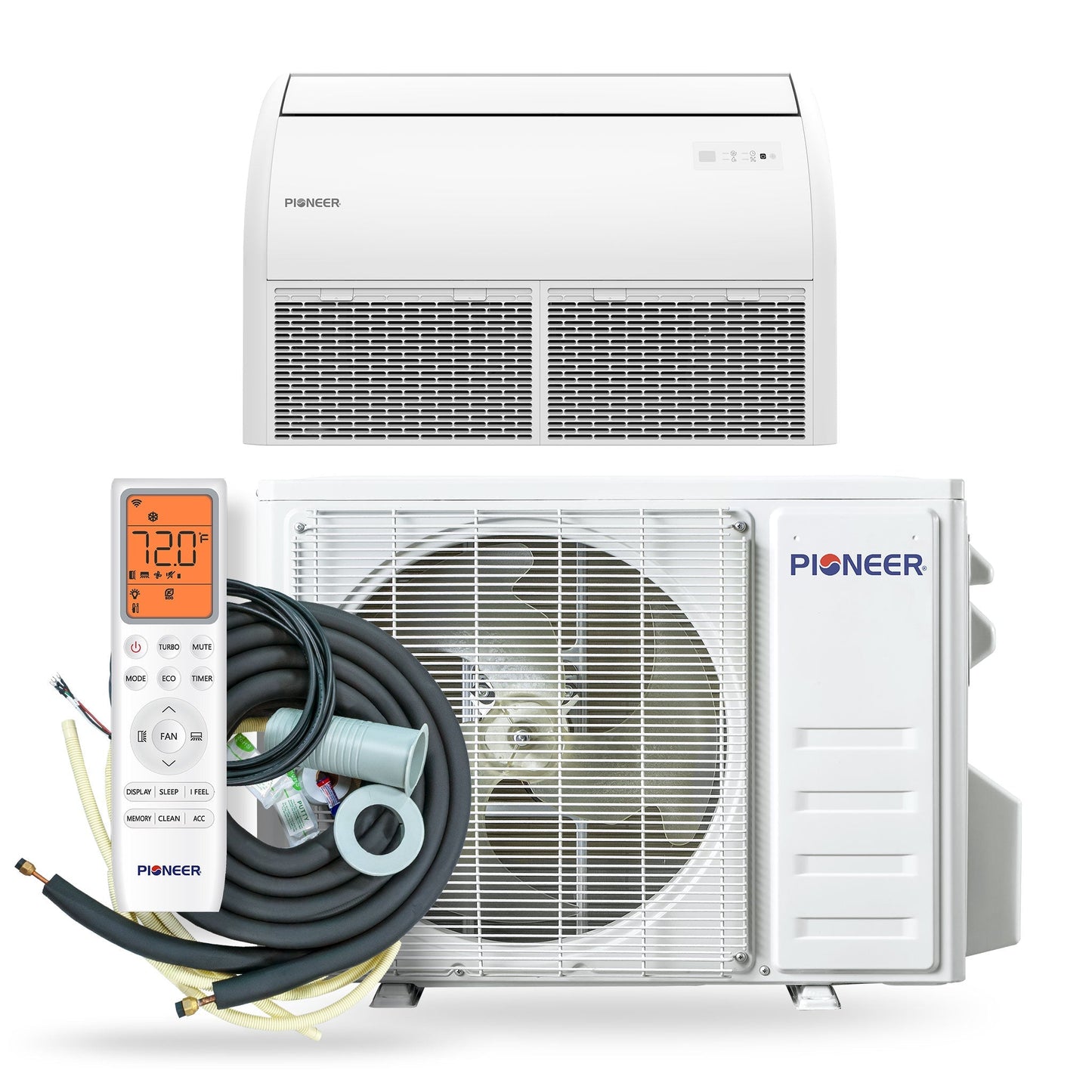

Pioneer Quantum Ultra 24,000 BTU 20 SEER2 230V Floor/Ceiling/Low-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set - UYT024GLSI24RL
- High Efficiency Quantum Ultra Floor/Ceiling/Low-Wall Ductless Split Heat Pump System
- Cooling capacity: 22,200 BTU/H with 20.0 SEER2 / 11.7 EER2 efficiency
- Heating capacity: 24,400 BTU/H with 9.5 HSPF2 / 3.0 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
-
Floor/Ceiling/Low-Wall Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
-
Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

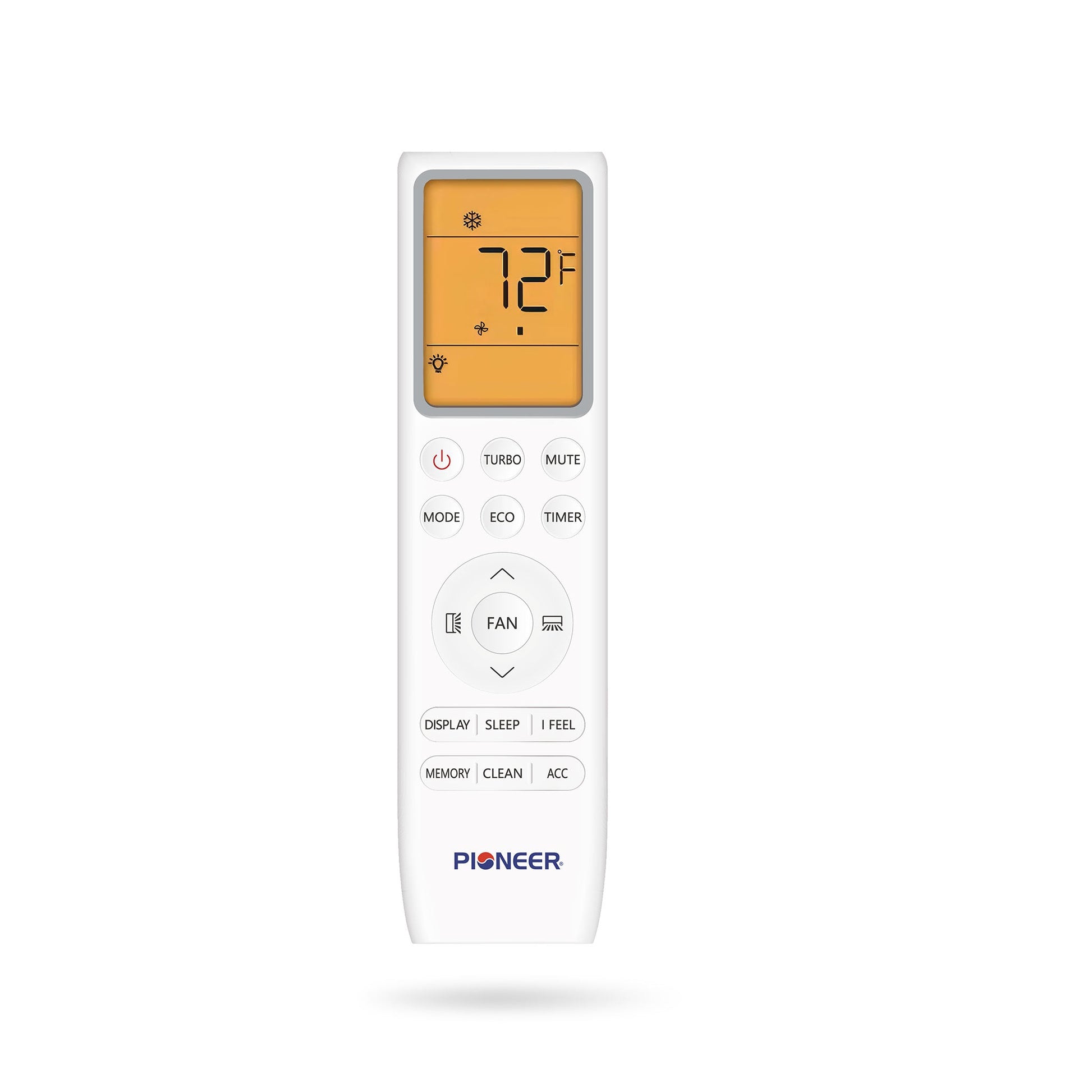

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Performance
-
System Kit
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Rated Capacity: 22,200 BTU/h
-
Cooling Capacity Range: 6,010~24,610 BTU/h
-
Cooling SEER2: 20.0 BTU/W.h
-
Cooling EER2: 11.7 BTU/W.h
-
Heating Rated Capacity: 24,400 BTU/h
-
Heating Capacity Range: 4,750~28,640 BTU/h
-
Heating HSPF2 (Region IV): 9.5 / 8.5 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.0 / 2.0 W/W
-
Refrigerant Type: R454b
-
Suitable Area: 750~1,000 Sq.F
-
AHRI Reference: 217048767
-

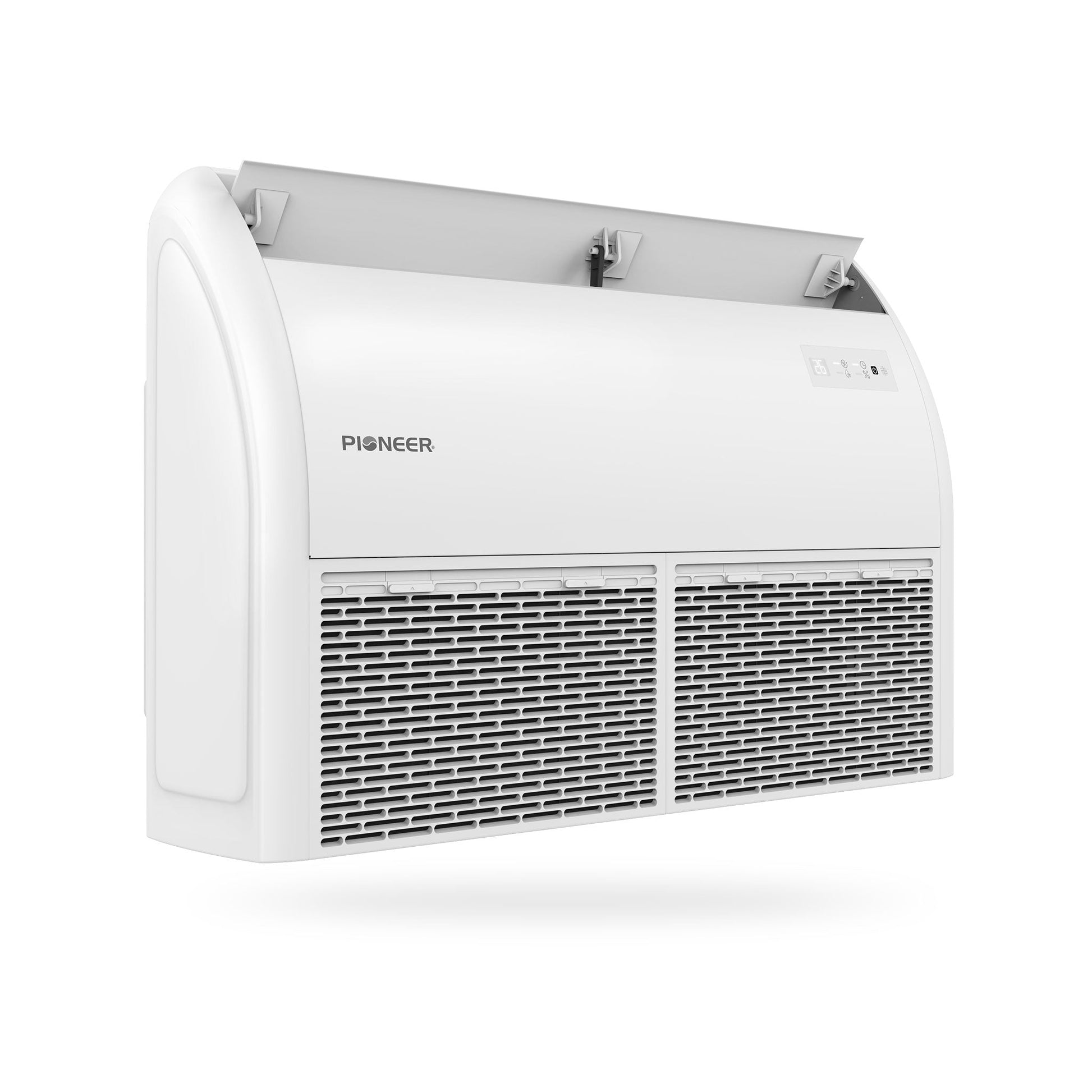

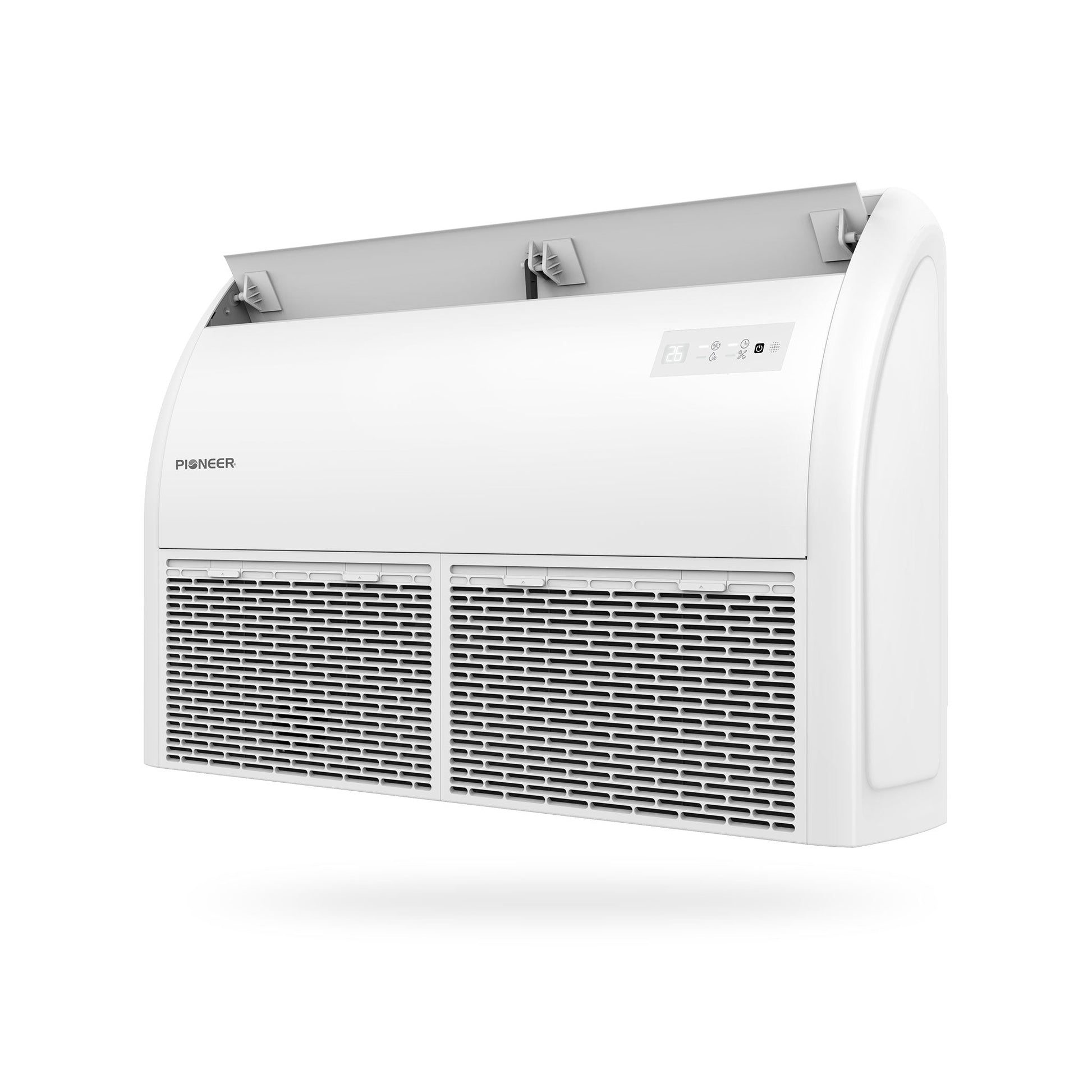

Indoor Unit
-
Part Number: UT024GLSILSFHG
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 647/588/517/470/412 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 53/52/48/44/40 dB(A)
-
Product Dimensions (WDH): 41"-1/2 x 26"-1/2 x 9"-1/4 Inches
-
Carton Dimensions (WDH): 44"-1/2 x 26"-1/2 x 12" Inches
-
Net / Gross Weight: 57.3 / 68.3 lbs.
-

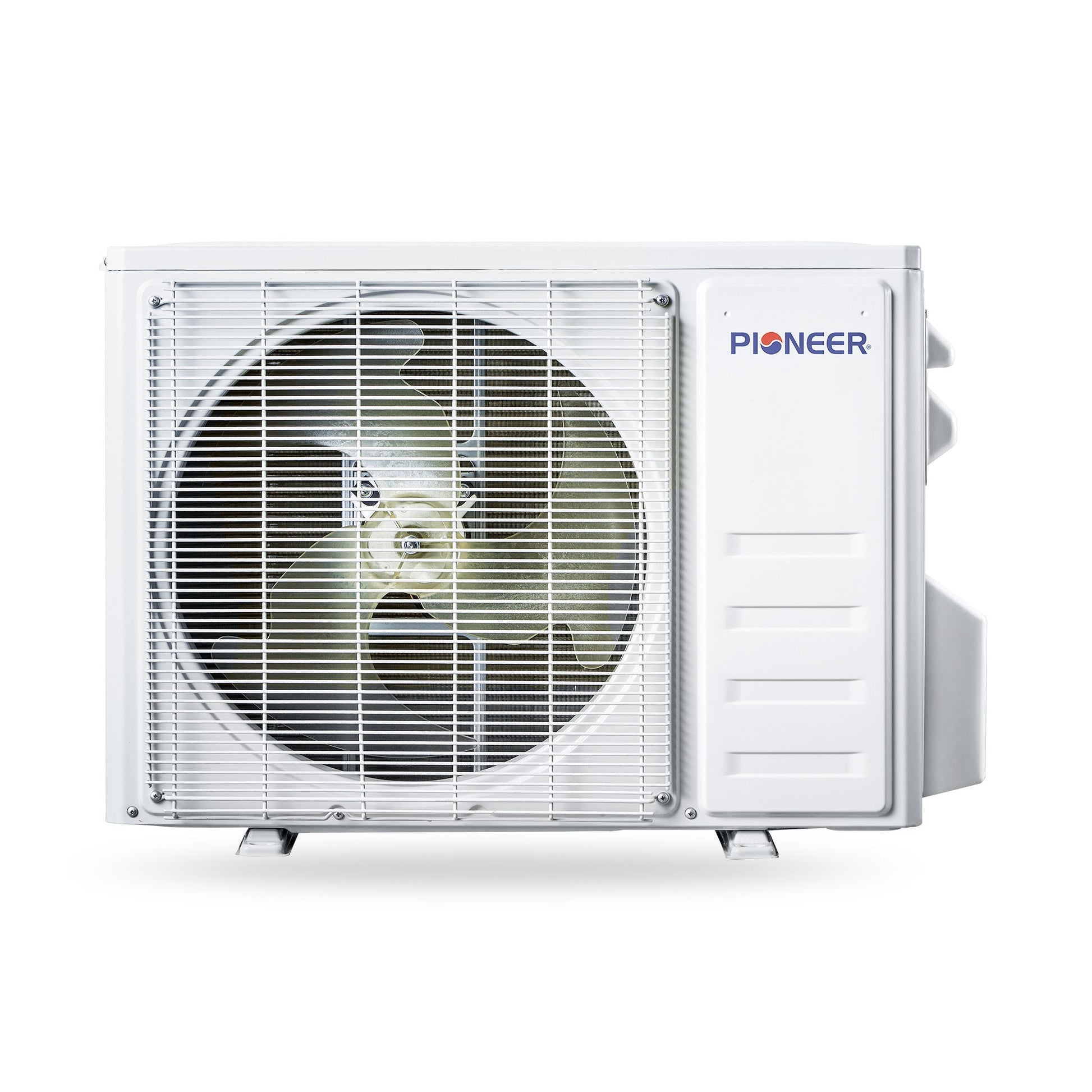

Outdoor Unit
-
Part Number: YN024GLSI24RPG
-
Breaker Needed: 20A (double-pole)
-
Sound Level: 54 dB(A)
-
Net Dimensions (WDH): 38"-1/2 x 16"-5/8 x 31"-5/8 Inches
-
Carton Dimensions (WDH): 40"-1/4 x 18"-7/8 x 31"-7/8 Inches
-
Net / Gross Weight: 104.7 / 119.0 lbs.
Dimension Chart
What Our Experts Think
-
24,000 BTU capacity suitable for large rooms, open-concept spaces, or small commercial areas.
-
20 SEER2 efficiency reduces energy costs while maintaining comfort.
-
Flexible floor, ceiling, or low-wall installation for versatile placement.
-
Inverter heat pump delivers reliable heating and cooling year-round.
-
Sleek ductless design saves wall space and blends seamlessly with interiors.
Q&A
Q: Is this a complete mini-split system?
A: Yes, it includes both indoor and outdoor units for full operation.
Q: Can it provide heating as well as cooling?
A: Yes, the inverter heat pump ensures year-round comfort.
Q: Where can it be installed?
A: Flexible installation options allow floor, ceiling, or low-wall placement.
Maintenance Tips
-
Clean or replace air filters every 4–6 weeks to maintain airflow.
-
Inspect installation area and vents monthly for dust or obstructions.
-
Keep outdoor condenser clear of debris for optimal performance.
-
Schedule annual professional servicing to maintain long-term efficiency.
