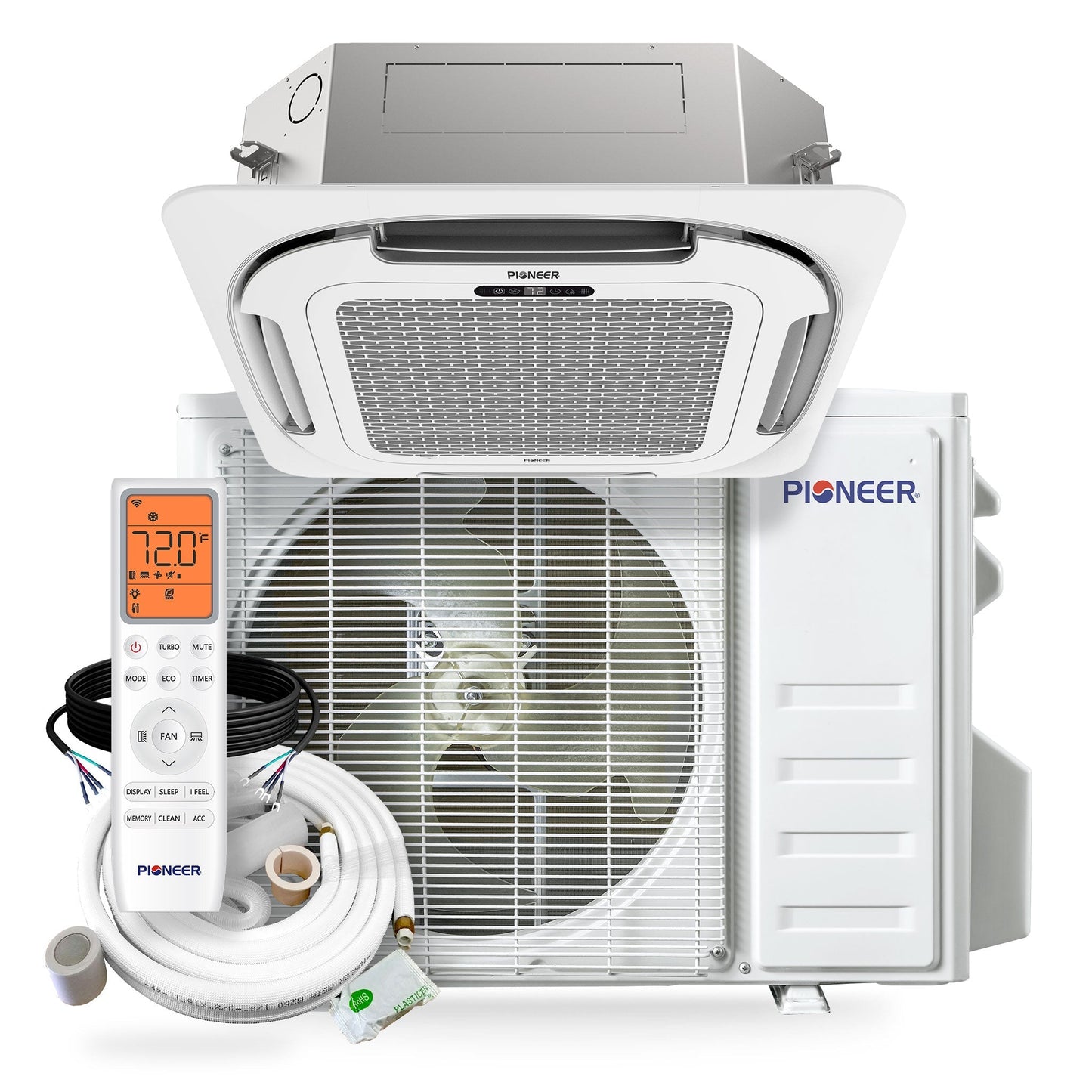

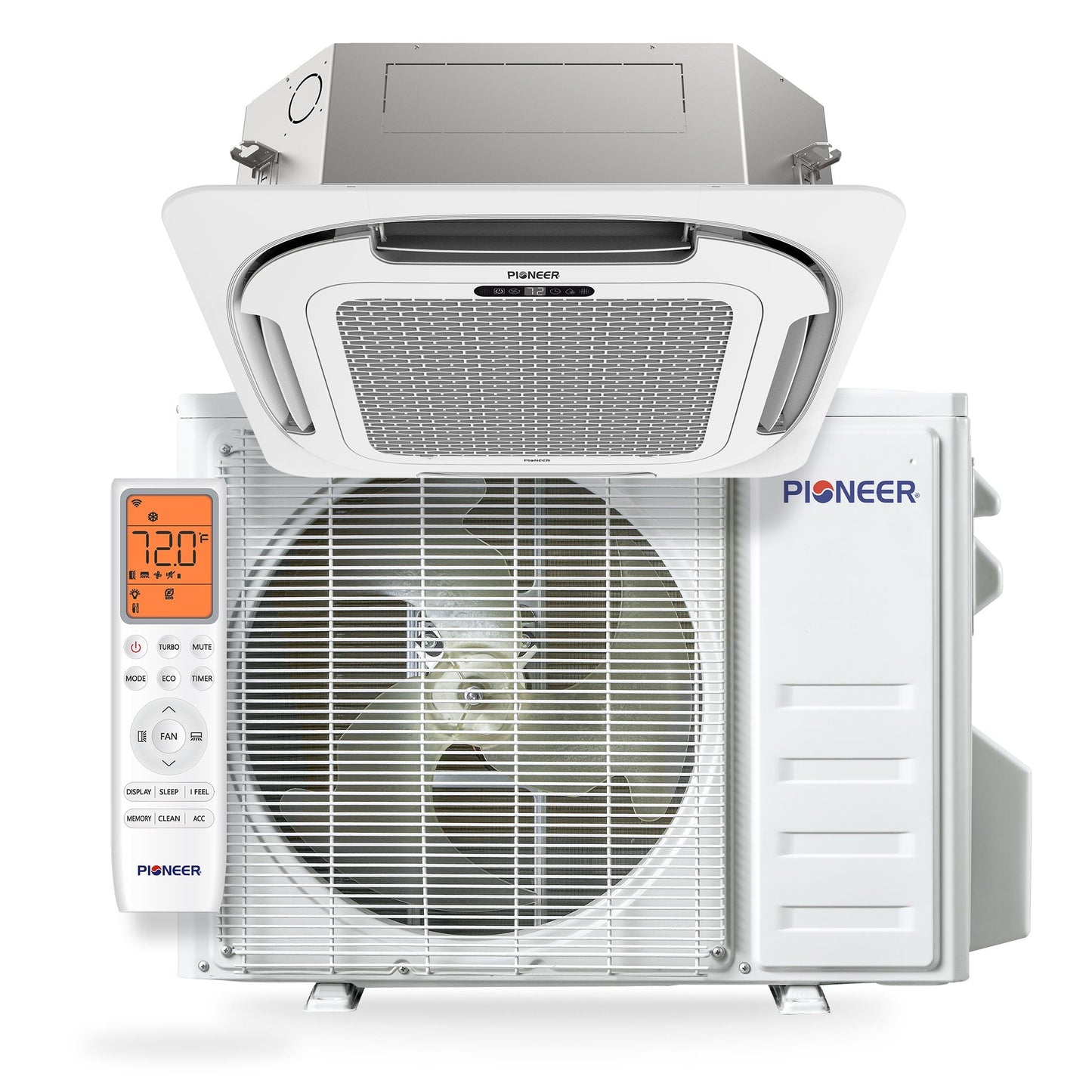

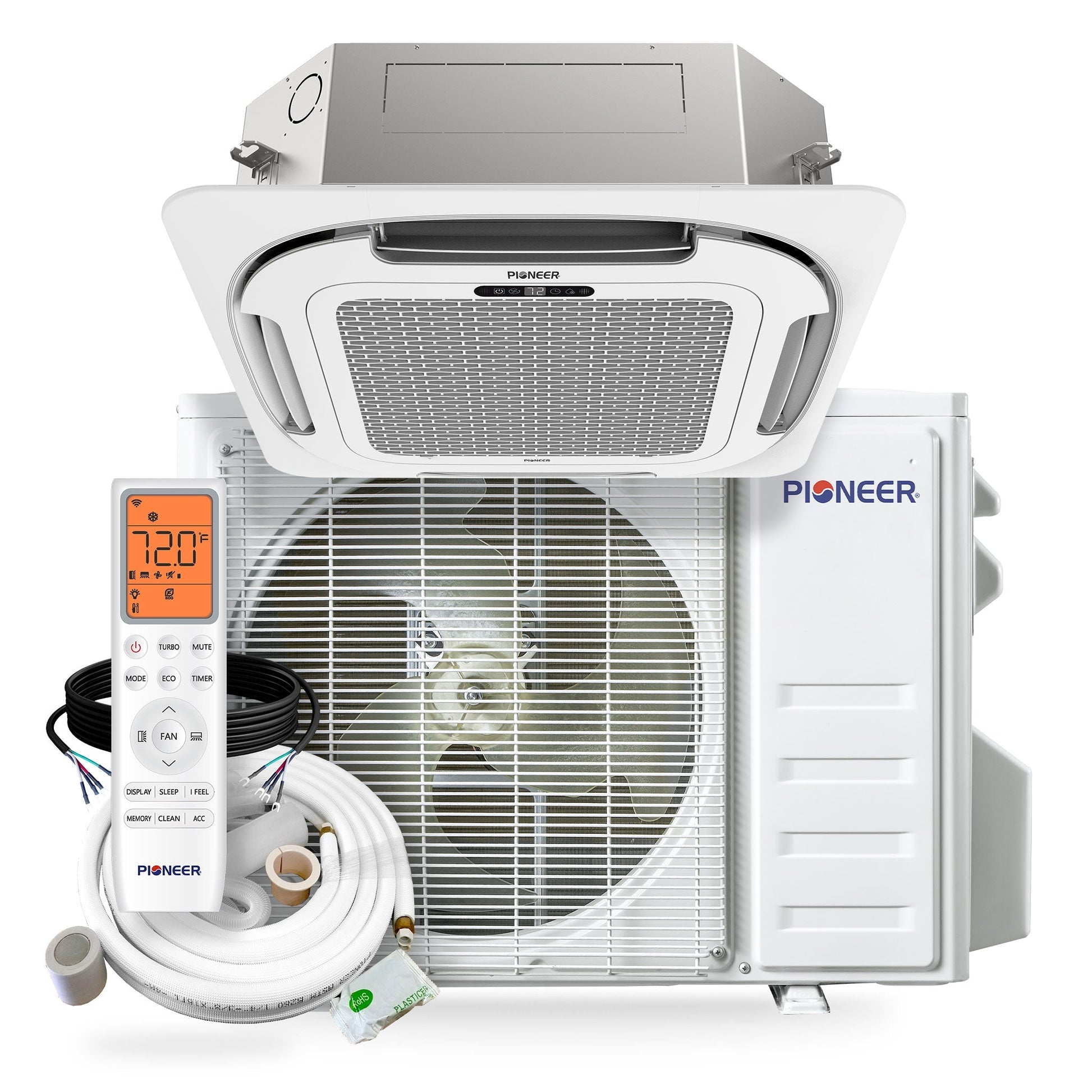

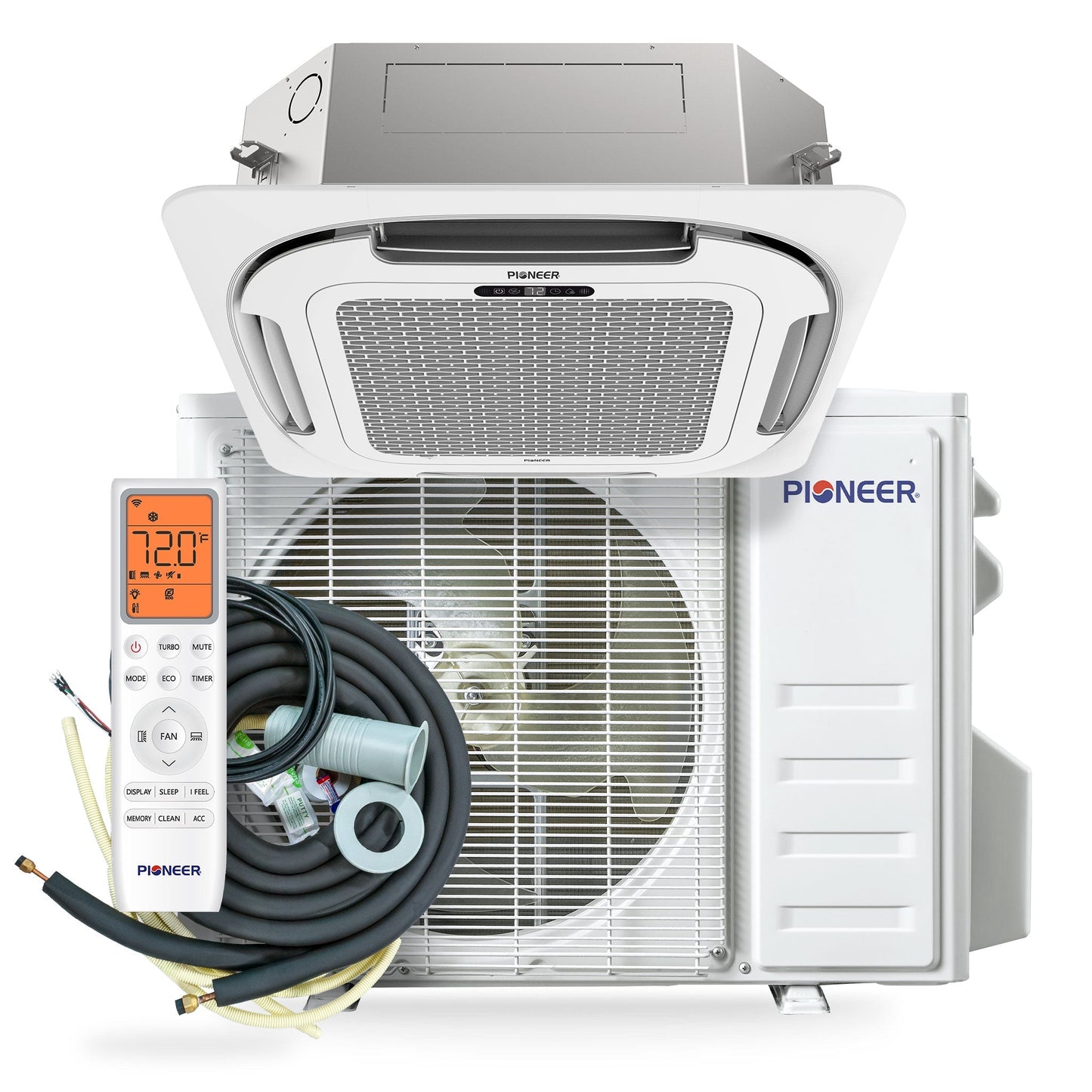

Pioneer Quantum Ultra 24,000 BTU 22.5 SEER2 230V Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set - CYT024GLSI24RL-10S
- High Efficiency Quantum Ultra Ceiling Cassette Split Heat Pump System
- Cooling capacity: 23,000 BTU/H with 22.5 SEER2 / 11.7 EER2 efficiency
- Heating capacity: 25,000 BTU/H with 10.4 HSPF2 / 3.6 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
-
Ceiling Cassette Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
-
Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

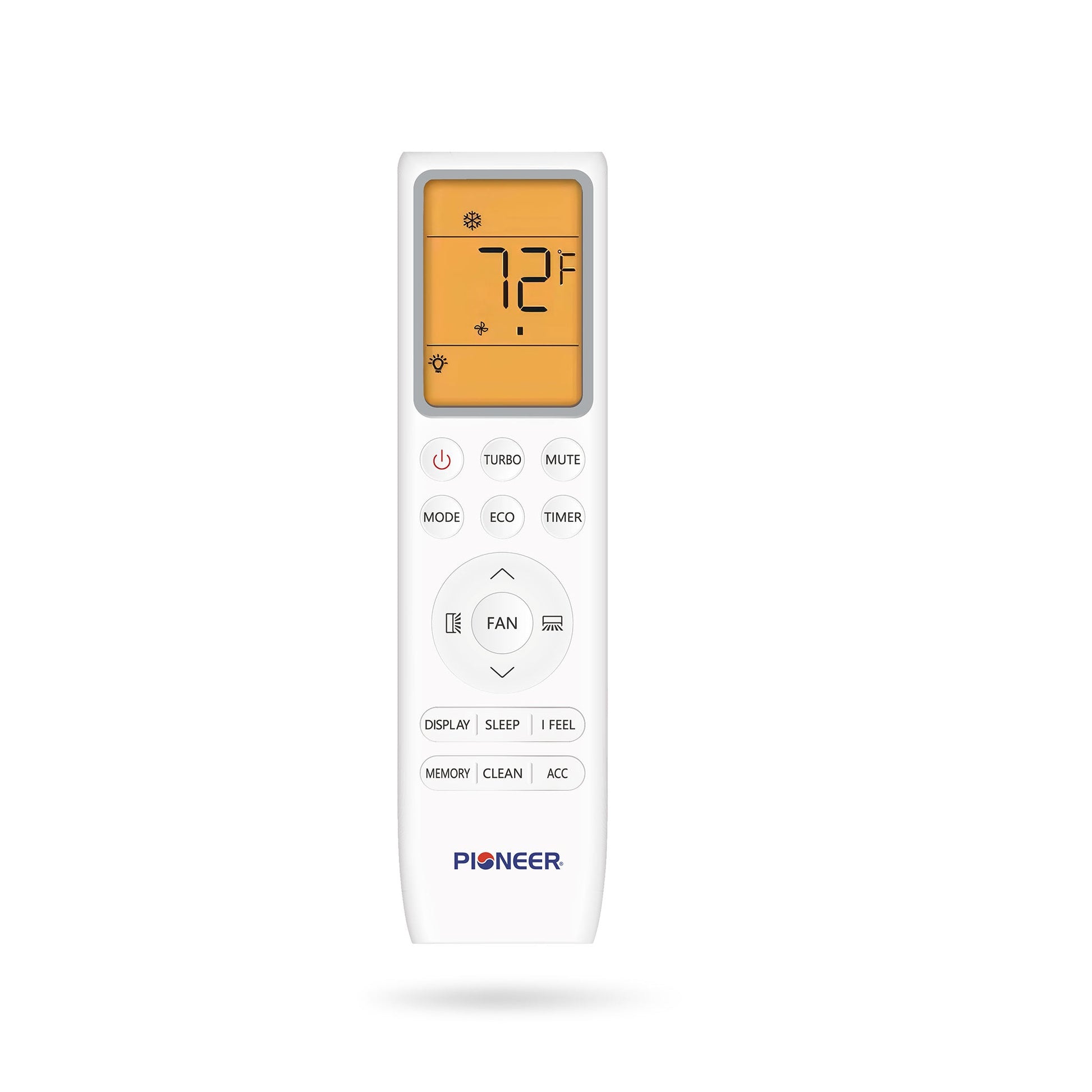

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Performance
-
System Kit
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Rated Capacity: 23,000 BTU/h
-
Cooling Capacity Range: 7,550~25,200 BTU/h
-
Cooling SEER2: 22.5 BTU/W.h
-
Cooling EER2: 11.7 BTU/W.h
-
Heating Rated Capacity: 25,000 BTU/h
-
Heating Capacity Range: 8,700~28,300 BTU/h
-
Heating HSPF2 (Region IV): 10.4 / 8.4 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.6 / 2.0 W/W
-
Refrigerant Type: R454b
-
Suitable Area: 750~1,000 Sq.F
-
AHRI Reference: 217048761
-

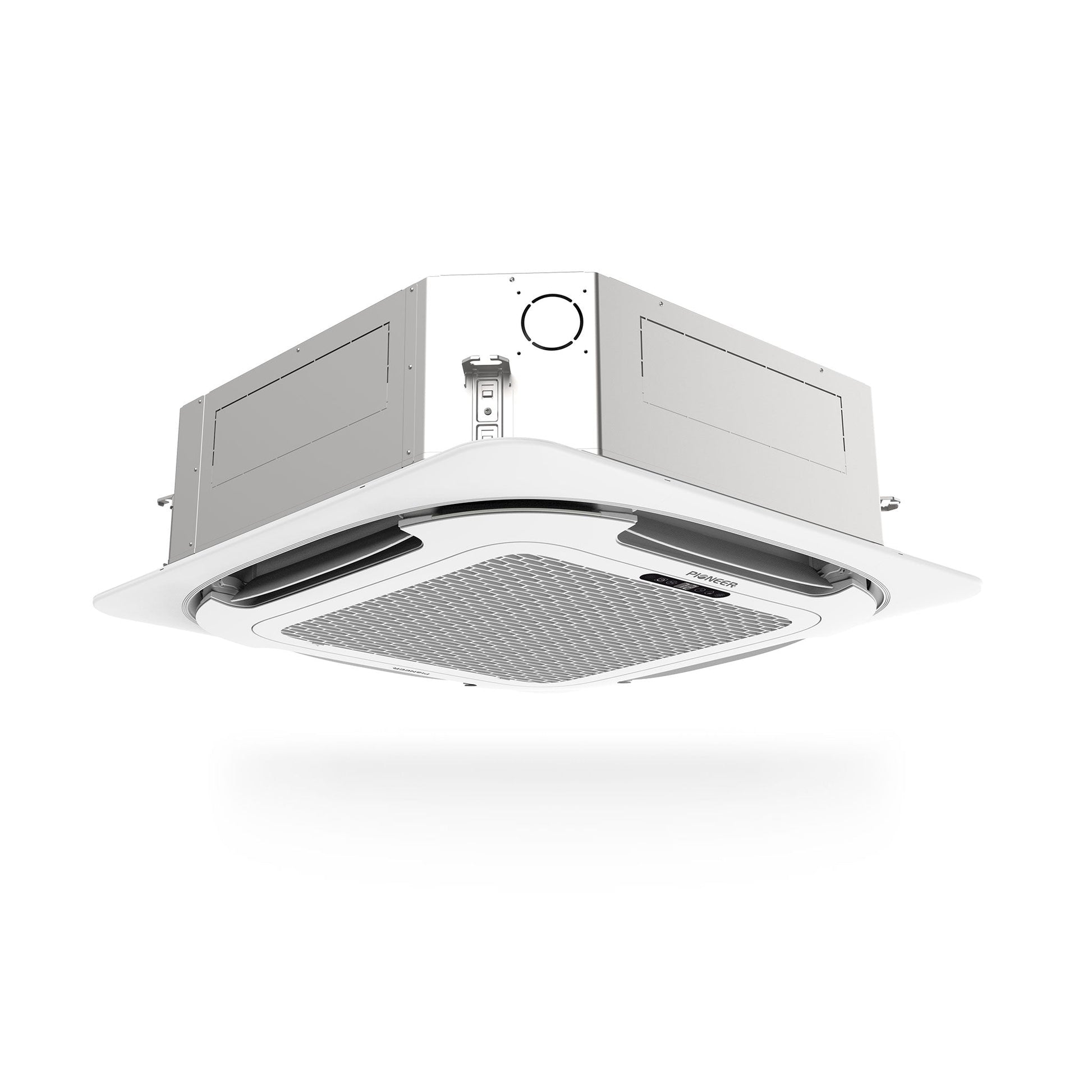

Indoor Unit
-
Part Number: CT024GLSILSFHG
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 735/676/529/423/394 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 50/47/43/38/34 dB(A)
-
Product Dimensions (WDH): 33"-1/8 x 33"-3/4 x 10"-3/4 Inches
-
Carton Dimensions (WDH): 36"-7/8 x 36"-7/8 x 11"-1/2 Inches
-
Net / Gross Weight: 51.8 / 59.5 lbs
-

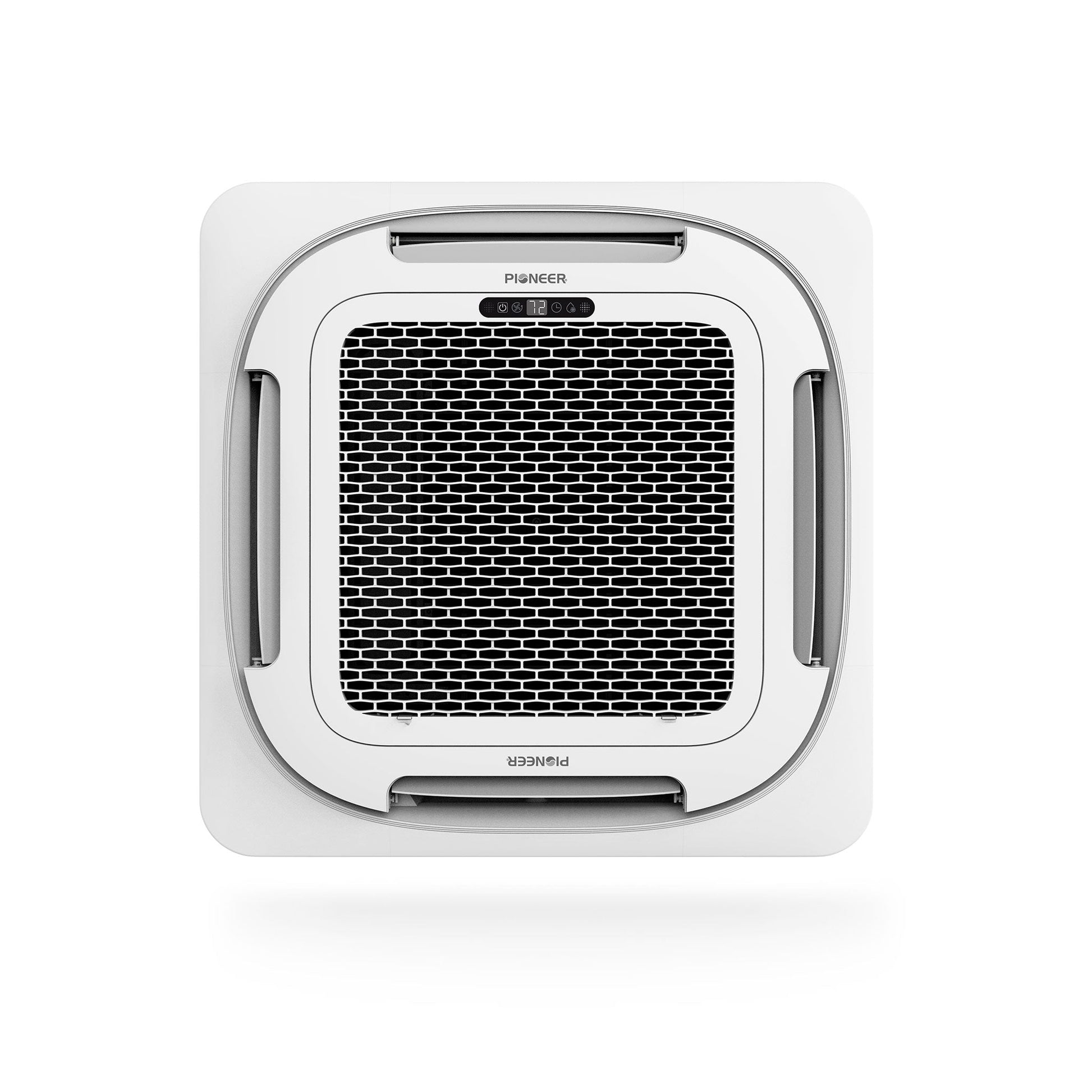

Decorative Panel
-
Part Number: CT2460DPNL
-
Product Dimensions (WDH): 37-3/8" x 37-3/8" x 2-7/8"
-
Carton Dimensions (WDH): 41-1/2" x 41-1/2" x 3"-1/2
-
Net / Gross Weight: 13.2 / 19.8 lbs
-

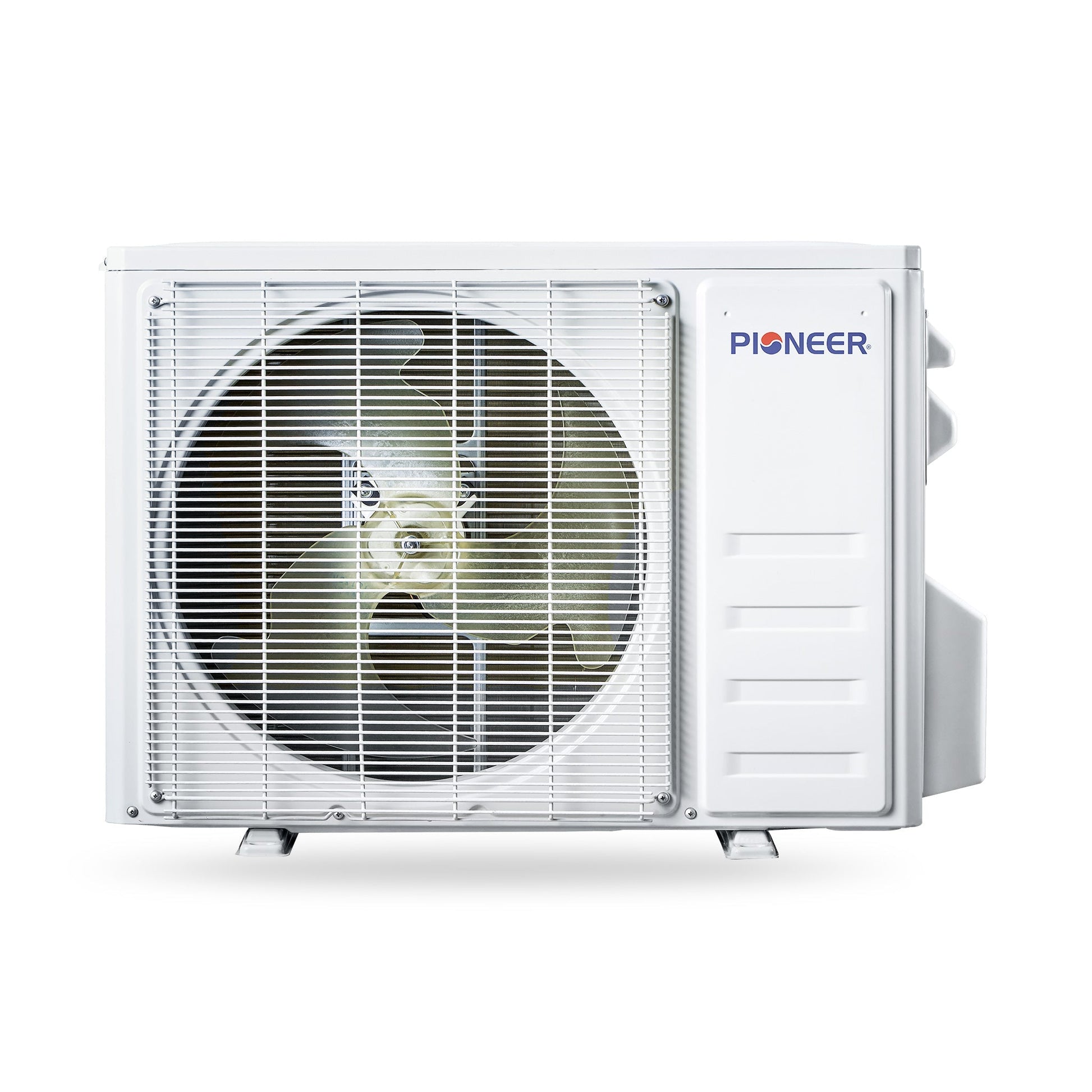

Outdoor Unit
-
Part Number: YN024GLSI24RPG
-
Breaker Needed: 20A (double-pole)
-
Sound Level: 54 dB(A)
-
Net Dimensions (WDH): 38"-1/2 x 16"-5/8 x 31"-5/8 Inches
-
Carton Dimensions (WDH): 40"-1/4 x 18"-7/8 x 31"-7/8 Inches
-
Net / Gross Weight: 104.7 / 119.0 lbs.
Dimension Chart
What Our Experts Think
-
24,000 BTU capacity ideal for large rooms or open spaces.
-
22.5 SEER2 efficiency delivers energy savings and high performance.
-
Ceiling cassette design provides 4-way airflow for even temperature distribution.
-
Inverter heat pump ensures reliable heating and cooling year-round.
-

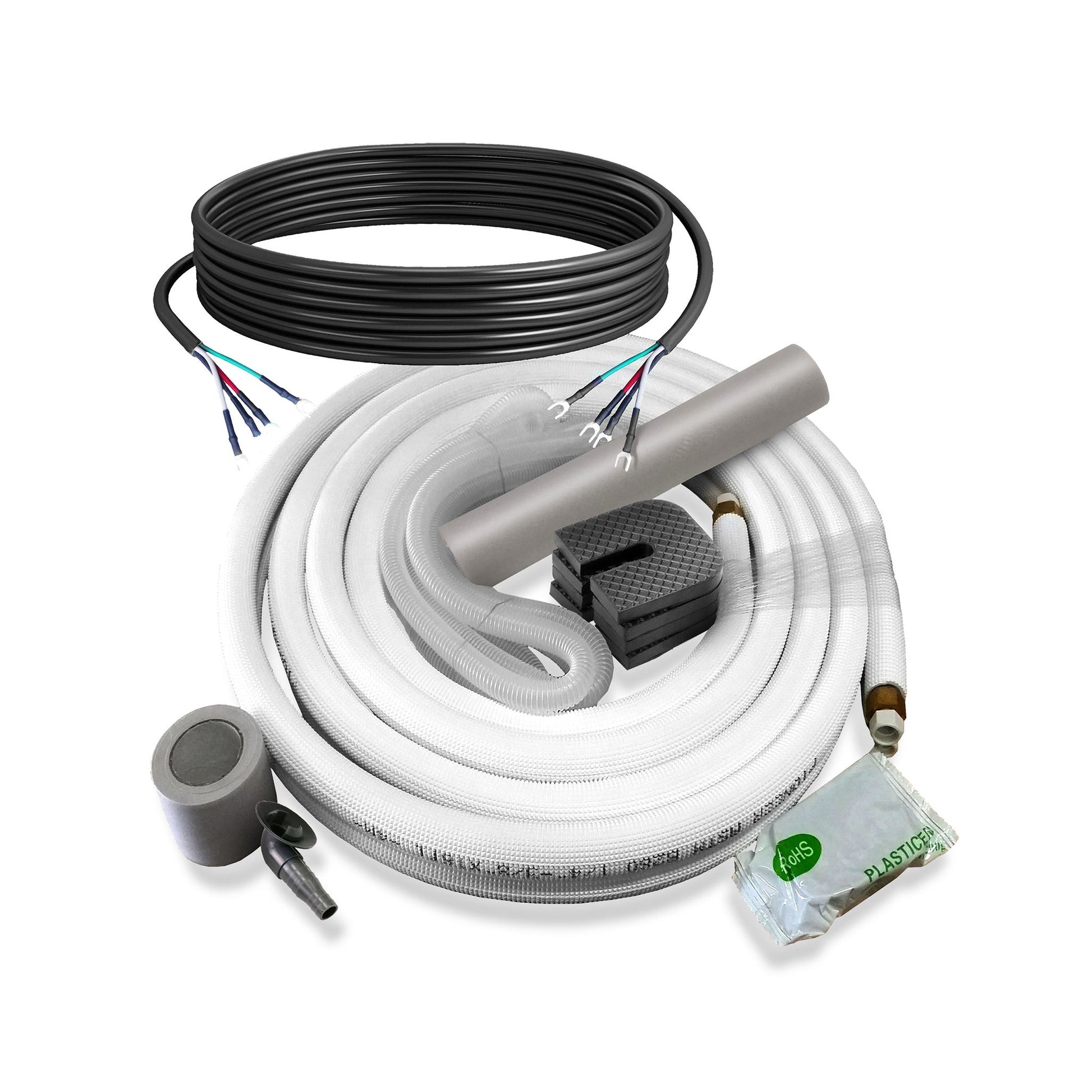

Full set includes indoor and outdoor units for straightforward installation.
Q&A
Q: What room size is suitable for this system?
A: Recommended for spaces up to 1,200 sq. ft., depending on insulation.
Q: Does it provide both heating and cooling?
A: Yes, the inverter heat pump provides year-round comfort.
Q: Can it be ceiling-mounted?
A: Yes, the ceiling cassette design is specifically for ceiling installations.
Maintenance Tips
-
Clean air filters monthly to maintain airflow and efficiency.
-
Ensure ceiling vents are free of dust and debris.
-
Keep the outdoor condenser area clear for optimal performance.
-
Schedule annual professional servicing to maintain long-term reliability.
