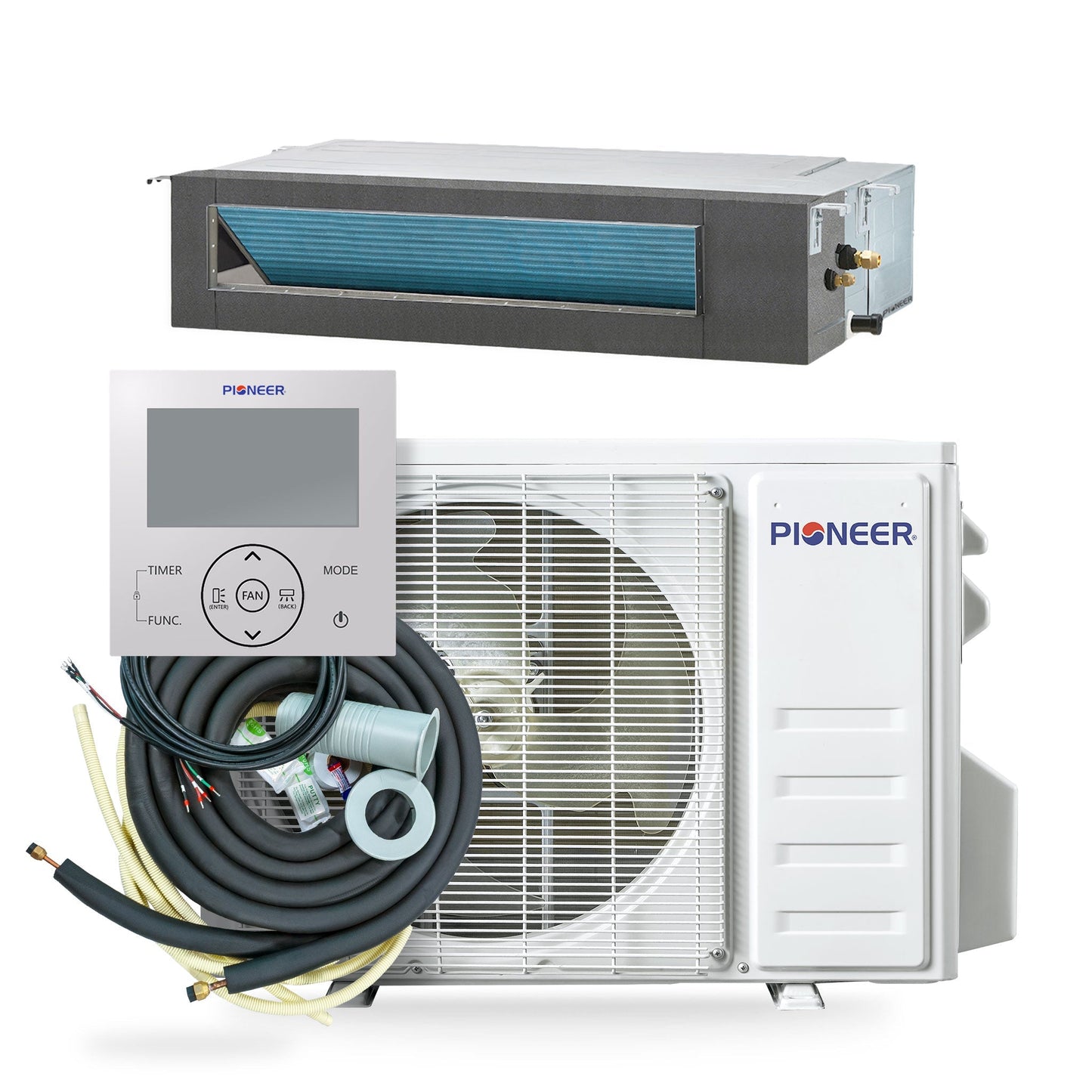

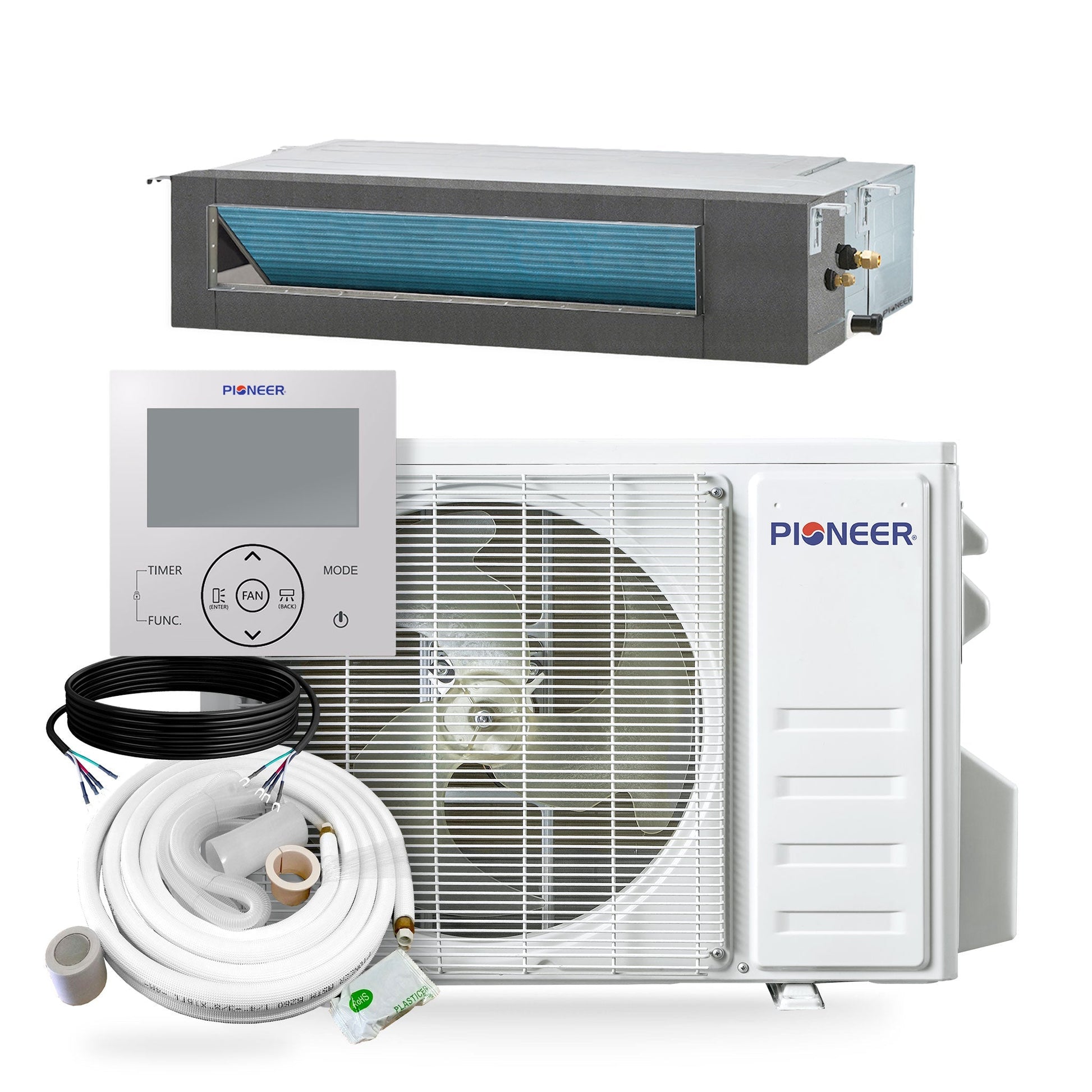

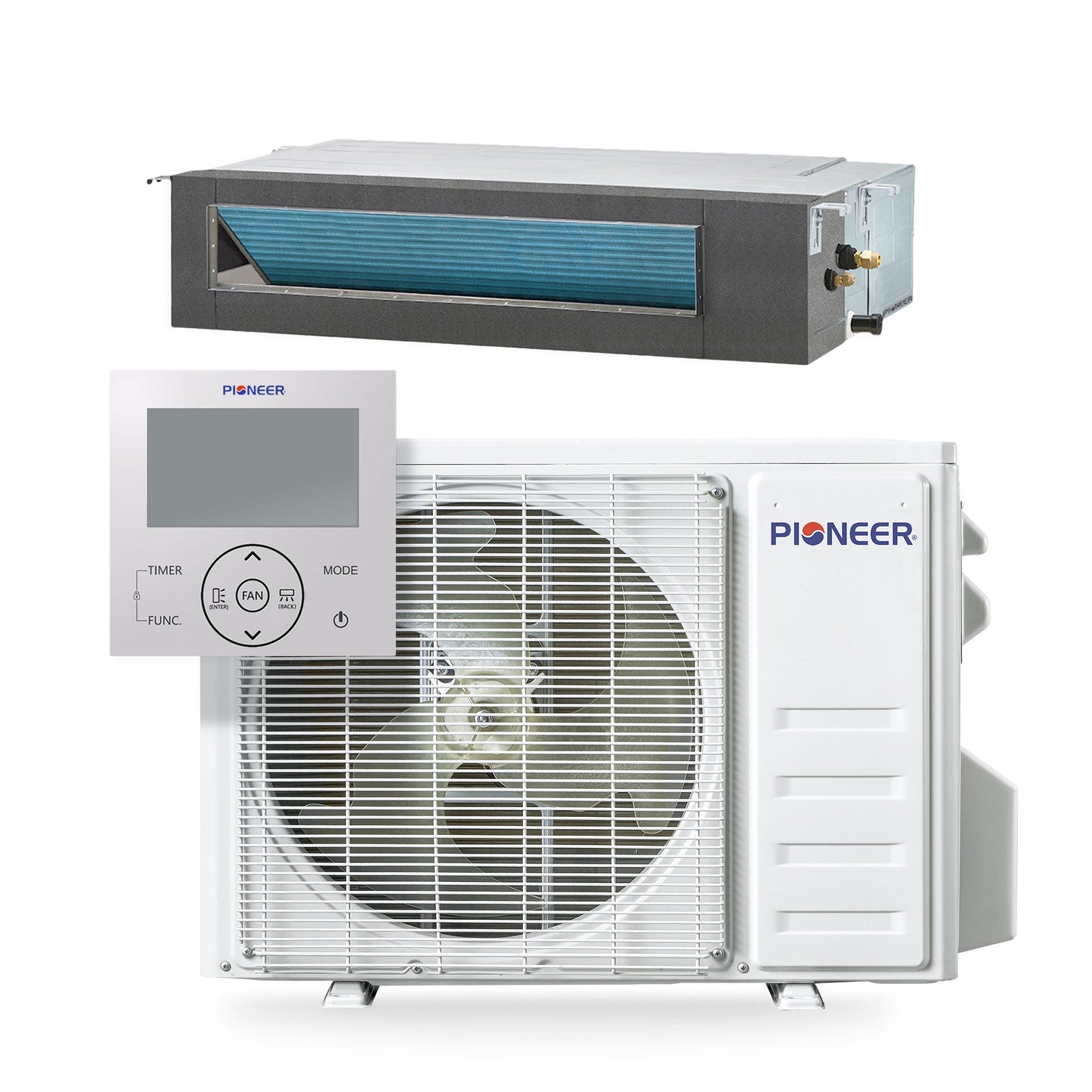

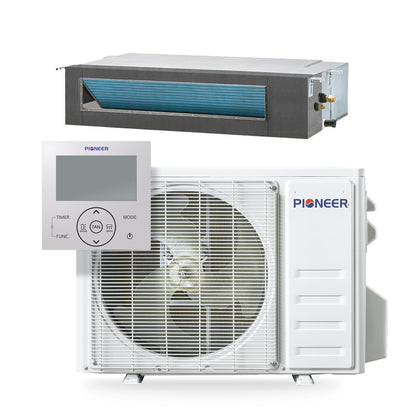

Pioneer Quantum Ultra 9,000 BTU 20.5 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set - RYT009GLSI24RL
- High Efficiency Quantum Ultra Ceiling Concealed Ducted Split Heat Pump System
- Cooling capacity: 9,500 BTU/H with 20.5 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 9,500 BTU/H with 9.5 HSPF2 / 3.5 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
-
Ceiling Concealed Mounted Ducted Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
-
Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

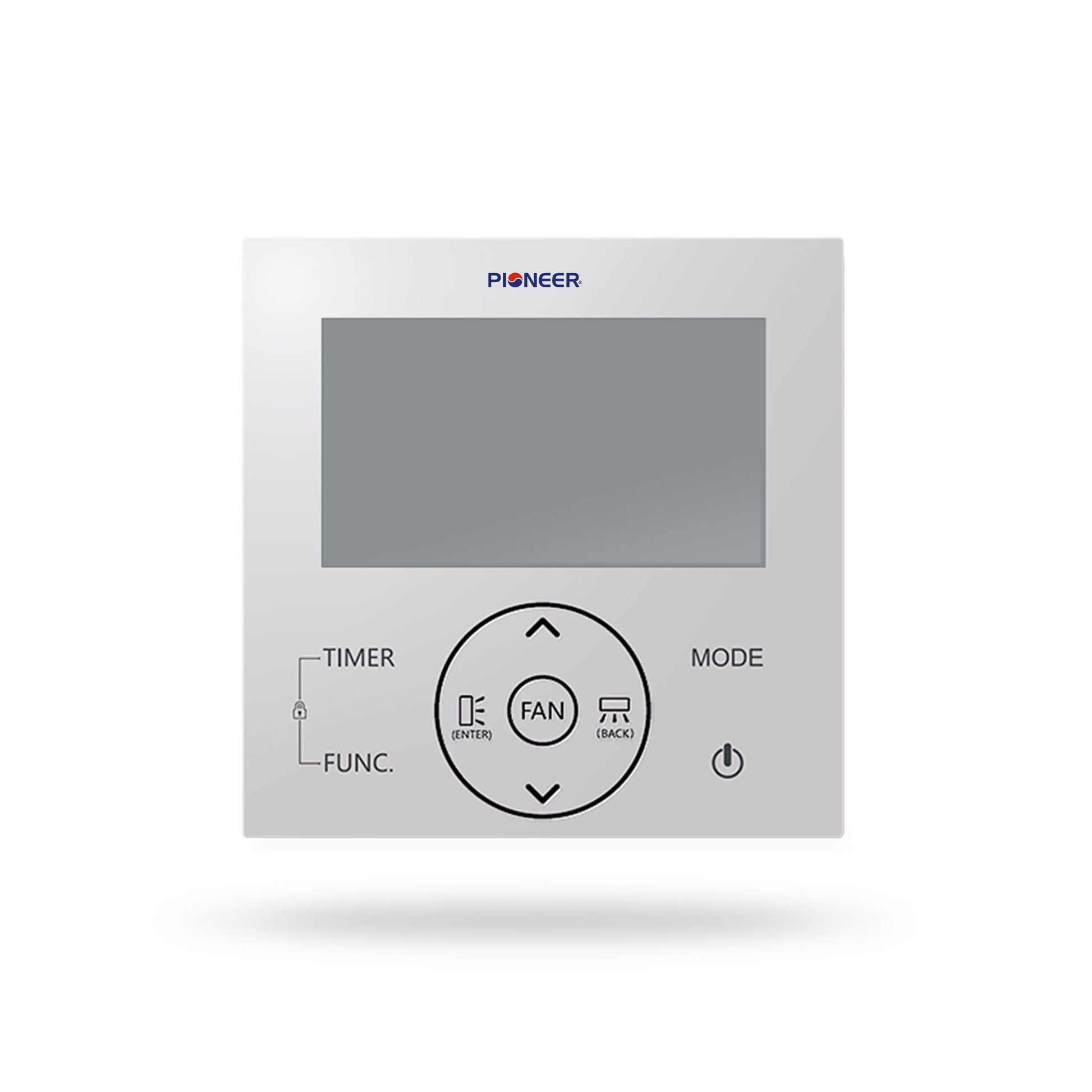

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Performance
-
System Kit
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Rated Capacity: 9,500 BTU/h
-
Cooling Capacity Range: 2,000~10,400 BTU/h
-
Cooling SEER2: 20.5 BTU/W.h
-
Cooling EER2: 12.5 BTU/W.h
-
Heating Rated Capacity: 9,500 BTU/h
-
Heating Capacity Range: 2,500~12,300 BTU/h
-
Heating HSPF2 (Region IV): 9.5 / 8.5 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.5 / 1.9 W/W
-
Refrigerant Type: R454b
-
Suitable Area: 250~350 Sq.F
-
AHRI Reference: 217048762
-
Indoor Unit
-
Part Number: RT009GLSILCFHG
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 335/305/276/182/182 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 43/41/39 dB(A)
-
Product Dimensions (WDH): 27"-1/2 x 19"-1/4 x 7"-7/8 Inches
-
Carton Dimensions (WDH): 35"-1/2 x 21"-7/8 x 9"-7/8 Inches
-
Net / Gross Weight: 33.1 / 40.8 lbs.
-

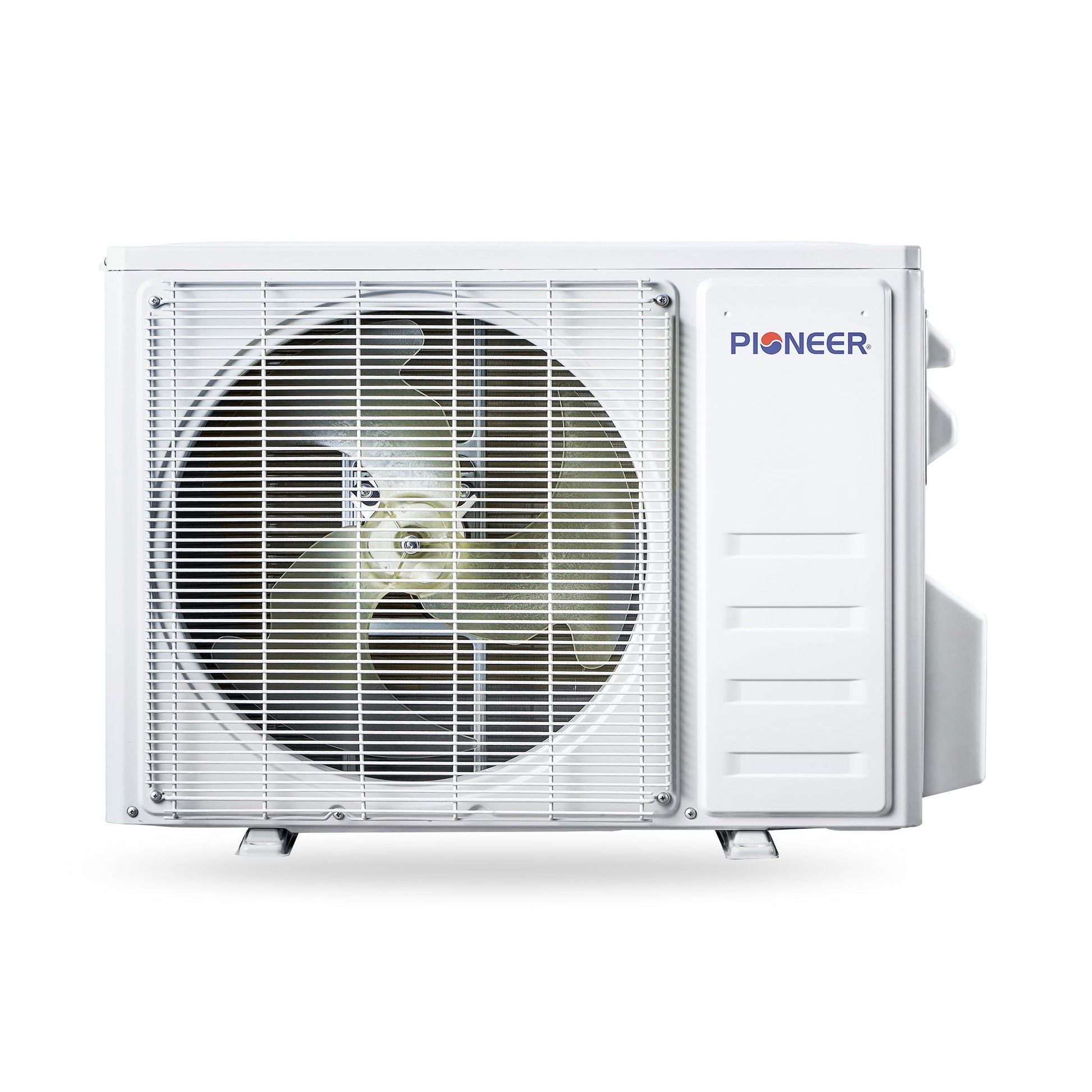

Outdoor Unit
-
Part Number: YN009GLSI24RPG
-
Breaker Needed: 15A (double-pole)
-
Sound Level: 50 dB(A)
-
Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
-
Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches
-
Net / Gross Weight: 52.7 / 57.1 lbs.
Dimension Chart
What Our Experts Think
-
9,000 BTU ceiling concealed ducted system ideal for small to medium rooms.
-
20.5 SEER2 rating ensures energy-efficient heating and cooling.
-
Inverter heat pump delivers reliable year-round comfort.
-
Concealed, ducted design keeps units out of sight while providing even airflow.
-

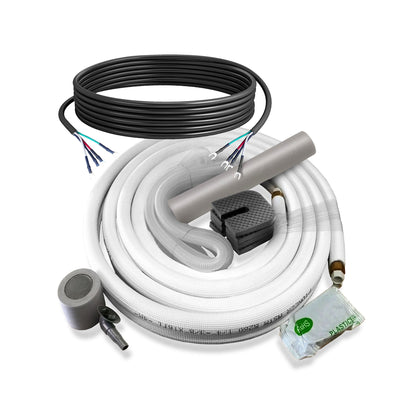

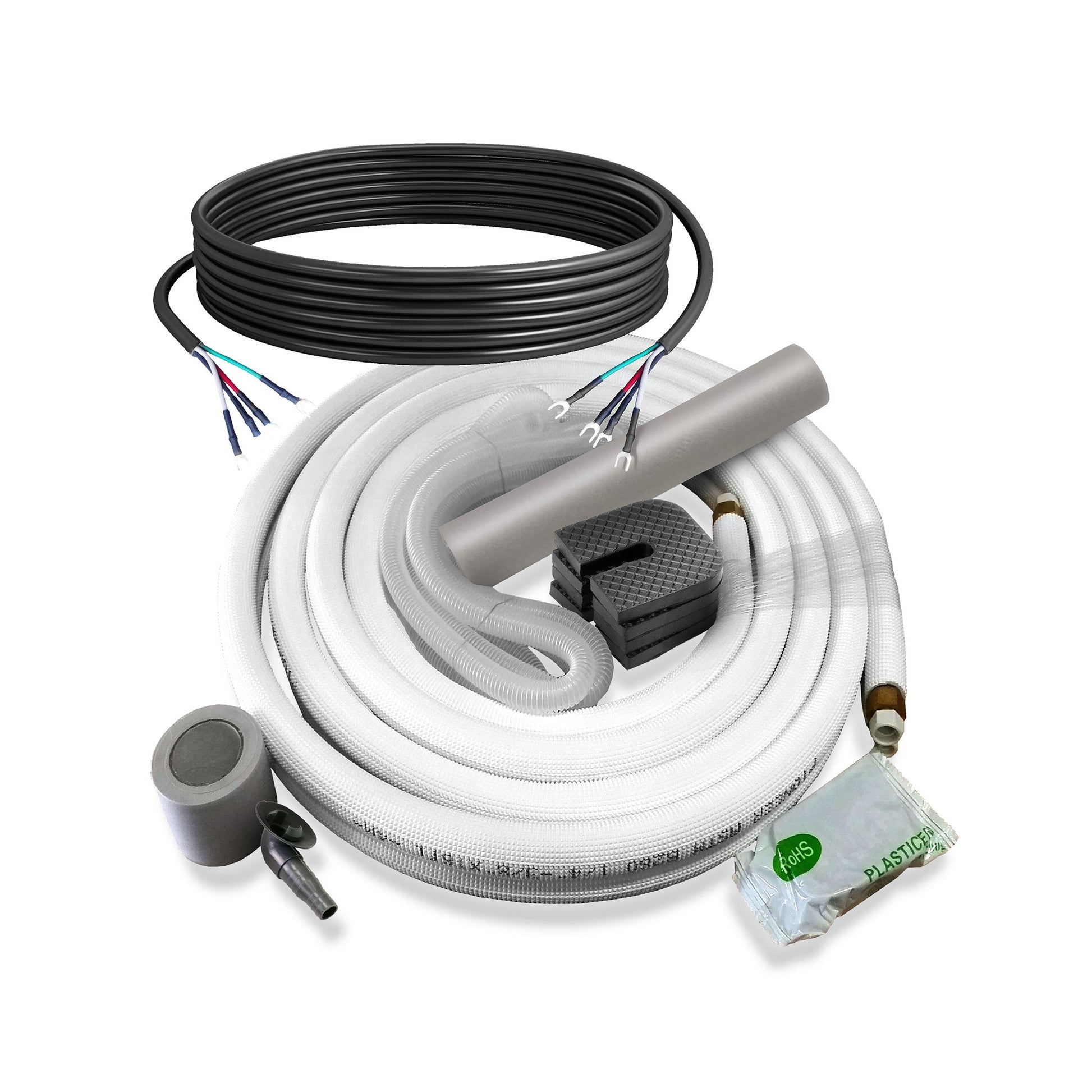

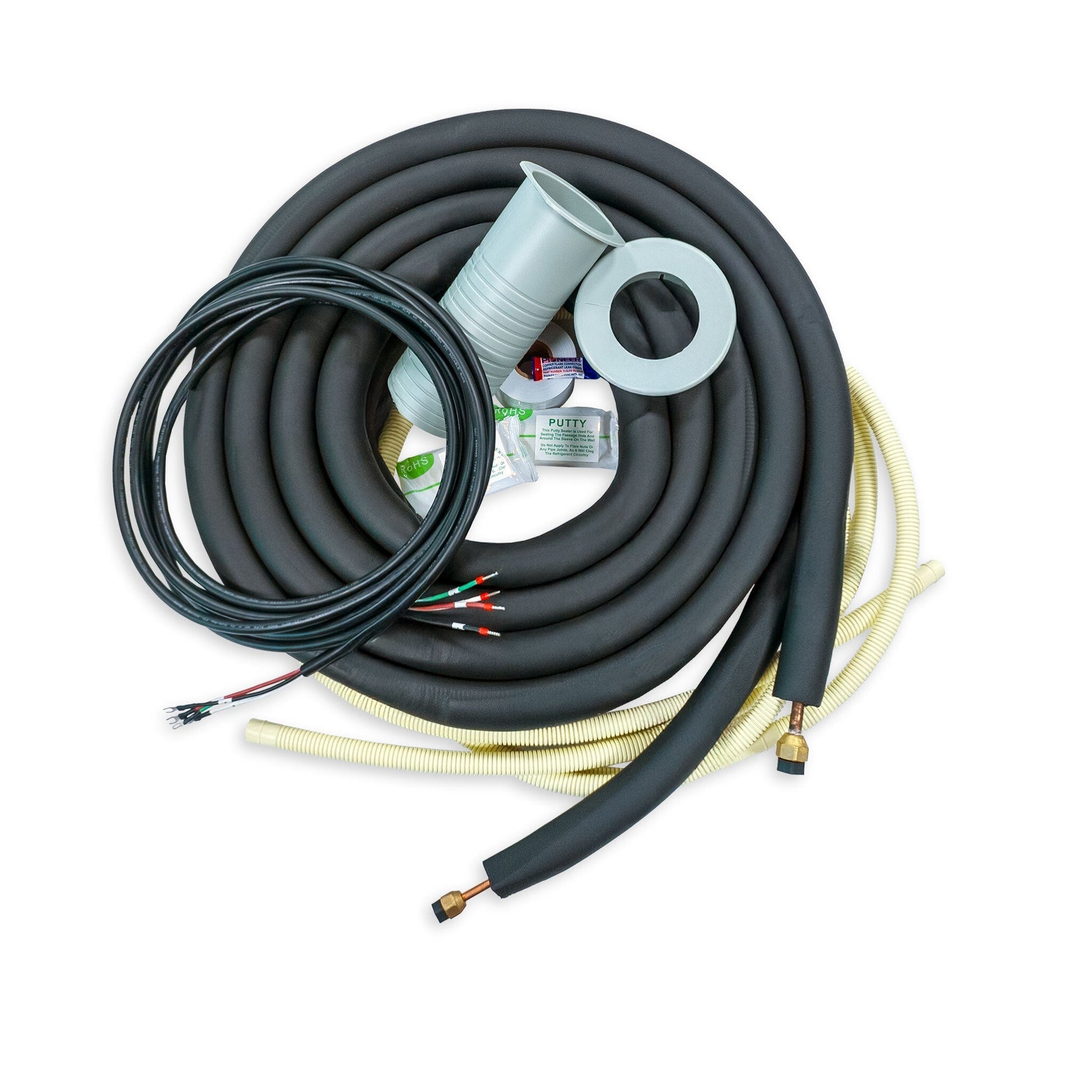

Full set includes indoor and outdoor units with installation kit for straightforward setup.
Q&A
Q: What room size is this system suitable for?
A: Perfect for areas up to ~400–500 sq. ft., depending on insulation.
Q: Does it provide both heating and cooling?
A: Yes, the inverter heat pump ensures year-round comfort.
Q: Is installation hardware included?
A: Yes, the full set comes with a complete installation kit.
Maintenance Tips
-
Clean air filters every 4–6 weeks for optimal performance.
-
Inspect ducted pathways regularly to prevent airflow obstruction.
-
Keep outdoor condenser clear of debris to maintain efficiency.
-
Schedule annual professional servicing for long-term reliability.
