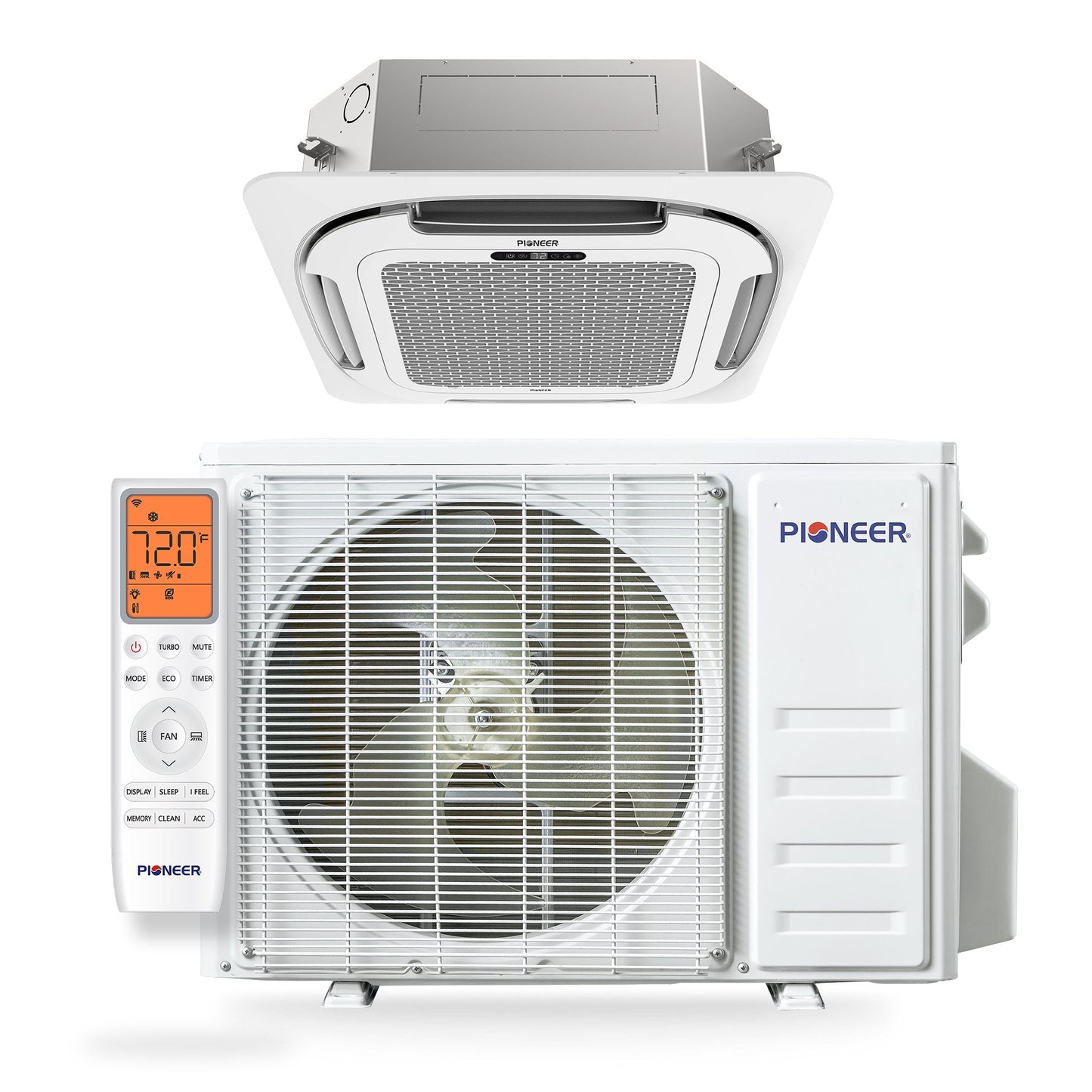

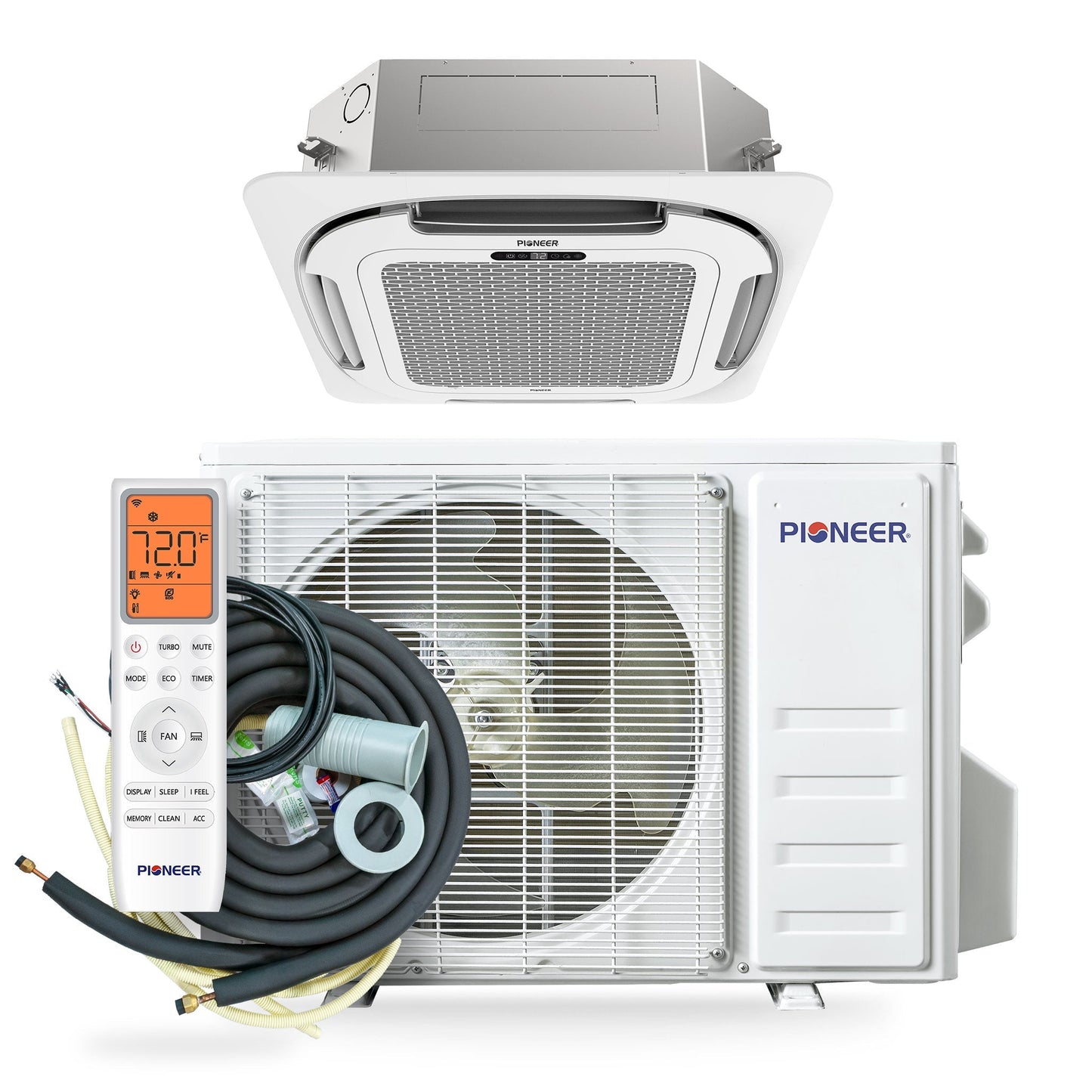

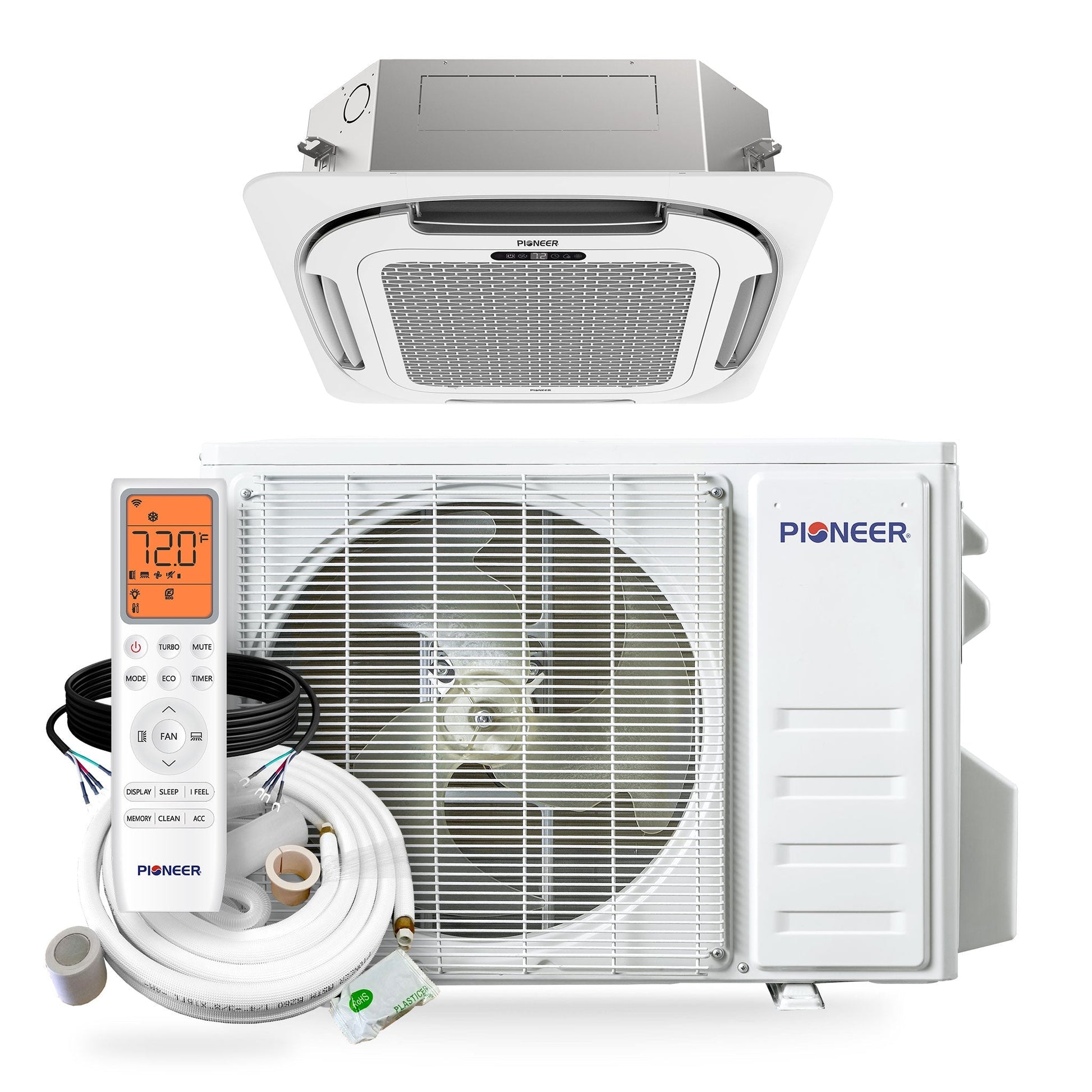

Pioneer Quantum Ultra 9,000 BTU 23 SEER2 230V Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set - CYT009GLSI24RL

Pioneer Quantum Ultra 9,000 BTU 23 SEER2 230V Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set - CYT009GLSI24RL

• High Efficiency Quantum Ultra Ceiling Cassette Split Heat Pump System
• Cooling capacity: 9,500 BTU/H with 23 SEER2 / 12.5 EER2 efficiency
• Heating capacity: 9,500 BTU/H with 10.0 HSPF2 / 4.0 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Ceiling Cassette Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant

• Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

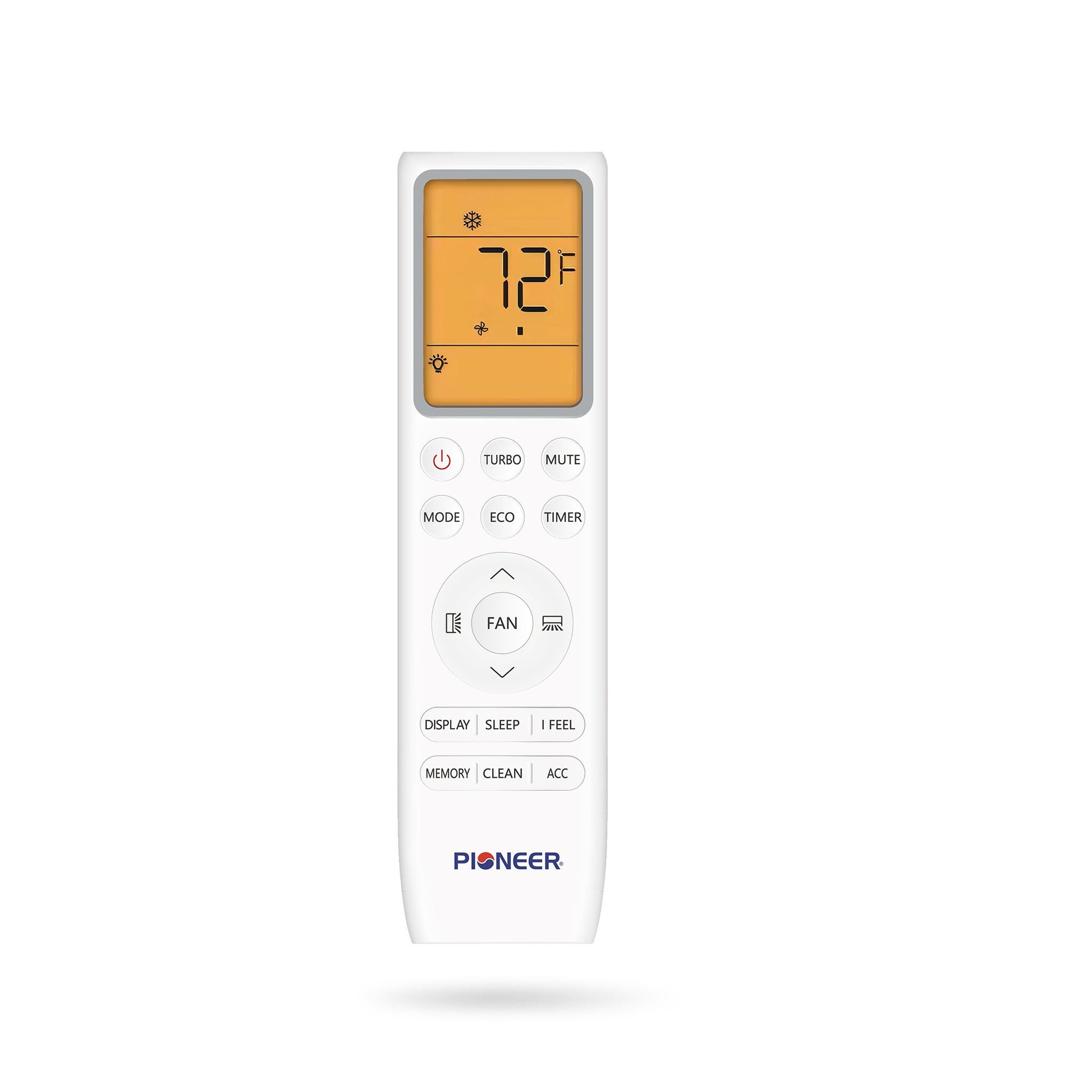

• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Technical Performance

• AHRI Certificate
• Energy Guide

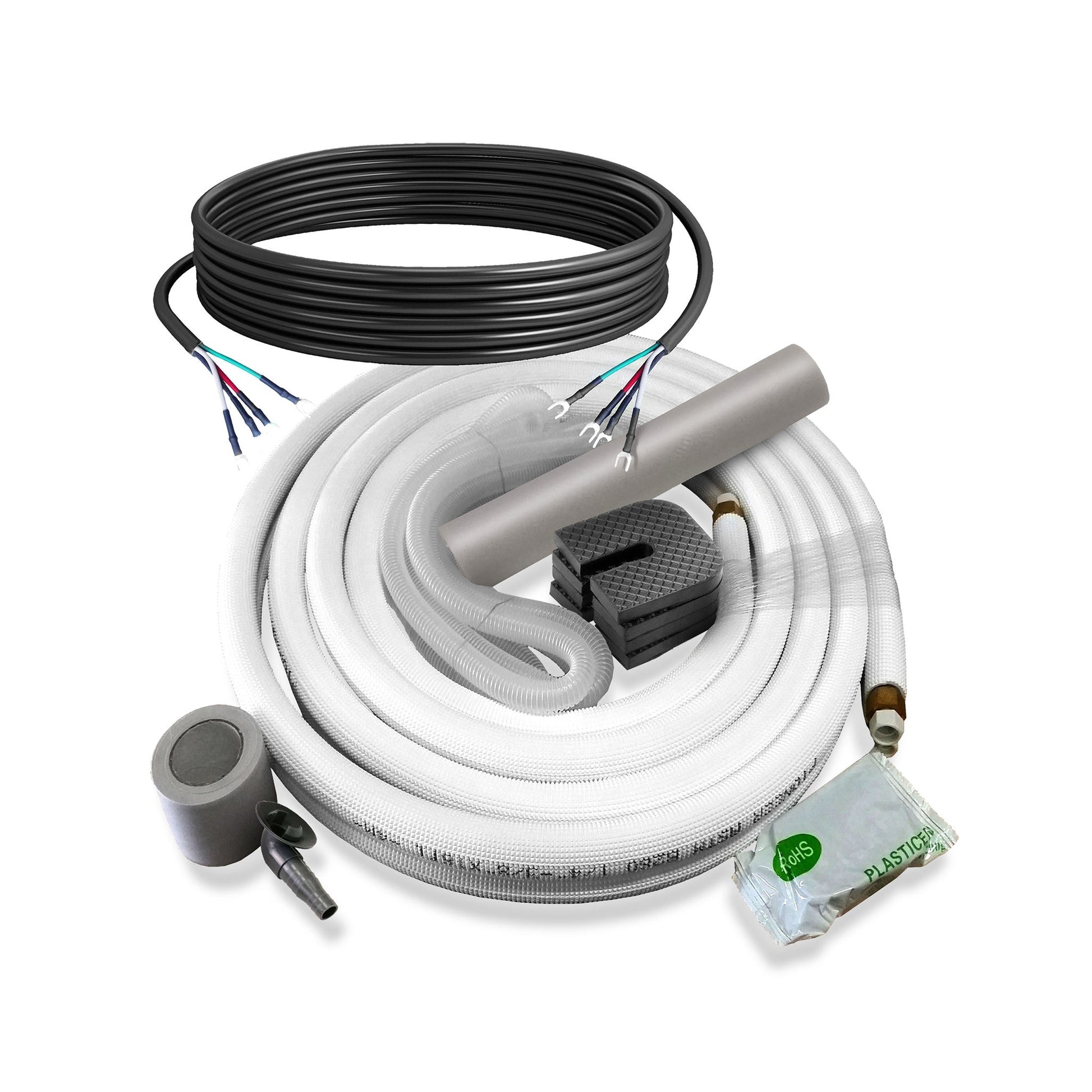

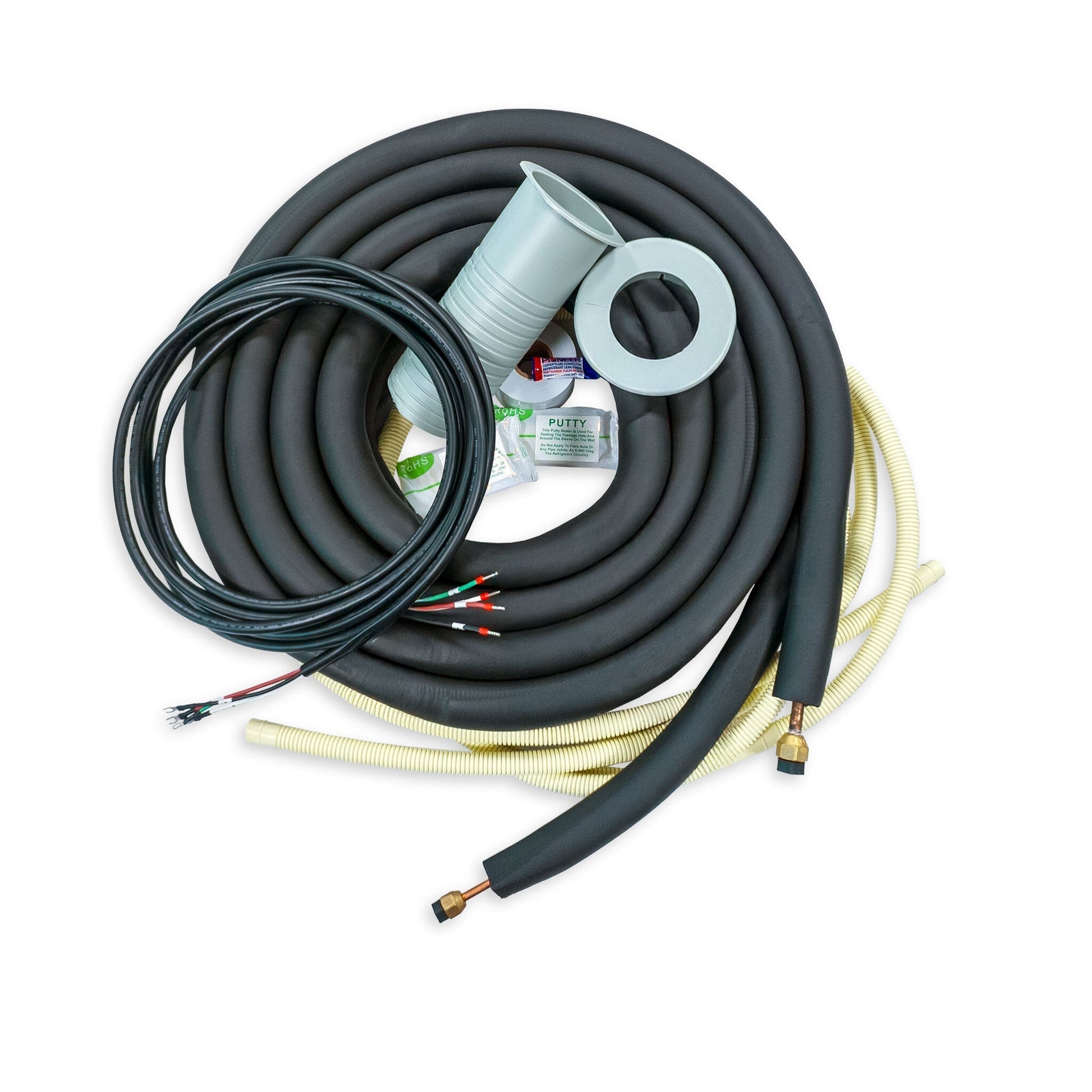

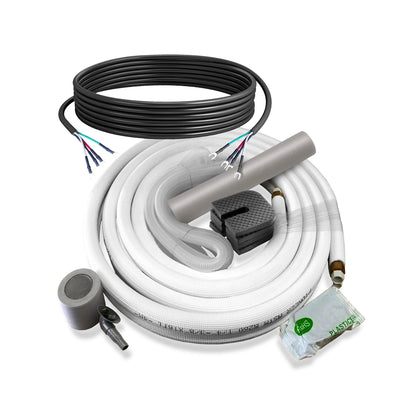

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 9,500 BTU/h
  • Cooling Capacity Range: 2,000~10,400 BTU/h
  • Cooling SEER2: 23.0 BTU/W.h
  • Cooling EER2: 12.5 BTU/W.h
  • Heating Rated Capacity: 9,500 BTU/h
  • Heating Capacity Range: 2,500~12,500 BTU/h
  • Heating HSPF2 (Region IV): 10.0 / 9.0 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 4.0 / 2.0 W/W
  • Refrigerant Type: R454b
  • Suitable Area: 250~350 Sq.F
  • AHRI Reference: 217048758

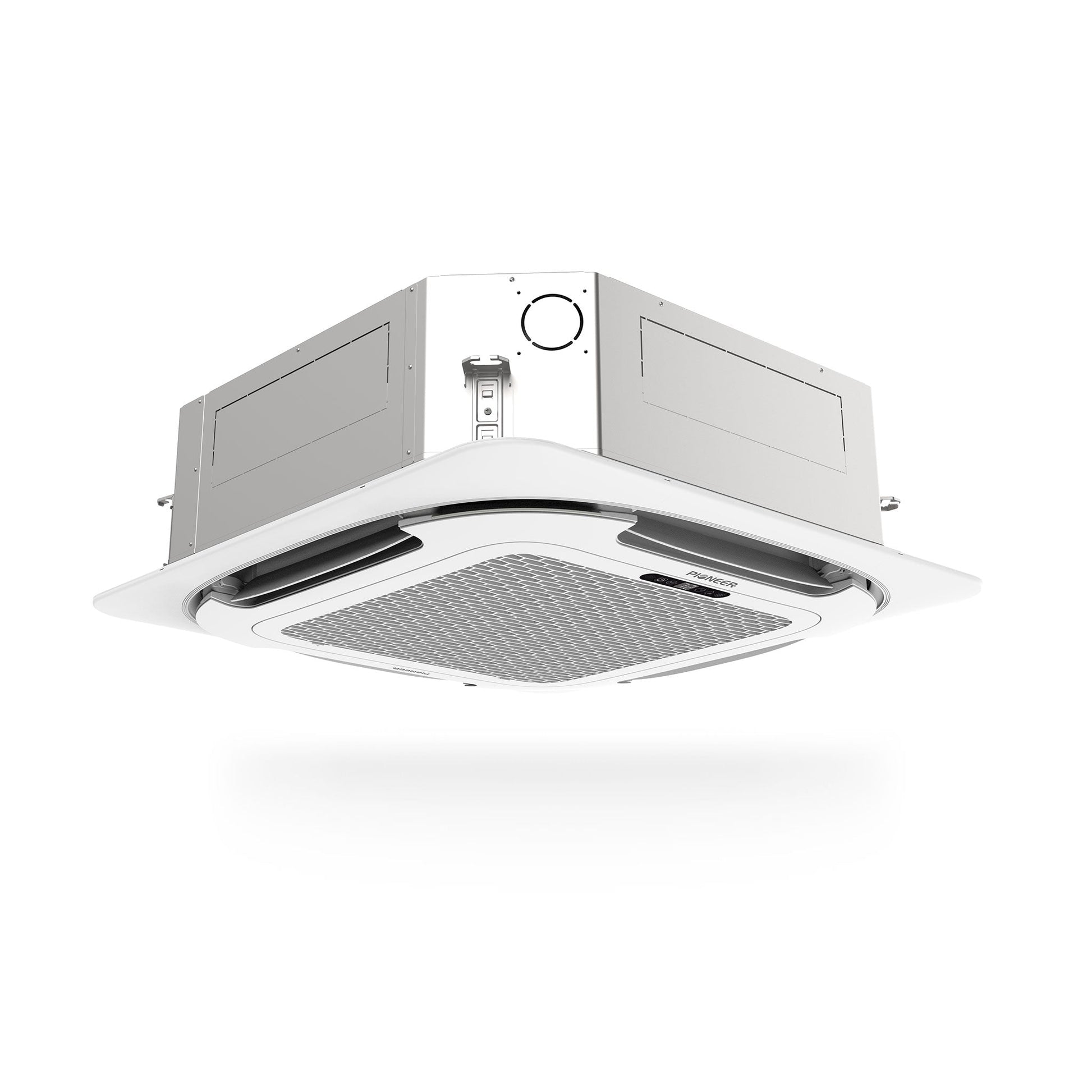

• Indoor Unit
  • Part Number: CT009GLSILCFHG
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 326/282.5/235/188/153 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 43/40/33/31/30 dB(A)
  • Product Dimensions (WDH): 22"-1/2 x 22"-1/2 x 9"-5/8 Inches
  • Carton Dimensions (WDH): 28"-1/4 x 25"-7/8 x 11"-7/8 Inches
  • Net / Gross Weight: 32.0 / 38.6 lbs

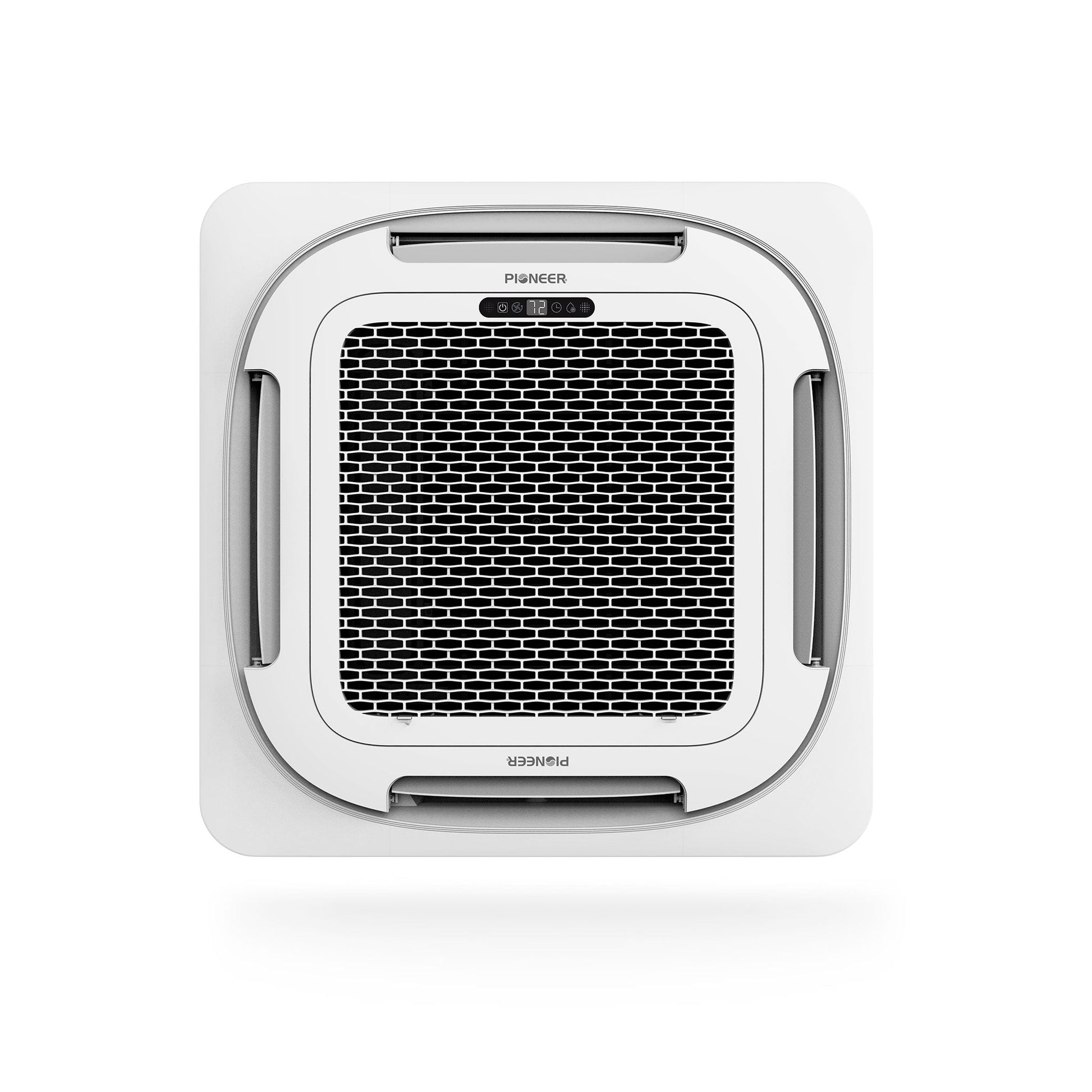

• Decorative Panel
  • Part Number: CT0918DPNL
  • Product Dimensions (WDH): 25"-5/8 x 25"-5/8 x 2"-3/8
  • Carton Dimensions (WDH): 28"-7/8 x 28"-7/8 x 4"-3/8
  • Net / Gross Weight: 6.0 / 9.5 lbs

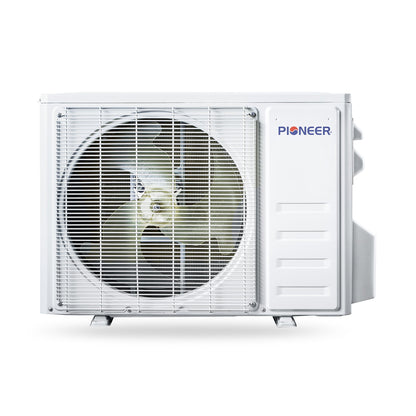

• Outdoor Unit
  • Part Number: YN009GLSI24RPG
  • Breaker Needed: 15A (double-pole)
  • Sound Level: 50 dB(A)
  • Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
  • Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches
  • Net / Gross Weight: 52.7 / 57.1 lbs.

Dimension Chart

What Our Experts Think

• 9,000 BTU capacity ideal for small to medium rooms or offices.

• High-efficiency 23 SEER2 rating reduces energy costs.

• Ceiling cassette design provides 4-way airflow for even temperature distribution.

• Inverter heat pump delivers reliable heating and cooling year-round.

• Sleek ceiling-mounted design saves wall space and blends with interiors.

Q&A

Q: Is this a full system?
A: Yes, it includes both indoor and outdoor units for a complete setup.

Q: Does it provide heating and cooling?
A: Yes, the inverter heat pump ensures year-round comfort.

Q: Can it distribute air evenly?
A: Yes, the ceiling cassette design delivers 4-way airflow for consistent temperatures.

Maintenance Tips

• Clean air filters every 4–6 weeks to maintain efficiency.

• Check ceiling vents regularly to prevent dust buildup.

• Keep the outdoor condenser clear of debris.

• Schedule professional servicing annually for optimal performance.
