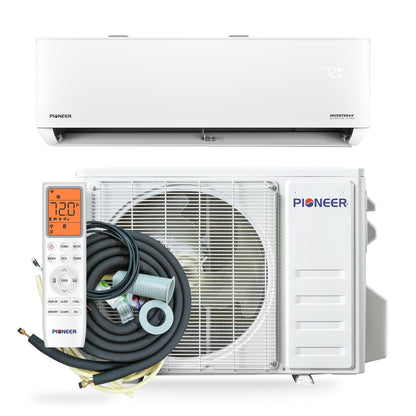

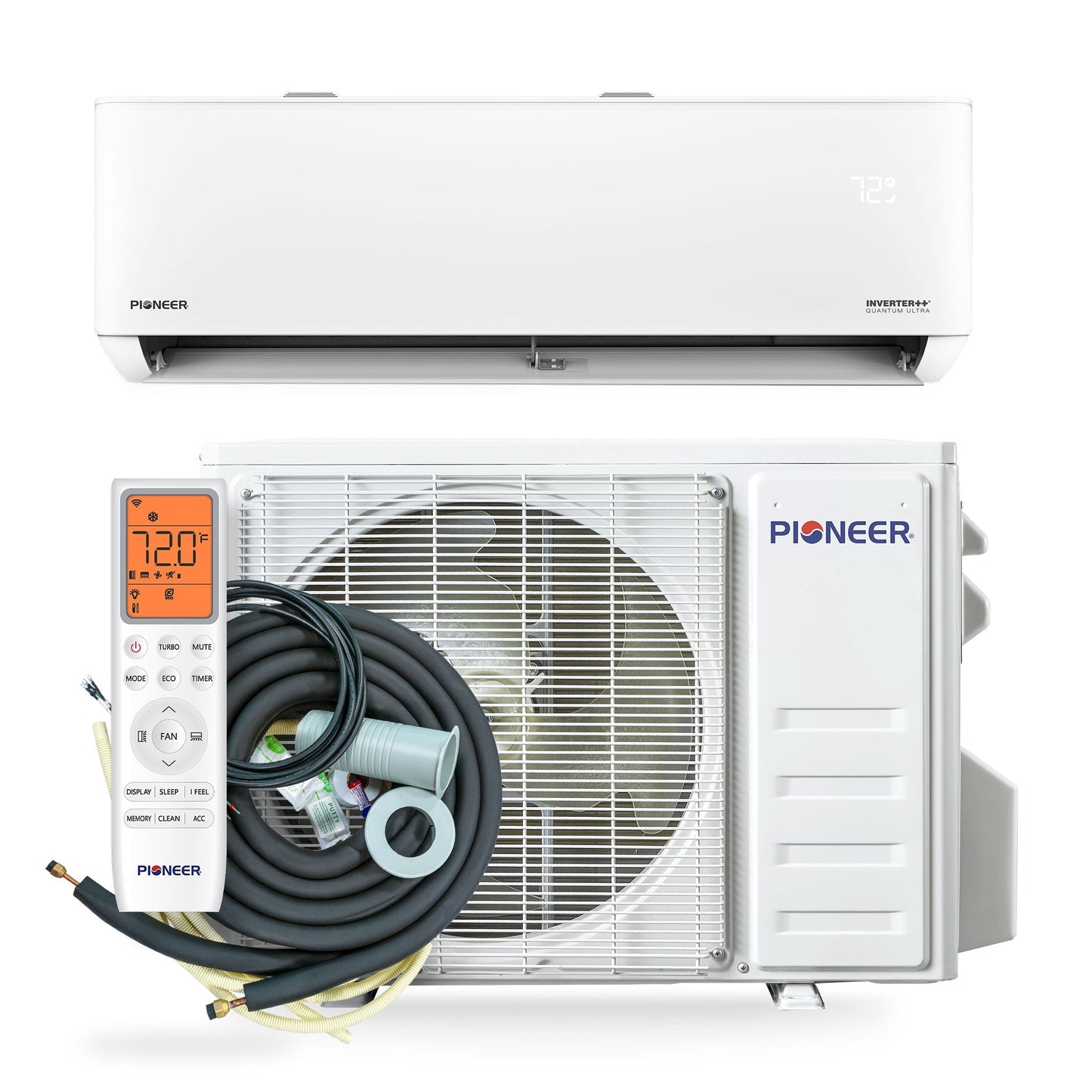

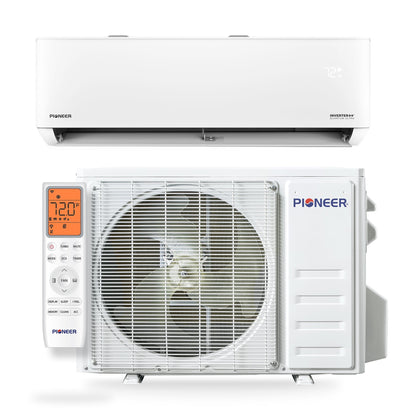

Pioneer Quantum Ultra 12,000 BTU 24 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Heat Pump Full Set - WYT012GLSI24RL-10S
- Ultra High Efficiency Quantum Ultra Ductless Mini Split Heat Pump System
- Cooling capacity: 12,000 BTU/H with 24 SEER2 / 13 EER2 efficiency
- Heating capacity: 12,600 BTU/H with 10.0 HSPF2 / 3.81 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
-

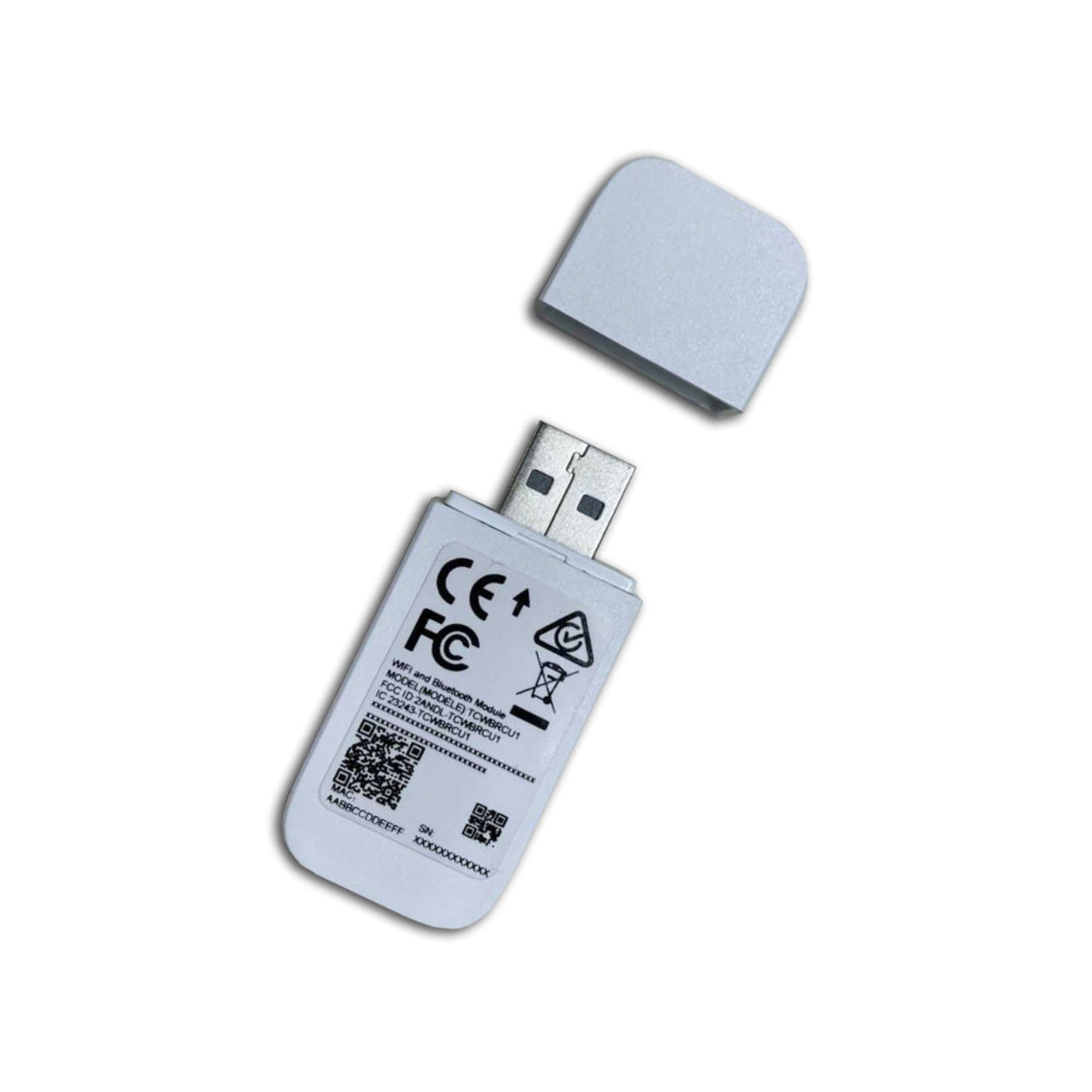

Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
-
Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

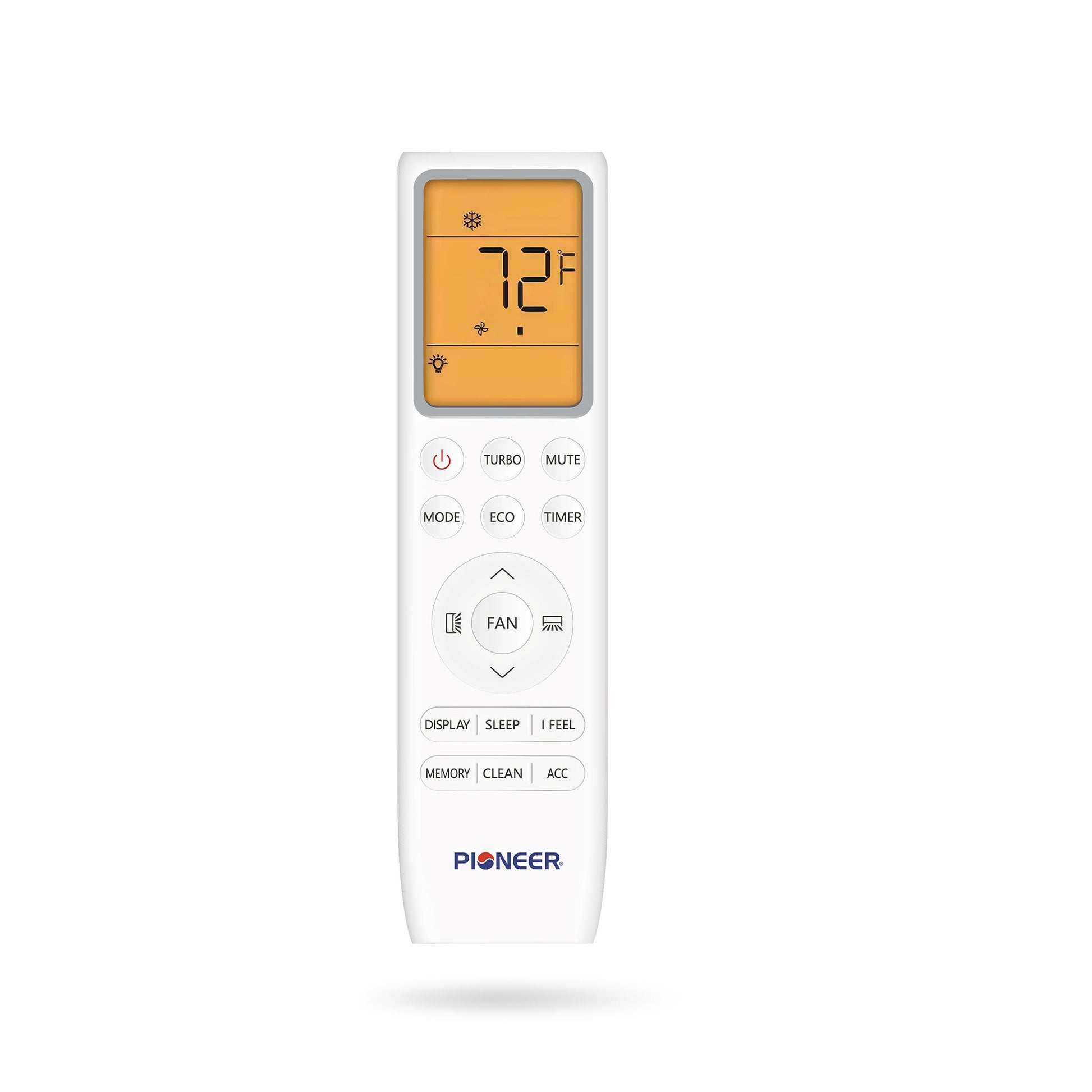

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Performance
-
System Kit
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Rated Capacity: 12,000 BTU/h
-
Cooling Capacity Range: 2,500~12,500 BTU/h
-
Cooling SEER2: 24.0 BTU/W.h
-
Cooling EER2: 13.0 BTU/W.h
-
Heating Rated Capacity: 12,600 BTU/h
-
Heating Capacity Range: 2,500~15,000 BTU/h
-
Heating HSPF2 (Region IV): 10.0 / 8.6 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.81 / 2.1 W/W
-
Refrigerant Type: R454b
-
Recommended Room Size: 250~500 Sq.F
-
Minimum Room Size: 40 sq ft
-
Minimum Installation Height: 6 ft
-
Piping Diameter: 1/4 x 3/8"
-
AHRI Reference: 217048751
-

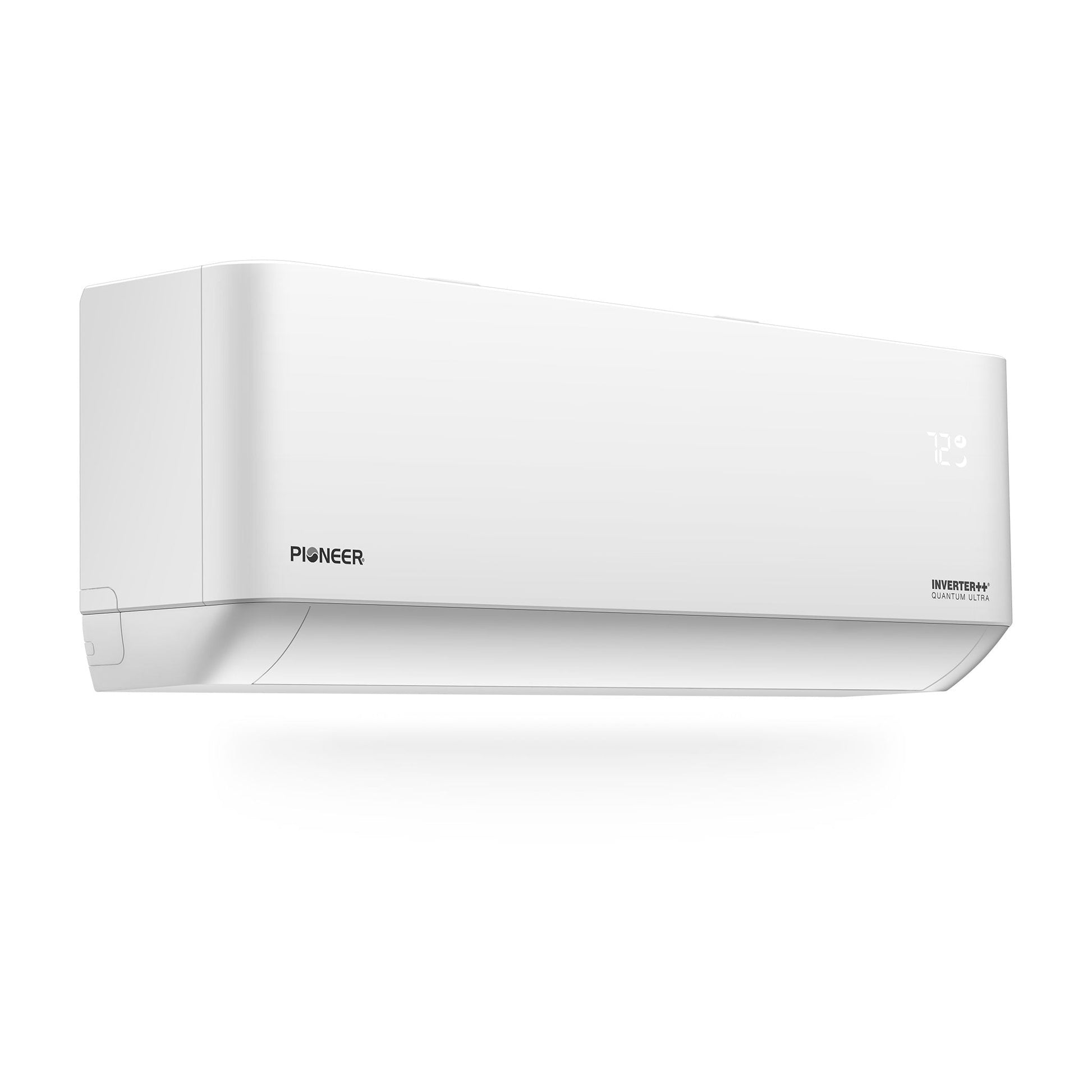

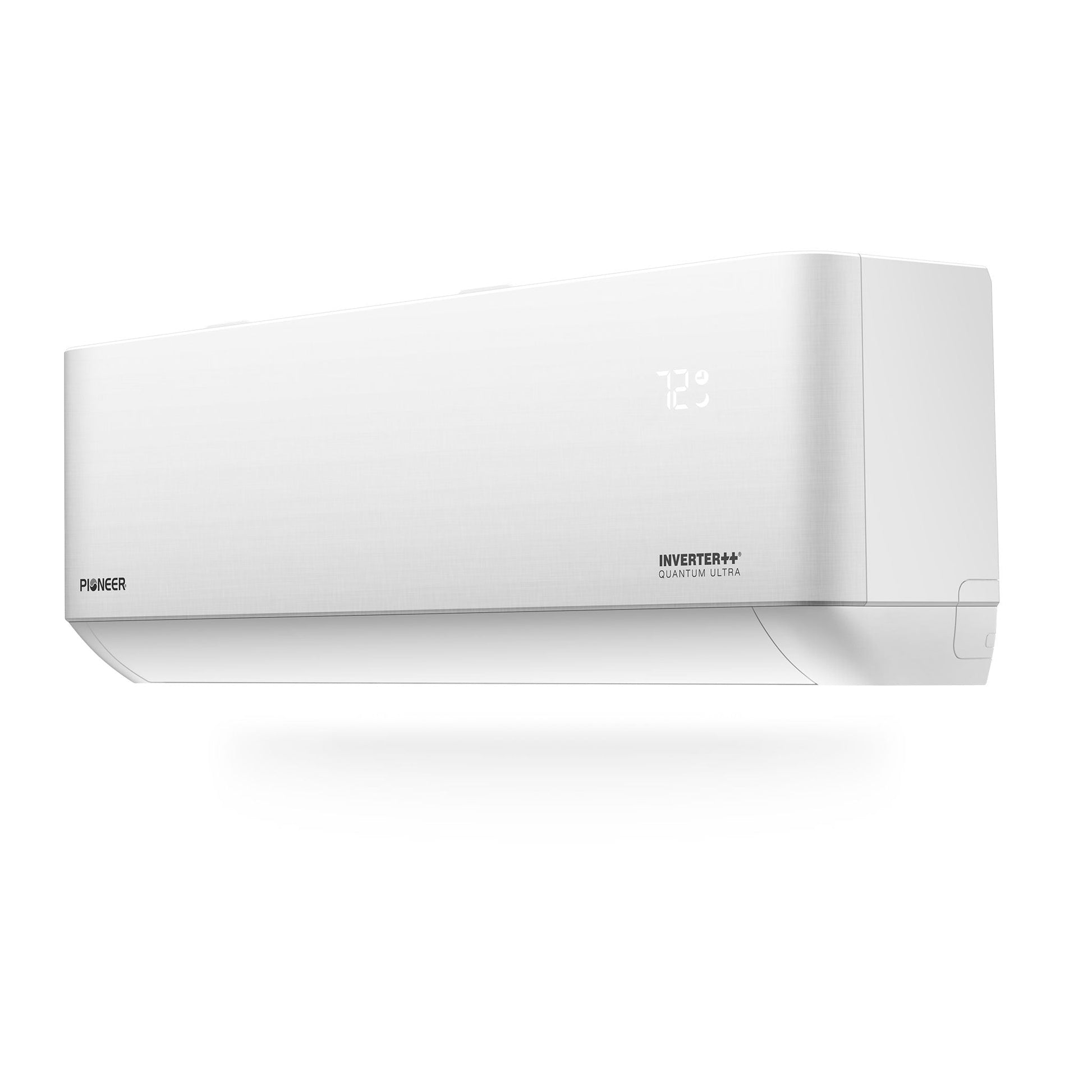

Indoor Unit
-
Part Number: WT012GLSI24HLG
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 500/470/411/323/205 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 46/44/36/32/30 dB(A)
-
Product Dimensions (WDH): 36"-1/2 x 7"-5/8 x 12" Inches
-
Carton Dimensions (WDH): 39" x 10"-1/2 x 15" Inches
-
Net / Gross Weight: 23.1 / 30.9 lbs.
-

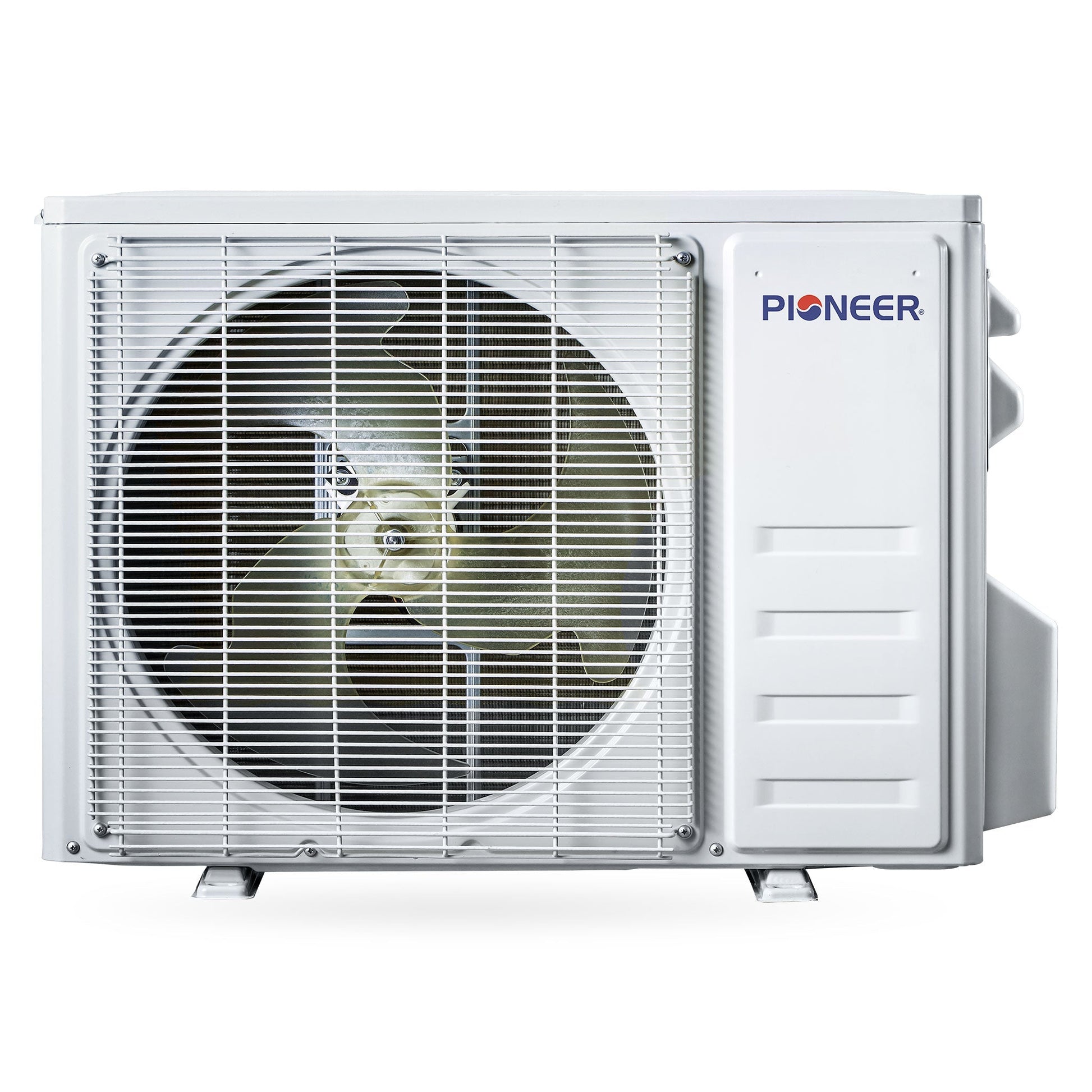

Outdoor Unit
-
Part Number: YN012GLSI24RPG
-
Breaker Needed: 15A (double-pole)
-
Sound Level: 52 dB(A)
-
Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
-
Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches
-
Net / Gross Weight: 58.4 / 65.0 lbs.
Dimension Chart
What Our Experts Think
-
12,000 BTU high-wall ductless system ideal for small to medium rooms.
-
24 SEER2 Energy-Star rating ensures high efficiency and lower energy bills.
-
Inverter heat pump delivers reliable year-round heating and cooling.
-
Sleek, space-saving high-wall design complements any interior.
-

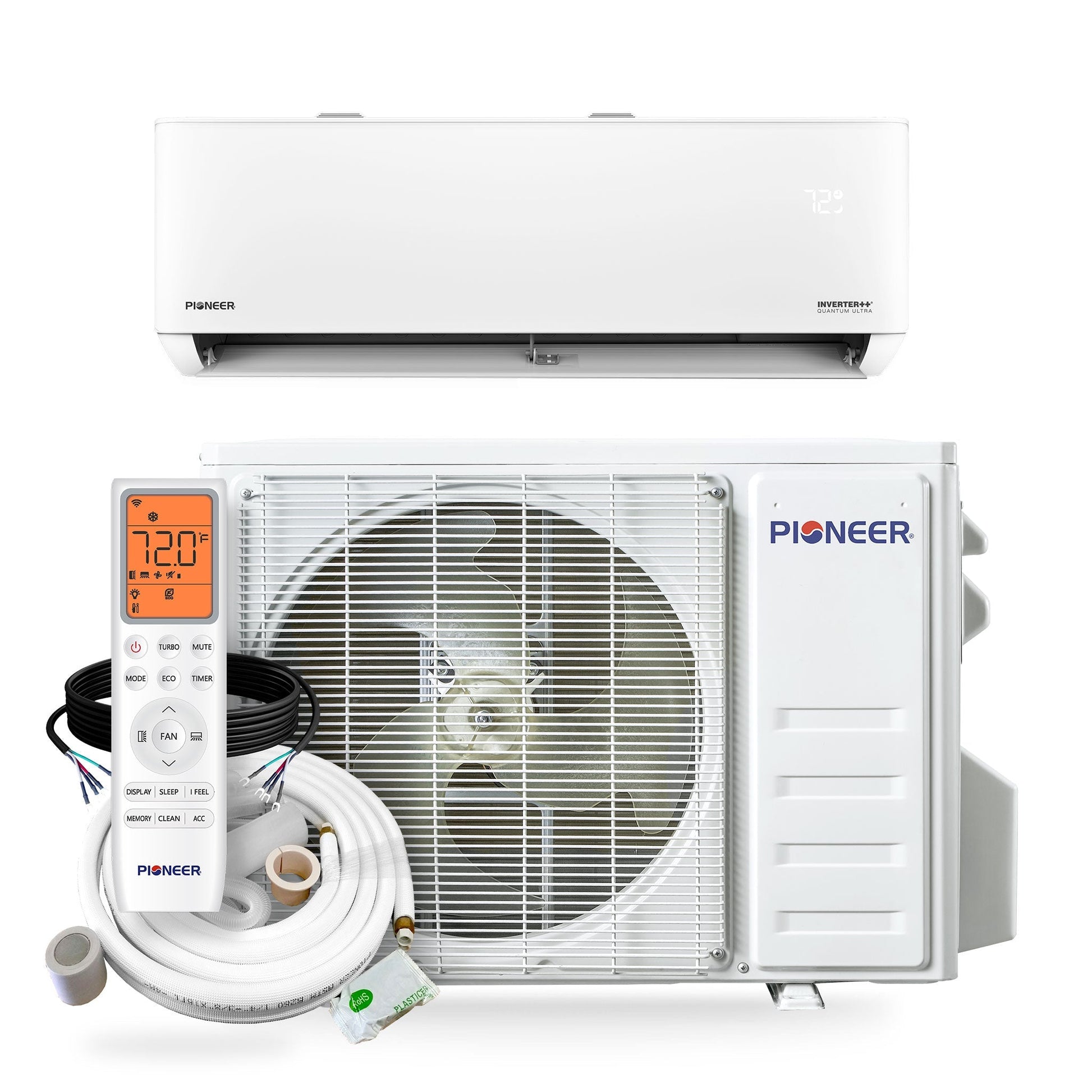

Full set includes indoor and outdoor units plus installation kit for easy setup.
Q&A
Q: What room size is this system suitable for?
A: Perfect for spaces up to ~500 sq. ft., depending on insulation.
Q: Does it provide both heating and cooling?
A: Yes, the inverter heat pump ensures efficient year-round comfort.
Q: Is an installation kit included?

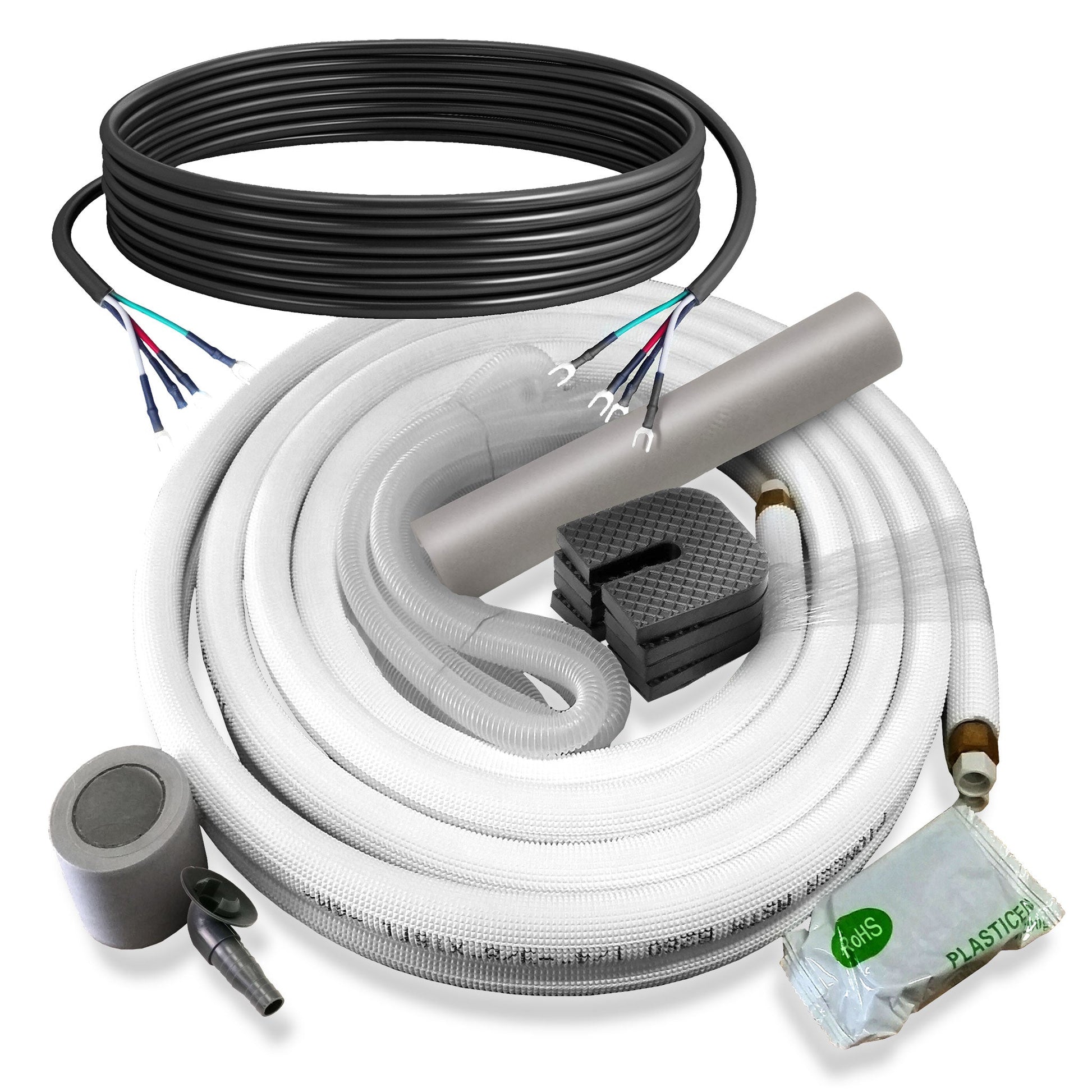

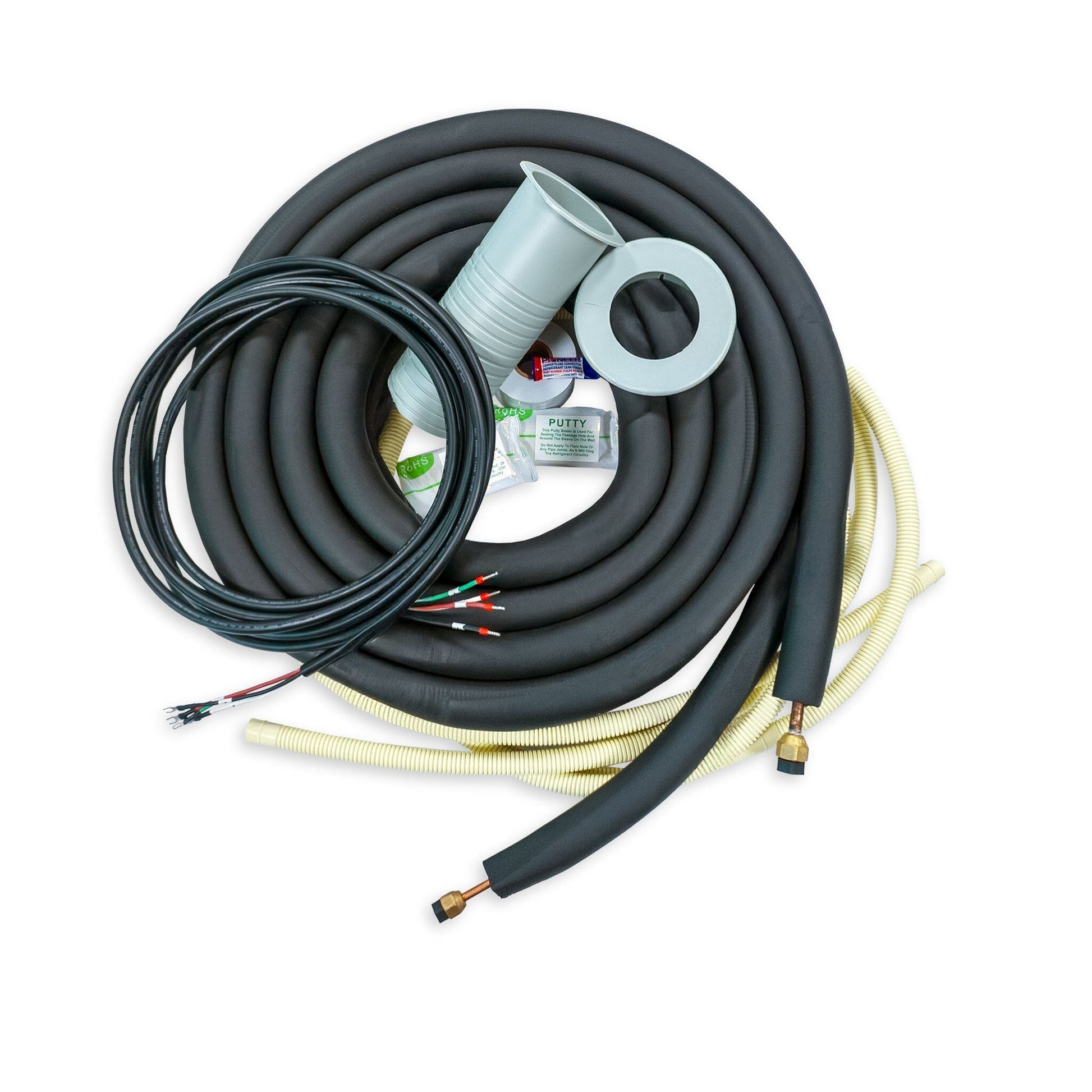

A: Yes, the full set comes with all components and a 16 ft. installation kit.
Maintenance Tips
-
Clean air filters every 4–6 weeks to maintain airflow and efficiency.
-
Wipe down indoor unit surfaces to prevent dust buildup.
-
Keep outdoor condenser free from debris for optimal performance.
-
Schedule professional servicing annually to extend system lifespan.
