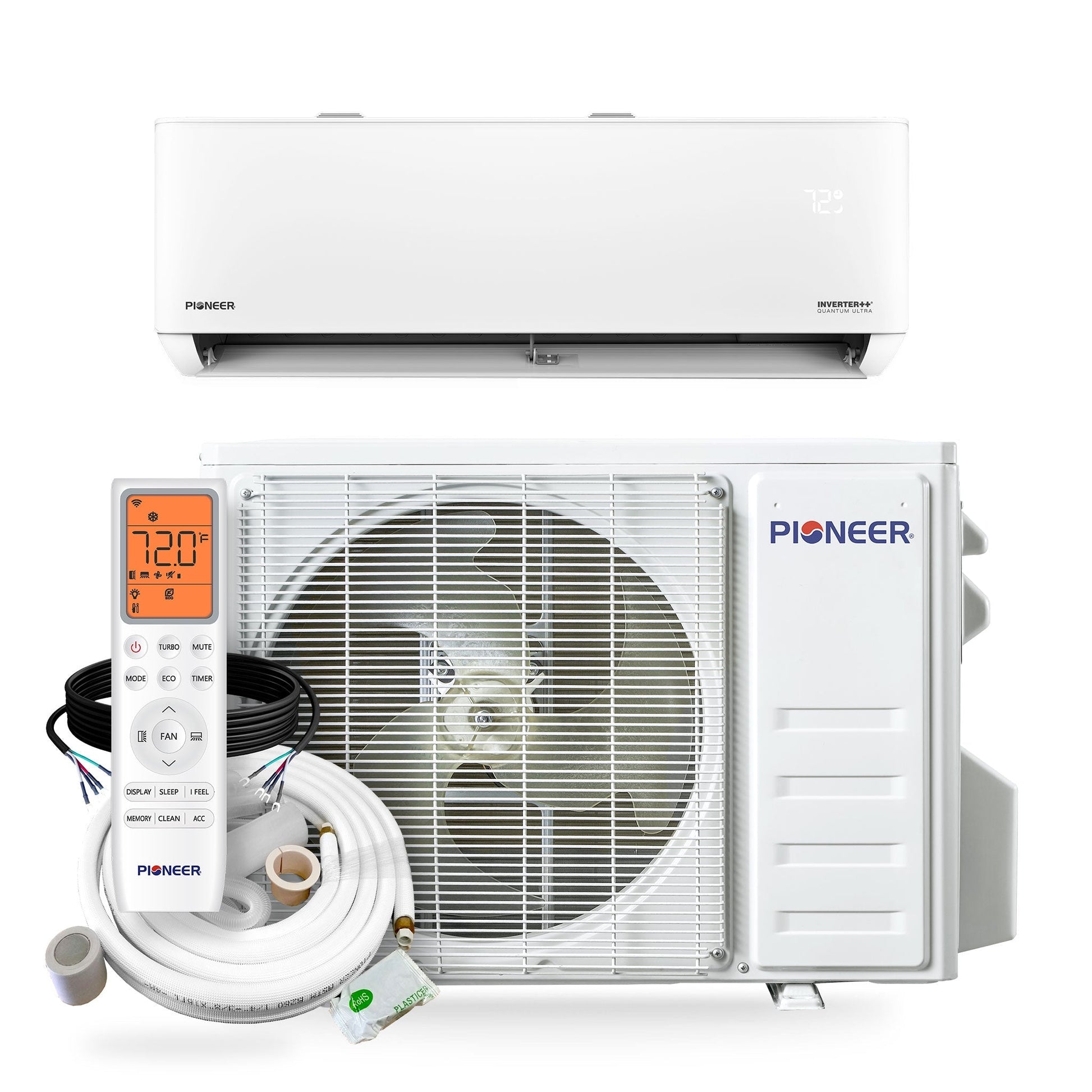

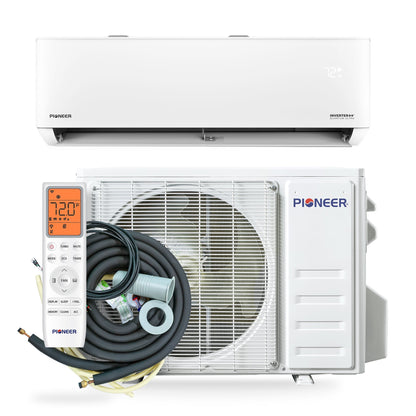

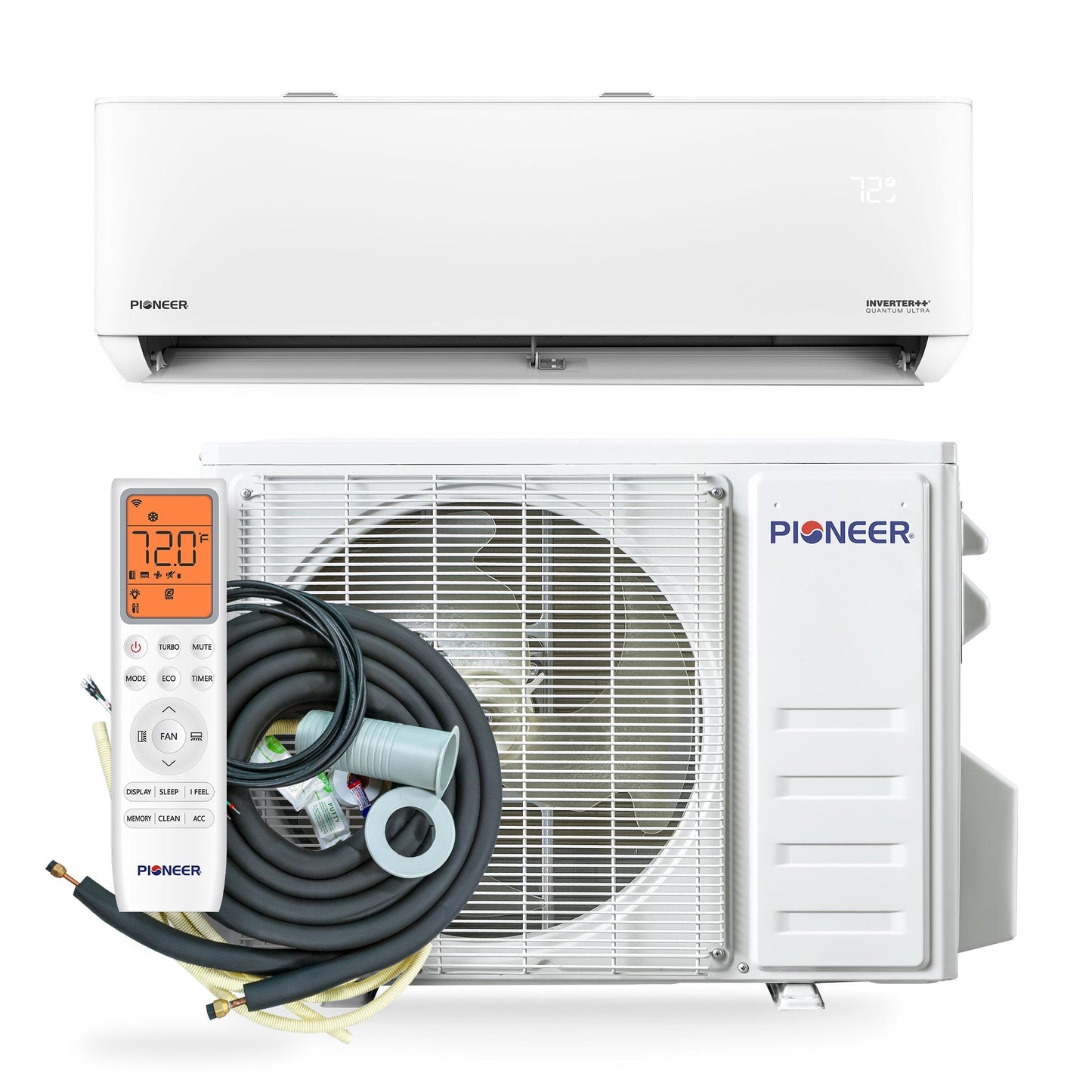

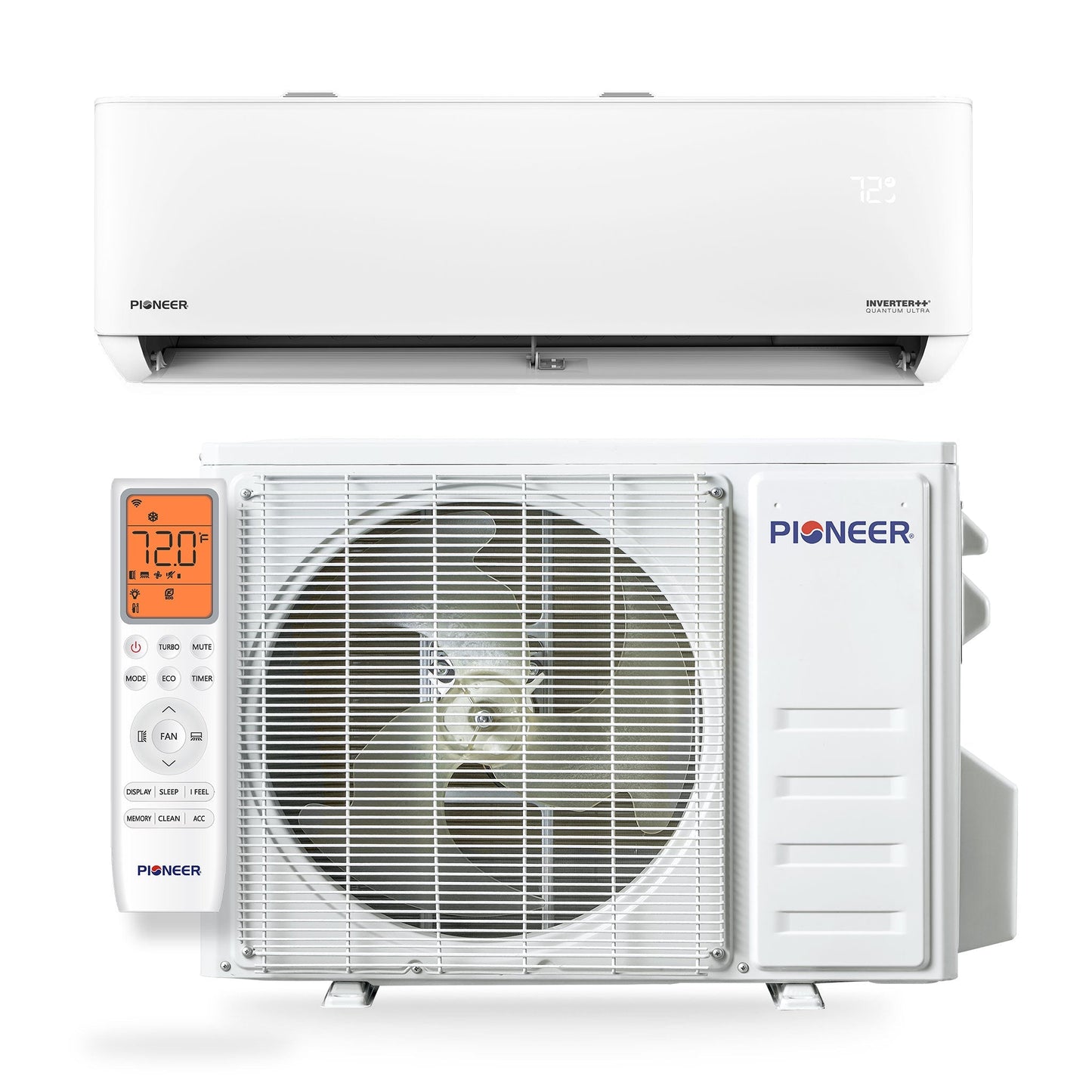

Pioneer Quantum Ultra 9,000 BTU 24 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Heat Pump Full Set - WYT009GLSI24RL
- Ultra High Efficiency Quantum Ultra Ductless Mini Split Heat Pump System
- Cooling capacity: 9,000 BTU/H with 24 SEER2 / 13 EER2 efficiency
- Heating capacity: 10,000 BTU/H with 10.0 HSPF2 / 3.81 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
-

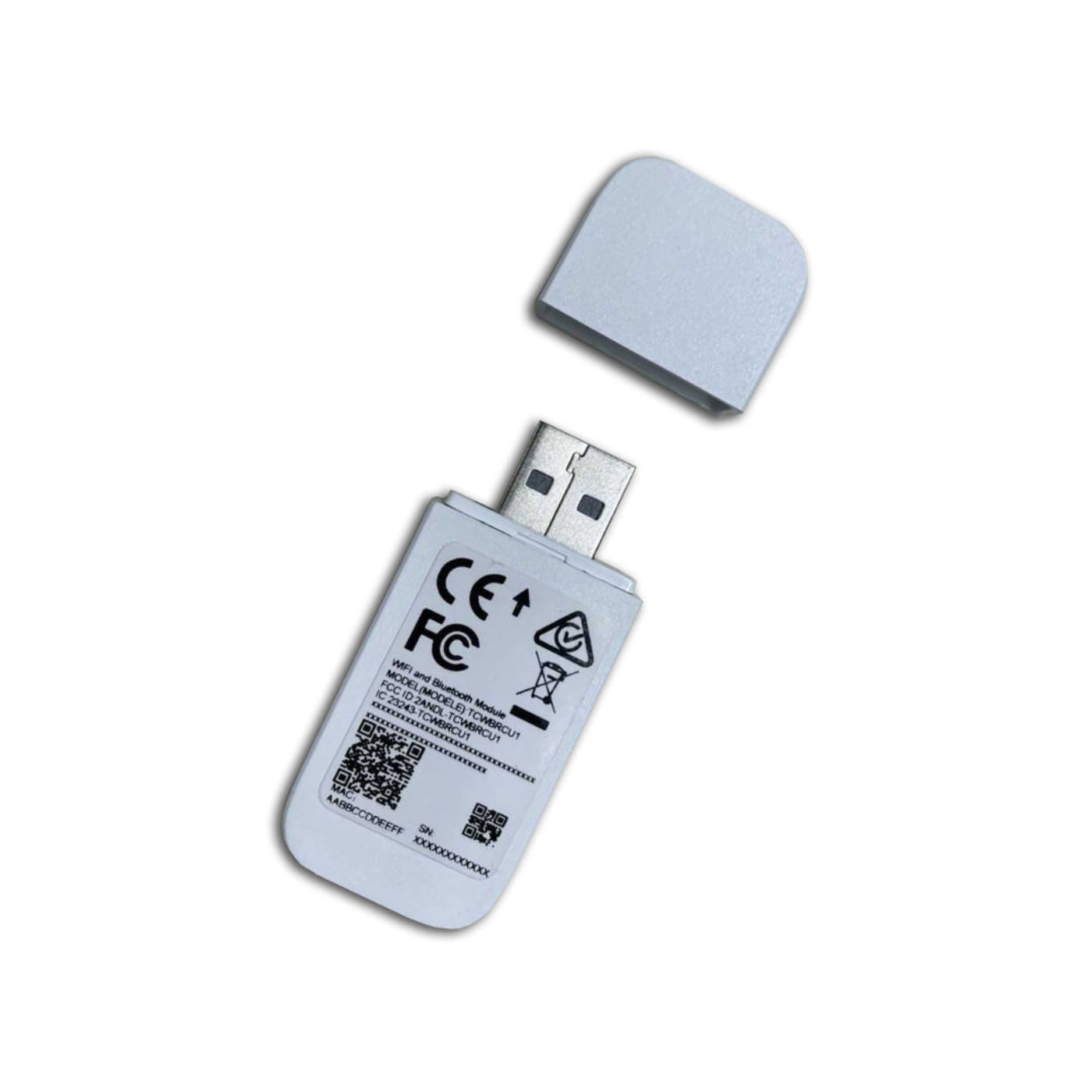

Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
-
Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

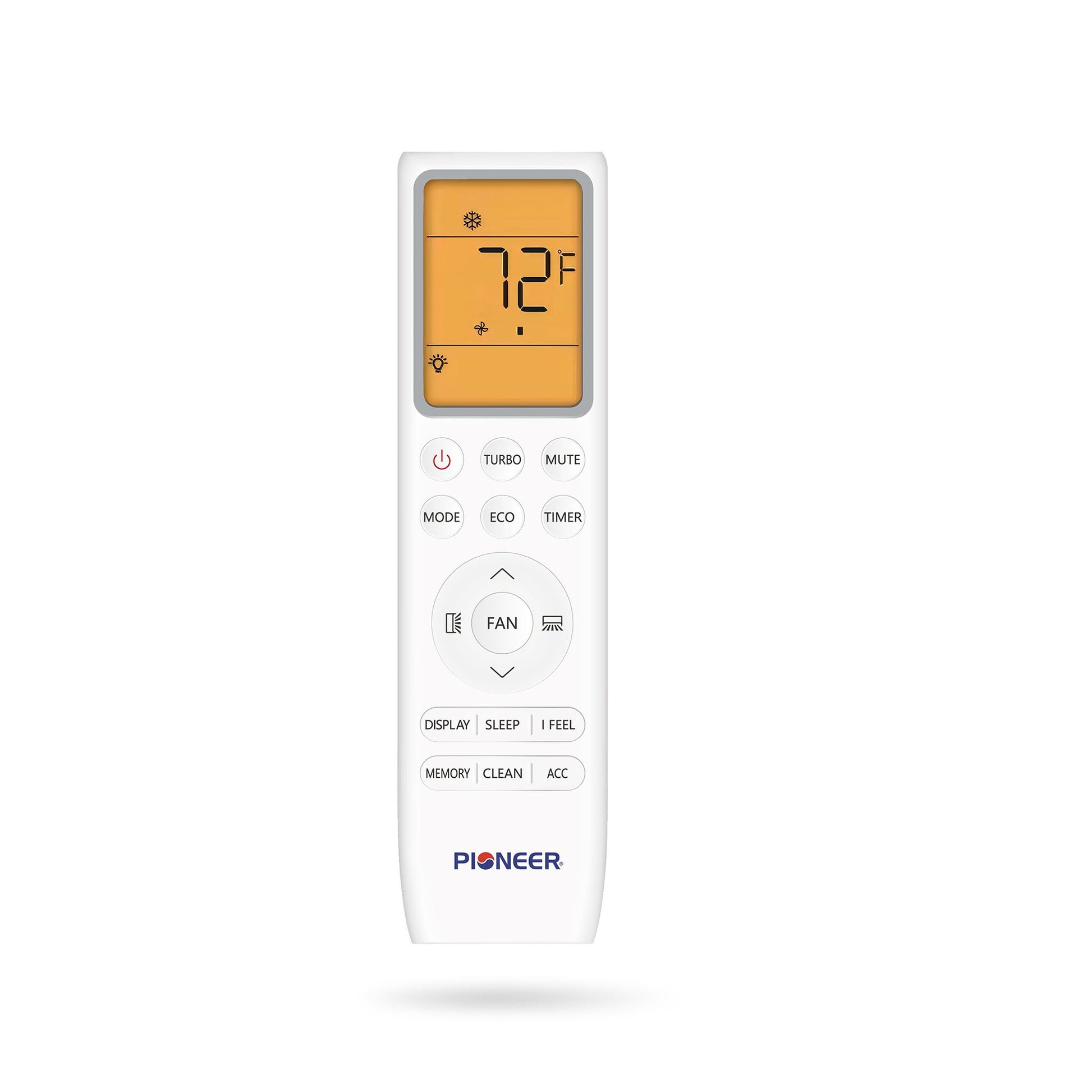

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Performance
-
System Kit
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Rated Capacity: 9,000 BTU/h
-
Cooling Capacity Range: 2,400~11,000 BTU/h
-
Cooling SEER2: 24.0 BTU/W.h
-
Cooling EER2: 13.0 BTU/W.h
-
Heating Rated Capacity: 10,000 BTU/h
-
Heating Capacity Range: 2,400~11,000 BTU/h
-
Heating HSPF2 (Region IV): 10.0 / 8.6 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.81 / 2.1 W/W
-
Refrigerant Type: R454b
-
Recommended Room Size: 150~350 Sq.F
-
Minimum Room Size: 28 sq ft
-
Minimum Installation Height: 6 ft
-

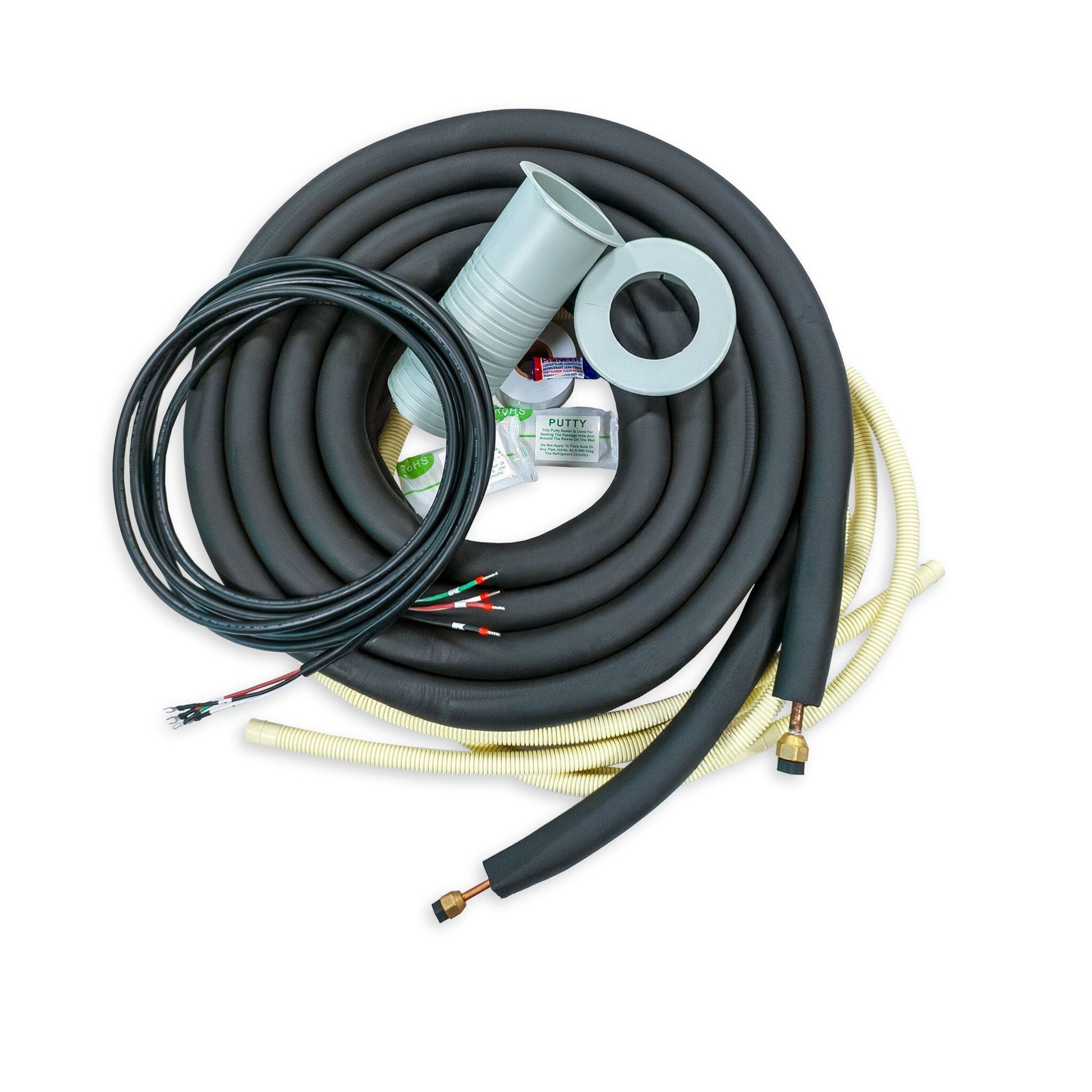

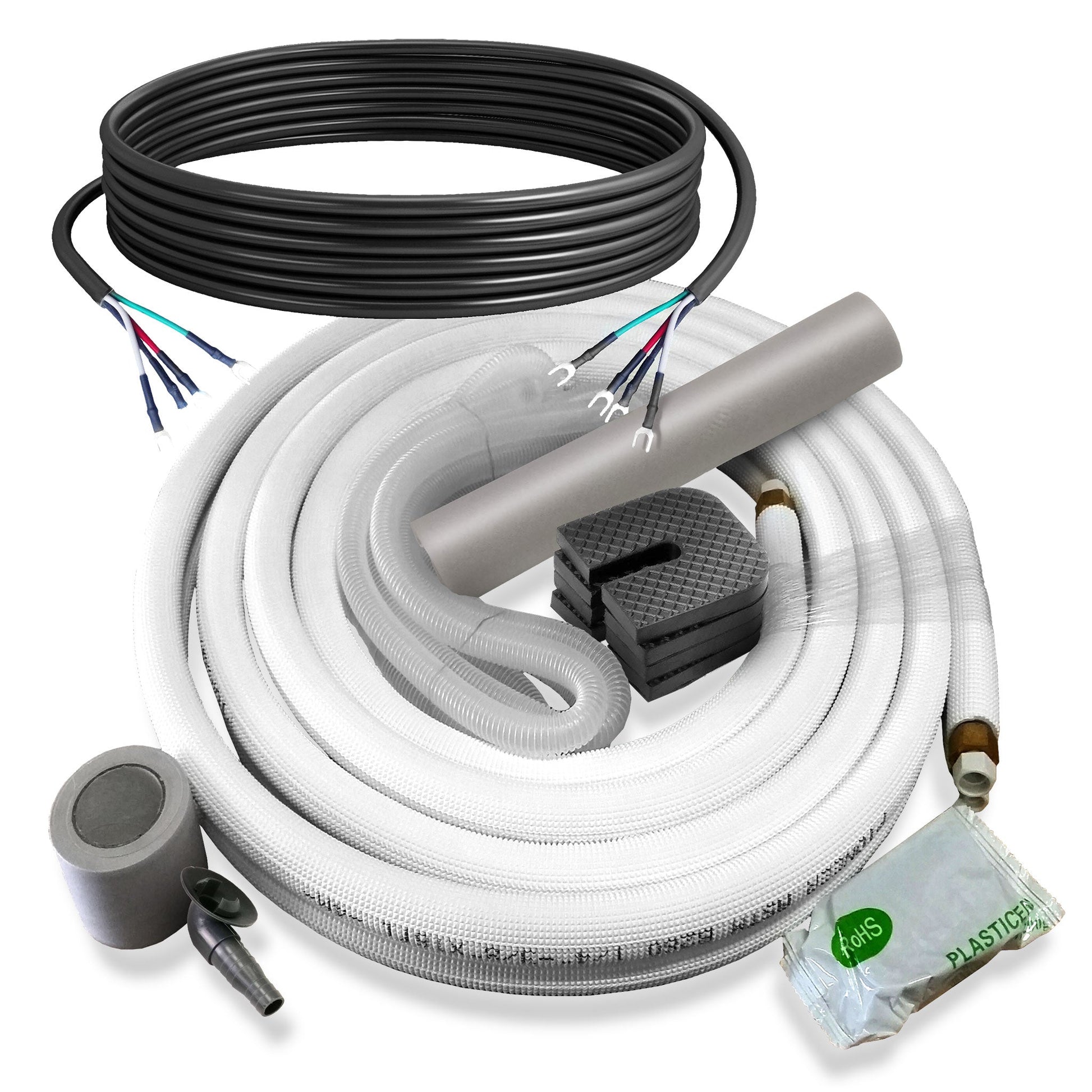

Piping Diameter: 1/4 x 3/8"
-
AHRI Reference: 217048749
-

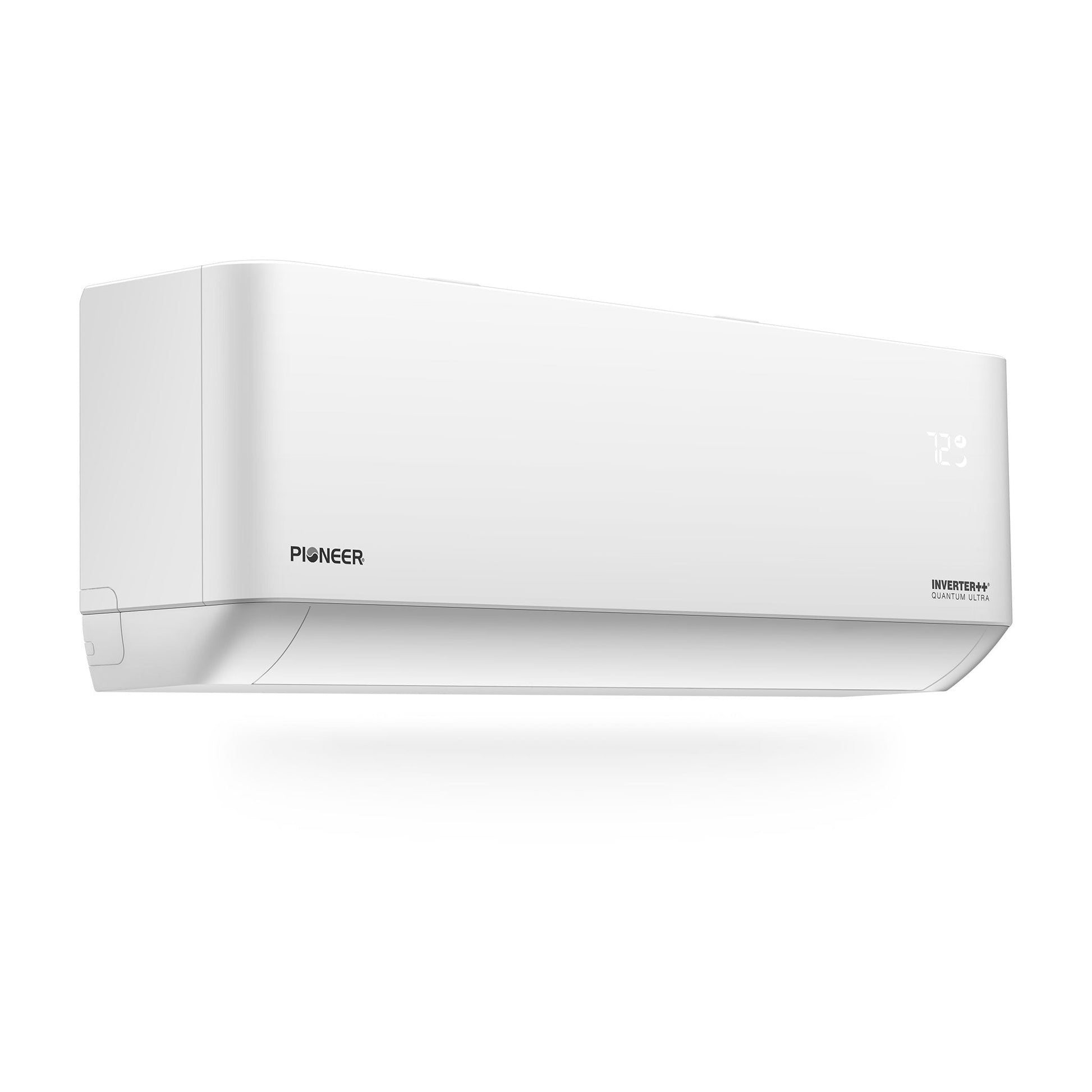

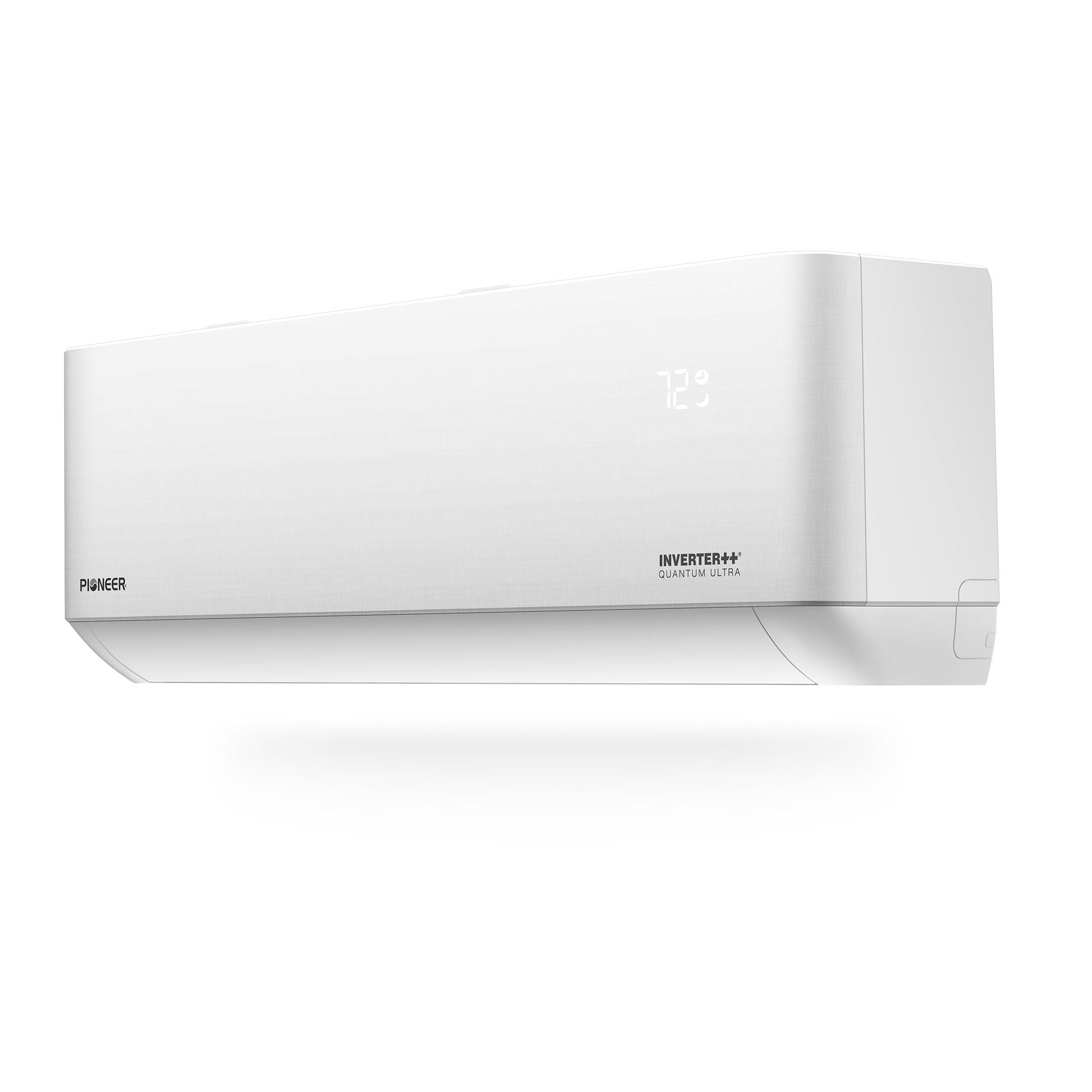

Indoor Unit
-
Part Number: WT009GLSI24HLG
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 326/282.5/235/188/153 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 43/40/33/31/30 dB(A)
-
Product Dimensions (WDH): 32"-1/4 x 7"-5/8 x 12" Inches
-
Carton Dimensions (WDH): 35" x 10"-1/2 x 15" Inches
-
Net / Gross Weight: 20.7 / 25.1 lbs.
-

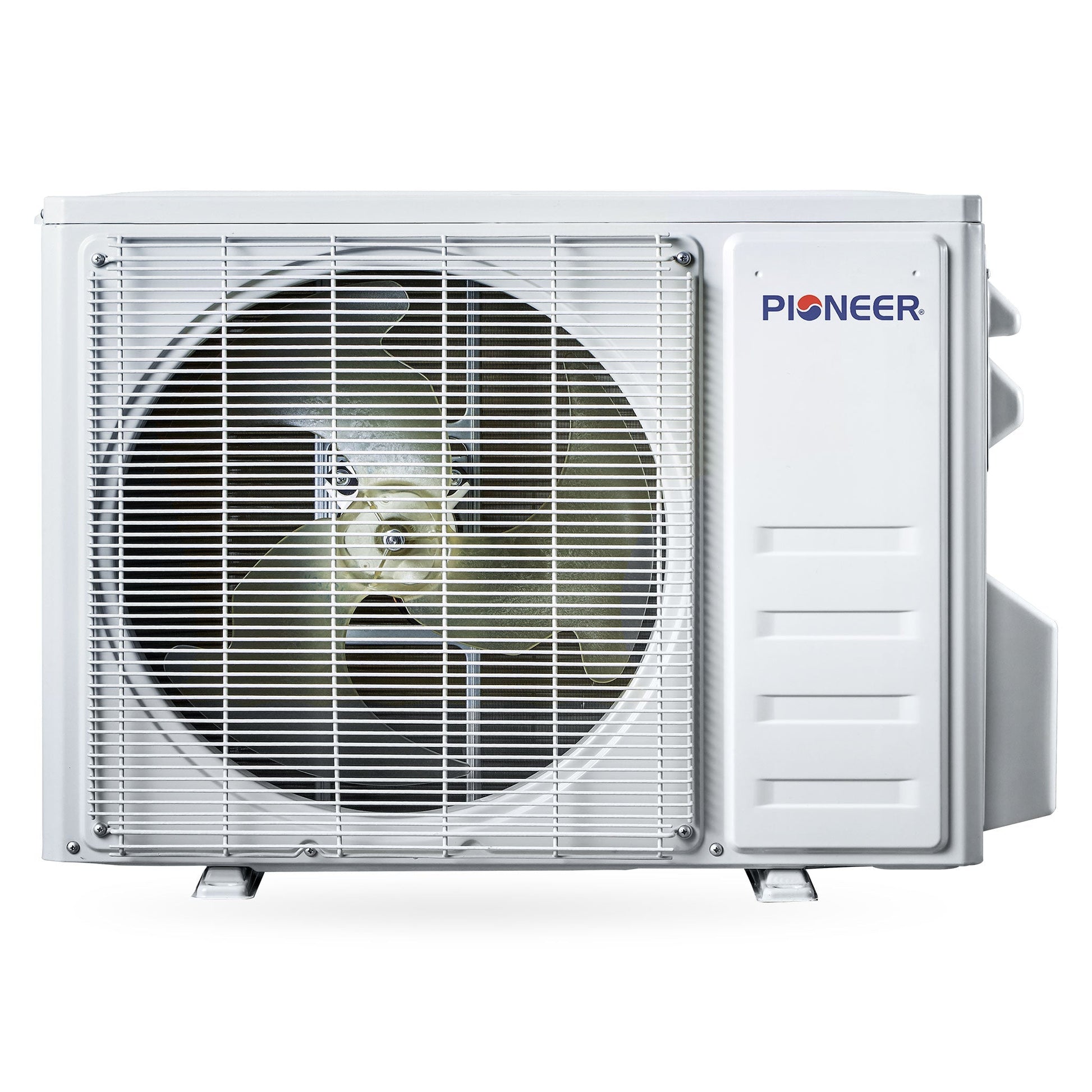

Outdoor Unit
-
Part Number: YN009GLSI24RPG
-
Breaker Needed: 15A (double-pole)
-
Sound Level: 50 dB(A)
-
Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
-
Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches
-
Net / Gross Weight: 52.7 / 59.3 lbs.
Dimension Chart
What Our Experts Think
-
9,000 BTU capacity ideal for small rooms, bedrooms, or offices.
-
High-efficiency 24 SEER2 rating and Energy Star certified for energy savings.
-
High-wall ductless design saves space and installs easily.
-
Inverter heat pump delivers reliable year-round heating and cooling.
-
Sleek modern design blends with any interior décor.
Q&A
Q: Is this a complete system?
A: Yes, it includes both indoor and outdoor units for full operation.
Q: Can it heat as well as cool?
A: Yes, the inverter heat pump ensures year-round comfort.
Q: Is it energy efficient?
A: Yes, Energy Star certification and 24 SEER2 rating optimize efficiency.
Maintenance Tips
-
Clean air filters every 4–6 weeks to maintain airflow.
-
Wipe indoor unit surfaces regularly to prevent dust buildup.
-
Keep outdoor condenser clear of debris for optimal performance.
-
Schedule annual professional servicing for long-term reliability.
