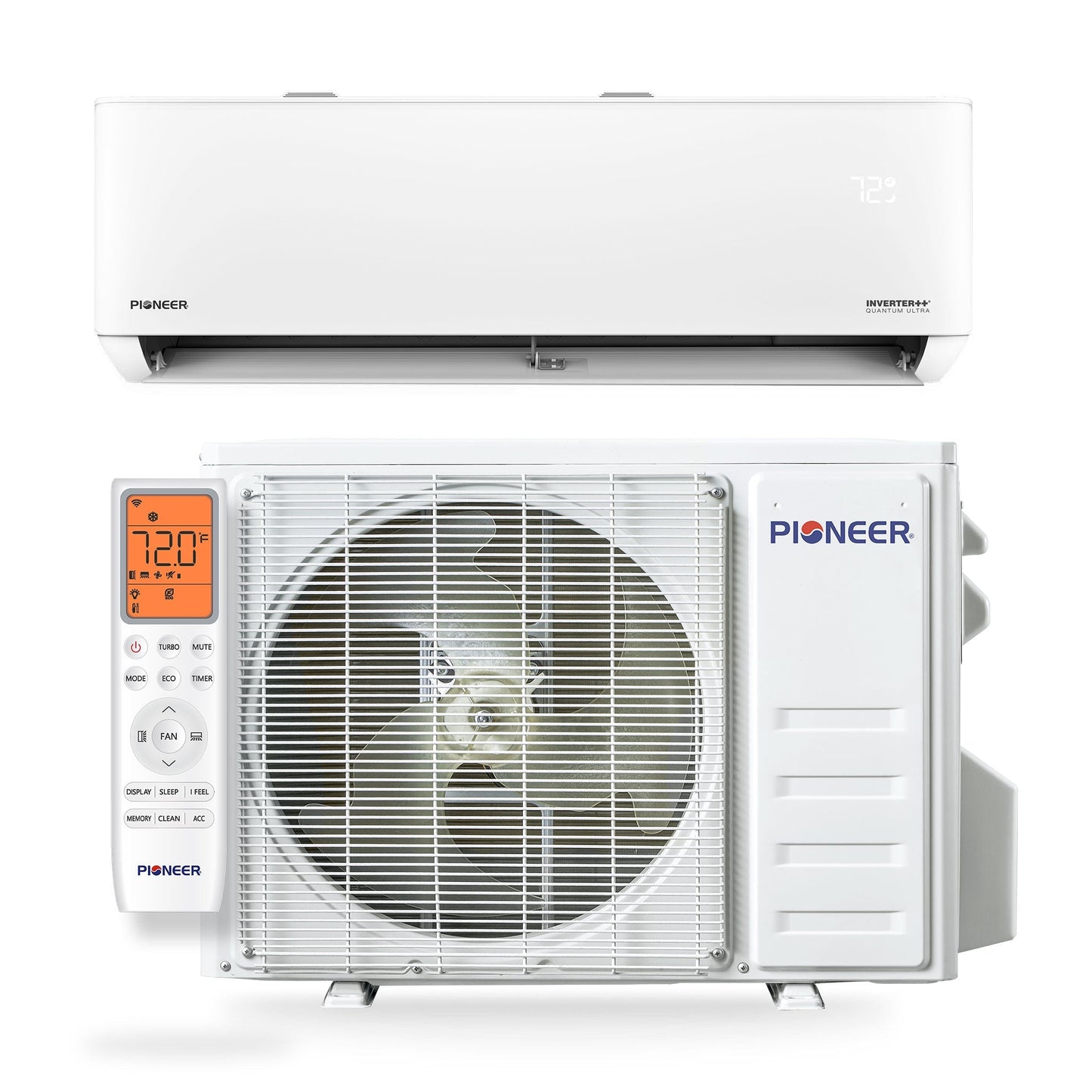

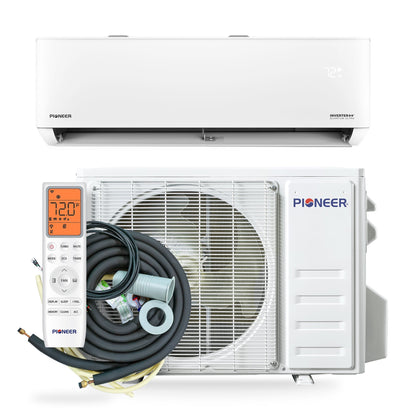

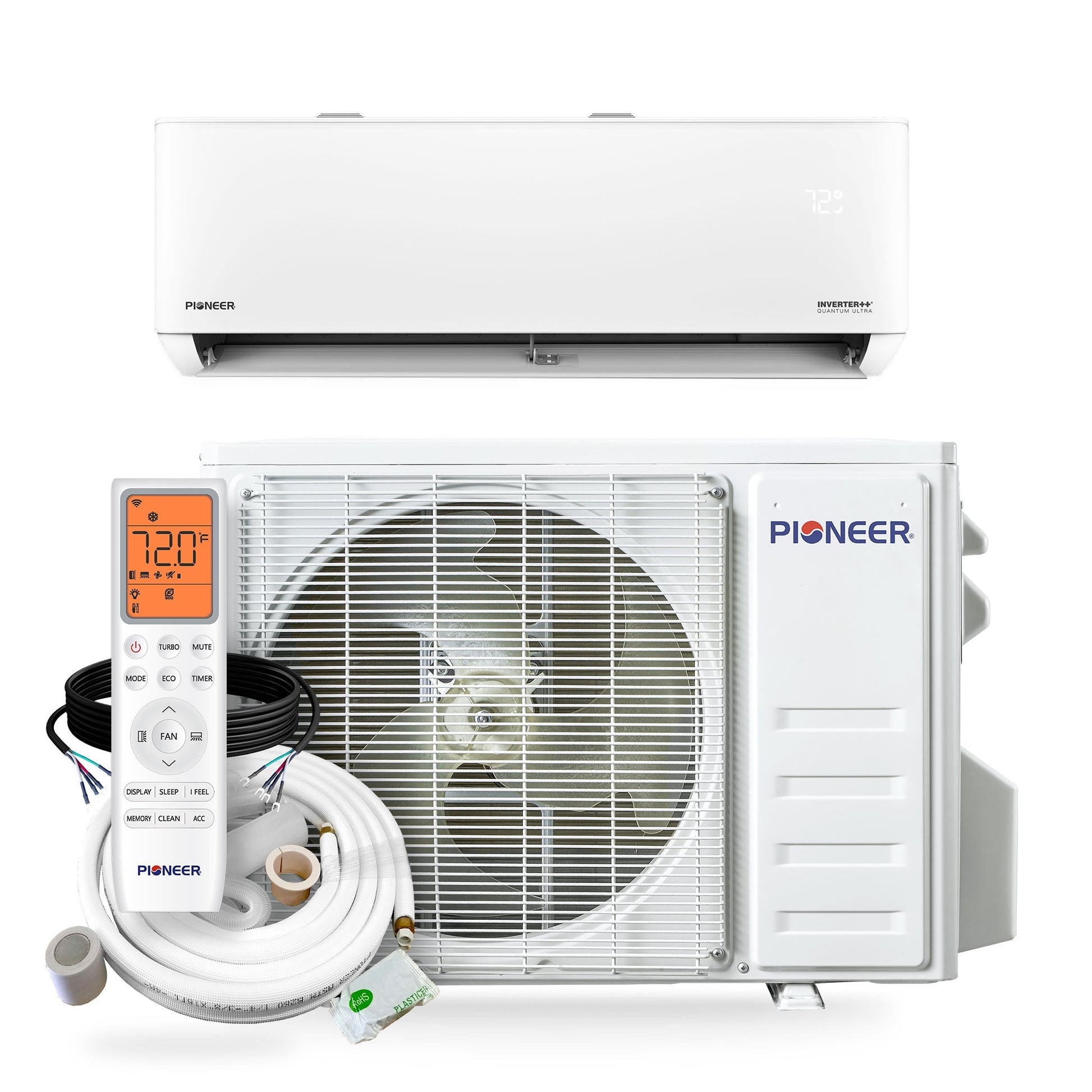

Pioneer Quantum Ultra 9,000 BTU 24 SEER2 115V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Heat Pump Full Set - WYT009ALSI24RL
- Ultra Efficiency Quantum Ultra Ductless Mini Split Heat Pump System
- Cooling capacity: 9,000 BTU/H with 24 SEER2 / 13 EER2 efficiency
- Heating capacity: 10,000 BTU/H with 10.0 HSPF2 / 3.81 COP2 efficiency
- Voltage: 110/120V, 60Hz, 1Ph
- High Wall Mounted Ductless Air Conditioning & Heating System
-

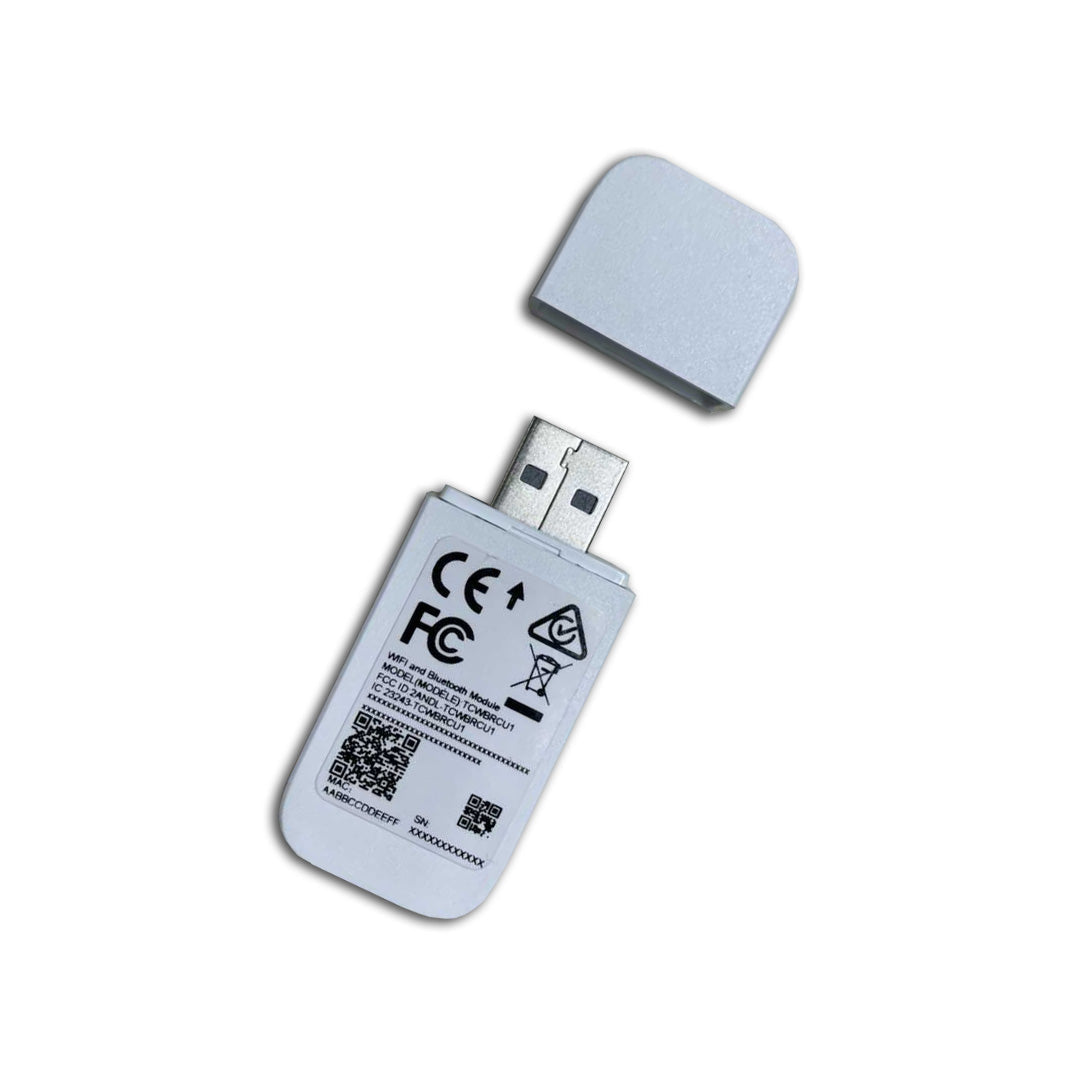

Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
-
Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

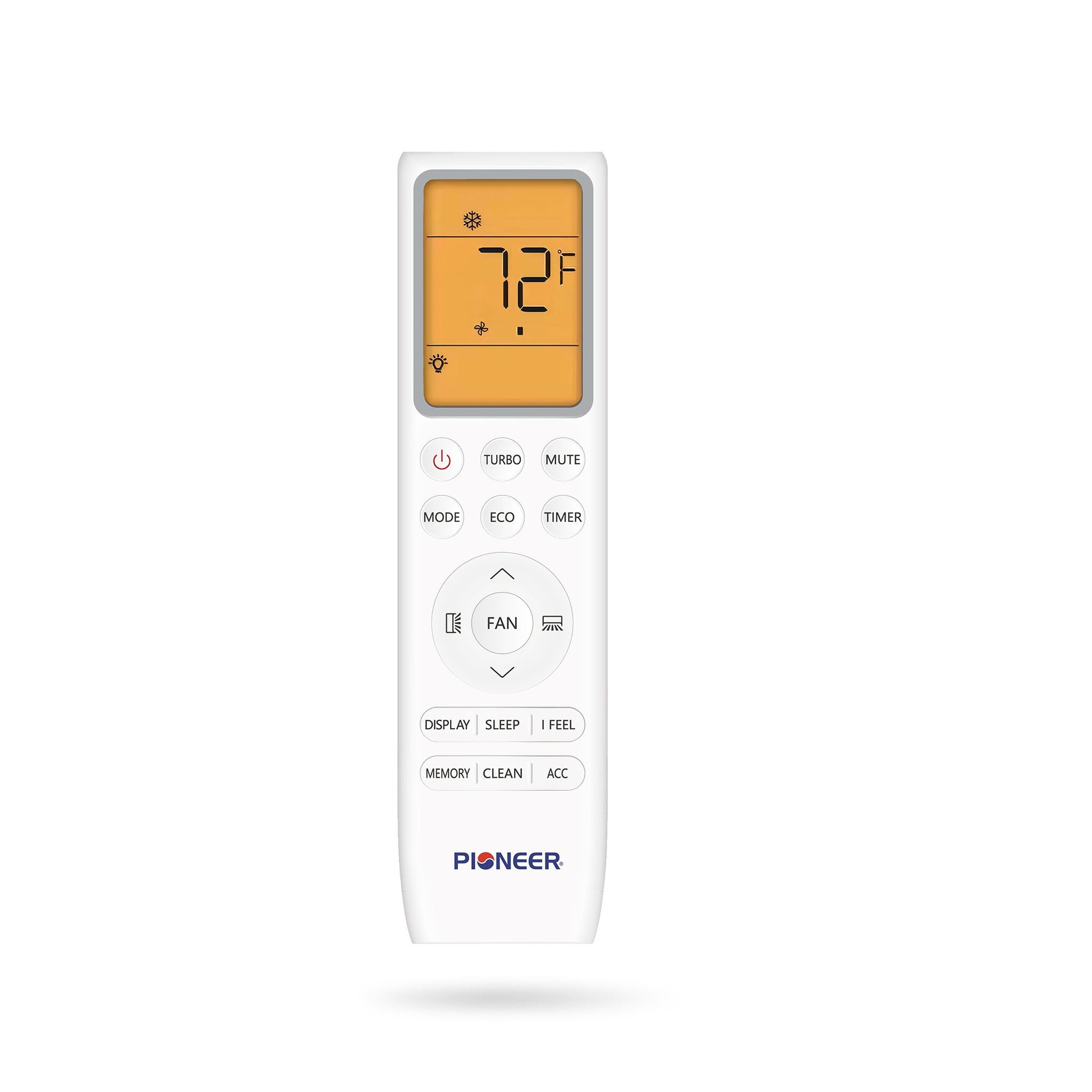

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Performance
-
System Kit
-
Power Supply: 110~120V, 60Hz, 1Ph
-
Cooling Rated Capacity: 9,000 BTU/h
-
Cooling Capacity Range: 2,400~11,000 BTU/h
-
Cooling SEER2: 24.0 BTU/W.h
-
Cooling EER2: 13.0 BTU/W.h
-
Heating Rated Capacity: 10,000 BTU/h
-
Heating Capacity Range: 2,400~11,000 BTU/h
-
Heating HSPF2 (Region IV): 10.0 / 8.6 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.81 / 2.1 W/W
-
Refrigerant Type: R454b
-
Recommended Room Size: 150~350 Sq.F
-
Minimum Room Size: 28 sq ft
-
Minimum Installation Height: 6 ft
-
Piping Diameter: 1/4 x 3/8"
-
AHRI Reference: 217048748
-

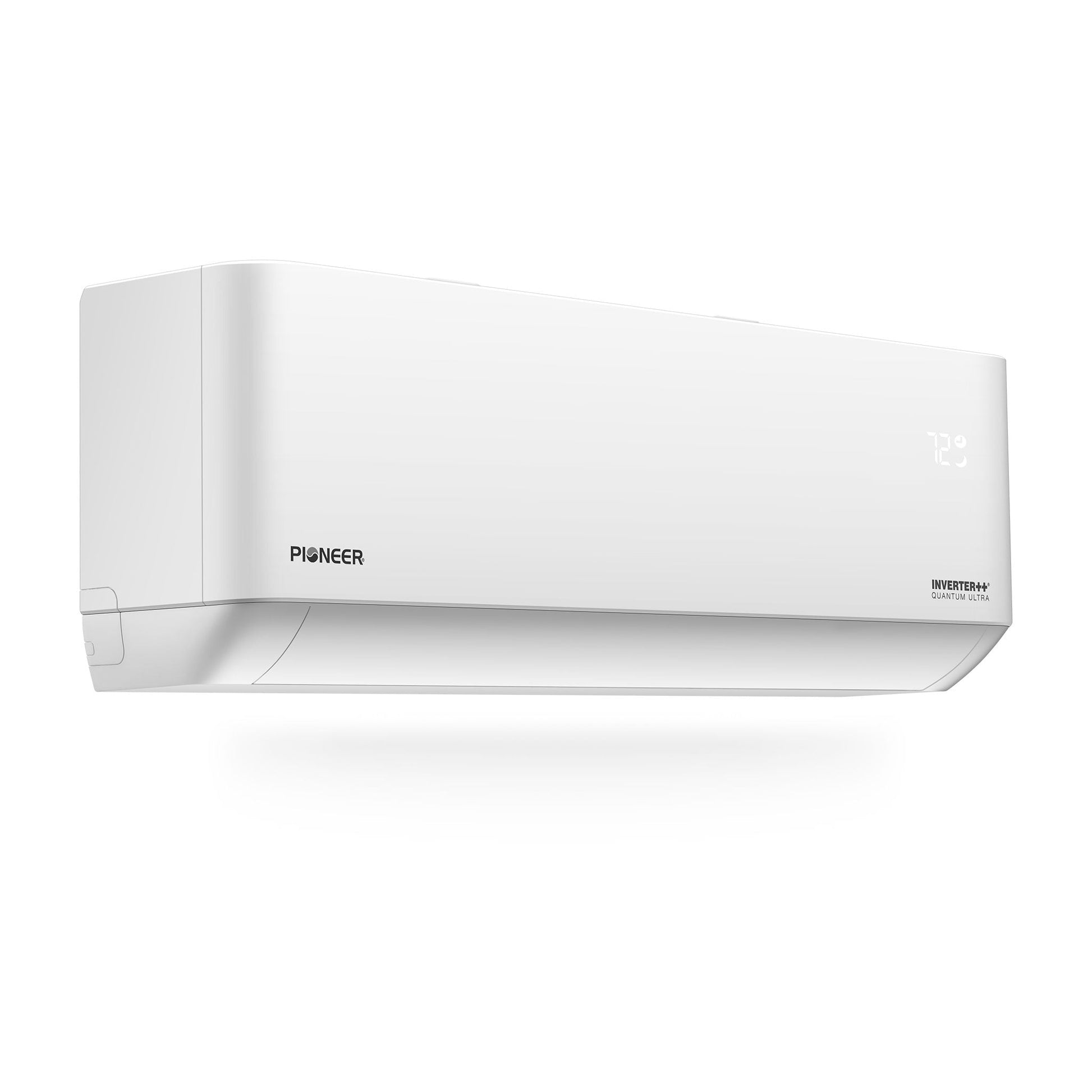

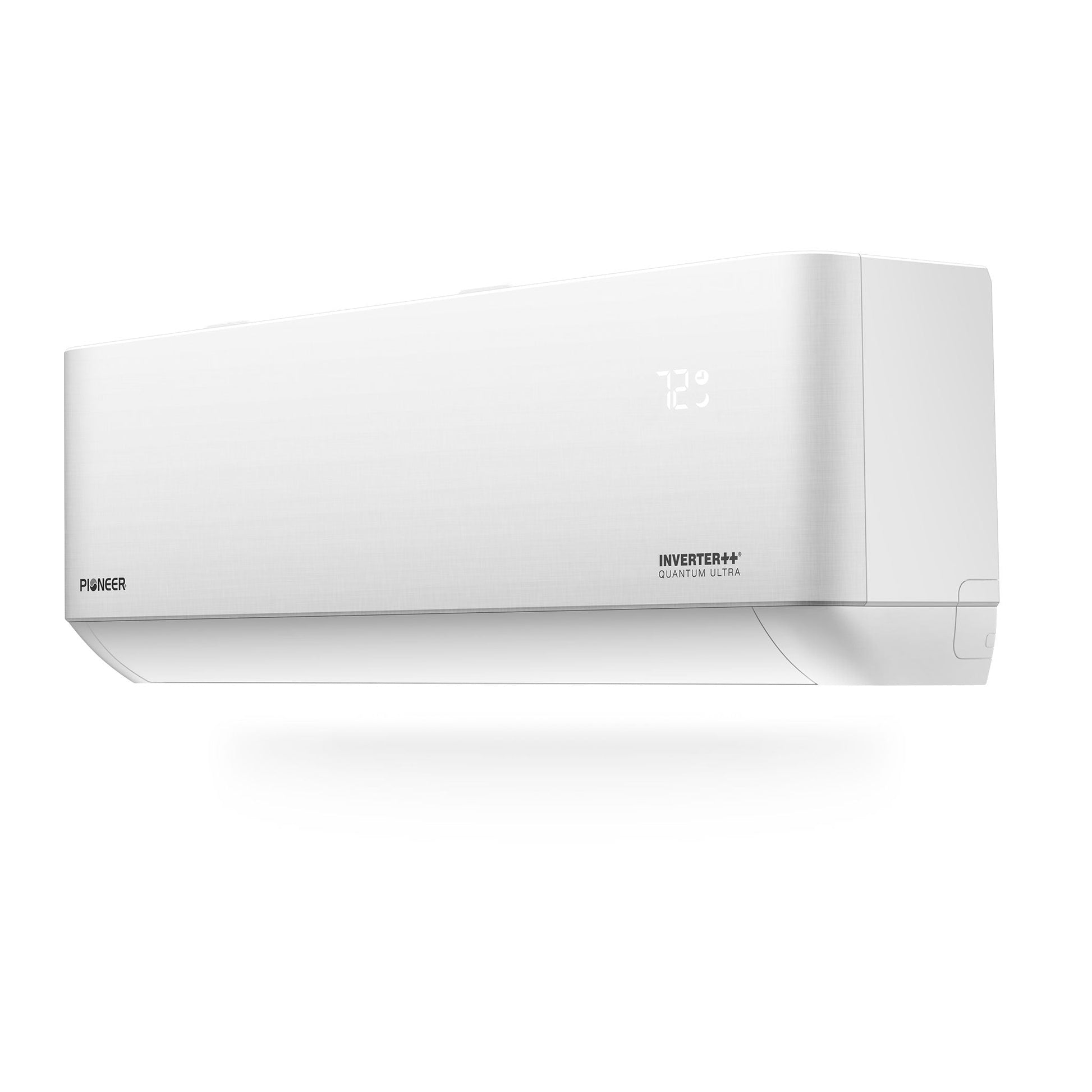

Indoor Unit
-
Part Number: WT009ALSI24HLG
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 326/283/235/188/153 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 43/40/33/31/30 dB(A)
-
Product Dimensions (WDH): 32"-1/4 x 7"-5/8 x 12" Inches
-
Carton Dimensions (WDH): 35" x 10"-1/2 x 15" Inches
-
Net / Gross Weight: 20.7 / 25.1 lbs.
-

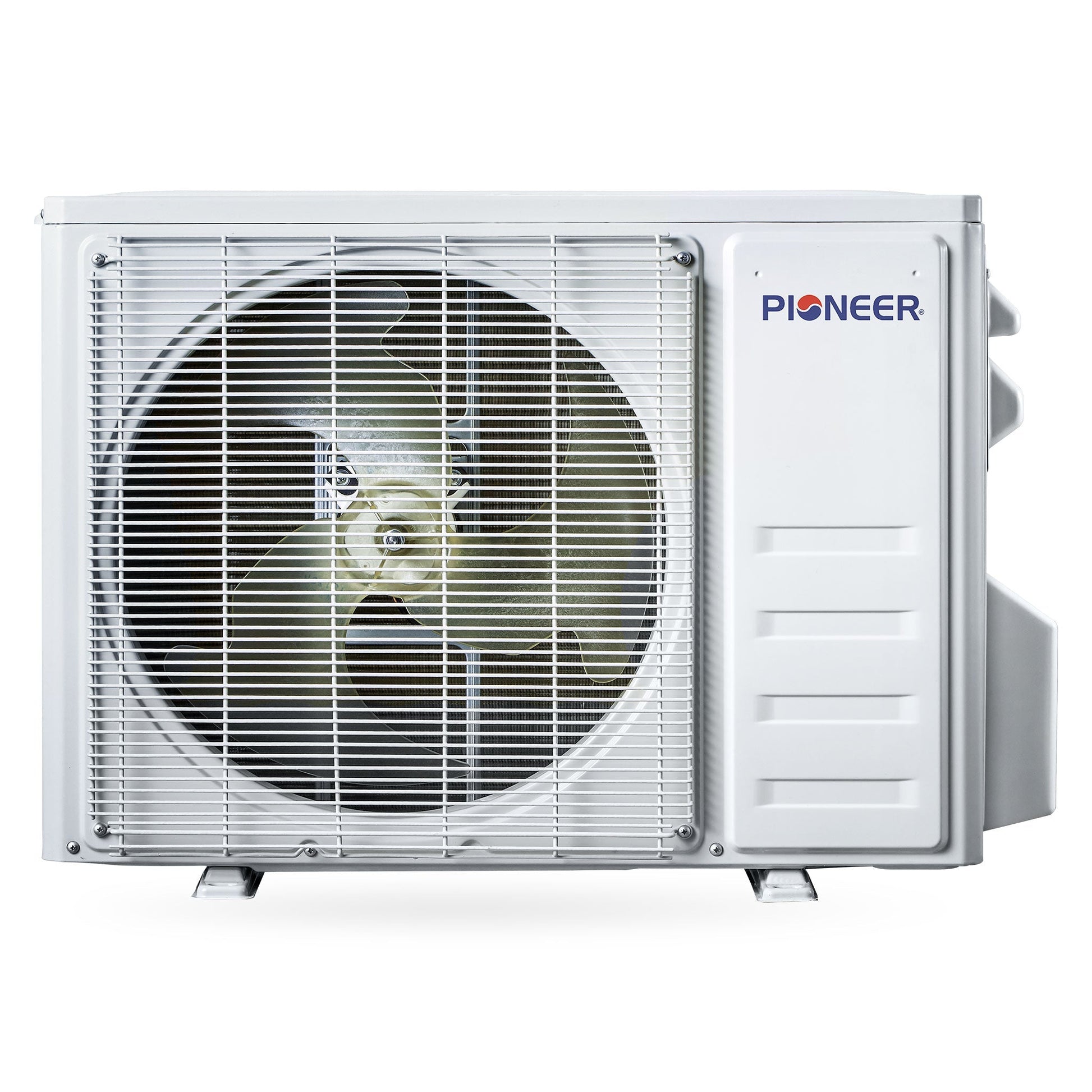

Outdoor Unit
-
Part Number: YN009ALSI24RPG
-
Breaker Needed: 20A (single-pole)
-
Sound Level: 50 dB(A)
-
Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
-
Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches
-
Net / Gross Weight: 53.6 / 60.2 lbs.
Dimension Chart
What Our Experts Think
-
9,000 BTU capacity perfect for small rooms and offices.
-
24 SEER2 Energy-Star efficiency reduces energy costs.
-
High-wall ductless design saves space and complements interiors.
-
Inverter heat pump delivers efficient heating and cooling year-round.
-

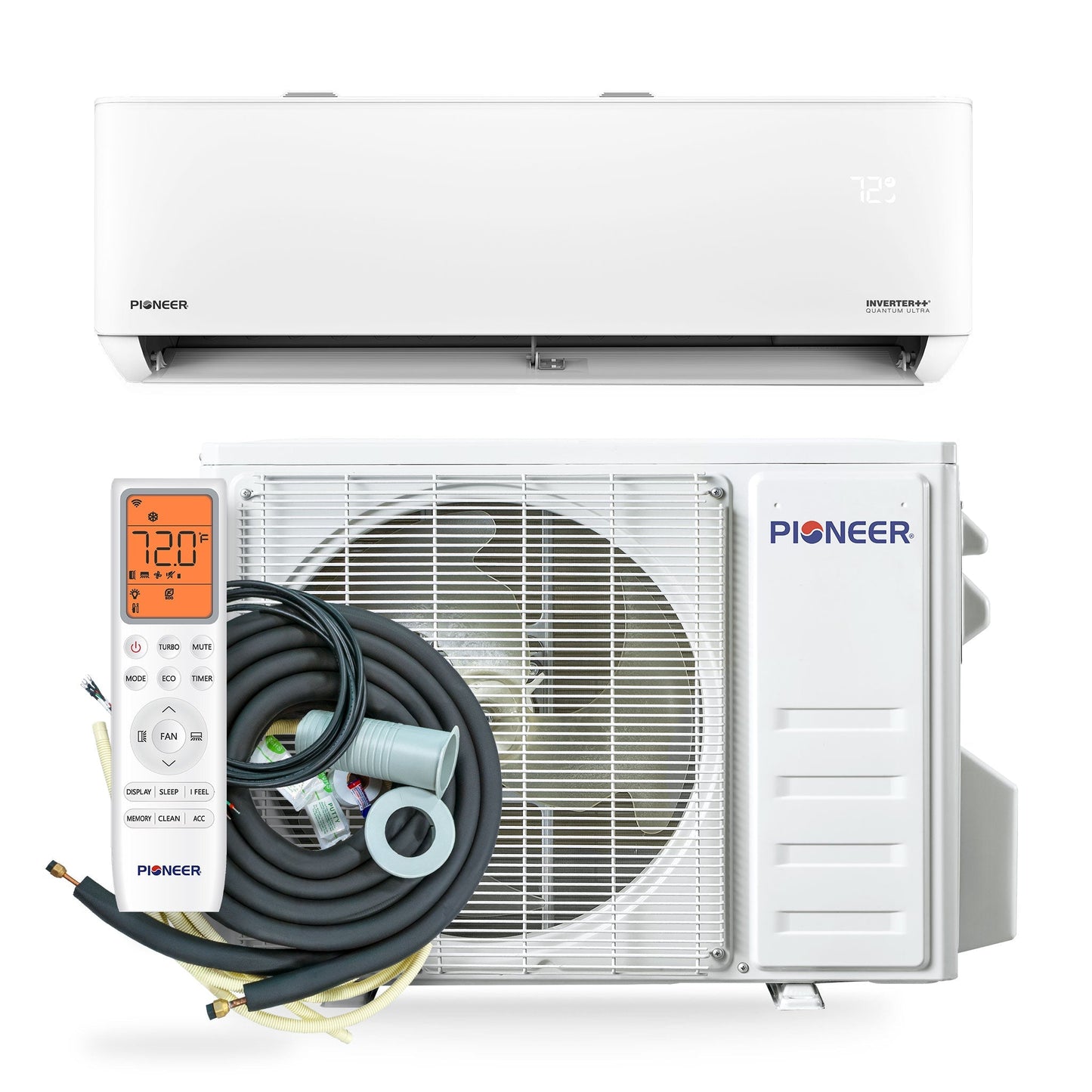

Full set includes indoor and outdoor units for seamless installation.
Q&A
Q: What room size is suitable for this system?
A: Recommended for spaces up to ~400 sq. ft., depending on insulation.
Q: Can it provide both heating and cooling?
A: Yes, the inverter heat pump ensures year-round comfort.
Q: Is it energy-efficient?
A: Yes, the 24 SEER2 Energy-Star rating ensures maximum efficiency.
Maintenance Tips
-
Clean air filters every 4–6 weeks for optimal airflow.
-
Keep outdoor condenser clear of debris to maintain performance.
-
Wipe indoor unit panels regularly to prevent dust buildup.
-
Schedule annual professional servicing to maintain system longevity.
