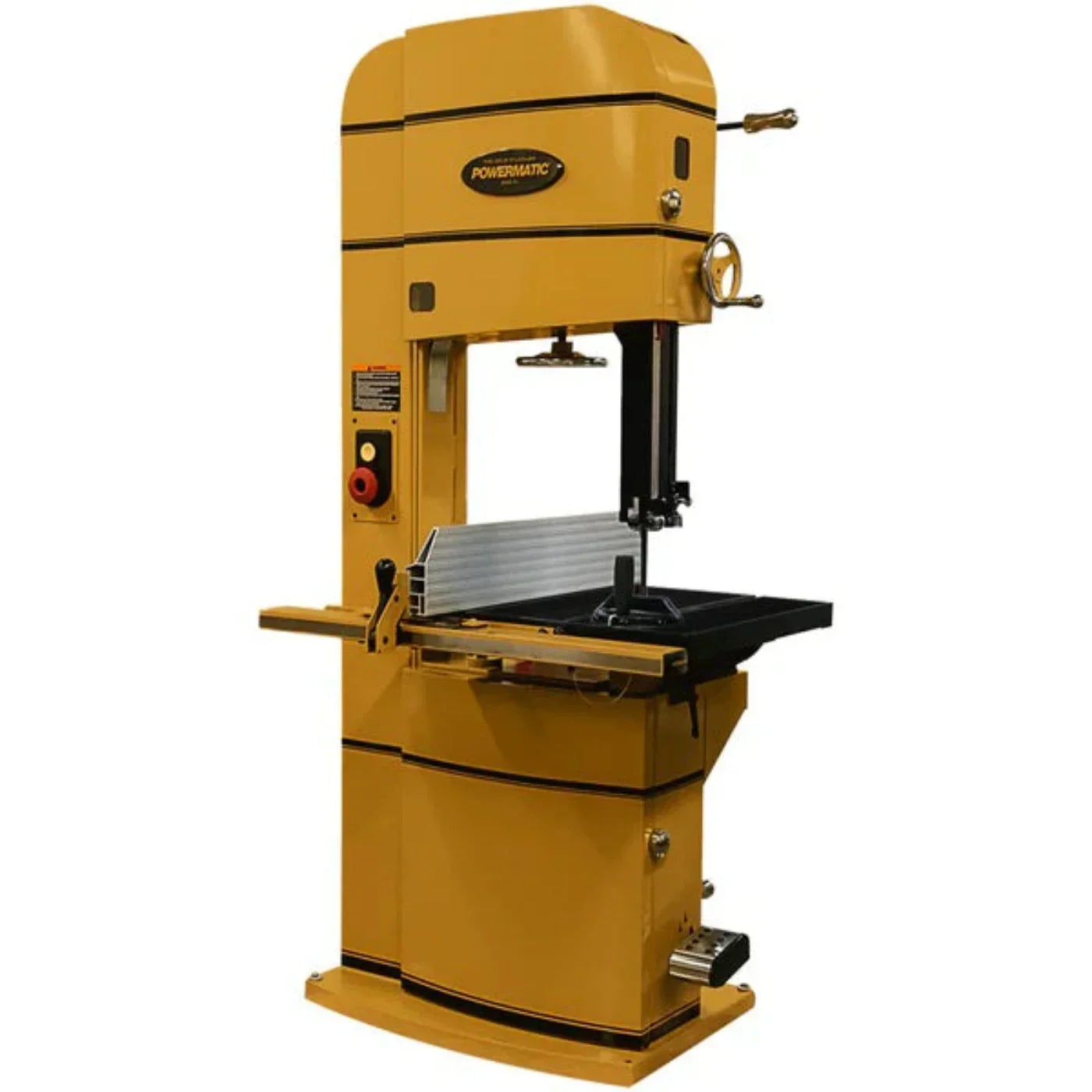

Powermatic 20" Band Saw with ArmorGlide 5hp, 3PH, 230V
When Powermatic reimagined their line of band saws, they not only set out to meet the ambitions of woodworkers across the world, but to exceed them. Larger projects and larger workpieces call for more power, more resaw capacity, and more cast iron.
The PM2013BT Band Saw features ArmorGlide Technology, a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control. This machine includes the legendary quality, precision, and attention to detail that has been helping woodworkers expand their ambition for more than 100 years.
ArmorGlide Technology pros
-
Enhanced visibility: The dark surface reduces glare, so you can see where you're cutting better.
-
Rust resistant: Ditch the steel wool and never worry about rust again.
-
Low friction: Coated tables require 50% less force, so you get more control.
-
Maintenance-free: Get rid of the waxes and messy cleaning supplies, so you can do more of what you love.
-
Durable coating: ArmorGlide tables can withstand 250,000 passes without showing signs of wear.
Features
- ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control
- Miter gauge is built with robust materials with many positive stops for the most commonly used angles
- Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is detensioned
- Exclusive Powermatic T-square style Accu-Fence® maximizes accuracy and safety
- Heavy duty upper wheel support and tracking mechanism for smooth operation
- High end blade guides with toolless adjustment provide stability, increasing cut accuracy
- Rack and pinion table tilt system allows for easy and accurate adjustments
- Solid cast iron upper and lower wheels create the momentum needed for heavy resaw
- Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
- Accu-Fence has complete adjustability for aligning to blade and squaring to table
Specifications
| Blade Length |
170" |
| Blade Speed |
2,300/4,400 SFPM |
| Cutting Capacity (Height) |
18" |
| Cutting Capacity (Width) |
20" |
| Min. Dust Collection |
600 CFM |
| Dust Port Outside Diameter |
4" |
| Min. Saw Blade Width |
1/4" |
| Motor Power |
5hp |
| Motor Voltage |
230V |
| Recommended Circuit Size |
30 Amps |
| Table Height from Floor |
36" |
| Table T-Slot |
3/4" |
| Table Tilt |
45° Right / 10° Left |
What Our Experts Think
-
Powerful Motor: 5hp, 3-phase motor delivers consistent and robust performance.
-
Precision Cutting: ArmorGlide system enhances smoothness and accuracy in every cut.
-
Heavy-Duty Build: Built to handle large projects with a sturdy frame and durable components.
-
Large Capacity: 20" cutting capacity for larger workpieces, making it ideal for demanding tasks.
-
Efficient Operation: 230V electrical input for energy-efficient operation without sacrificing performance.
-
Advanced Features: Includes quick adjustments, high blade tension, and convenient dust collection for cleaner workspaces.
Q&A
Q: What are the key features of the Powermatic 20" Band Saw PM1-1791258BT?
A: This band saw features a 20" cutting capacity, a powerful 5hp motor, and ArmorGlide technology for smooth, efficient cutting. It operates on a 3-phase, 230V electrical system for heavy-duty performance.
Q: What is ArmorGlide technology?
A: ArmorGlide is a unique bearing system designed to reduce friction and enhance the durability and smoothness of the saw's operation.
Q: What motor does the Powermatic 20" Band Saw use?
A: It is powered by a robust 5hp motor, ideal for high-demand cutting tasks.
Q: Is the Powermatic 20" Band Saw suitable for professional use?
A: Yes, with its powerful motor and advanced features, it's perfect for professional woodworkers and industrial use.
Q: What electrical requirements does the Powermatic 20" Band Saw need?
A: The band saw requires a 3-phase, 230V power supply for optimal operation
Maintenance Tips
-
Clean regularly: Remove sawdust and debris from the table, wheels, and motor to ensure smooth operation.
-
Inspect the blade: Check for wear or damage, and replace the blade when necessary.
-
Lubricate moving parts: Apply oil to the wheel bearings and other moving components to reduce friction.
-
Check tension: Ensure the blade is properly tensioned to avoid uneven cuts or damage.
-
Monitor alignment: Keep the wheels and blade aligned for optimal cutting performance.
-
Check motor and electrical connections: Regularly inspect wiring and connections to avoid power issues or malfunctions.
