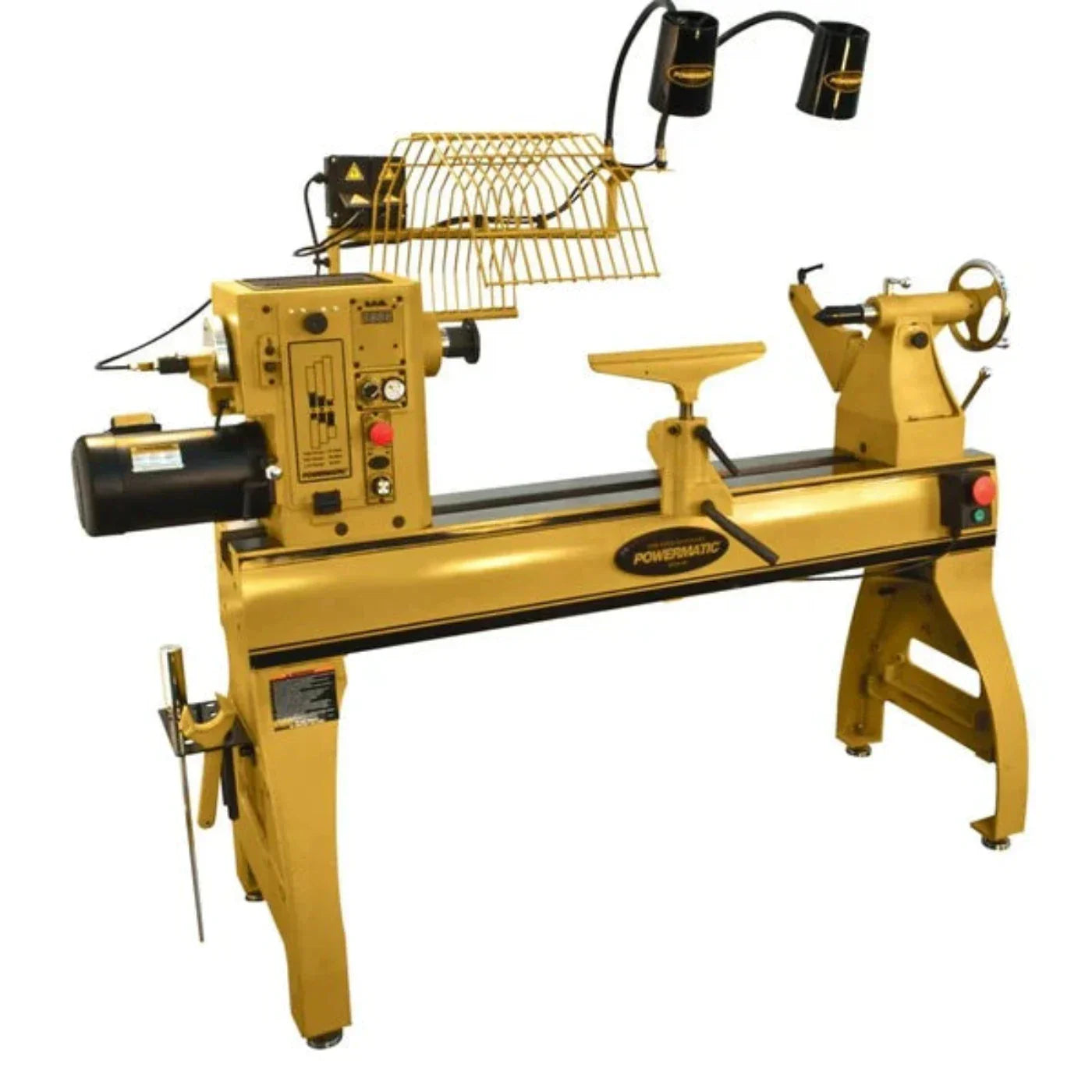

Powermatic 4224B Lathe
The Powermatic 4224B is the newest member of the industry-leading family of lathes. Over 900 pounds, the 4224B is the biggest, heaviest, and most capable lathe we’ve ever built. It expands the limits of creative possibility, and takes your passion to a whole new level. With updated, top of its class features, the 4224B pushes the limits of design, innovation, and durability.
Features
- 15 Amp quad receptacle for easy reach of powered accessories
- Variable frequency drive allows machine to run on single- or three-phase power
- Air nozzle with quick connect for clearing dust/chips
- Brass-tipped knockout bar concentrates the action in the sliding handle; the brass tip will not damage drive centers
- Includes two 100W task lamps to provide ideal lighting and safety guard.
- Magnetic-backed moveable control box for versatility and safety
- Set of dead centers which hold a spindle for visual comparison
- Sliding headstock with electronic variable speed
- Spindle lock and built in spindle indexing on the headstock for drilling hole patterns, routing flutes and other equally spaced features
- Vacuum system provides quick method of chucking bowl blanks
Specifications
| Bed Construction Cast |
Iron |
| Centerline of Spindle to Floor |
44" |
| Distance Between Centers |
42" |
| Gross Weight |
945 lbs. |
| Input Power |
220V 1-Phase |
| Motor Amps |
10 |
| Motor (HP) |
3 HP, 220V, 3Ph |
| Motor Phase |
3 |
| Motor Power (HP) |
3 |
| Motor Voltage (V.) |
220 |
| Net Weight (Lbs.) |
870 |
| Overall Dimensions (L x W x H) |
89" x 28" x 65" |
| Recommended Circuit Size (Amps.) |
30 |
| Shipping Dimensions (L x W x H) |
68" x 27" x 31.5" |
| Swing Over Bed |
24" |
| Weight |
870 lbs. |
What Our Experts Think
-
3HP Motor: Delivers exceptional power for turning large, heavy pieces with ease and precision.
-
Wide Speed Range: Offers a broad range of speeds, ensuring versatility for a variety of turning applications.
-
Heavy-Duty Construction: Built with a robust, stable frame to minimize vibrations for smooth operation and accurate results.
-
Innovative Features: Includes a swiveling headstock, digital RPM display, and quick-lock tailstock for added flexibility.
-
User-Friendly Controls: Easy-to-use interface and adjustments for maximum control and comfort during turning.
Q&A
Q: What is the Powermatic 4224B Lathe (PM9-1794224K)?
A: A powerful and versatile 4224B lathe with a 2HP motor, designed for large-scale woodturning with a focus on precision and performance.
Q: What are its key features?
A: 24" swing capacity, 2HP motor, electronic variable speed control, heavy-duty cast iron construction, and a robust spindle for smooth, accurate turning.
Q: Who is it ideal for?
A: Perfect for professional woodturners and large woodshops requiring high-performance, heavy-duty lathes for large and intricate turning projects.
Q: Why choose this model?
A: Offers a high level of precision, durability, and power, making it an excellent choice for turning large, complex pieces with ease and consistency.
