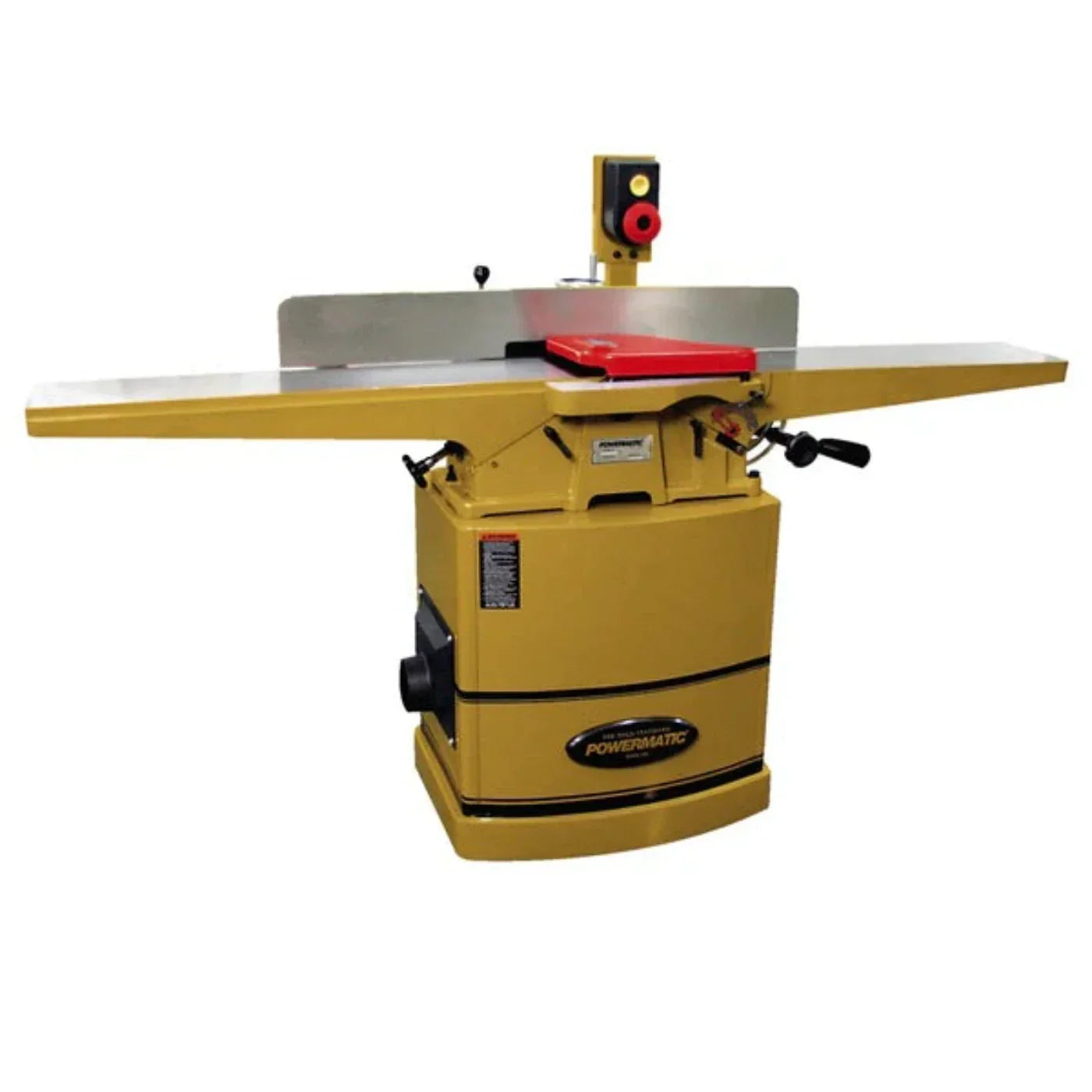

Powermatic 60C 8" Jointer with Straight Knifes
This 8" jointer meets the demand for accuracy while combining unique, user-friendly functions. The infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system, smoothly operated by a simple handwheel.
The tables provide 73” long extended support. A non-mar insert in the fence protects the table from scratches during adjustments. The jointer is available with a three knife cutterhead, or a helical cutterhead with four-sided knife inserts. The operating switch is high mounted for easy reach, and the push blocks have a magnetic base - store them on any metallic surface for instant access.

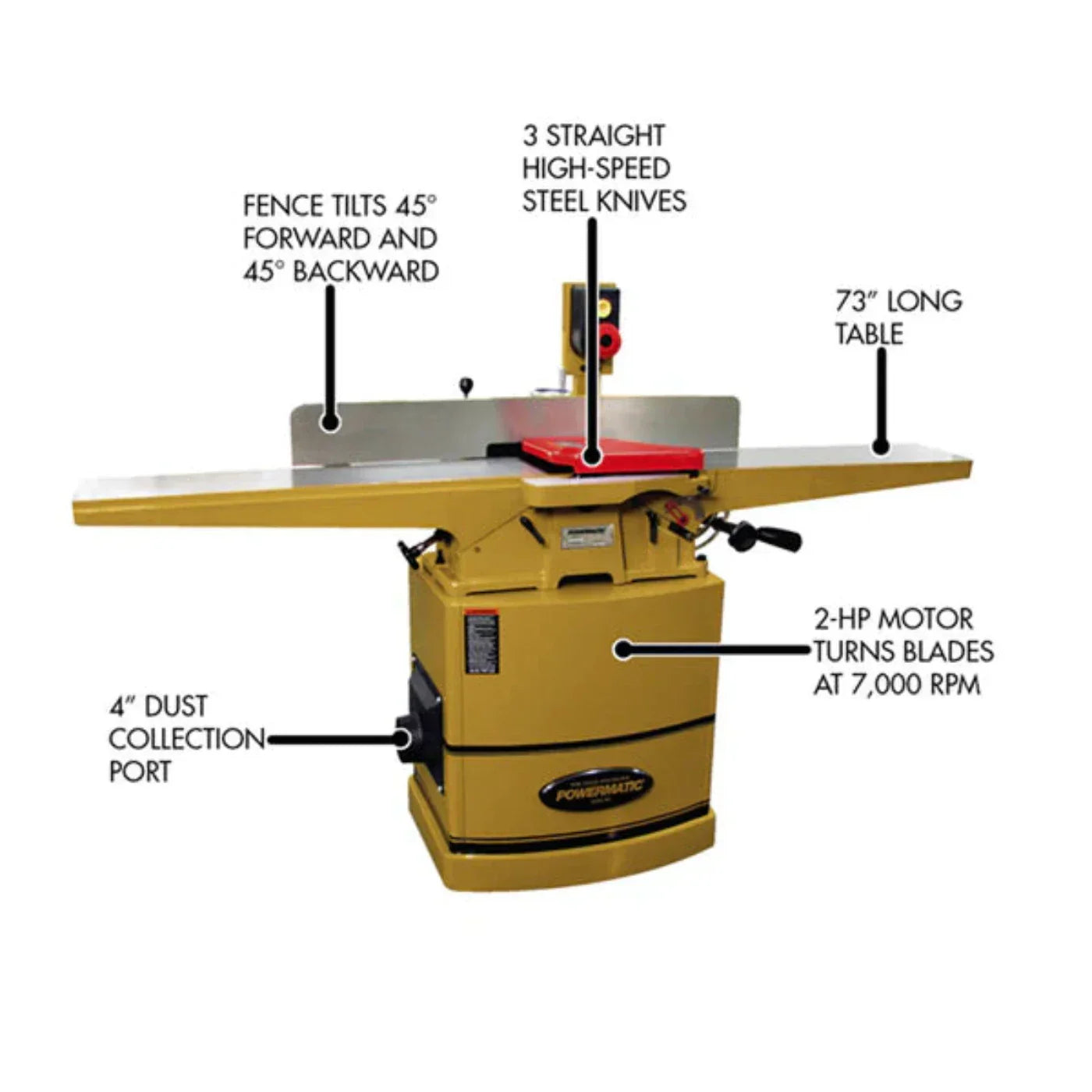

Features
- High-mount switch for operator convenience
- Large 8" x 82" precision ground cast iron table surface for heavy-duty work
- Parallelogram design allows for easy and accurate adjustment of tables
- Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
- Patented handwheel with worm gear system for precise fence tilting
Specifications
| Cutterhead Diameter |
3-1/16" |
| Cutterhead Speed (RPM) |
7,000 |
| Cutting Capacity (W x D) |
8 x 1/2" |
| Dust Collection Minimum CFM Required (CFM) |
450 |
| Dust Port Outside Diameter |
4" |
| Infeed Table Length |
44" |
| Motor Amps |
9 |
| Motor Phase |
1 |
| Motor Power (HP) |
2 |
| Motor Voltage (V.) |
230 |
| Number of Knives |
54 four-sided inserts |
| Prewired Voltage (V.) |
230 |
| Recommended Circuit Size (Amps.) |
20 |
| Type of Cutterhead |
HELICAL |
What Our Experts Think
-
8" Jointer Capacity: Perfect for jointing wider boards, providing smooth, flat edges for larger projects.
-
Straight Knife Cutterhead: Offers reliable performance with consistent cuts for a variety of wood types.
-
Powerful Motor: Ensures effortless cutting, even through tougher hardwoods, for efficient workflow.
-
Heavy-Duty Construction: Built with solid cast iron to reduce vibrations, offering long-lasting durability and stability.
-
Precision Adjustment: Easy and accurate control for adjusting the depth of cut and fence angle for optimal results.
Q&A
Q: What is the Powermatic 60C 8" Jointer (PM9-1610084K)?
A: An 8" straight knife jointer designed for precision wood jointing with a durable construction and smooth, accurate cuts.
Q: What are its key features?
A: 8" cutting width, straight knives for sharp cuts, sturdy cast iron construction for stability, and an adjustable fence for accurate edge jointing.
Q: Who is it ideal for?
A: Ideal for professional woodworkers and larger workshops needing a reliable jointer for efficient edge jointing and surface preparation.
Q: Why choose this model?
A: Provides excellent performance, durability, and accuracy, making it a top choice for heavy-duty jointing tasks and professional woodworking
Maintenance Tips
-
Inspect and Replace Knives: Regularly check the straight knives for wear or nicks; replace or sharpen them to maintain smooth cuts.
-
Clean the Machine: Remove sawdust and debris from the bed, knives, and motor to prevent build-up and maintain performance.
-
Lubricate Moving Parts: Apply lubricant to the infeed and outfeed tables, fence, and other moving parts for smooth operation.
-
Check Knife Alignment: Ensure the knives are aligned correctly to avoid snipe and ensure even cutting.
-
Monitor Belt Tension: Check and adjust the drive belt tension to prevent slipping and ensure efficient power transmission.
-
Inspect the Bed: Regularly check the jointer bed for flatness and smoothness to ensure precision during jointing.
-
Dust Collection: Keep the dust collection port clean and unclogged for effective dust removal during operation.
-
Electrical System: Inspect the motor, wiring, and switches for wear, and ensure proper voltage (230V).
