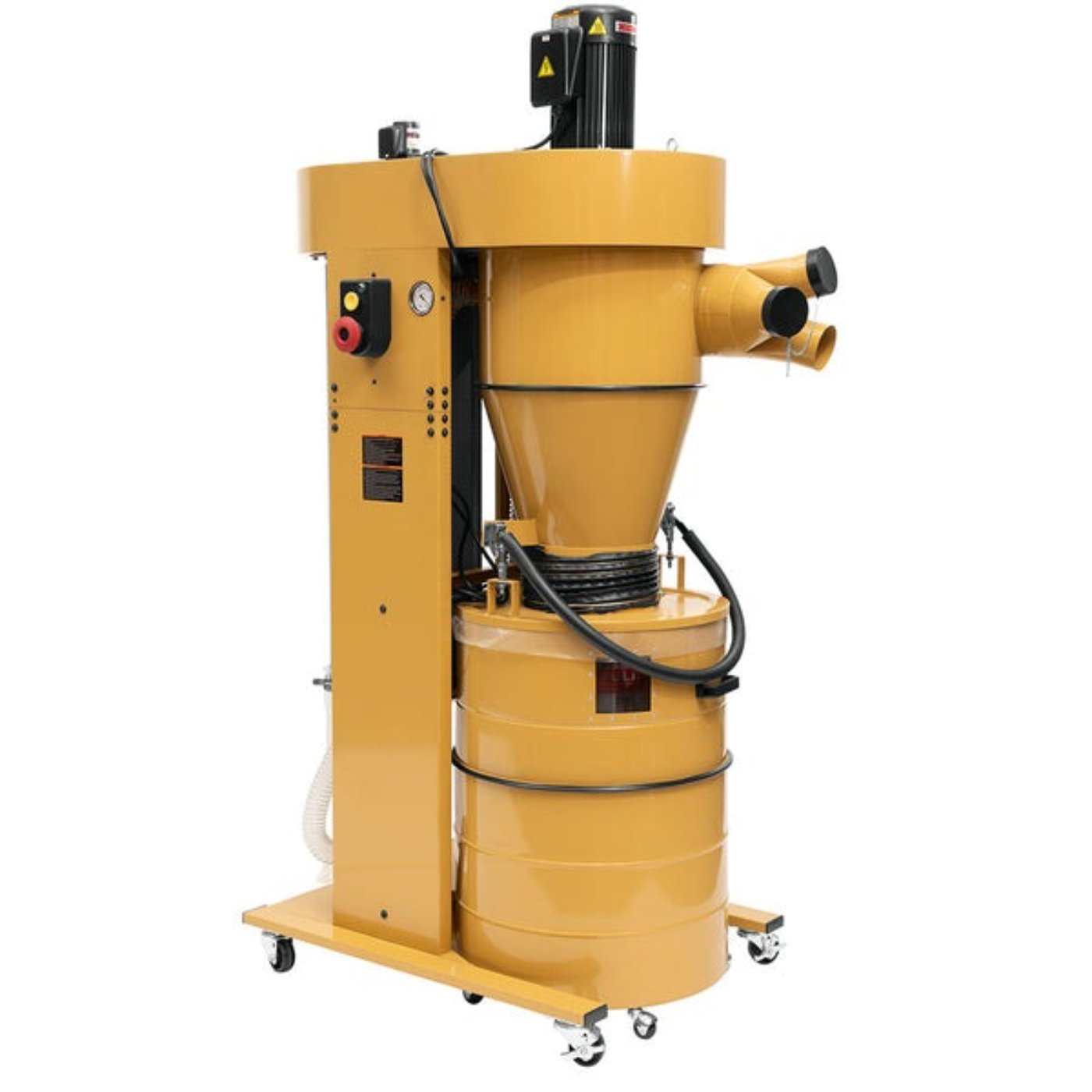

Powermatic PM2200 Cyclonic Dust Collector With HEPA Filter Kit
Powermatic PM2200 Cyclonic Dust Collector with HEPA filtration. The PM2200 pairs the benefits of cyclonic dust collection with the time honored legacy of the Powermatic standard. The all-metal construction provides a stables base for quiet operation and minimal vibration.

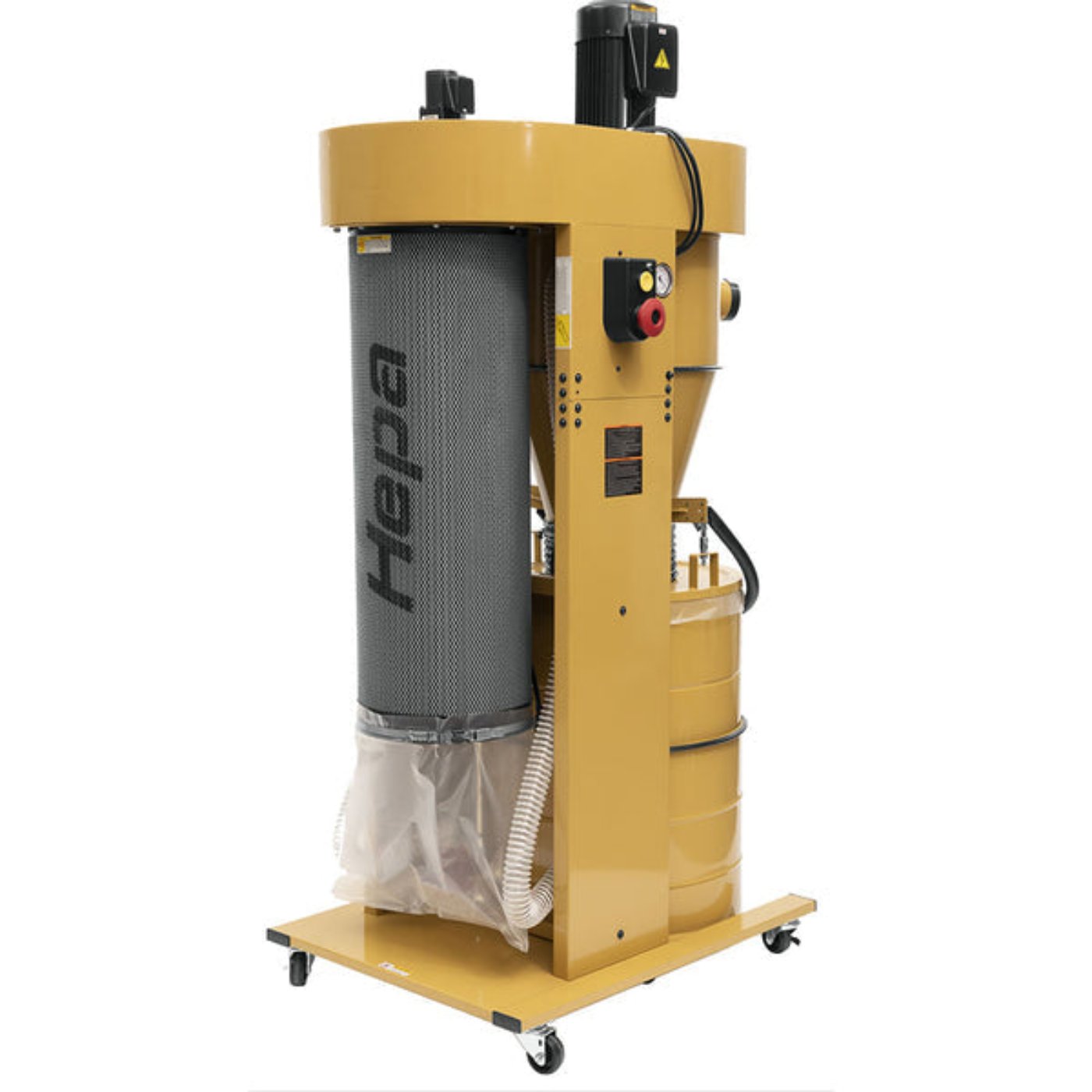

The Powermatic Cyclone is only cyclonic dust collector on the market with an Auto-Cleaning HEPA filter. The included HEPA filter traps 99.97% of all particles at 0.3 micron. With other market leading features such as a one-handed drum release lever, vacuum pressure gauge, and frameless dust bag vacuum retention, the Powermatic PM2200 Cyclone Dust Collector is an innovative addition to the Powermatic family.
Features
- HEPA Filter collects 99.97% of all particles passing through as small as 0.3 Micron

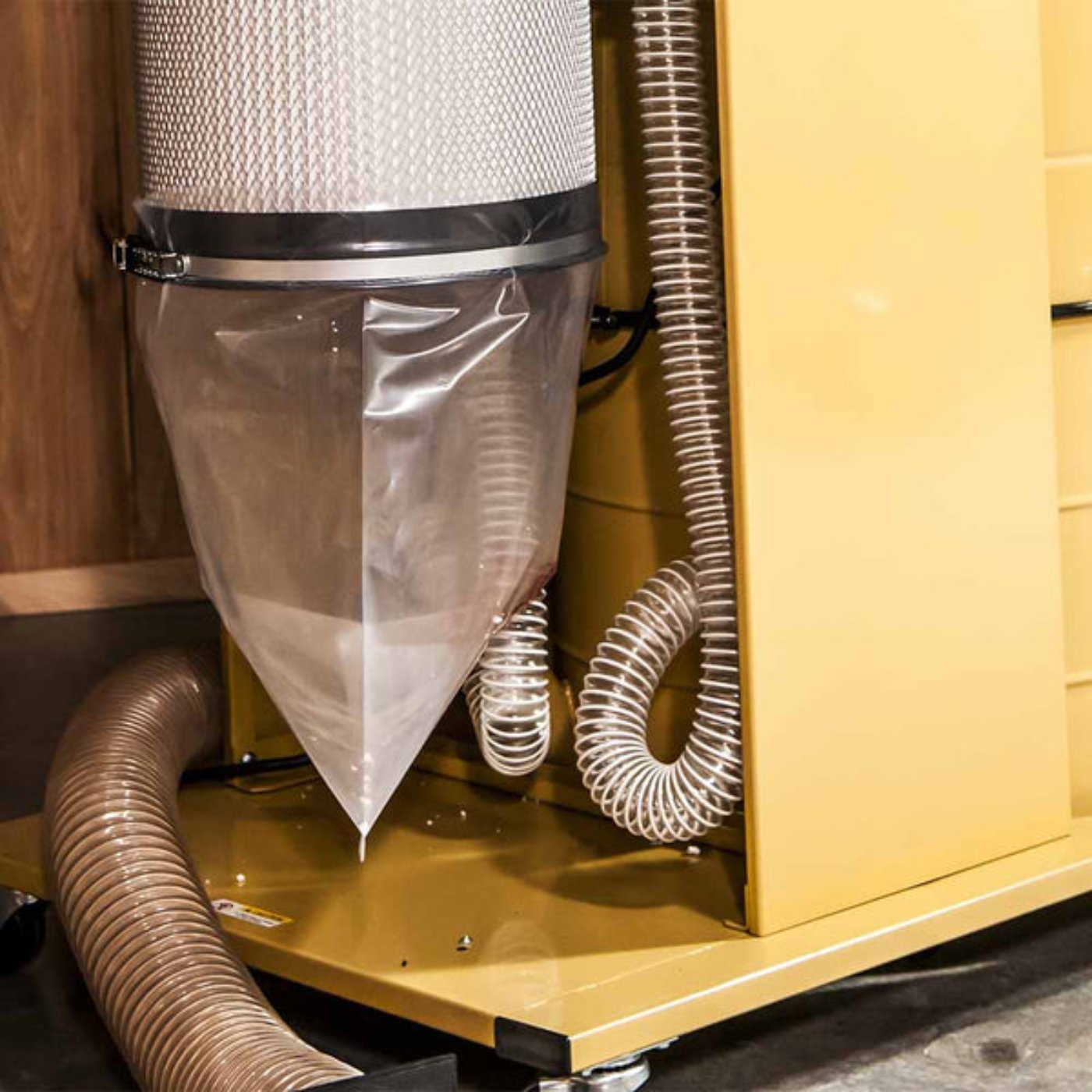

- Integrated vacuum lines in the drum retain the bag without the need for a separate bag frame

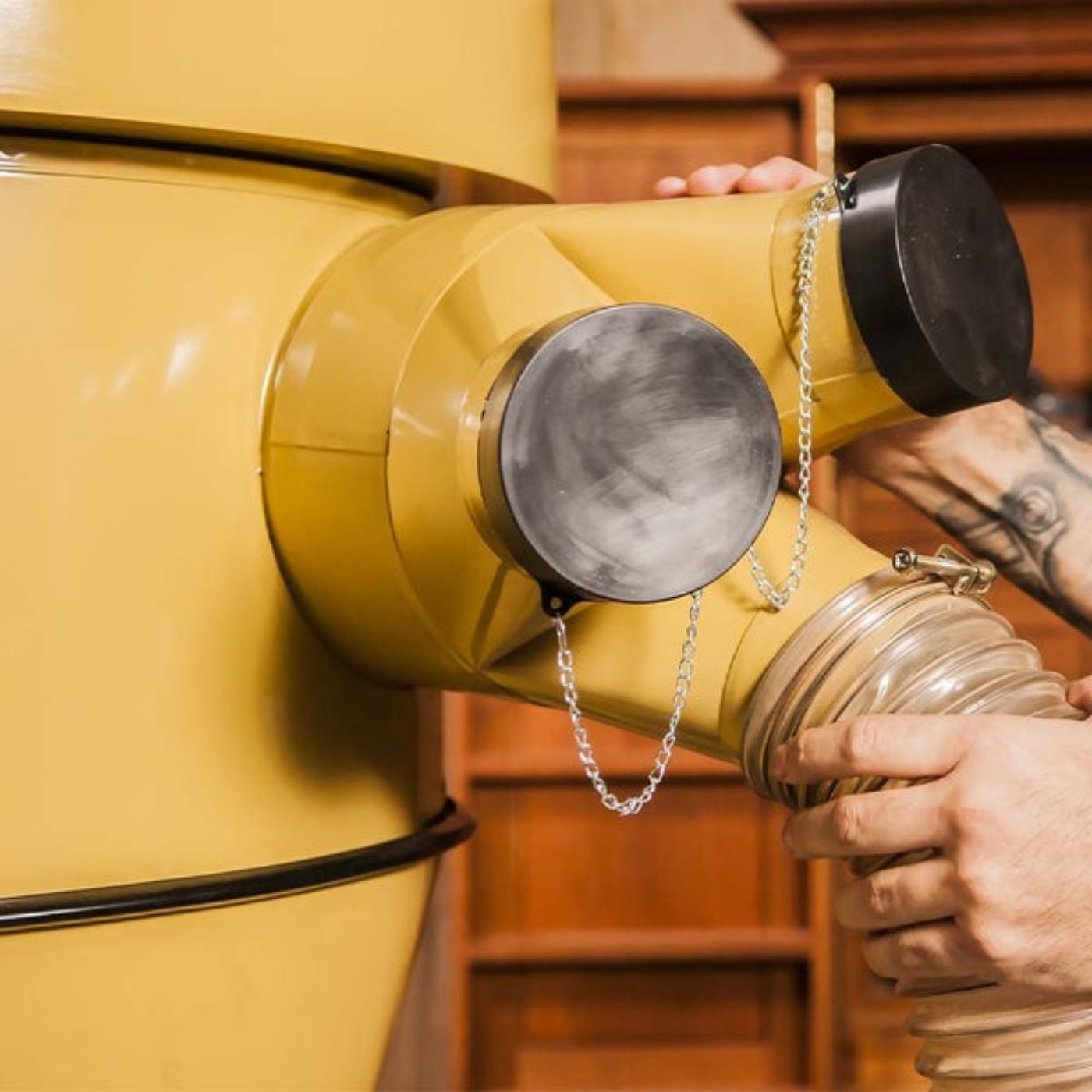

- Multiple hose mounting options: three 4" dust ports or one 8" dust port

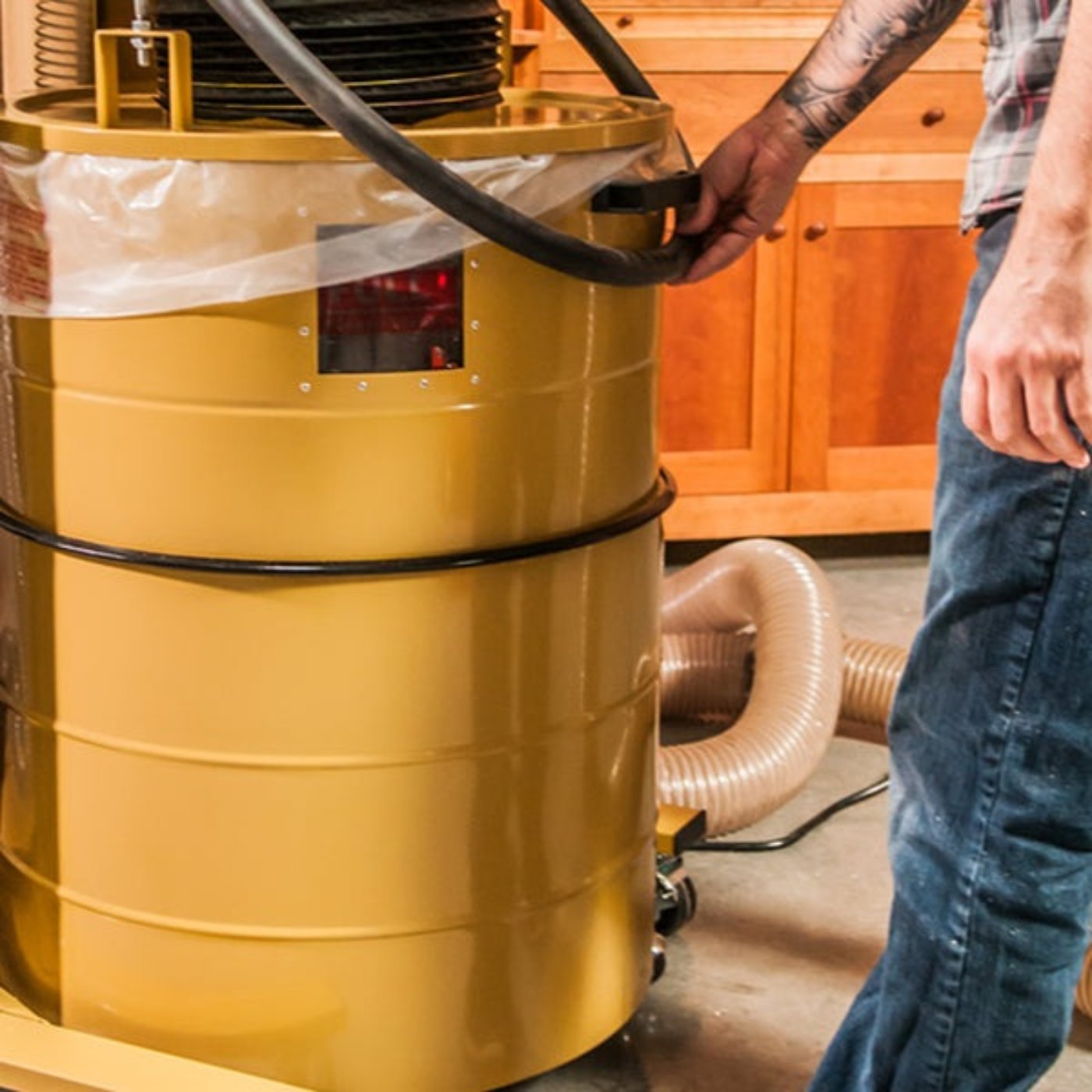

- One-handed drum release allows for simple removal of the drum for bag changes
- Powerful 3 HP motor moves 1,543 Cubic Feet of air per Minute
- Proprietary auto-cleaning HEPA Filter technology for better filtration and longer filter life

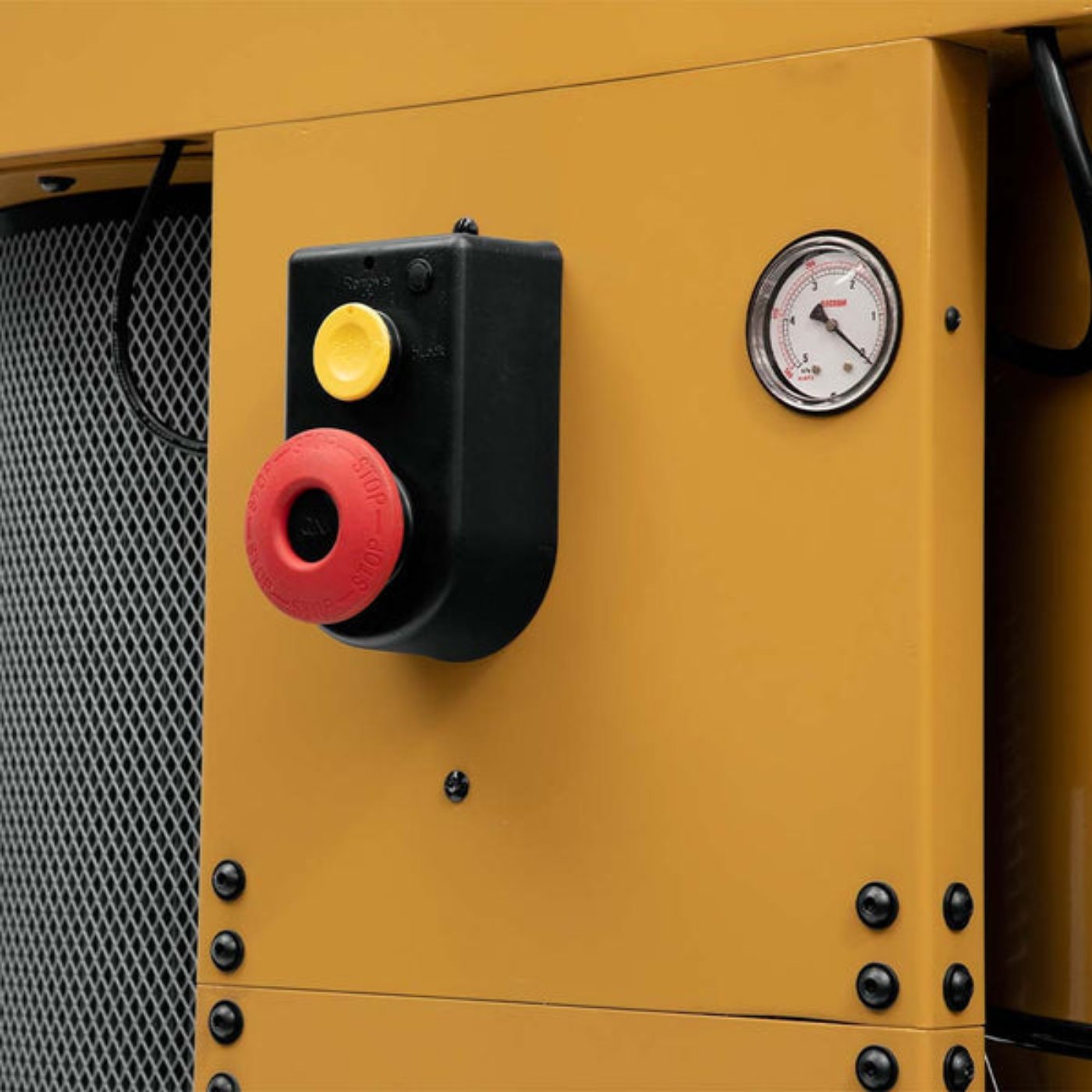

- Vacuum pressure gauge for greater user feedback
Specification
| 1-Hose Connection Diameter |
8" |
| 3-Hoses Connection Diameter |
4" |
| Efficiency (Micron) |
100% of 2 micron particles, 100% of 1 micron particles |
| Gross Weight |
425.5 lbs. |
| Impeller Material |
Steel |
| Motor Amps |
6 |
| Motor Phase |
1 |
| Motor Power (HP) |
3 |
| Motor Voltage (V.) |
230 |
| Net Weight |
370 lbs. |
| Overall Dimensions (L x W x H) |
54-1/2" x 31-7/8" x 85-1/4" |
| Prewired Voltage (V.) |
230 |
| Recommended Circuit Size (Amps.) |
30 |
| Sound Rating (Db.) |
78 |
| Static Pressure (Wc.) |
2.24 |
| Style (Type) |
Dust Collector |
What Our Experts Think
-
Powerful Cyclonic Technology: Provides strong suction for effective dust removal, ensuring a cleaner and healthier work environment.
-
HEPA Filter Kit: Captures even the finest dust particles, improving air quality and reducing harmful exposure.
-
Large Collection Capacity: Features a sizable collection bin that allows for extended use before needing to empty, enhancing productivity.
-
Durable Construction: Built with heavy-duty materials for long-lasting performance and reliability in demanding environments.
-
Quiet Operation: Designed to operate at lower noise levels, making it more comfortable for prolonged use.
Q&A
Q: What is the Powermatic PM2200 Cyclonic Dust Collector designed for?
A: It is designed to efficiently collect dust and debris from woodworking equipment, improving air quality and maintaining a clean workspace.
Q: Does it include a HEPA filter kit?
A: Yes, the PM2200 comes with a HEPA filter kit for superior filtration, capturing even the smallest particles.
Q: What is the motor power?
A: The dust collector features a powerful motor to handle high-volume dust collection.
Q: Is this suitable for professional use?
A: Yes, the PM2200 is ideal for professional woodworking shops, providing high-efficiency dust collection.
Q: What is the cyclonic design?
A: The cyclonic design ensures that larger debris is separated before reaching the filter, improving airflow and filter life.
Q: How does it improve workspace safety?
A: By removing harmful dust particles, it ensures a cleaner, safer environment for woodworking professionals.
Maintenance Tips
-
Filter Cleaning: Regularly clean or replace the HEPA filter to ensure optimal airflow and dust capture. Check the manufacturer's guidelines for cleaning frequency.
-
Cyclone Maintenance: Inspect the cyclone for any buildup or blockages that could reduce efficiency. Clean out any debris from the cyclone regularly.
-
Bag Inspection: Check the collection bags for wear or tears, and replace them as needed to maintain proper dust containment.
-
Airflow Check: Ensure the airflow is unobstructed by clearing any blockages in the intake or exhaust. This ensures the system operates at peak efficiency.
-
Motor Care: Inspect the motor for any signs of overheating or unusual noises. Clean the motor's vents and fans to prevent dust buildup.
-
Hoses and Connections: Check the hoses and connections for leaks, wear, or blockages, and ensure they are securely attached to prevent dust from escaping.
-
Electrical Components: Inspect all wiring, switches, and connections for any signs of wear, and replace any damaged components promptly.
-
General Cleaning: Keep the overall system clean, especially around the intake and exhaust areas, to maintain the dust collector's performance.
