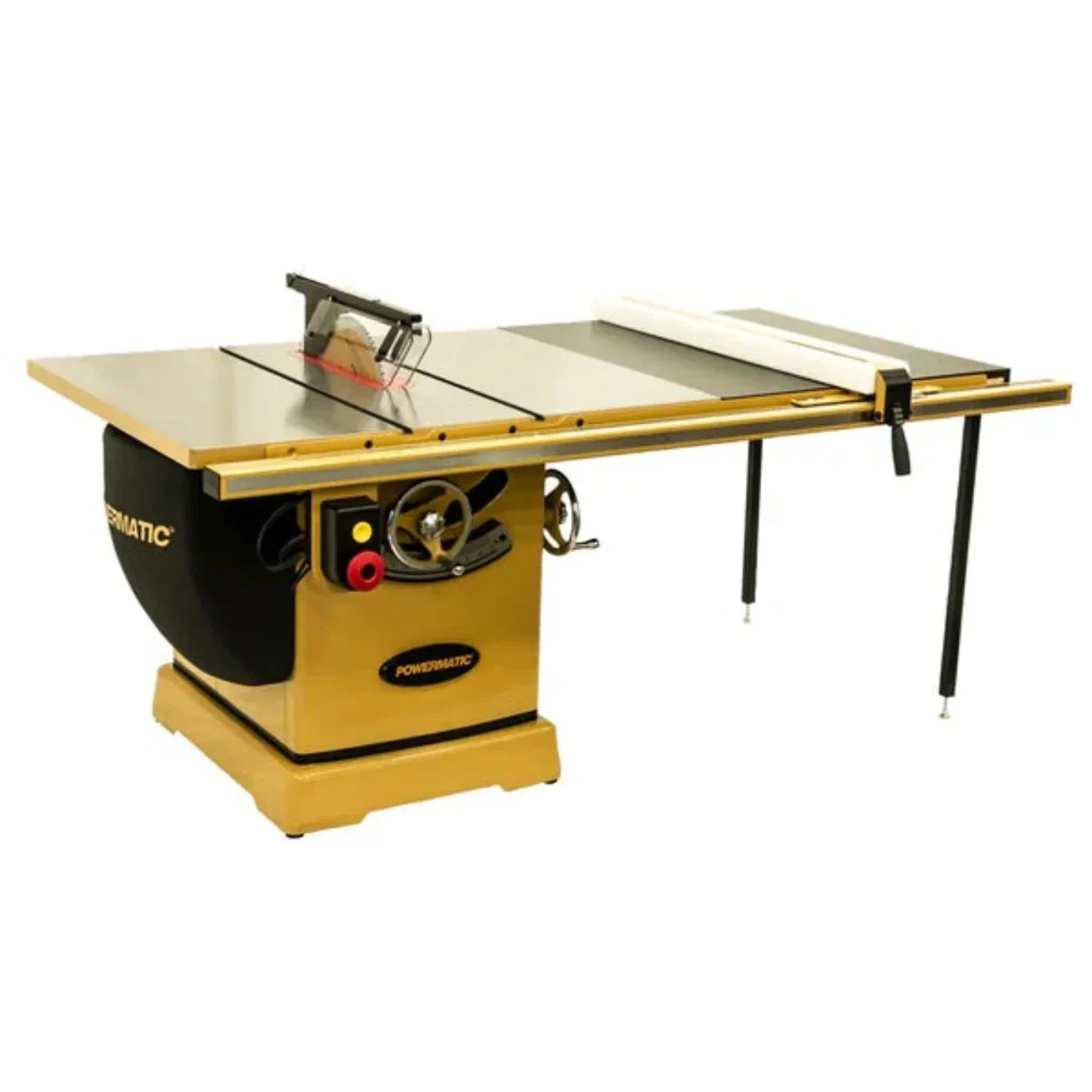

Powermatic PM3000T 14" Table Saw with ArmorGlide & Extension Table 7.5hp, 3PH, 230V (50" Rip)
Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the PM3000B brings heavyweight performance and patented innovations to the 14-inch table saw arena. The riving knife rises and lowers with the blade, substantially reducing kickback risk; and both the riving knife and blade guard each have a quick-release, so mounting and removing them is fast and tool-free. A wide-stance trunnion and concave teeth on the trunnion gears promote smooth blade raising/tilting.
The Poly-V drive belt system results in quieter, more efficient power transfer with virtually no vibration and less heat buildup. A redesigned push button arbor lock is accessible from above the table top and eliminates the need for dual arbor wrenches. Additional features include a sloped cabinet floor, dust shroud around the blade, and built-in port for dust extraction.
ArmorGlide Technology pros:
-
Enhanced visibility:Â The dark surface reduces glare, so you can see where you're cutting better.
-
Rust resistant:Â Ditch the steel wool and never worry about rust again.
-
Low friction:Â Coated tables require 50% less force, so you get more control.
-
Maintenance-free:Â Get rid of the waxes and messy cleaning supplies, so you can do more of what you love.
-
Durable coating:Â ArmorGlide tables can withstand 250,000 passes without showing signs of wear.
Features
- ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control.
- Miter guage is built with robust materials with many positive stops for the most commonly used angles.
- Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts
- Adjustable miter gauge
- Arbor lock for rapid blade change
- Heavy-duty micro adjustable miter gauge with aluminum extruded fence, for good workpiece and fine angle adjustments
- Industrial magnetic switch has an easy-to-access, large ON/OFF switch with a built-in power indicator light and a removable magnetic safety key
- Industrial-duty Accu-Fence System ensures accurate cuts and increased safety
- One piece, cast iron trunnion provides the strongest stability of any Powermatic table saw.
- Poly-V drive belt system delivers efficient, quiet operation
Specifications
| Arbor Diameter |
5/8" |
| Arbor Speed |
4,500 RPM |
| Blade Diameter |
14" |
| Dust Collection |
600 CFM |
| Dust Port Outside Diameter |
4" |
| Maximum Depth of Cut |
3-1/2" or 5-1/8" |
| Maximum Diameter of Dado |
8" |
| Maximum Rip Left of Blade |
14" |
| Maximum Rip Right of Blade |
50" |
| Maximum Width of Dado |
13/16" |
| Motor Power |
7.5hp |
| Motor Amps |
6.7 |
| Motor Voltage |
230V |
| Recommended Circuit Size |
30 Amps |
| Table Height from Floor |
35-1/4" |
| Table Size |
26" x 38" |
| Overall Dimensions |
84-11/16" x 46-1/2" x 42-7/8" |
| Net Weight |
467 lbs. |
What Our Experts Think
-
Powerful 7.5HP Motor: The 3-phase motor delivers robust cutting power, making it ideal for demanding applications and large projects.
-
ArmorGlide Coating: Provides a smooth, low-friction surface that enhances cutting precision and material handling.
-
Generous Rip Capacity: With a 50" rip fence, it offers ample room for wide, intricate cuts on large workpieces.
-
Heavy-Duty Build: The solid construction minimizes vibrations, ensuring stability and superior accuracy during use.
-
Extended Work Surface: The extension table provides extra support for larger pieces, increasing overall versatility.
Q&A
Q: What is the Powermatic PM3000T Table Saw designed for?
A: It is a high-performance table saw ideal for professional woodworking, offering precision and power for large-scale projects.
Q: What is the motor power and voltage?
A: The PM3000T features a 7.5HP motor and operates on 3-phase, 230V.
Q: What is the cutting capacity?
A: It provides a 50-inch rip capacity, perfect for handling large and wide workpieces.
Q: What is ArmorGlide?
A: ArmorGlide is a special coating on the table that reduces friction, ensuring smoother material movement and better performance.
Q: Does it include an extension table?
A: Yes, the saw comes with an extension table to provide additional workspace for larger projects.
Q: Is this table saw suitable for industrial use?
A: Yes, the powerful motor and durable design make it ideal for industrial and high-demand professional use
Maintenance Tips
-
Blade Maintenance: Clean the blade after each use to remove pitch and resin buildup. Inspect the blade regularly for dullness or damage and replace as needed.
-
Alignment Checks: Ensure proper alignment of the blade, rip fence, and miter gauge to maintain cutting accuracy and precision.
-
Lubrication: Regularly lubricate moving parts such as the trunnions, gears, and elevation mechanism to reduce friction and ensure smooth operation.
-
Dust Collection System: Maintain and clean the dust collection system frequently to prevent clogs and ensure effective dust removal for a clean work environment.
-
Table Surface Care: Clean the ArmorGlide tabletop regularly and apply a wax coating to protect against rust and provide a smooth cutting surface.
-
Motor Inspection: Check the motor for overheating or unusual noises. Clean the motor vents to ensure proper ventilation and cooling.
-
Electrical System: Inspect the power cord, switches, and connections for wear and tear, and replace any damaged components immediately.
-
Extension Table Care: Ensure the extension table is level and securely attached. Regularly check for damage or misalignment to maintain cutting precision.
