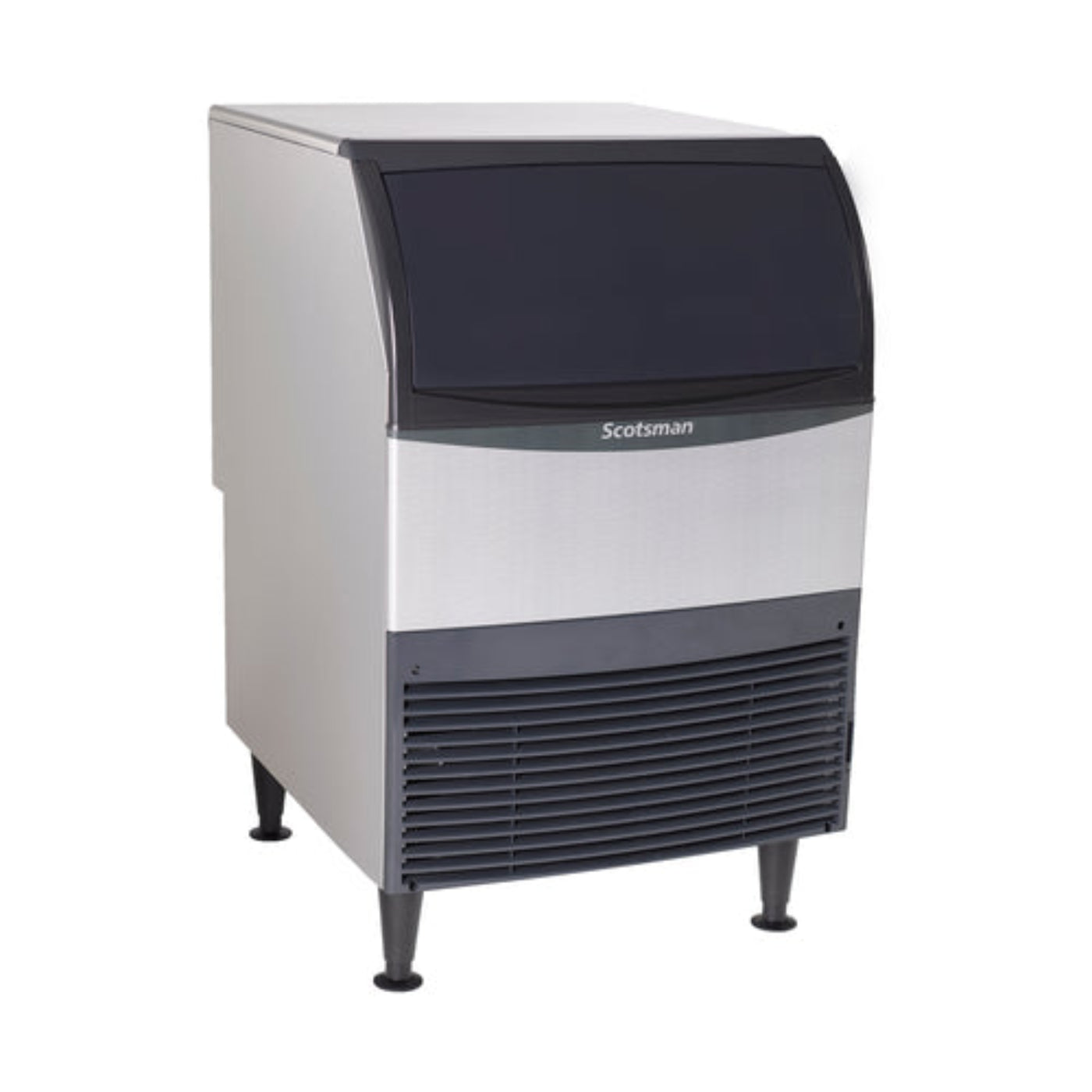

Scotsman Ice Machines - UF424A-1
Undercounter Ice Maker with Bin, Flake Style, air cooled, 24" width, self contained condenser, production capacity up to 440 lb production/24 hours at 70°/50° (310 lb AHRI certified at 90°/70°), 80 lb bin storage capacity, sealed maintenance-free bearings, stainless steel auger & evaporator, front facing removable air filter, recessed utility chase, unit specific QR code, ice scoop, includes 6" adjustable legs, 115v/60/1-ph, includes 5.5' power cord with NEMA 5-15P plug, cULus, NSF, engineered and assembled in USA
Specifications
| Manufacturer |
Scotsman |
| Certifications |
NSF, cULus |
| Height |
39.0 in |
| Width |
24.0 in |
| Depth |
29.0 in |
| Shipping Weight |
200.0 lbs |
| Bin Storage Capacity |
80 lb (0 - 99 lb range) |
| Cooling Type |
Air-cooled |
| Ice Production (24 hr) |
Up to 370 lb at 70°F air / 50°F water |
| Ice Type |
Flake |
| Finish |
Stainless steel |
| Installation Type |
Undercounter |
| Condenser Type |
Self-contained |
| Materials |
Stainless steel auger & evaporator |
| Bearings |
Sealed, maintenance-free |
| Air Filter |
Front-facing, removable |
| Utility Chase |
Recessed |
| Additional Features |
Unit-specific QR code, ice scoop included, 6" adjustable legs |
| Electrical |
230v / 50Hz / 1-ph (Export Model – 50Hz version) |
| Country of Origin |
Engineered and assembled in USA |
Drawings
Documents
What our Experts Think
-
Compact & Efficient: Perfect for tight spaces—ideal for bars, healthcare, and small foodservice setups.
-
High Ice Output: Produces up to 440 lbs of soft, chewable flake ice daily—great for display, beverages, and preservation.
-
Trusted Brand: Scotsman is an industry leader known for reliability and innovation in ice-making.
-
Energy-Efficient Design: Air-cooled system reduces energy costs while maintaining performance.
-
User-Friendly Operation: Intuitive controls and front-access servicing make maintenance hassle-free.
-
Durable Build: Stainless steel exterior ensures long-term use in commercial environments.
-
ADA Compliant Height: Fits under most counters and meets accessibility requirements.
Q&A
Q: What is the Scotsman UF424A-1 Ice Machine?
A: The Scotsman UF424A-1 is a compact undercounter flake ice machine that produces up to 440 lbs of soft, moldable flake ice daily—ideal for food displays, healthcare, and blended drinks.
Q: What type of ice does it make?
A: It produces flake ice, perfect for rapid cooling, preserving perishables, and easy-to-chew applications.
Q: Is it suitable for commercial use?
A: Yes, it's designed for high-demand commercial environments like restaurants, bars, grocery stores, and medical facilities.
Q: How much storage does it have?
A: The built-in storage bin holds up to 80 lbs of flake ice, ensuring consistent availability during peak hours.
Maintenance Tips
-
Clean Condenser Coils Monthly
Dust and debris reduce cooling efficiency—vacuum or brush coils to ensure optimal performance.
-
Sanitize Ice Bin Weekly
Prevent bacteria and mold buildup by using a food-safe sanitizer inside the bin.
-
Replace Water Filter Every 6 Months
Clean water ensures better ice quality and protects internal components from scale buildup.
-
Inspect Evaporator for Scale
Check for mineral buildup and descale if needed to maintain ice production efficiency.
-
Check Drain Lines for Clogs
Ensure proper drainage to prevent overflow or machine shutdown.
-
Keep Air Vents Clear
Maintain at least 6 inches of clearance around air vents to avoid overheating.
-
Schedule Annual Professional Service
A technician can deep clean internal parts, update firmware, and extend machine lifespan.
