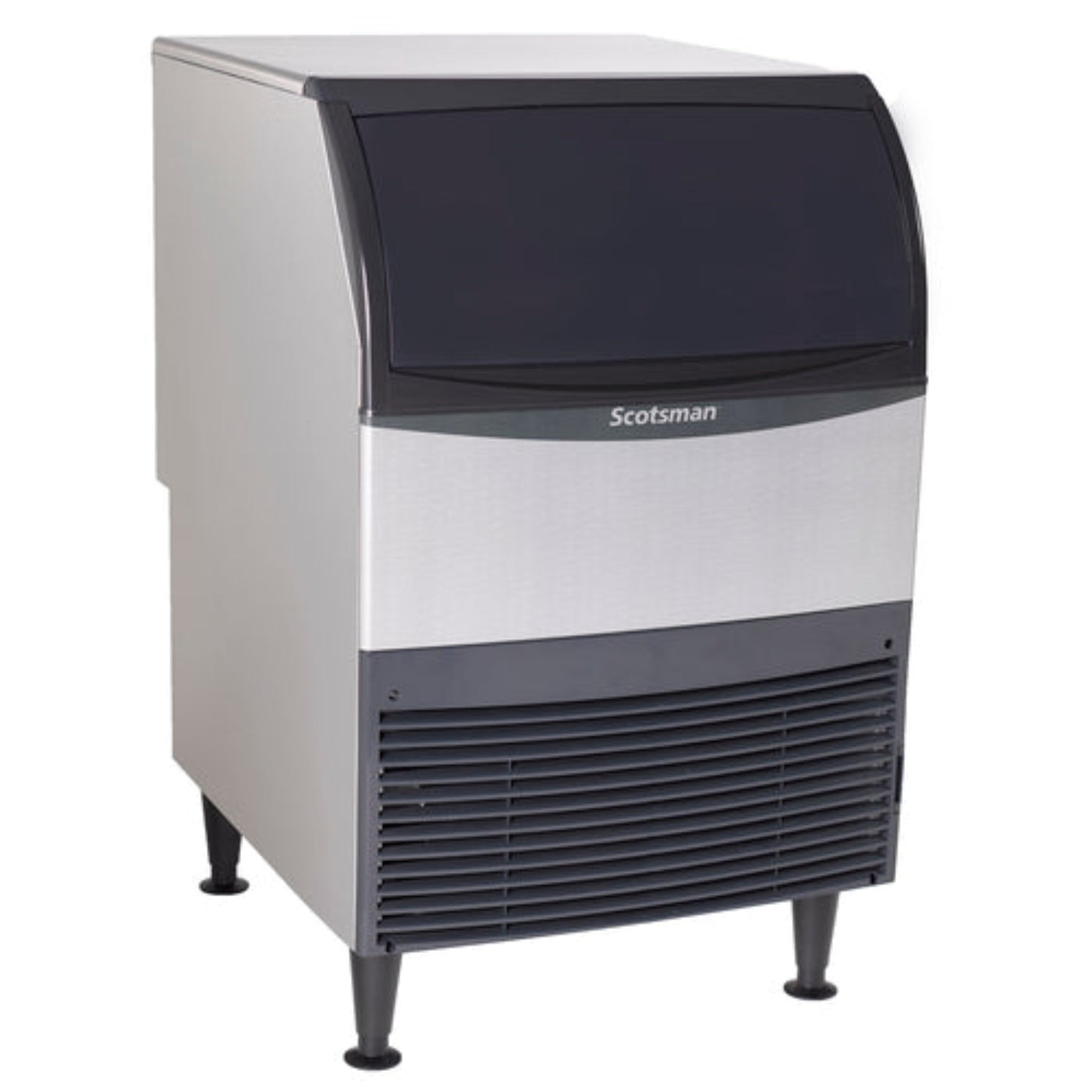

Scotsman Ice Machines - UN324A-6
Undercounter Ice Maker with Bin, nugget style, air cooled, 24" width, self contained condenser, production capacity up to 370 lb production/24 hours at 70°/50°, 80 lb bin storage capacity, H2 Nugget Ice, sealed maintenance-free bearings, stainless steel auger & evaporator, front facing removable air filter, recessed utility chase, unit specific QR code, ice scoop, includes 6" adjustable legs, 230v/50/1-ph, cULus, NSF, engineered and assembled in USA (Export Model, 50hz version)
Specifications
| Manufacturer |
Scotsman |
| Certifications |
NSF, cULus |
| Height |
39.0 in |
| Width |
24.0 in |
| Depth |
29.0 in |
| Shipping Weight |
210.0 lbs |
| Bin Storage Capacity |
80 lb (51 - 100 lb range) |
| Cooling Type |
Air-cooled |
| Ice Production (24 hr) |
Up to 370 lb at 70°F air / 50°F water |
| Ice Type |
Nugget (H2 Nugget Ice) |
| Finish |
Stainless steel |
| Installation Type |
Undercounter |
| Condenser Type |
Self-contained |
| Refrigeration |
Self-contained refrigeration |
| Materials |
Stainless steel auger & evaporator |
| Bearings |
Sealed, maintenance-free |
| Air Filter |
Front-facing, removable |
| Utility Chase |
Recessed |
| Additional Features |
Unit-specific QR code, ice scoop included, 6" adjustable legs |
| Electrical |
230v / 50Hz / 1-ph (Export Model – 50Hz version) |
| Country of Origin |
Engineered and assembled in USA |
Drawings
Documents
What our Experts Think
-
High Production Capacity – Delivers up to 350 lbs of nugget ice daily, perfect for medium to large establishments like hotels, hospitals, or high-volume restaurants.
-
Premium Nugget Ice – Popular for its chewable texture, making it ideal for beverages, health applications, and food displays.
-
Space-Saving Design – Compact undercounter unit that offers impressive ice production without taking up valuable floor space.
-
Energy Efficient – Designed with air-cooled technology to lower energy usage while maintaining a steady ice supply.
-
Durable & Reliable – Built with stainless steel exterior for added resilience and longevity in demanding commercial settings.
-
Easy Maintenance – Self-cleaning system simplifies maintenance, ensuring consistent performance and extended product lifespan.
Q&A
Q: What is the ice production capacity of the Scotsman UN324A-6?
The Scotsman UN324A-6 produces up to 370 lbs of nugget ice per day, making it suitable for high-demand commercial environments.
Q: What type of ice does the UN324A-6 produce?
This model produces chewable nugget ice, known for its soft texture and slow melting properties, ideal for beverages and food displays.
Q: What is the storage capacity of the ice bin?
The integrated bin can store up to 80 lbs of ice, ensuring a steady supply during peak hours.
Q: Is the Scotsman UN324A-6 energy-efficient?
Yes, it operates with R-134A refrigerant, which is non-ozone-depleting, and meets the latest EPA and DOE energy efficiency codes.
Maintenance Tips
-
Regular Cleaning: Initiate the cleaning cycle by pressing the "Clean" button. The auger motor operates for 20 minutes, followed by ice production with the cleaning solution for another 20 minutes.
-
Descaling: Use Scotsman Clear 1 Ice Machine Scale Remover mixed with warm water (90°F to 110°F) to descale the evaporator.
-
Sanitization: After descaling, sanitize the system using a solution of NuCalgon IMS III and potable water.
-
Photo Eye Maintenance: Clean the photo eye sensors with a cotton swab dipped in the scale remover solution to ensure proper ice level sensing.
-
Bin Cleaning: Regularly clean the ice storage bin with the same cleaning solution to prevent mold and bacteria buildup.
-
Air Filter Maintenance: Clean the front-facing removable air filter to maintain proper airflow and efficient cooling.
-
Regular Inspections: Perform routine checks for any unusual noises, ice quality issues, or error codes to address potential problems promptly.
