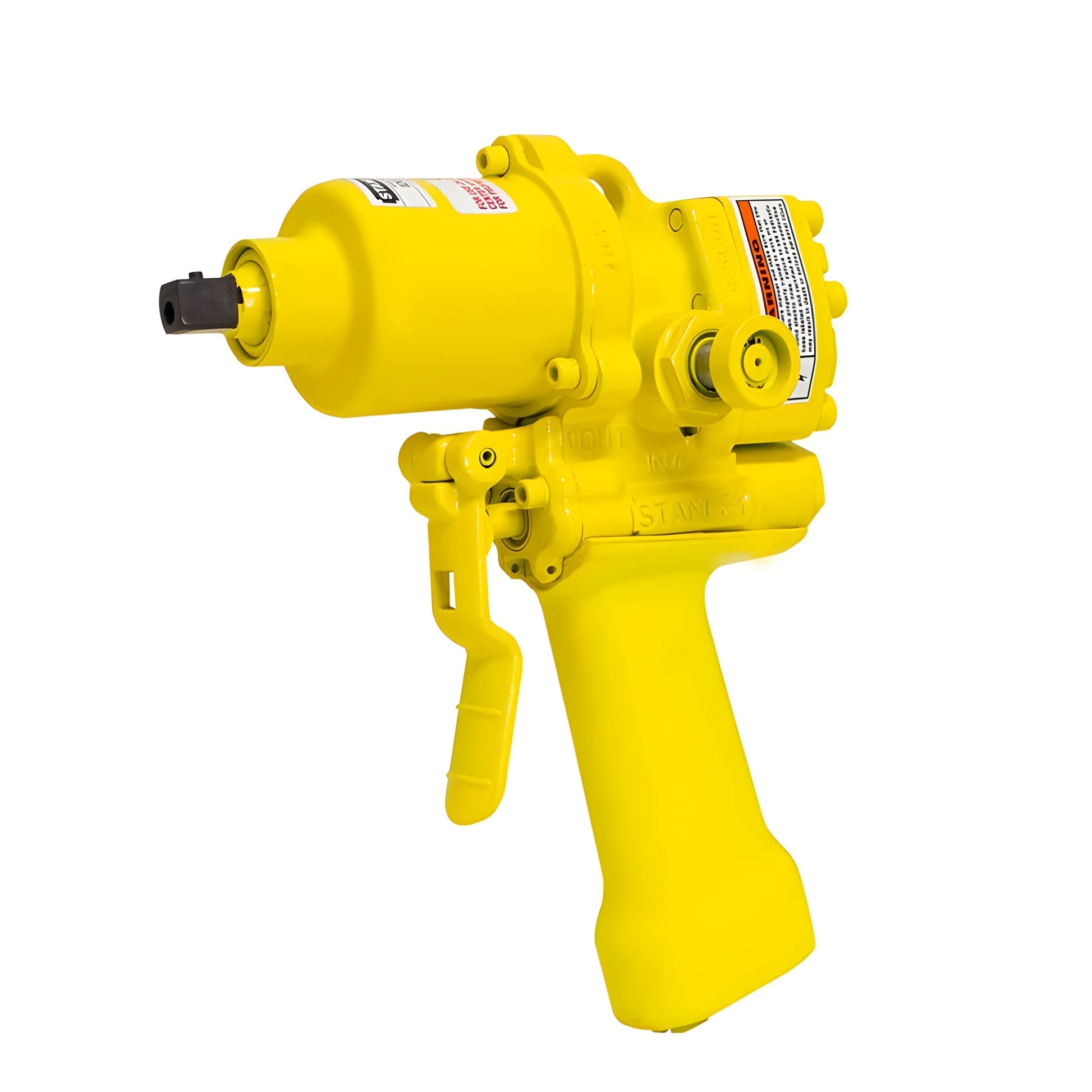

Stanley Hydraulics Underwater Hydraulic Impact Drill - ID07920
Stanley’s ID07 Impact/Drill is two hydraulic tools in one – an impact wrench and a wood drill. The 1/2” square drive impact wrench delivers torque up to 500 FT/LBS and can tighten and loosen nuts and bolts as well as tighten lag screws. Use the ID07 with the 05079 1/2" square x 7/16" shank adapter and wood boring bits for drilling up to 1-1/16” diameter holes in timbers with no reactive torque to the diver.
Specifications
Capacity: 1/2” / 12.7 MM Square Drive
Performance: Torque 500 FT/LBS / 675 Nm
Flow Range: 4-12 GPM / 15-45 LPM
Working Pressure: 750-2000 PSI / 50-140 BAR
Full Relief Setting: 2250 PSI / 155 BAR
Weight: 7.2 LBS / 3.3 KG
Length: 10” / 25.4 CM
Width: 4 1/4” / 10.8 CM
Hydraulic Ports: -8 SAE O-Ring
Comes With Couplers: No
Comes With Whips: Yes
Manual
Download the ID07 Spec Sheet!
What Our Experts Think
-
Powerful Drilling Performance: Delivers high torque and impact force for efficient underwater drilling in tough materials.
-
Built for Harsh Environments: Features corrosion-resistant materials and a sealed hydraulic system for durability in marine conditions.
-
Fast & Efficient: Operates at 900-2,000 RPM, ensuring precise and rapid drilling.
-
Ergonomic & Safe: Designed with a comfortable grip and low vibration for reduced diver fatigue.
-
Versatile Applications: Ideal for underwater construction, maintenance, and salvage operations.
Q&A
Q: What is the Stanley ID07920 Underwater Hydraulic Impact Drill?
A: The ID07920 is a heavy-duty hydraulic impact drill designed for underwater drilling in marine construction and commercial diving applications.
Q: What materials can it drill through?
A: It is capable of drilling into metal, concrete, and wood, making it ideal for underwater infrastructure projects.
Q: What hydraulic flow rate does it require?
A: It operates at 4-9 GPM for optimal drilling performance.
Q: What makes it ideal for underwater use?
A: It features a corrosion-resistant design, a powerful impact mechanism, and an ergonomic grip for diver control and precision.
Q: What industries use the ID07920?
A: It is commonly used in underwater construction, offshore maintenance, marine salvage, and ship repair operations.
Maintenance Tips
-
Pre-Use Inspection – Check hoses, fittings, and seals for leaks or damage.
-
Flush After Use – Rinse with fresh water to remove salt, silt, and debris.
-
Hydraulic Fluid Check – Use recommended oil; monitor levels and contamination.
-
Drill Bit & Chuck Care – Clean and lubricate regularly for smooth operation.
-
Seal & O-Ring Maintenance – Inspect and replace worn components to prevent leaks.
-
Hose & Connection Checks – Ensure secure, undamaged hydraulic connections.
-
Storage – Keep in a dry, well-ventilated area away from extreme temperatures.
