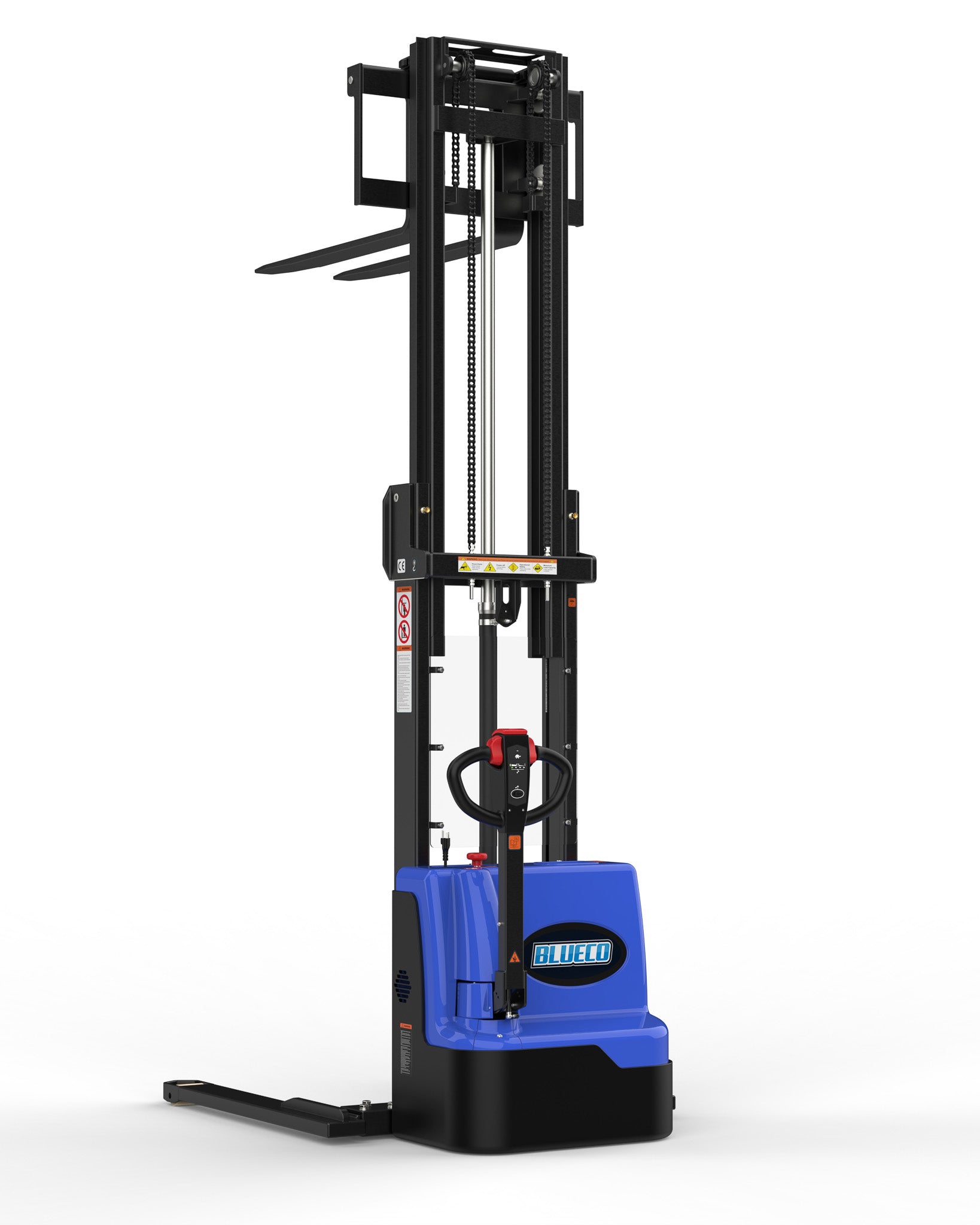

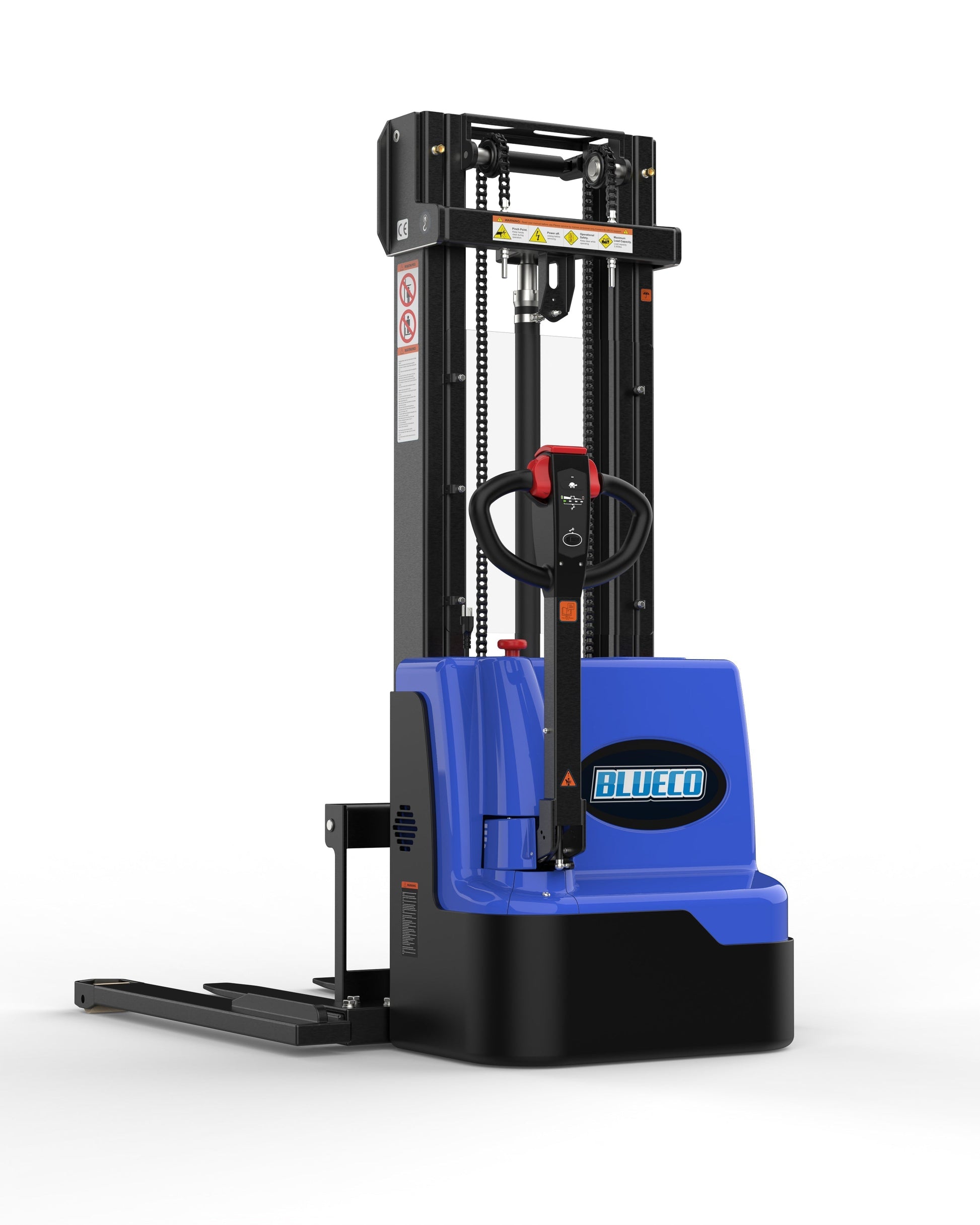

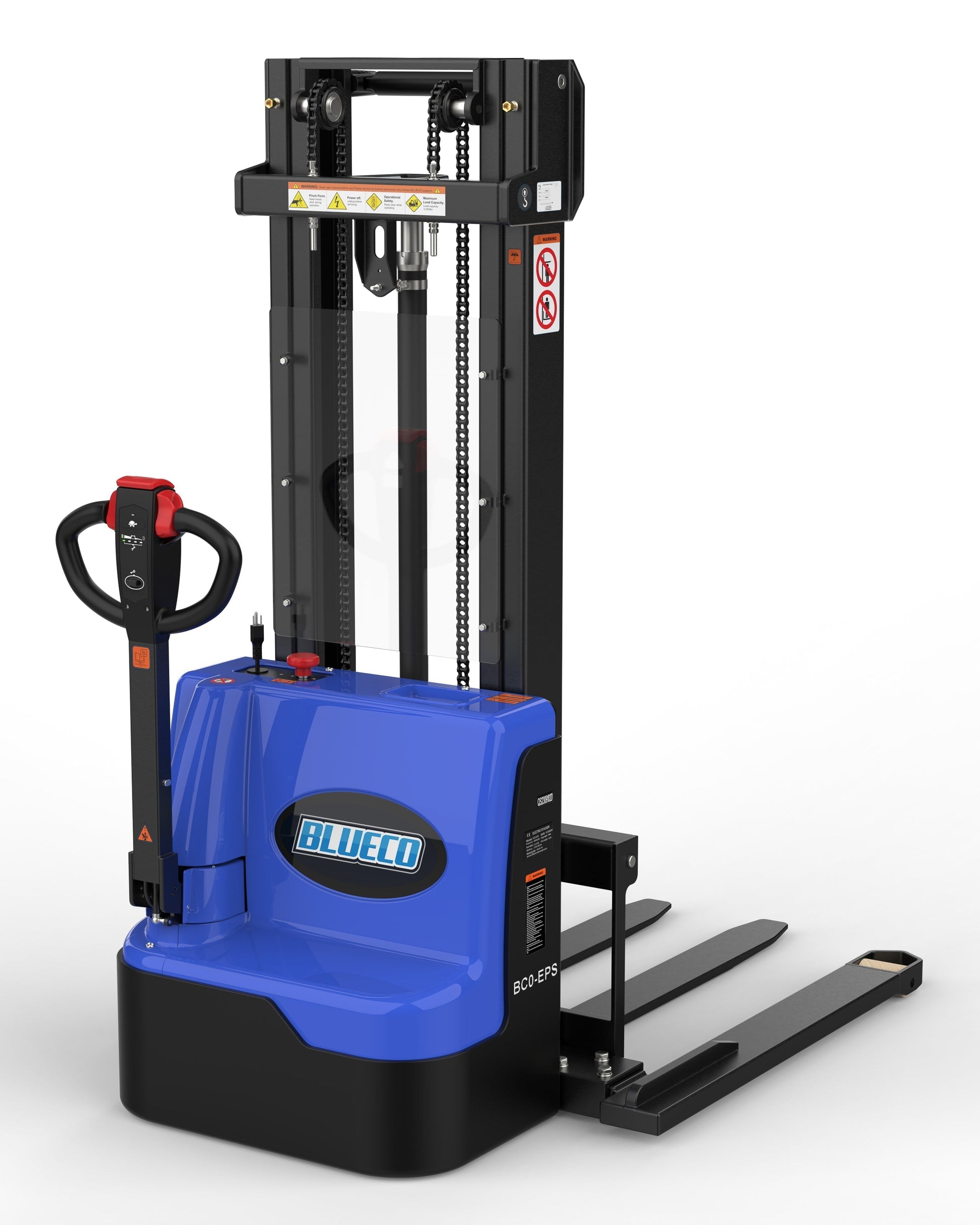

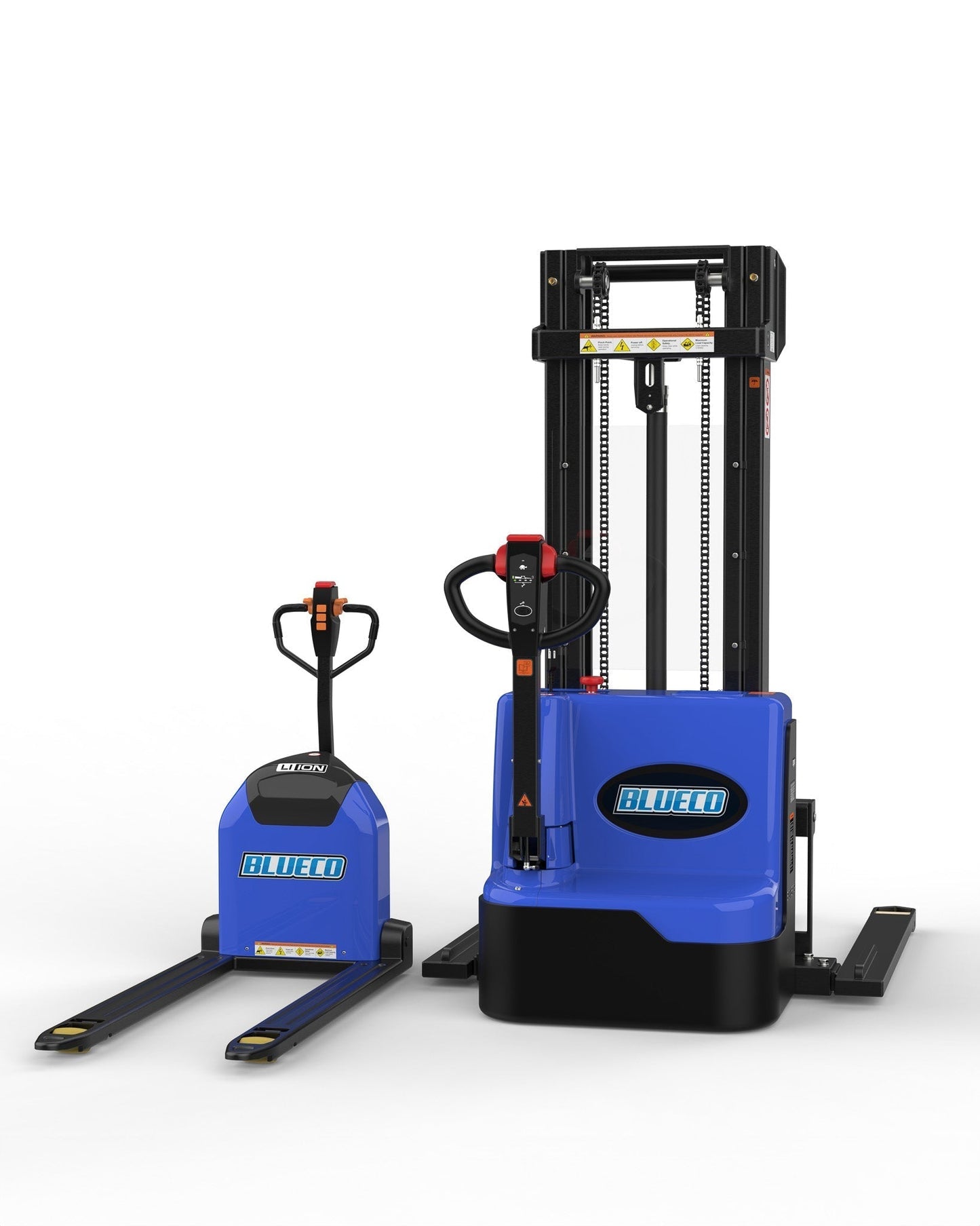

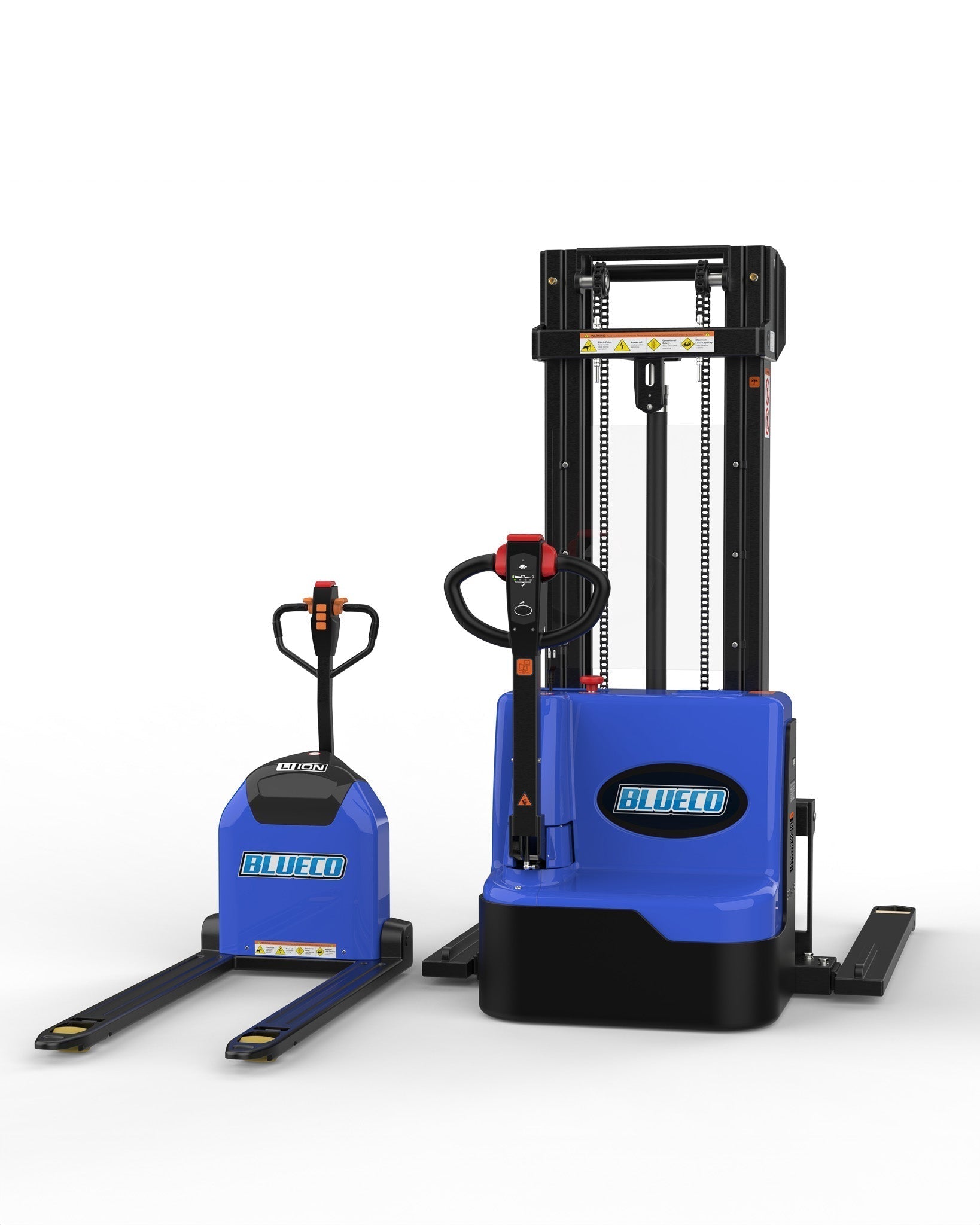

BLUECO STRADDLE LEG STACKER 118" LIFTBCO-EPS

Upgraded magnetic key start up for more reliable long lasting durability.

44.29" length with adjustable width for all size pallets and unique load demands.

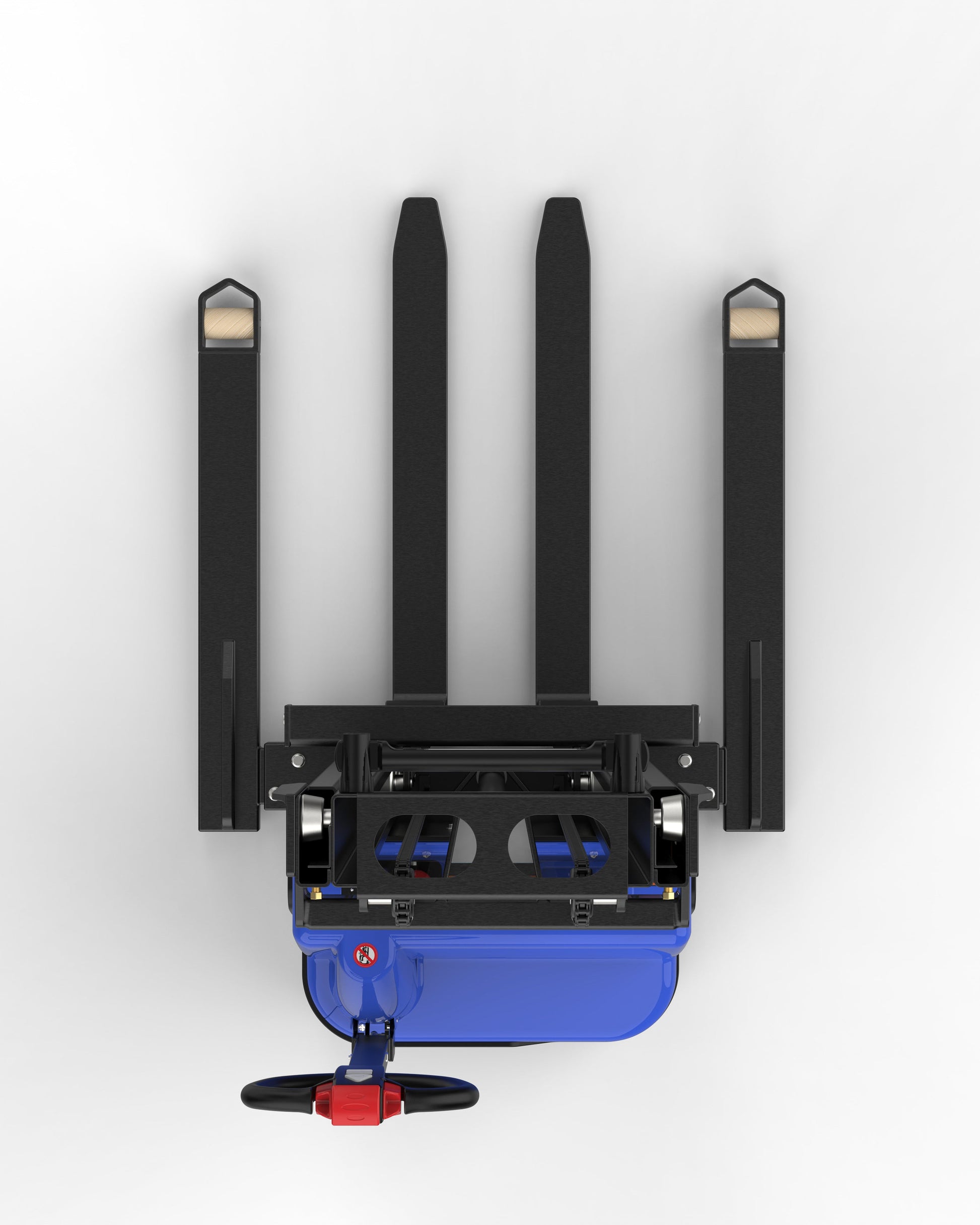

38" - 50" adjustable straddle legs for load handling on all size pallets with maximum safety for a wider base to handle heavier load logistics at greater handling heights.

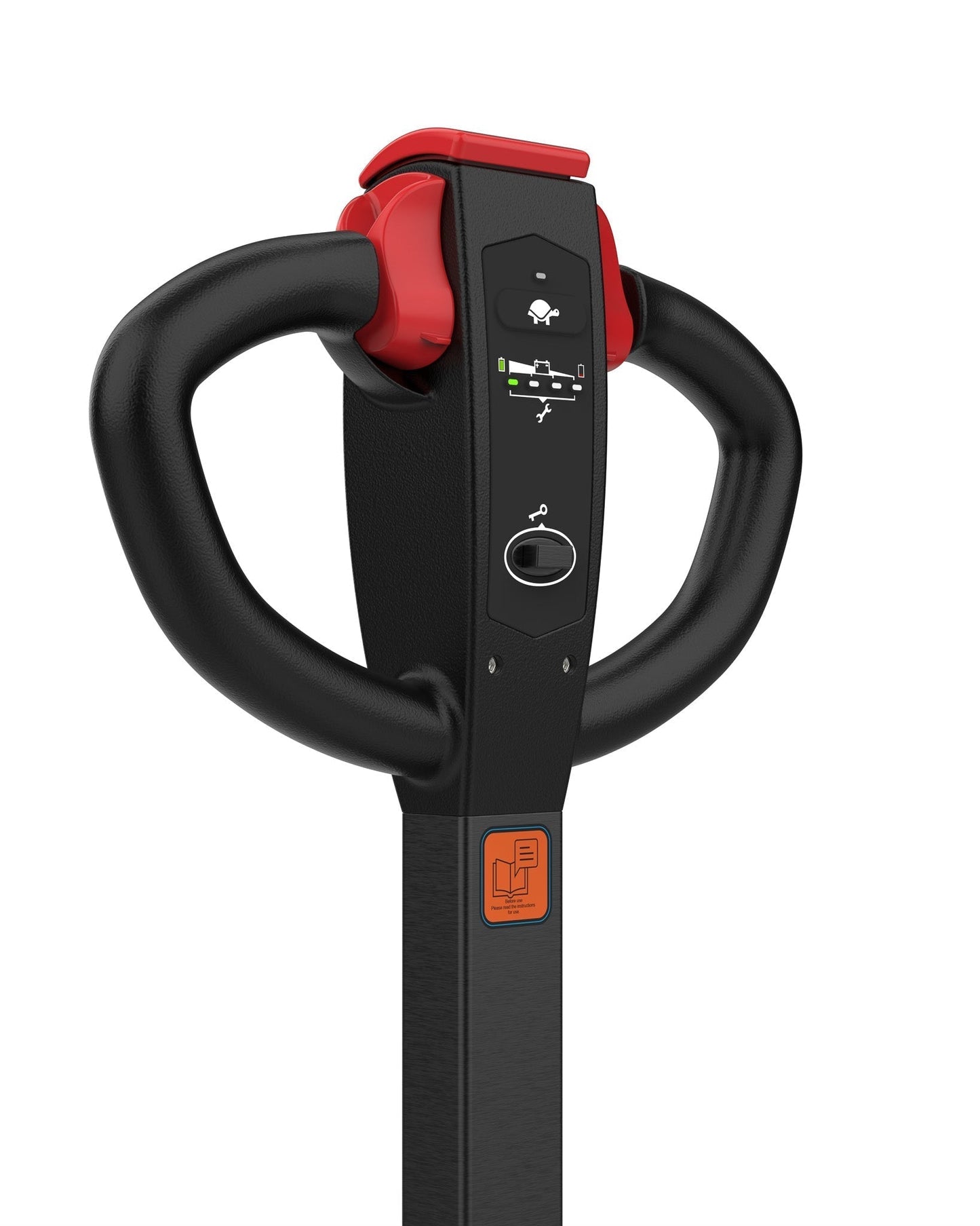

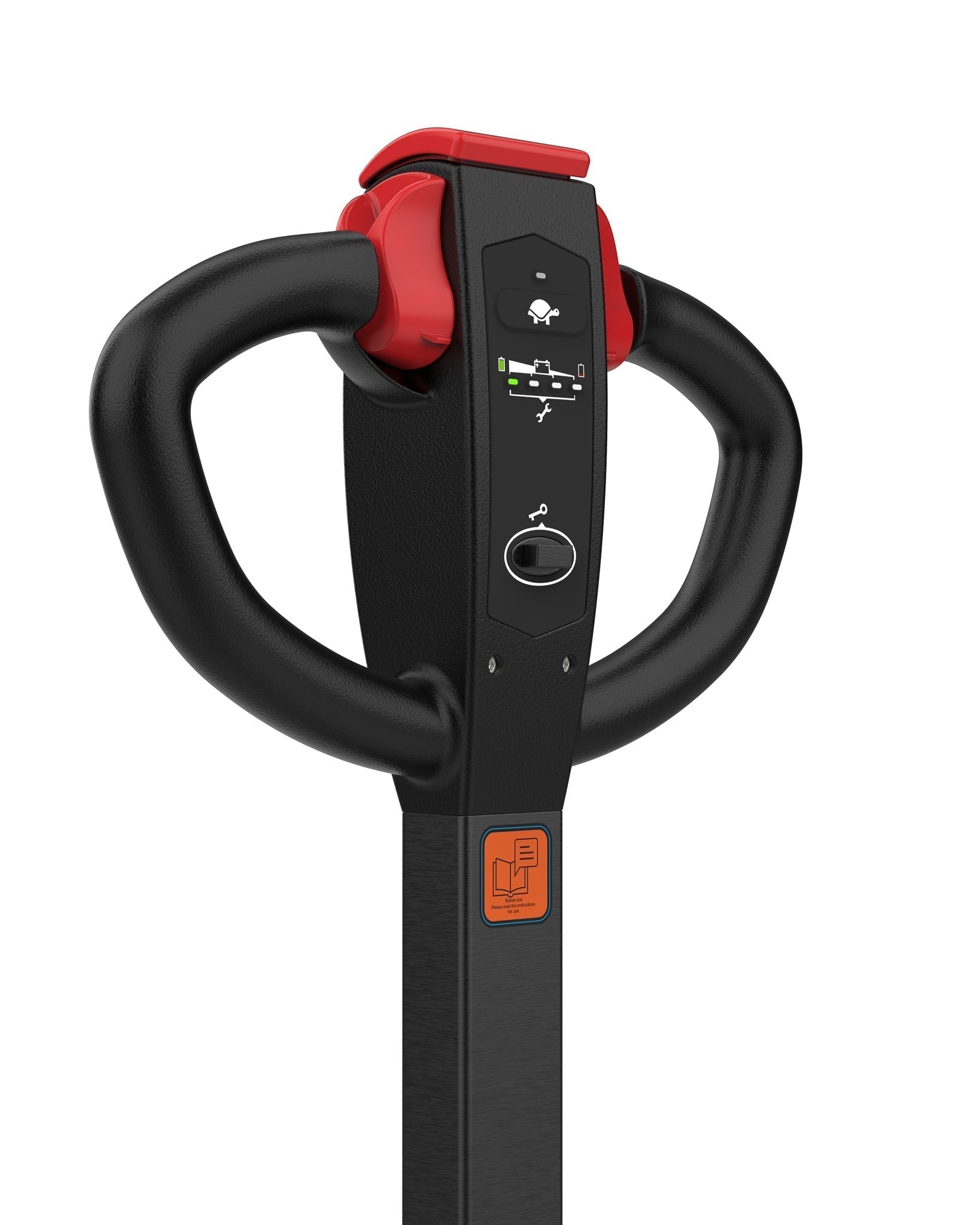

Step-less speed control at your finger tips. Almost like a throttle, Giving more push on the red throttle control speed regulator will speed up or slowly creep the more throttle that is given on the red speed control handle. Click to creep icon (turtle) on the handle to reduce torque when operating heavy loads from maximum lifting heights.

A BLUECO exclusive, The first to integrate an industrial working light for all logistics applications. To ensure work demand and safety no matter the conditions day or night.

Emergency bump stop located on the handle for maximum safety during operations.

Specification

MODEL	ELECTRIC STRADDLE LEG STACKER
SKU	BCO-EPS
Load capacity	3,306.29lbs
Load center distance	23.62"
Maximum lift height	118"
Lowest point to ground	1.3"
minimum height of cargo forks	3"
Fork length	44.29"
Driving speed km/h	3/4.3
Stock fork lifting speed mm/s	70-105mm
Battery/ Battery charger	12V/80Ahx2/24V10A
Walking motor	24V/750W
Lift motor	24V/2200W
Net weight	1,380lbs
Overall length	69"
Overall width	32"

What Our Experts Think

• High Load Capacity: Supports up to 3,300 lbs, accommodating various heavy-duty applications.

• Adjustable Components: Features adjustable forks and straddle legs to handle different pallet sizes and load requirements.

• Ergonomic Design: Equipped with an ergonomic handle and step-less speed control for precise maneuvering and enhanced operator comfort.

• Safety Features: Includes emergency shut-off, foot pedal brakes, and operator protection screens to ensure safe operation.

• Versatility: Suitable for indoor material handling, especially in warehouses with narrow aisles, due to its compact design and small turning radius.

Q&A

Q: What is the Straddle Leg Stacker 118" Lift?
A: A high-lift material handling device designed to lift and transport pallets up to 118 inches, ideal for warehouses and industrial use.

Q: What is the weight capacity?
A: Typically ranges from 2,200 to 3,300 lbs, depending on the model.

Q: Is it manual or electric?
A: Available in semi-electric (manual push, powered lift) and fully electric (powered movement and lift) models.

Q: What makes the straddle legs beneficial?
A: Adjustable straddle legs allow compatibility with various pallet sizes and improve stability.

Q: Does it require special maintenance?
A: Routine battery charging (for electric models) and periodic checks on hydraulic components and safety mechanisms.

Q: Is it easy to maneuver?
A: Yes, designed with ergonomic handles and smooth-rolling wheels for controlled movement.

Q: Where can this stacker be used?
A: Ideal for warehouses, retail storage, and industrial applications requiring high-reach pallet stacking.

Maintenance Tips

• Inspect Hydraulics – Check for leaks and ensure smooth lifting operation.
• Lubricate Moving Parts – Apply grease to chains, rollers, and pivot points regularly.
• Check Wheels & Brakes – Ensure casters roll smoothly and brakes engage properly.
• Test Battery & Connections (if electric) – Charge properly and inspect for corrosion.
• Store in a Dry, Level Area – Prevent rust and ensure stability when not in use.
