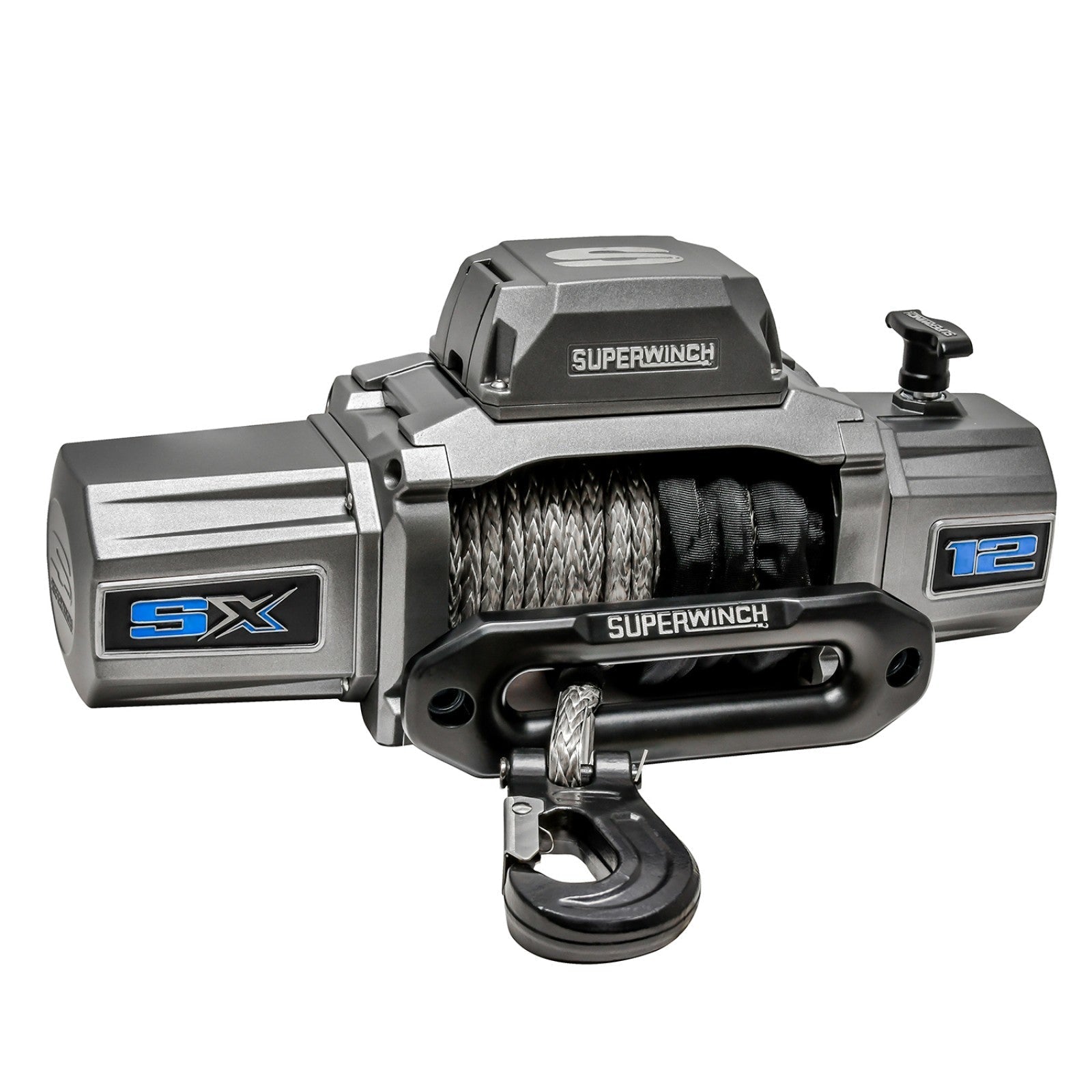

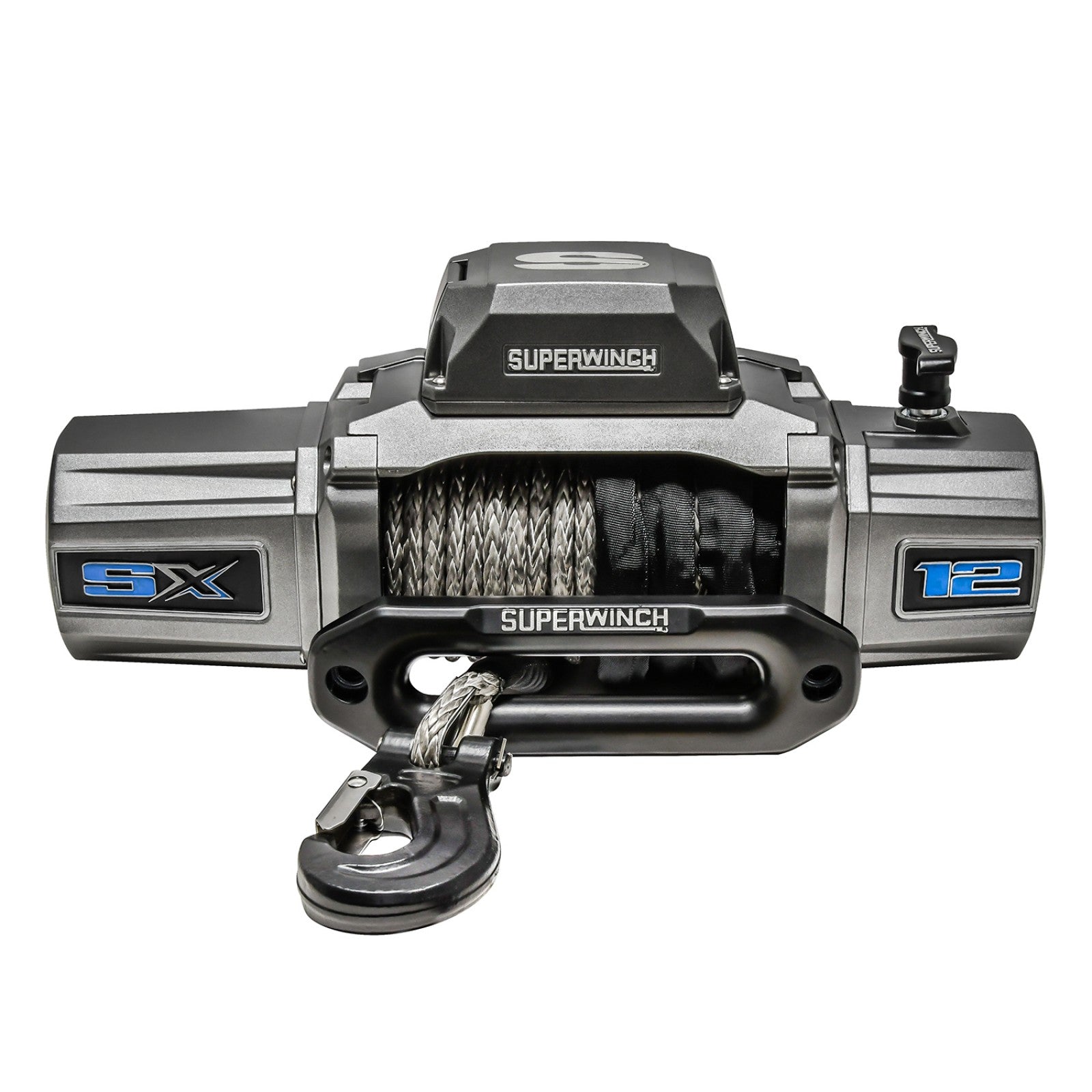

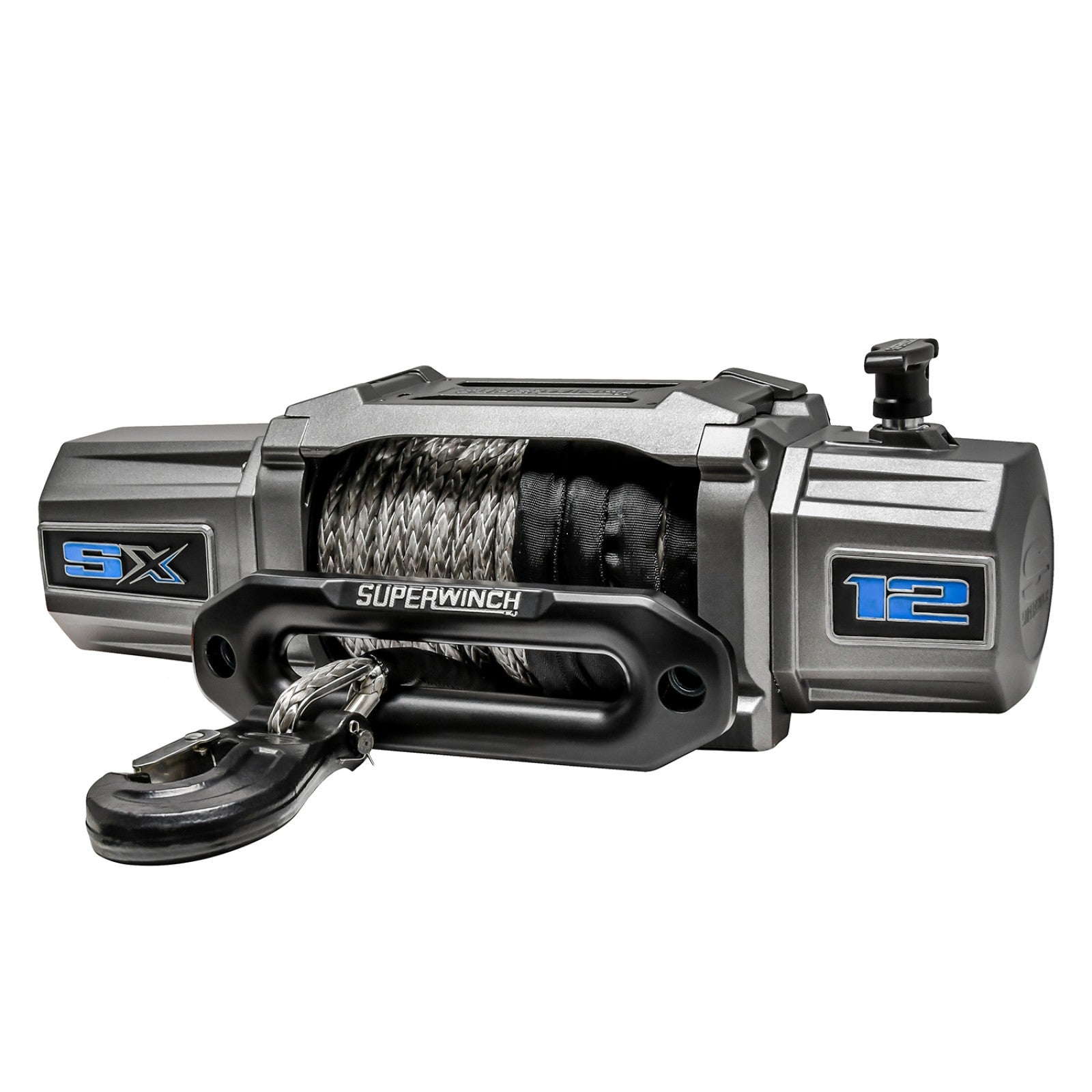

Superwinch SX12SR 12K Synthetic Rope Winch - 1712201
The Superwinch SX12SR winch is engineered to provide users with the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8in diameter synthetic rope, and a 12ft lighted wired remote come standard.
SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design which incorporates many class-leading features not found in other high-performance winches. Providing 12,000 lbs. of raw pulling power, the new SX12000SR synthetic rope model has a sleek modern look and is built to last. With an IP68 rating for worry-free dustproof and waterproof operation, and a durable metallic graphite powder-coated finish, this winch has it all.
- 12V DC 12,000 lbs rated line pull
- 6.0 HP sealed motor
- Relocatable die-cast aluminum control box
- Includes wireless handheld remote & 12' handlead wired remote
- Pull-and turn clutch handle
- 3-stage planetary gearing with 231:1 ratio
- Patented drum light
- Synthetic rope measures 3/8” x 80'
- Drum diameter measures 2.5"
- Heavy duty clevis winch hook
- Aluminum hawse fairlead
- 100% full load holding automatic mechanical brake
Specifications
-
Winch Rating: 12000 Pound
-
Recommended Use: Vehicle Recovery
-
Operation Type: Electric
-
Mount Type: Fixed Mount
-
Voltage: 12 Volt
-
Free Spooling: Yes
-
Line Length (FT): 80 Feet
-
Line Material: Synthetic
-
Remote Type: Wireless
-
Universality: Fully Universal
-
Brake Type: Automatic Full Load
-
Gear Reduction Ratio: 218:1
-
Color: Black
-
Motor Horsepower: 6 Horsepower
-
Fairlead Type: Hawse
-
Electrical Control Type: Solenoid
-
Drive Gear Type: Planetary
-
Estimated Install Time (Hours): 2
What Our Experts Think
-
12,000 lb. Towing Capacity: Handles heavy-duty recovery tasks with ease.
-
Synthetic Rope: Strong, lightweight, and safer than steel cable, with minimal recoil.
-
Durable Construction: Designed for tough conditions and long-lasting performance.
-
Efficient Line Speed: Quick and smooth retrieval for fast, reliable winching.
-
Wireless Remote Control: Convenient and safe operation from a distance.
-
Corrosion-Resistant: Built to withstand the elements, ideal for off-road and marine use.
Q&A
Q: What are the key features of the SX12SR 12K Synthetic Rope Winch?
A: This winch offers a 12,000-pound pulling capacity, synthetic rope for enhanced safety and ease of handling, and a powerful 12V DC motor. It also comes with a wireless remote for convenient control.
Q: What is the pulling capacity of this winch?
A: The SX12SR winch has a maximum pulling capacity of 12,000 pounds, ideal for heavy-duty towing and recovery tasks.
Q: Why is synthetic rope better than steel cable?
A: Synthetic rope is lighter, safer, and easier to handle than steel cable. It also reduces the risk of injury from snapback and is resistant to abrasions and weather conditions.
Q: Does the winch come with a remote?
A: Yes, the winch is equipped with a wireless remote for easy and safe operation from a distance.
Q: What tasks is this winch designed for?
A: The SX12SR winch is perfect for off-road vehicle recovery, towing, and other heavy-duty applications in rugged terrain.
Maintenance Tips
-
Inspect the synthetic rope: Check for signs of fraying, cuts, or wear; replace if damaged.
-
Lubricate the winch: Apply lubricant to the winch’s moving parts to ensure smooth operation.
-
Clean the rope: Wash the synthetic rope with mild soap and water to remove dirt and debris, then let it dry thoroughly.
-
Check electrical connections: Ensure all wiring is secure and free from corrosion for proper function.
-
Test the winch: Run the winch periodically to ensure proper operation, especially after long periods of inactivity.
