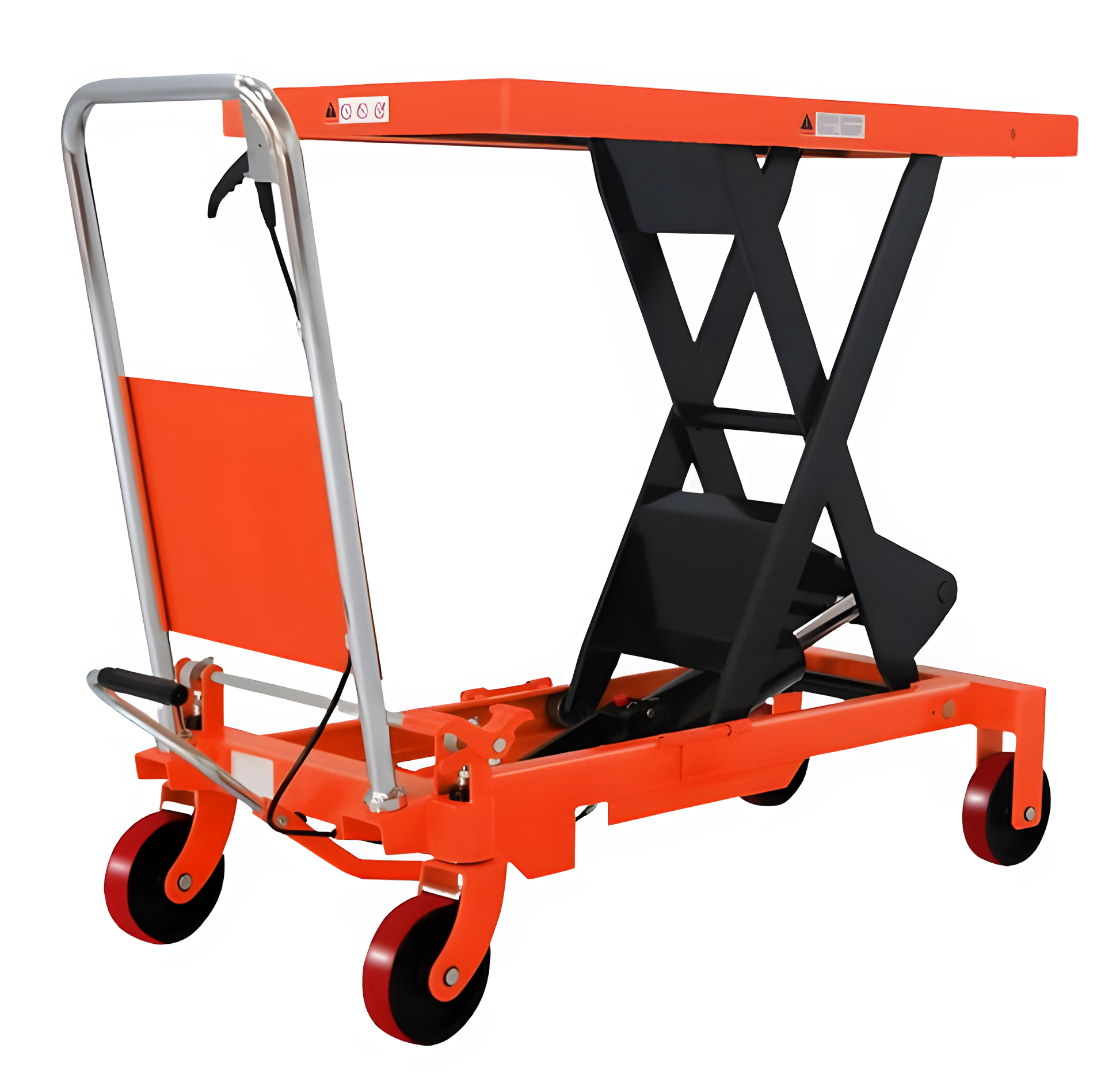

Tory Carrier Scissor Lift Table 1760 lbs Capacity 22.8" Lifting Height New - LT1760
Tory Carrier Scissor Lift Table includes lifting design with manual hydraulic table pump to boom up and down. This lift table lift and lower loads. Durable hydraulic pump ensures the scissor lift table a long service life. Safety back guard. The lift table is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.
Features
- Welded steel frame with durable coat finish
- Durable hydraulic pump ensures a long service life
- Convenient finger release smoothly lowers even heavy loads
- With over load by pass valve to protect operator and pump

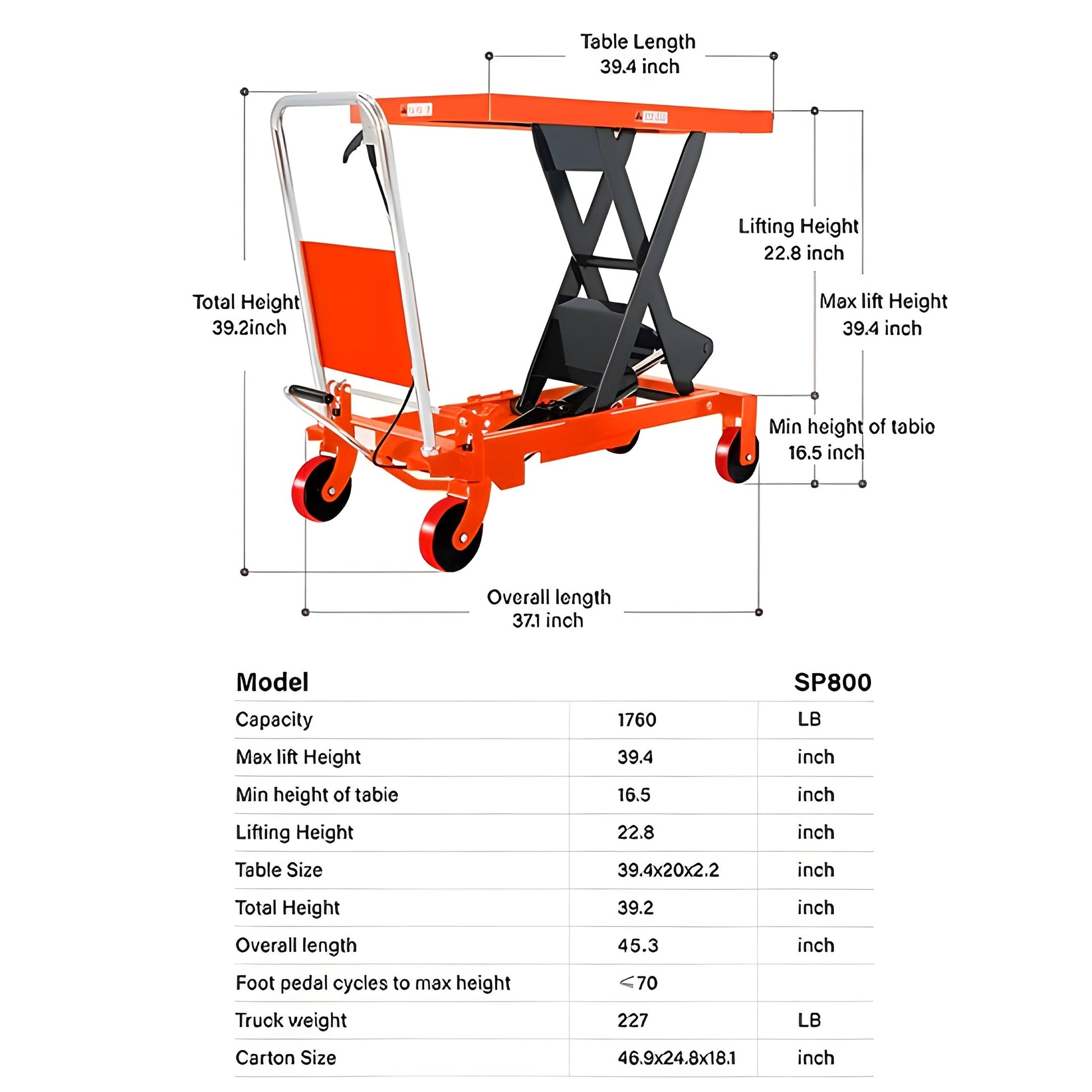

Specifications
| Model Name |
| LT1760 |
| Load Capacity |
| 1760 LBS |
| Table lowered height |
| 16.5 inch |
| Lifting height |
| 22.8 inch |
| Table size |
| 39.4 x 20 x 2.2 inch |
| Wheel Diameter |
| 5.9 inch |
| Service Weight |
| 253 LBS |
What Our Experts Think
-
1760 lbs. Capacity – Strong and reliable for handling heavy loads in industrial settings.
-
22.8" Lifting Height – Provides ergonomic height adjustment for improved workplace efficiency.
-
Hydraulic Scissor Lift Mechanism – Ensures smooth and controlled lifting for precise positioning.
-
Durable Steel Construction – Built for long-term use in demanding environments.
-
Compact & Easy to Maneuver – Ideal for warehouses, workshops, and assembly lines.
-
Manual Operation – No electrical power required, making it cost-effective and low maintenance.
Q&A
Q: What is the weight capacity of this lift table?
A: It can lift up to 1,760 lbs.
Q: What is the maximum lifting height?
A: The table lifts loads up to 22.8 inches.
Q: What type of lifting mechanism does it use?
A: It features a hydraulic scissor lift system for controlled and efficient elevation.
Q: Is it easy to maneuver?
A: Yes, it has heavy-duty casters and an ergonomic handle for smooth transport.
Q: Where is this lift table best used?
A: Ideal for warehouses, workshops, assembly lines, and heavy-duty material handling.
Maintenance Tips
-
Keep Clean – Wipe down the platform, scissor arms, and hydraulic system regularly to prevent dirt and debris buildup.
-
Inspect Hydraulic System – Check for leaks, ensure smooth lifting/lowering, and top off hydraulic fluid as needed.
-
Lubricate Moving Parts – Apply grease to pivot points, scissor joints, and hydraulic components for smooth operation.
-
Check Platform & Frame – Ensure the platform is stable, securely attached, and free from damage.
-
Monitor Wheels & Casters – Inspect for wear, clean regularly, and replace if necessary to maintain mobility.
-
Test the Lift Mechanism – Operate the lift to confirm it moves smoothly without jerking or sudden drops.
-
Secure Bolts & Fasteners – Tighten all screws and fasteners to maintain stability and ensure safe operation.
