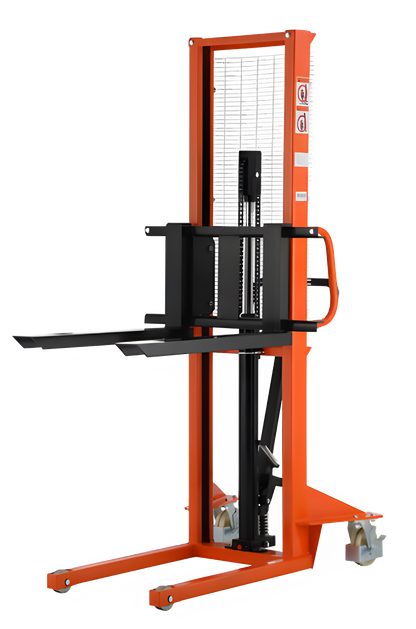

Tory Carrier Manual Pallet Stacker Adjustable Forks Fixed Legs 2200 lbs. 63" Lifting Height New - MSF2263
The Tory Carrier Manual Pallet Stacker is equipped with fixed legs and adjustable forged forks. The high efficient pumps makes the control easier to operate easier. This stacker has the load capacity of 2,200lbs, and the lifting height is 63".
Features
- Compact design for pallet, perfect stacking and pallet positioning as well as stocking and refilling shelves
- High quality steel mast and strong steel construction ensures rigidity and durability
- High efficient pumps makes the control easier to operate

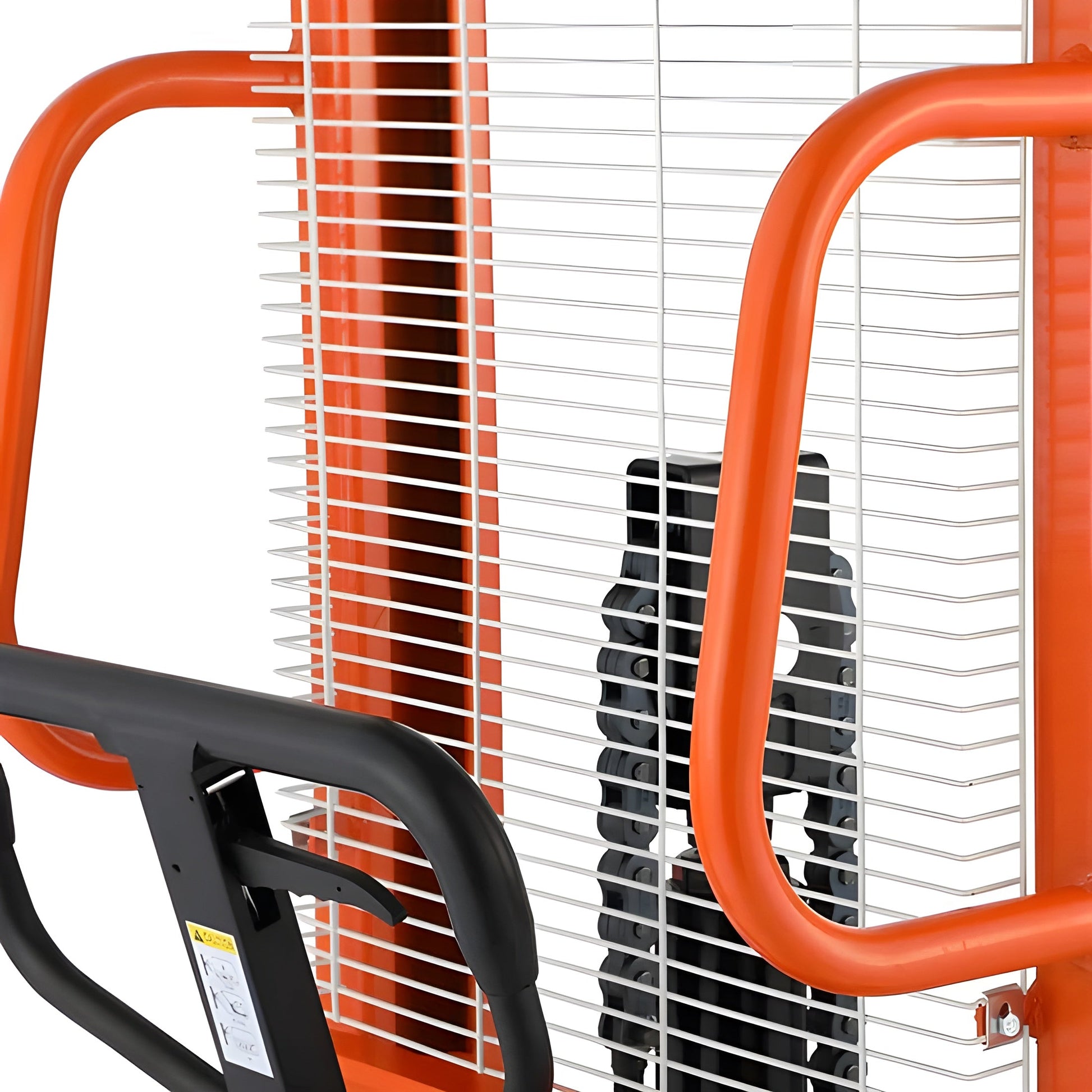

- Metal grid protects user from lift chains

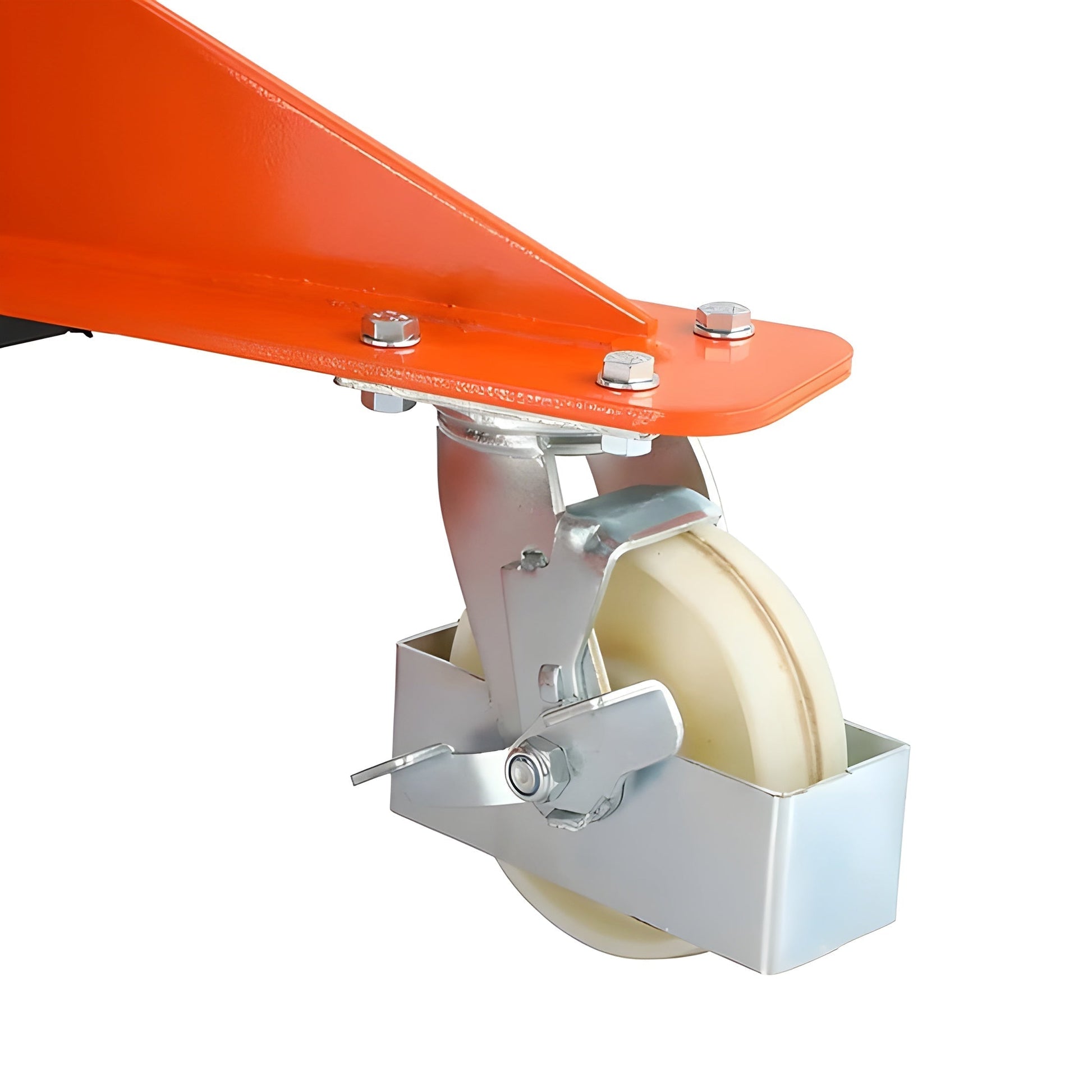

- With safety wheel guard and brake system to ensure safety during operation

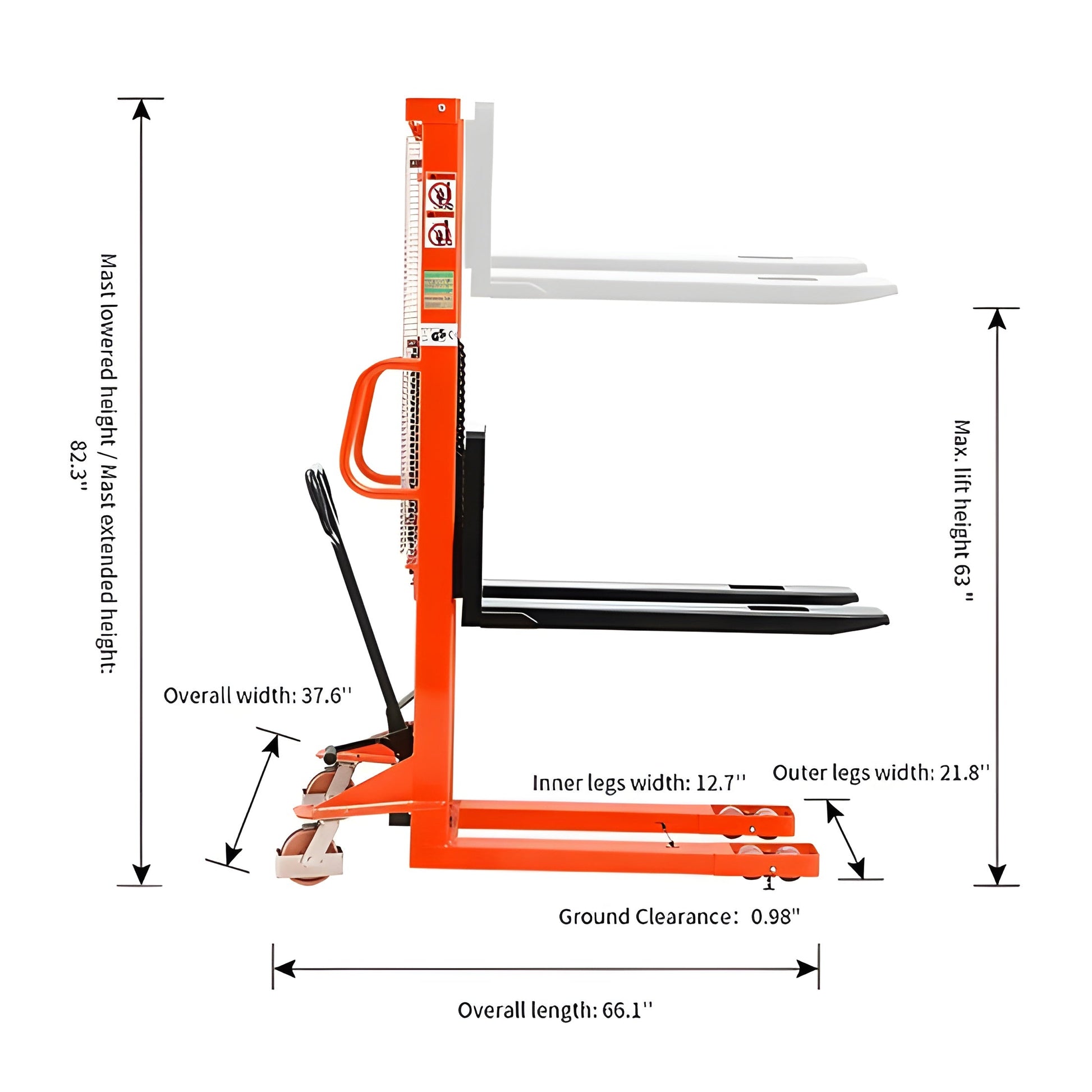

Specifications
| Service Weight |
| 550 LBS |
| Model Name |
| MSF2263 |
| Load Capacity |
| 2200 LBS |
| Height, Mast Lowered |
| 82.3 inch |
| Max lifting height |
| 63 inch |
| Fork Dimensions |
| 42 x 5.6 x 2.4 inch |
| load center |
| 19.7inch |
| Turning Radius |
| 48.6 inch |
What Our Experts Think
-
2200 lbs. Capacity – Handles heavy loads with ease, ideal for warehouses, workshops, and storage facilities.
-
63" Lifting Height – Provides ample elevation for stacking and organizing materials efficiently.
-
Adjustable Forks – Offers flexibility to accommodate different pallet sizes for versatile use.
-
Fixed Legs for Stability – Ensures secure lifting and stacking, enhancing workplace safety.
-
Manual Operation – Cost-effective and reliable, requiring no electrical power for operation.
-
Durable Steel Construction – Built for longevity and minimal maintenance.
Q&A
Q: What is the weight capacity of this pallet stacker?
A: It can lift up to 2,200 lbs.
Q: What is the maximum lifting height?
A: The stacker lifts loads up to 63 inches.
Q: Are the forks adjustable?
A: Yes, the forks can be adjusted to fit different pallet sizes.
Q: What type of legs does it have?
A: It features fixed legs for stable and secure lifting.
Q: What is the lifting mechanism?
A: It uses a manual hydraulic system for controlled lifting and lowering.
Q: Where is this pallet stacker best used?
A: Ideal for warehouses, retail stockrooms, and light industrial applications.
Maintenance Tips
-
Clean Regularly – Wipe down the forks, mast, and hydraulic components to remove dust and debris.
-
Inspect Hydraulic System – Check for leaks and ensure smooth lifting and lowering without resistance.
-
Lubricate Moving Parts – Apply grease to the mast, chains, and pivot points for smooth operation.
-
Check Forks & Legs – Ensure the forks remain straight and undamaged, and inspect the fixed legs for stability.
-
Monitor Wheels & Casters – Check for wear, clean regularly, and replace if necessary for optimal maneuverability.
-
Test the Lift Mechanism – Ensure proper manual operation, checking for stiffness or irregular movement.
-
Tighten Bolts & Fasteners – Regularly secure all bolts to maintain stability and prevent issues.
