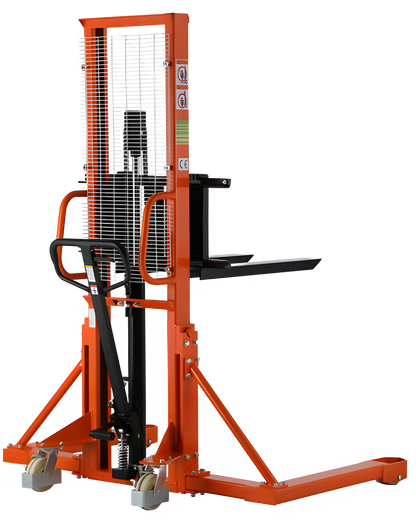

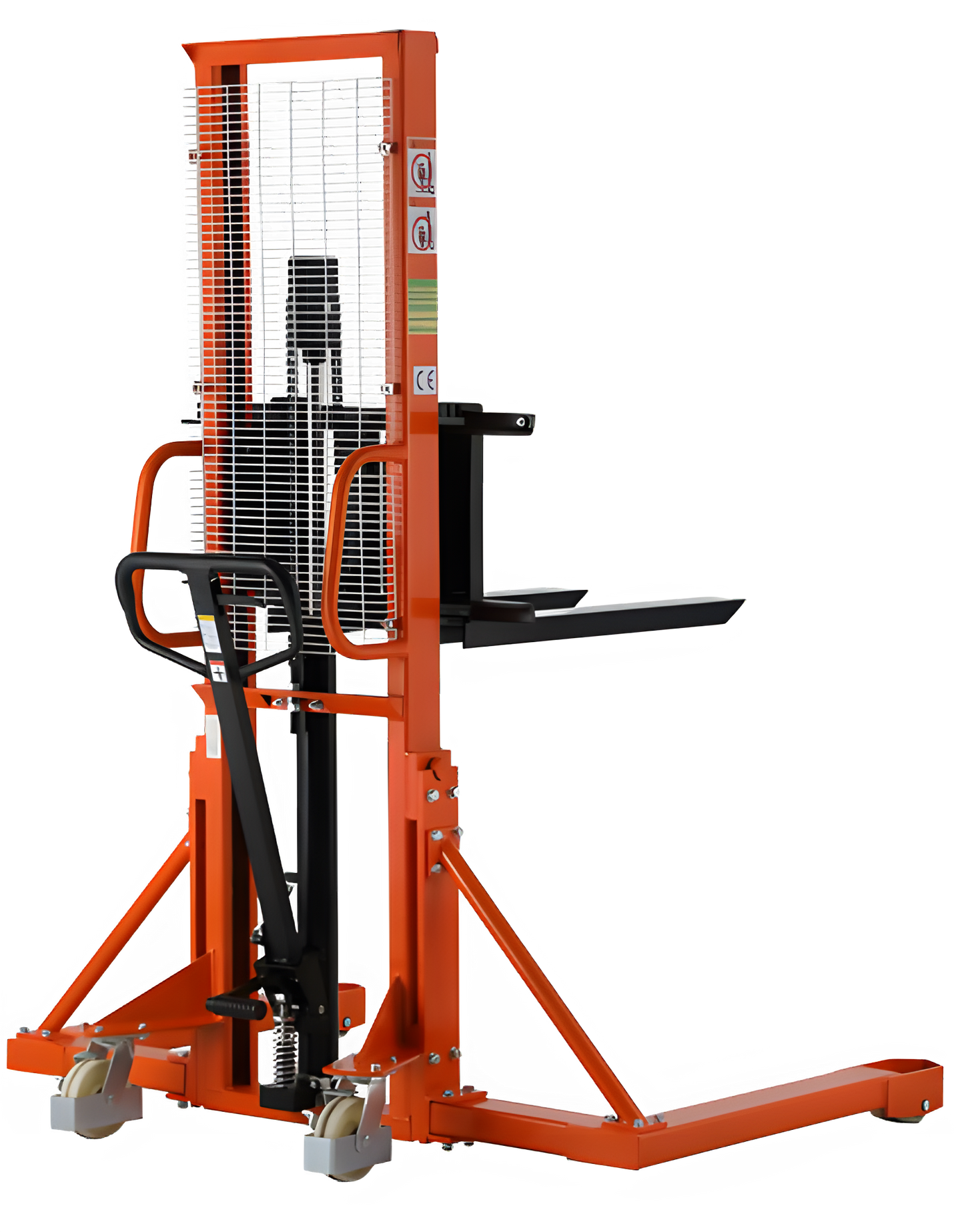

Tory Carrier Manual Stacker with Straddle Legs 2200 lbs. 63" Lifting Height New - MSSL2263
The Tory Carrier Manual Stacker is designed with straddle legs and adjustable forged forks. Foot and hand controlled lifting function allows the operator to work without having to perform extreme body movements. The manual stacker is rated for 2,200lbs and the lifting height is 63".
Features
- Lifts up to 1 inch with each pedal stroke
- High-quality steel mast ensures rigidity and durability
- High efficient pumps make the control easier to operate
- With safety wheel guard and brake system to ensure safety during operation

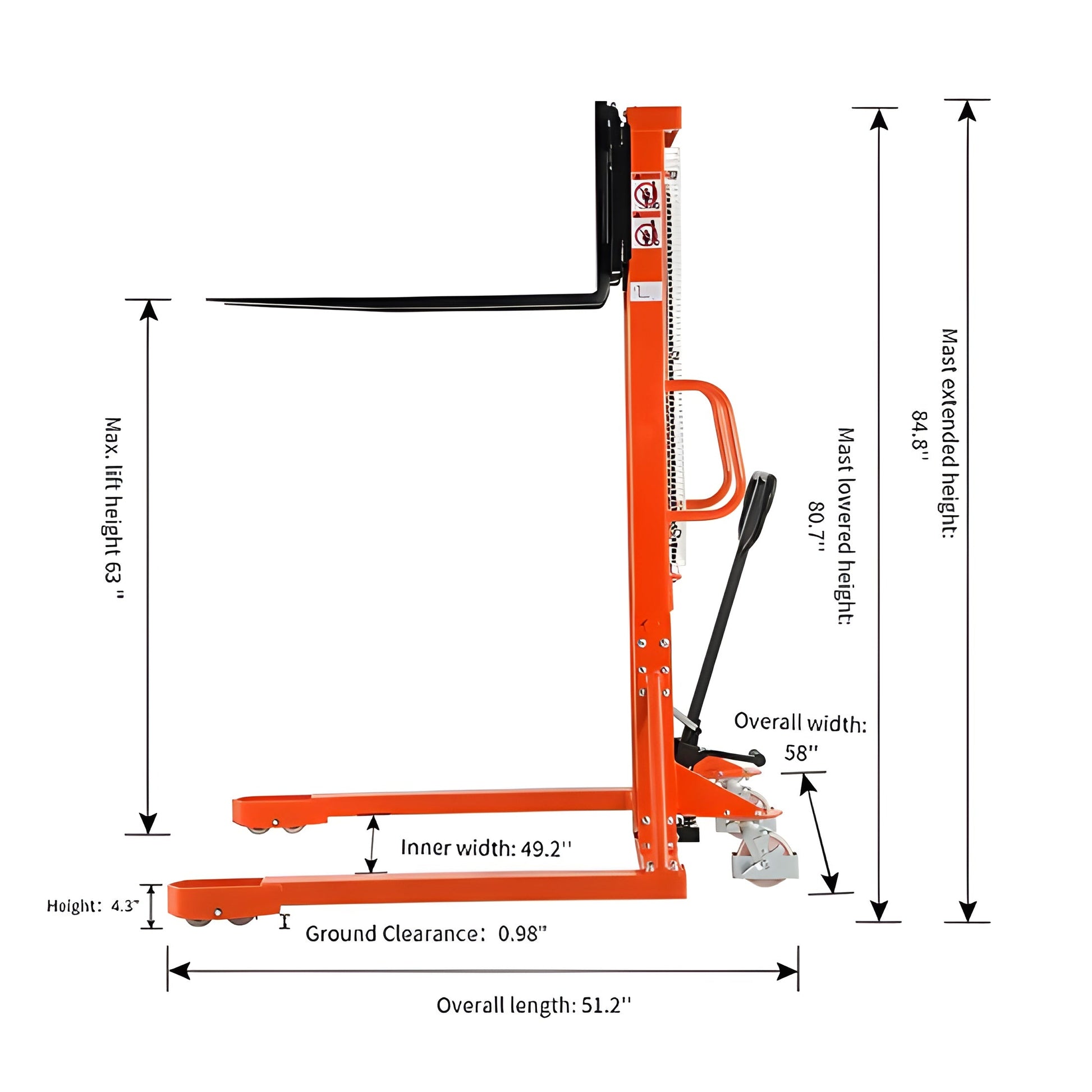

Specifications
| Service Weight |
| 647 LBS |
| Model Name |
| MSSL2263 |
| Load Capacity |
| 2200 LBS |
| Height, Mast Lowered |
| 78.7 inch |
| Max lift height |
| 63 inch |
| Fork Dimensions |
| 31.5 x 3.9 x 1.2 inch |
| load center |
| 19.7 inch |
| Turning Radius |
| 47.2 inch |
What Our Experts Think
-
2200 lbs. Capacity – Strong and reliable for handling heavy loads in warehouses, workshops, and storage facilities.
-
63" Lifting Height – Provides excellent reach for stacking and organizing materials efficiently.
-

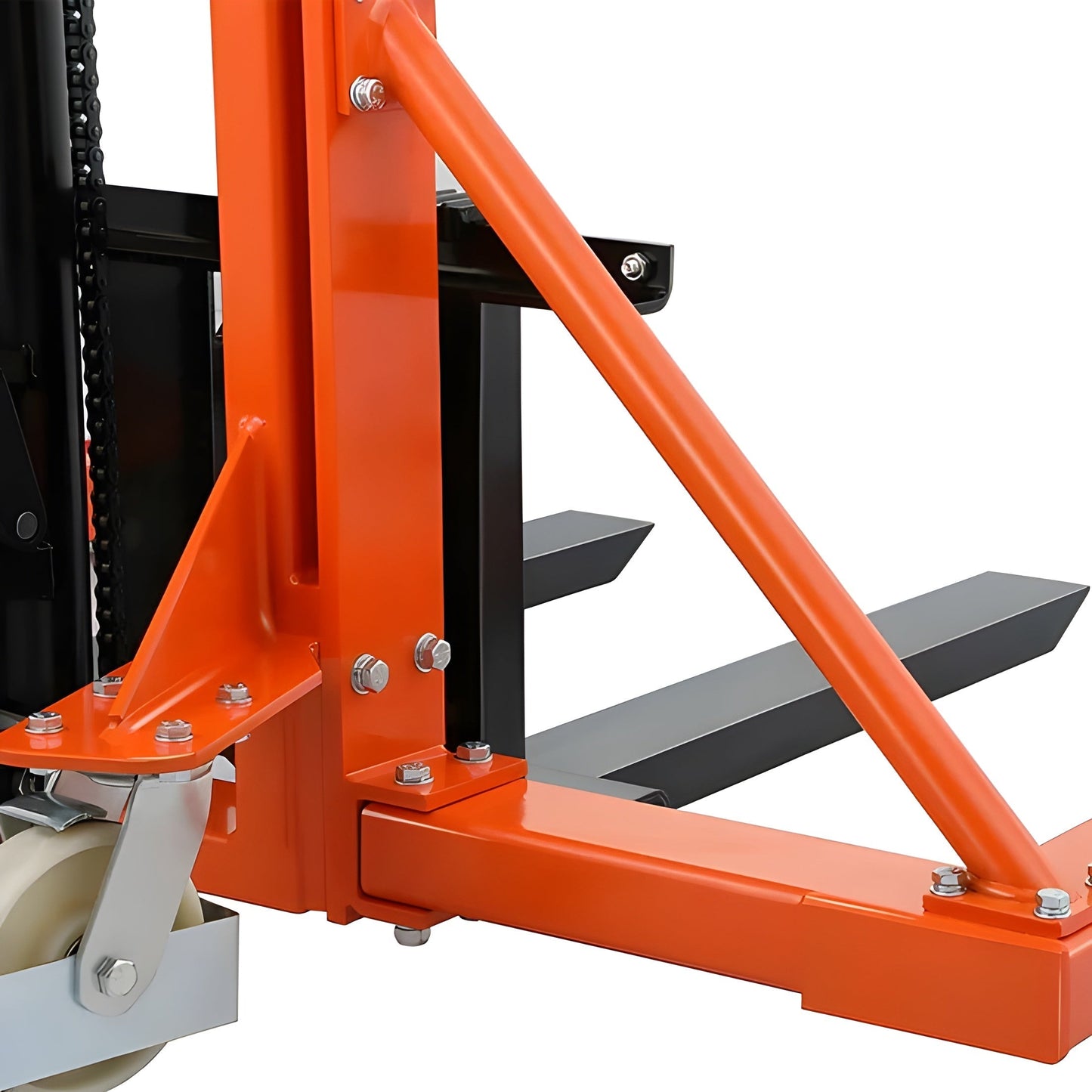

Straddle Legs for Enhanced Stability – Ensures secure lifting and support for different pallet types.
-
Manual Hydraulic Operation – No power source needed, making it cost-effective and low maintenance.
-
Adjustable Forks – Accommodates various pallet sizes for added versatility.
-
Compact & Easy to Maneuver – Designed for smooth operation in tight spaces.
Q&A
Q: What is the weight capacity of this stacker?
A: It can lift up to 2,200 lbs.
Q: What is the maximum lifting height?
A: The stacker lifts loads up to 63 inches.
Q: Does it have straddle legs?
A: Yes, the straddle legs provide added stability and accommodate various pallet sizes.
Q: What type of lifting mechanism does it use?
A: It features a manual hydraulic system for precise lifting and lowering.
Q: Where is this stacker best used?
A: Ideal for warehouses, retail stockrooms, and light industrial applications.
Maintenance Tips
-
Keep Clean – Regularly wipe down forks, mast, and hydraulic components to prevent dust and debris buildup.
-
Inspect Hydraulic System – Check for leaks and ensure smooth lifting and lowering.
-
Lubricate Moving Parts – Apply grease to the mast, chains, and pivot points for efficient operation.
-
Monitor Forks & Straddle Legs – Ensure forks are straight and undamaged, and verify straddle legs provide stable support.
-
Check Wheels & Casters – Inspect for wear, clean regularly, and replace as needed for smooth maneuverability.
-
Test the Lift Mechanism – Operate manually to ensure smooth lifting and controlled lowering without excessive resistance.
-
Secure Bolts & Fasteners – Tighten all connections to maintain stability and prevent malfunctions.
