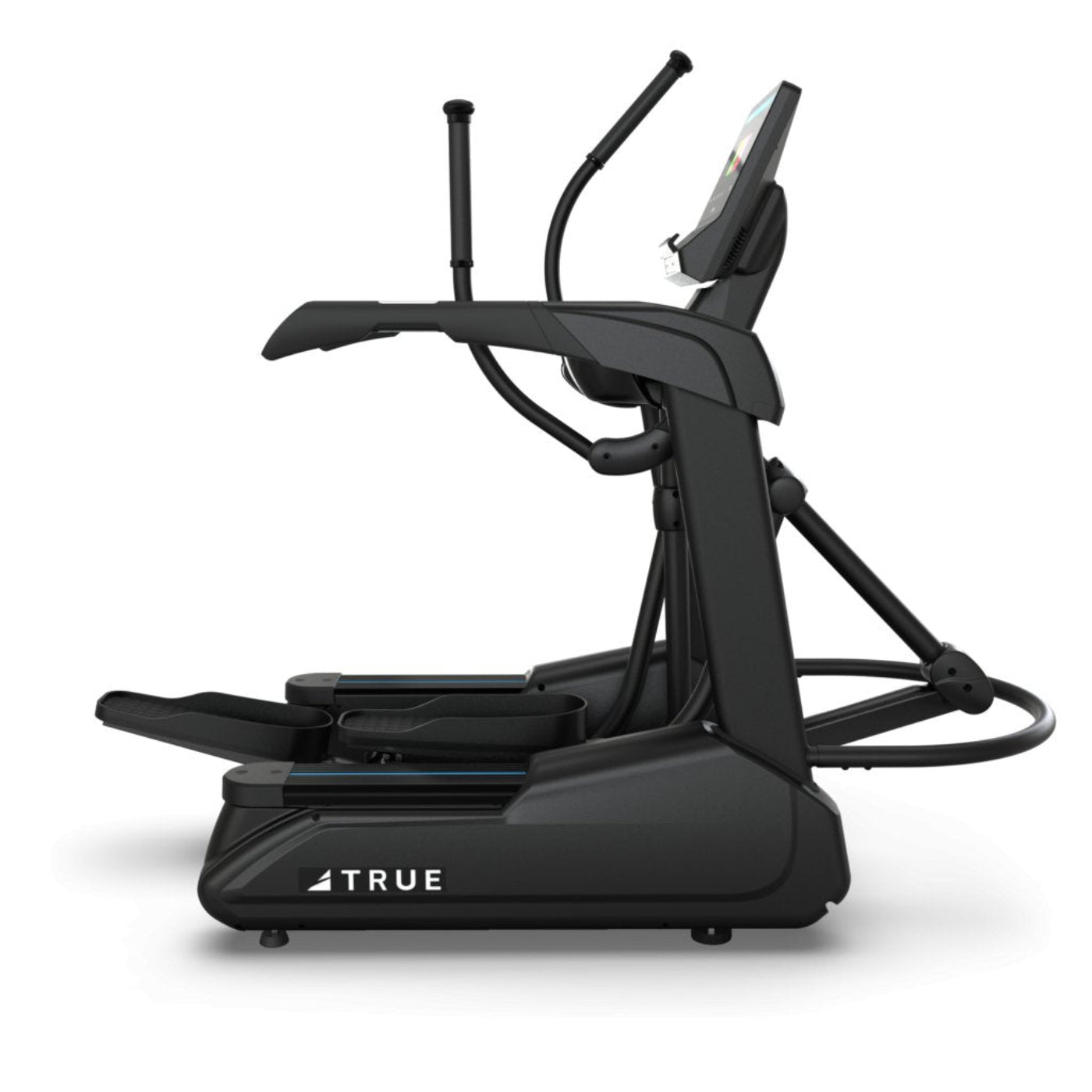

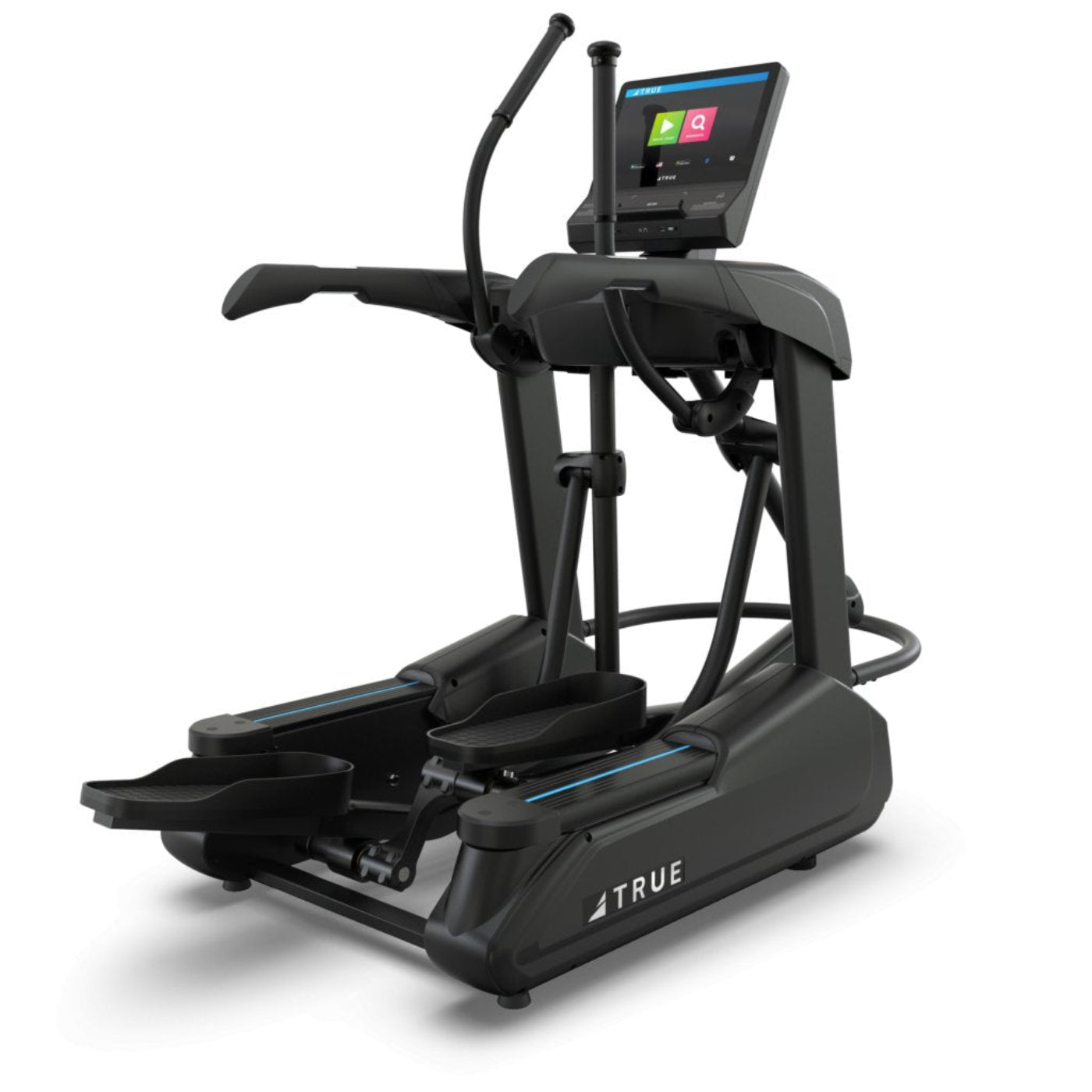

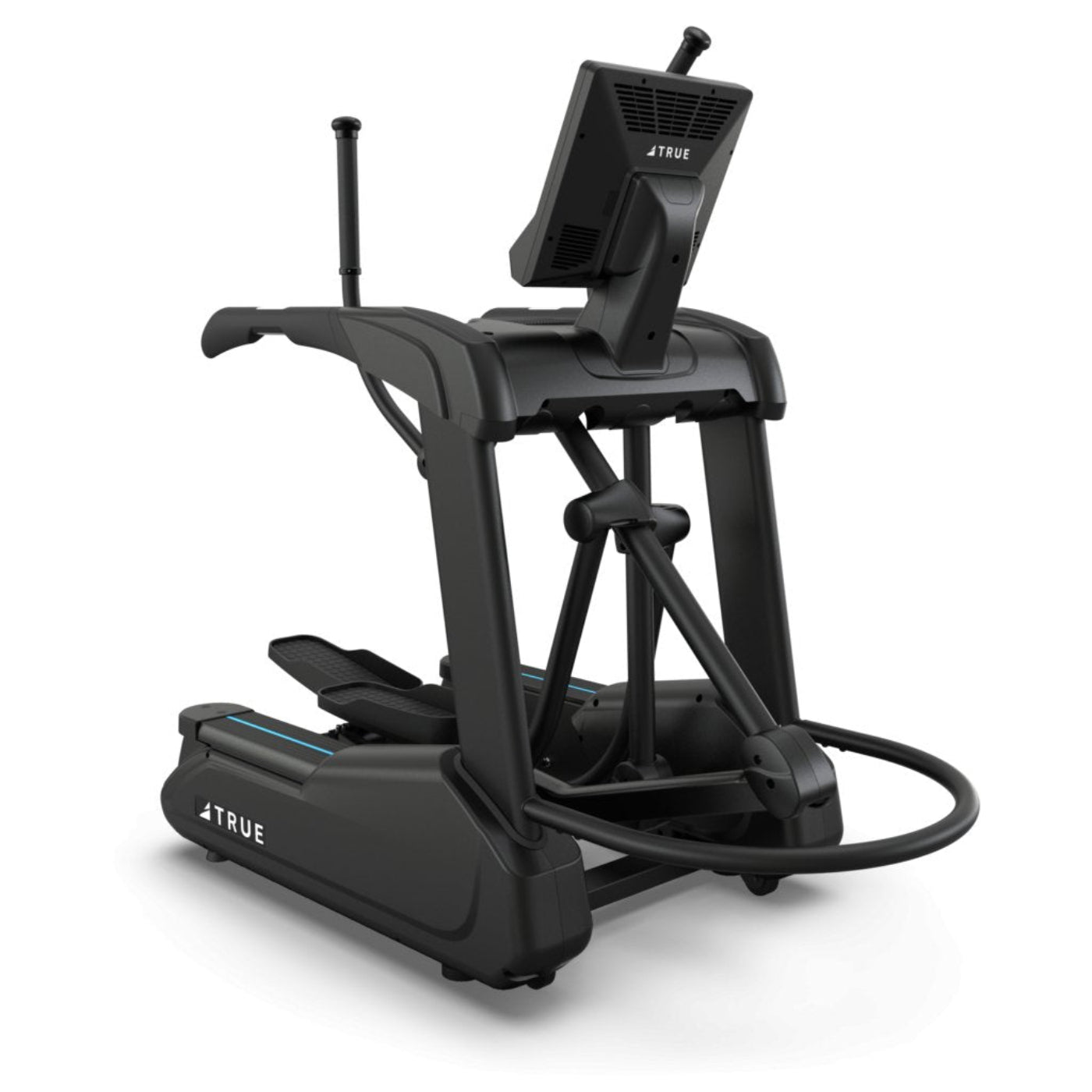

Engineered with precision and powered for optimal results, the Apex Elliptical is built to withstand rigorous use, high-intensity workouts, and performance training over the years. The Apex Elliptical features TRUE’s Core Drive System, which promotes superior balance, stability, and comfort.
Features:
Space efficient and small footprint
Core Drive System
Cardio 360 Total Body Workout
Hybrid self-generating brake
21” stride lengthaccommodates users of all sizes, providing a comfortable and natural-feeling stride
Self-generating capability (LED console only)
Dual Stage System
[SPECIFICATION]
Power Source
Self-Generating (110V required with non-LED consoles)
Cord Length
12′ / 3.7M
Drive System
Core Drive
Resistance Levels
30
Maximum Workload
600 Watts
Resistance Source
Hybrid Self-Generating Brake
Frame Construction
Robotically Welded Heavy-Gauge Steel
Stride Length
21″ / 53 cm
Footpad
Soft Step Cushioned Anti-Fatigue Material
Exercise Arms
Ergonomic Handles with Moisture-Resistant Sleeves
Handrail Design
Extended Handrails with Moisture-Resistant Grips
Side-Step Design
Anodized Brushed Aluminum
Contact Heart Rate Monitoring
Yes
Wireless Heart Rate Monitoring
Polar Compatible Bluetooth
Console Options
Unite 16″, Unite 10″, and Unite LED
Unite 16″ and Unite 10″ Consoles
10K, 5K, CALORIE GOAL, CARDIO 360, CARDIO CHALLENGE, DISTANCE GOAL, DRAW YOUR OWN, HALF MARATHON, HILL INTERVALS, HRC CRUISE CONTROL, LEG SHAPER, QUICK START, ROLLING HILLS, SINGLE HILL, TARGET HRC, TIME GOAL, VIRTUAL RUNS
LED Console
10K, 5K, CALORIE GOAL, CARDIO 360, CARDIO CHALLENGE, DISTANCE GOAL, HALF MARATHON, HILL INTERVALS, HRC CRUISE CONTROL, LEG SHAPER, QUICK START, ROLLING HILLS, SINGLE HILL, TARGET HRC, TIME GOAL
Upper Body Isolation
Yes
Lower Body Isolation
Yes
Total Body
Yes
Side Steps
Standard
Extended Handrails
Standard
ETL UL1647, CSA, CE, EN957, FCC
Accessories
Water Bottle Holders, Accessory Tray, Reading Rack/Tablet Holder
Footprint
66″ L x 34″ W x 64″ H / 167.64 cm x 86.36 cm x 162.56 cm
Active Footprint
73″ L x 34″ W x 64″ H / 185.42 cm x 86.36 cm x 162.56 cm
Q Factor
2.5″ / 6.35 cm
Machine Weight
375 lbs / 170 kg
Shipping Weight
423 lbs / 192 kg
Maximum User Weight
400 lbs / 181 kg
Step-Up Height
8″ / 20.32 cm
Portability
2 Rear Transport Wheels
Console Options:

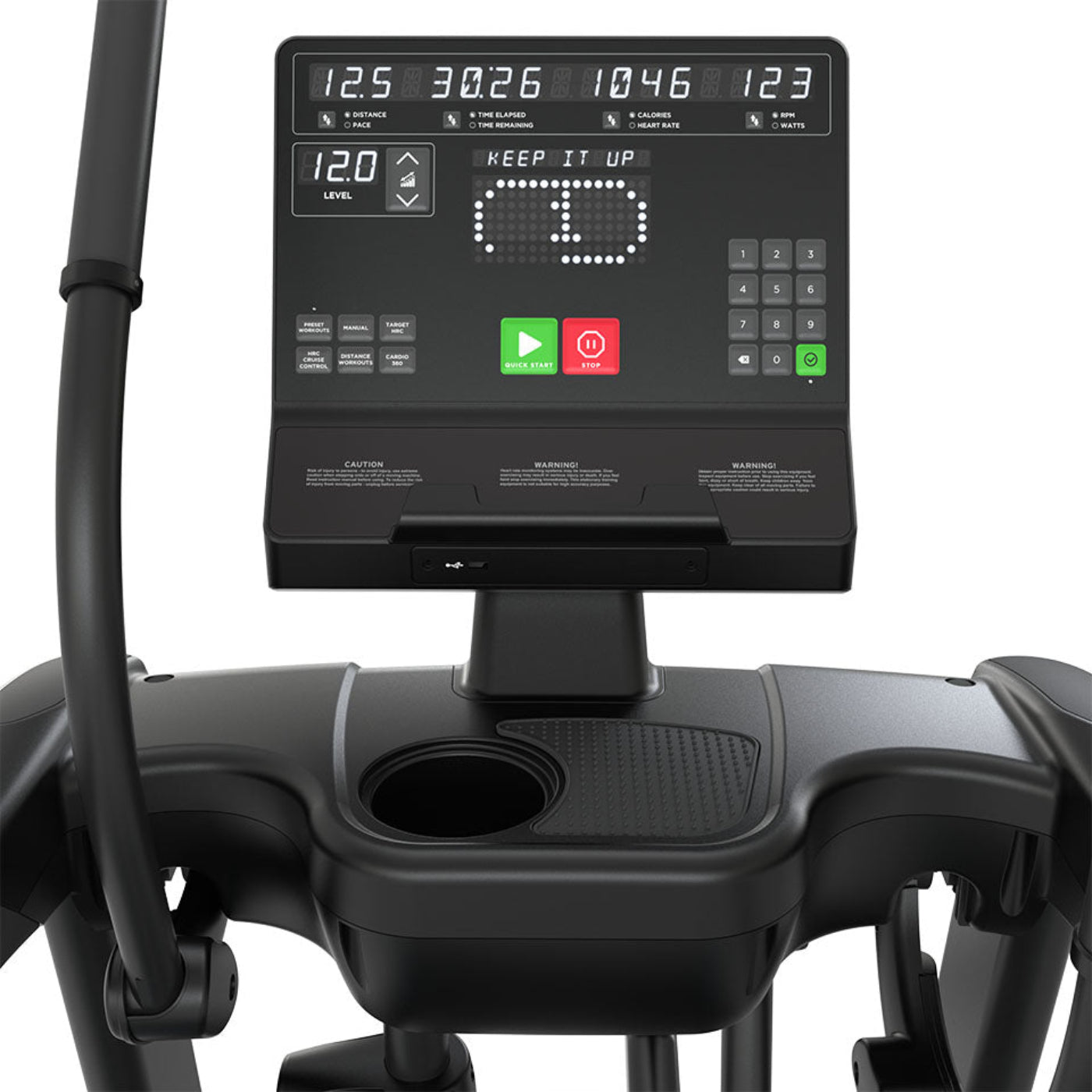

Unite LED Console

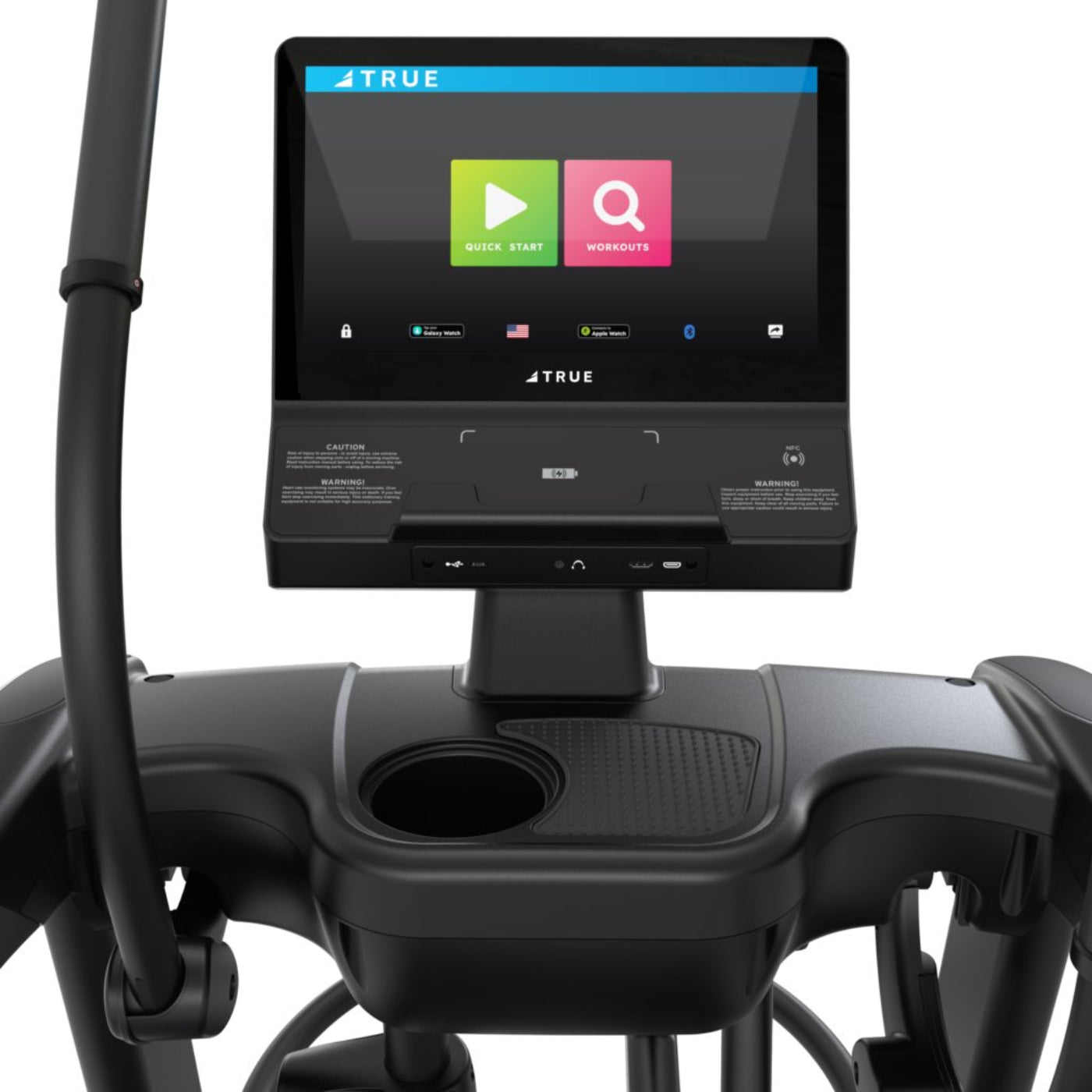

Unite 16" Touchscreen Console
Unite 22" Touchscreen Console
User-friendly interface and enhanced functionality with a sleek and streamlined design.
With advanced features, it’s the perfect companion for achieving fitness goals with style and efficiency.
Being the largest console option, the 22″ vibrant screen enhances visibility and delivers unmatched clarity and interactivity.
What Our Experts Think
The True Apex Elliptical (XC10350L0) is engineered for high performance, long-term durability, and smooth biomechanically-correct movement.
Built with TRUE’s Core Drive System, it centers the user’s body to deliver exceptional balance, stability, and comfort throughout the entire stride.
Its mid-drive design also reduces joint stress while creating a natural, efficient motion—ideal for intense training, steady-state cardio, and high-volume facility use.
Designed to withstand years of heavy workouts, the Apex Elliptical is a premium choice for fitness centers seeking reliability, performance, and user-friendly operation.
Q&A
1. What is the Core Drive System? TRUE's center-drive technology places the drive mechanism on either side of the user, keeping the body in a neutral, balanced position for optimal comfort and efficiency.
2. Is the Apex suitable for high-intensity training? Yes — it’s built for performance training and frequent, heavy use.
3. Does this elliptical support full-body workouts? Absolutely. The ergonomic arm handles engage upper-body muscles while maintaining smooth coordination with lower-body motion.
4. Is it good for facilities with constant traffic? Yes. Its commercial-grade frame and components are designed for durability and low maintenance.
Maintenance Tips
Clean console, handles, and pedals after each session to prevent sweat-related wear.
Check stride mechanisms and pivot points quarterly for smooth, noise-free operation.
Keep the elliptical level to ensure proper biomechanical alignment.
Inspect power and console connections periodically and update software when applicable.
