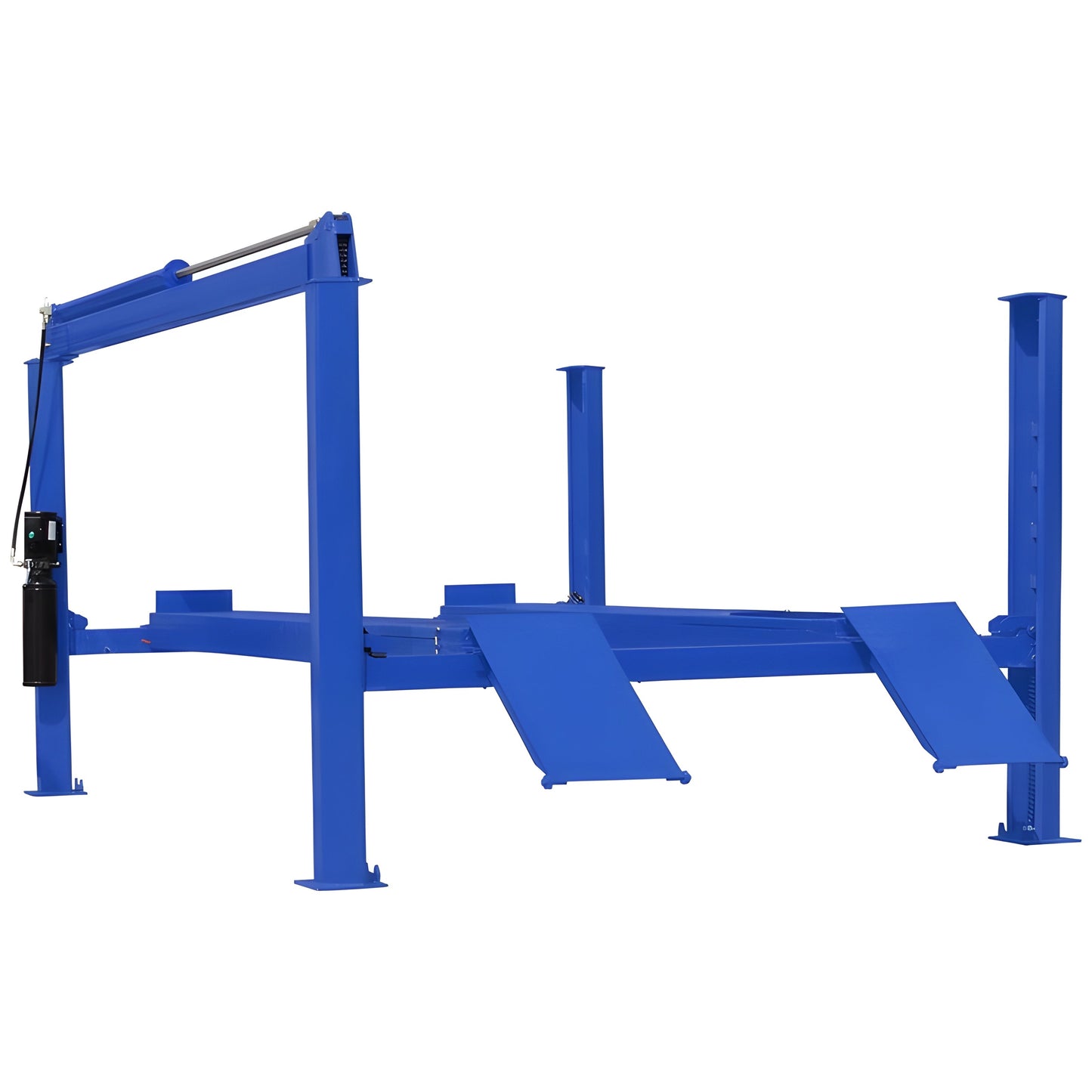

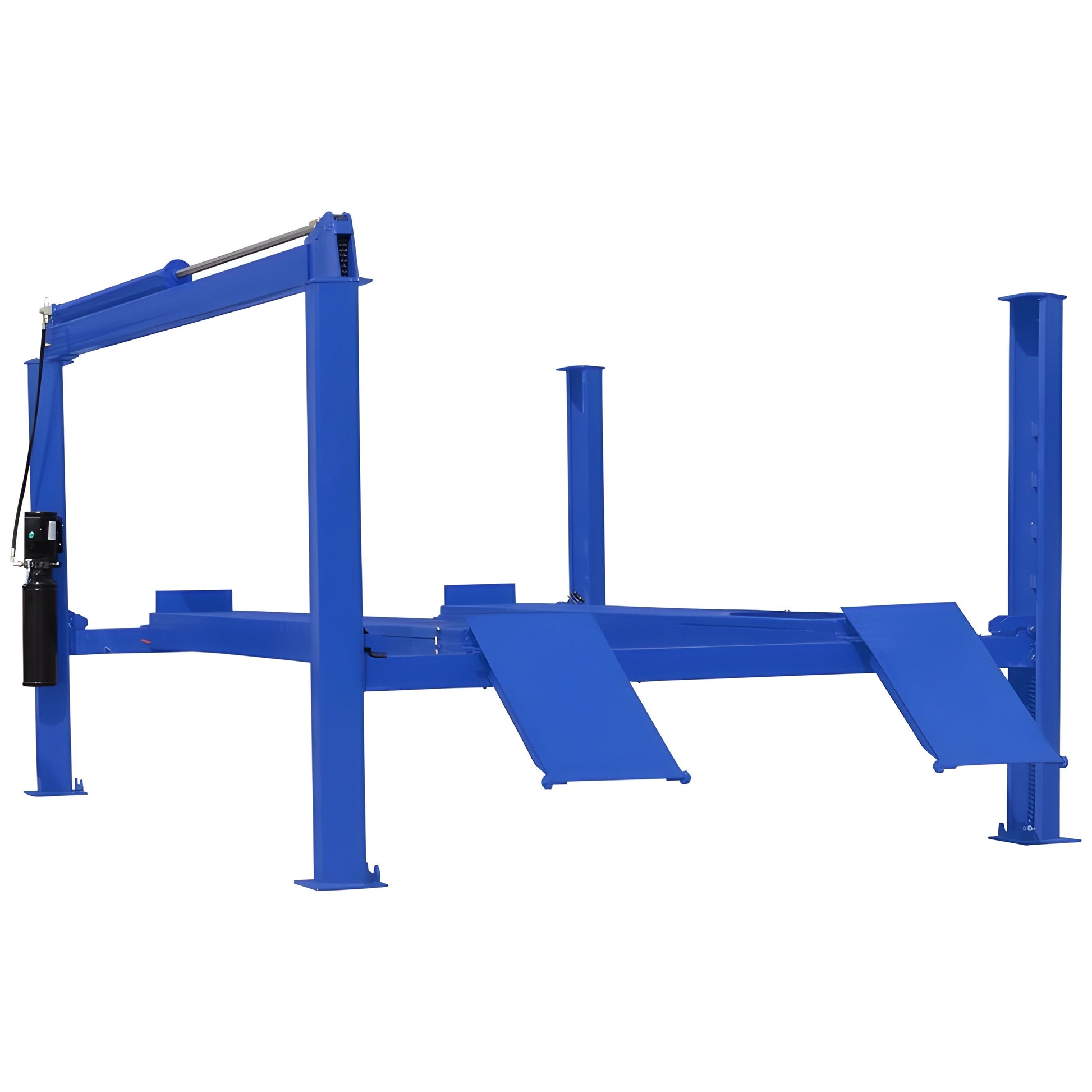

Tuxedo FP12K-K 12,000 lb Four Post Lift - Cable Driven - FP12K-K
Tuxedo 12,000 lb Four Post Lift - Cable Driven
*Jack sold separately
Cable driven four post lift provides 12,000 lb. lifting capacity. No power beam; Cylinder stowed under single piece diamond plate track. Simple, lever release system and redundant safety locks.
Features
- 12,000 lbs Capacity
- Cable Driven
- 176 max wheelbase

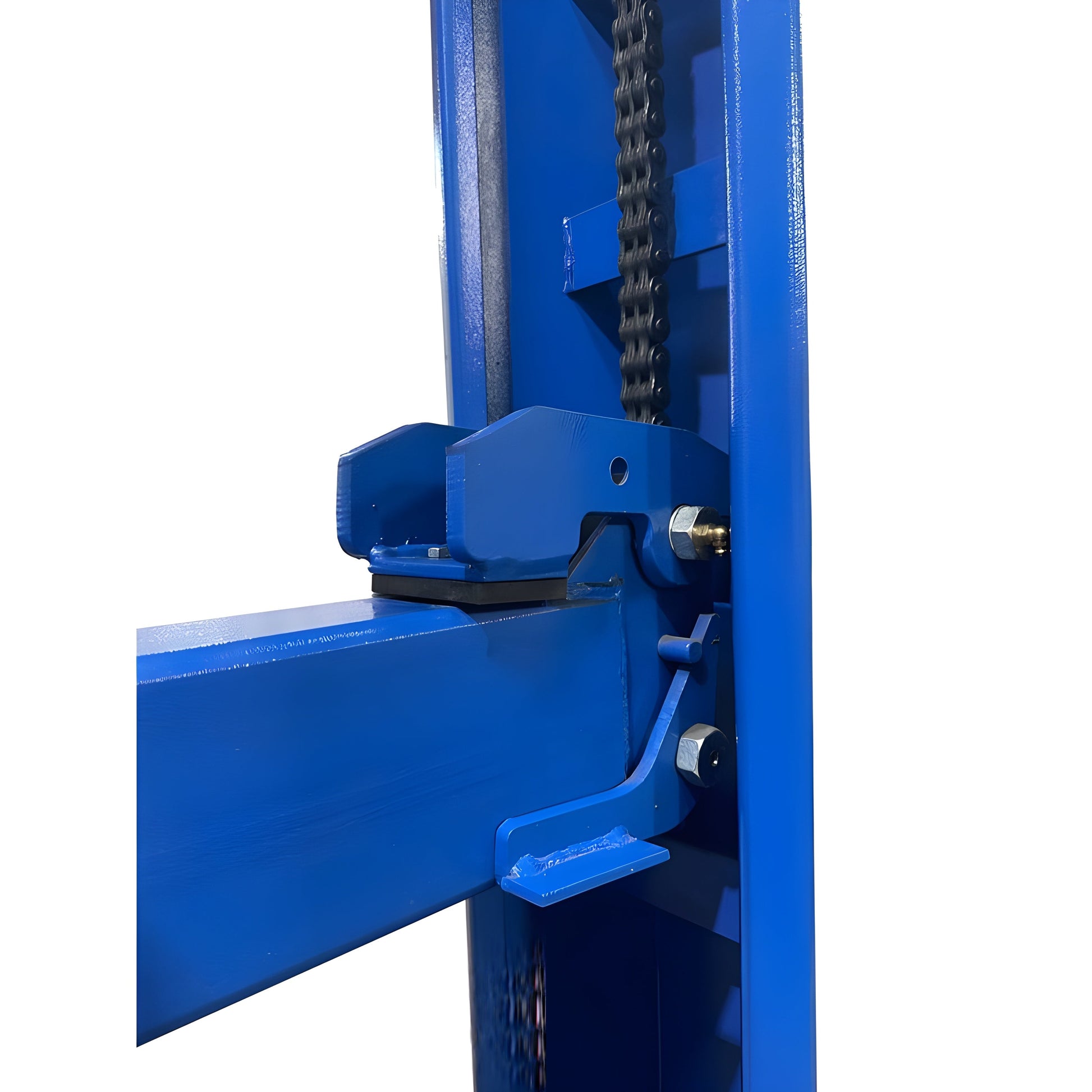

- Single Point Manual Lock Release
- Adjustable Locking Positions
- Slack Cable Safety
- No Overhead Obstructions
- Powder Coat Finish
Specifications
| Lift Model |
FP12K-K |
| Capacity |
12,000 lbs. |
| Overall Length w/Ramp |
232-1/2" |
| Overall Width(Without Power Unit) |
123" |
| Overall Width (With Power Unit) |
134" |
| Overall Height |
84" |
| Max Rise Height |
67-1/2" |
| Min Height |
7" |
| Width Between Posts |
105" |
| Length Between Posts |
177" |
| Width Between Runways |
36-1/2" |
| Width Of Runways |
19" |
| Max Wheelbase |
167" |

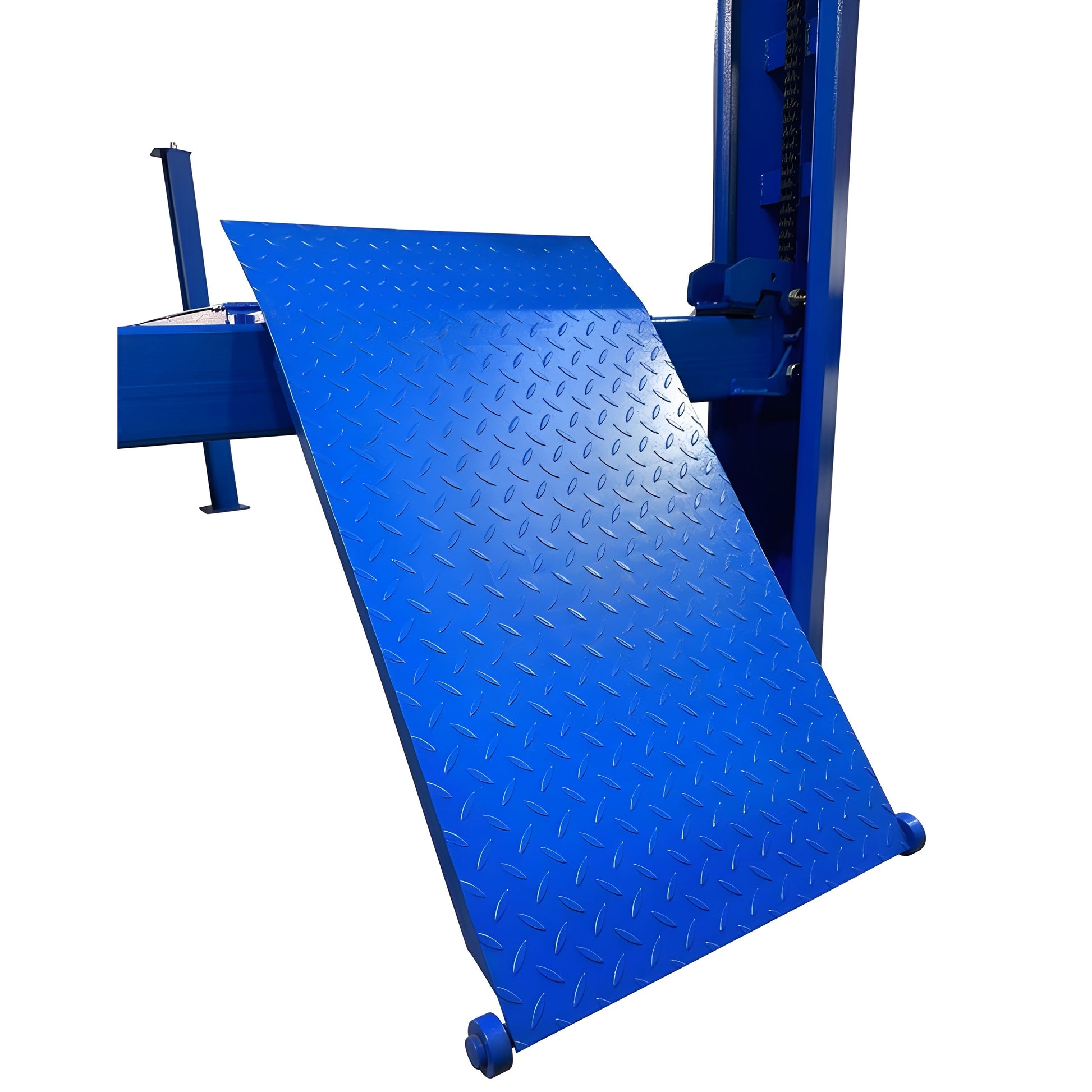

| Ramp Length |
35" |
| Max. Clearance Under Runway |
63-1/4" |
Drive-Thru Clearance
|
87-1/2" |
| Base Plate |
11" X 11" |
| Power Requirement |
220V - 20 Amp - 1PH |
Ship Weight
|
2,255 lbs. |
Min Bay Size
|
15" x 23" |
Recommended RAJ-8K & Tuxedo Lift Combo
What Our Experts Think
-
Impressive 12,000 lb Capacity – The Tuxedo FP12K-K Four Post Lift is built to handle heavy-duty vehicles, including trucks and SUVs, with ease and safety.
-
Cable-Driven Precision – Features a reliable cable-driven system for smooth, quiet lifting with precise control.
-
Space-Saving Design – Ideal for garages with limited space, the lift offers vertical lifting for efficient use of your workspace.
-
Durable & Long-Lasting – Constructed with high-strength steel and durable components, ensuring years of reliable operation.
-
Safety Features – Equipped with safety locks, non-slip runways, and automatic safety mechanisms to protect both the vehicle and operator.
Q&A
Q: What is the Tuxedo FP12K-K Four Post Lift?
A: The Tuxedo FP12K-K is a 12,000 lb cable-driven four-post lift designed for automotive repair shops, garages, and enthusiasts. It’s built to raise vehicles for maintenance, storage, and repairs.
Q: What is the weight capacity of the FP12K-K?
A: The FP12K-K supports a maximum weight of 12,000 lbs, making it suitable for most cars, trucks, and SUVs.
Q: What type of drive system does the lift use?
A: The FP12K-K is equipped with a cable-driven system, offering smooth and reliable lifting for heavy-duty vehicles.
Q: What are the dimensions of the lift?
A: The Tuxedo FP12K-K features a spacious lifting platform, accommodating vehicles of various sizes, but specific dimensions can vary. Always check the product details for exact measurements.
Q: Is the lift easy to install?
A: Yes, it comes with detailed instructions for easy installation, though professional installation is recommended for optimal safety and performance.
Q: Is this lift suitable for commercial use?
A: Yes, the FP12K-K is built for heavy-duty use, making it ideal for commercial auto repair shops or personal garages with high lifting demands.
Maintenance Tips
-
Lubricate Cables Regularly – Apply appropriate lubricant to the cables to prevent wear and ensure smooth lifting.
-
Inspect Cables and Pulleys – Check for fraying or damage to cables, and inspect pulleys for smooth operation.
-
Check Hydraulic Fluid – Maintain the hydraulic fluid level for consistent lift performance and prevent damage to the system.
-
Tighten All Bolts – Ensure all bolts, nuts, and fasteners are properly tightened to maintain stability and safety.
-
Clean Lift Posts and Rails – Remove any debris or dirt from the lift’s posts and rails to avoid jamming.
-
Test Safety Features – Regularly check the lift’s safety mechanisms, including emergency stop and lock features, to ensure proper function.
-
Inspect Power Supply – Check for any electrical issues, such as frayed wires or faulty connections, to ensure safe operation.
