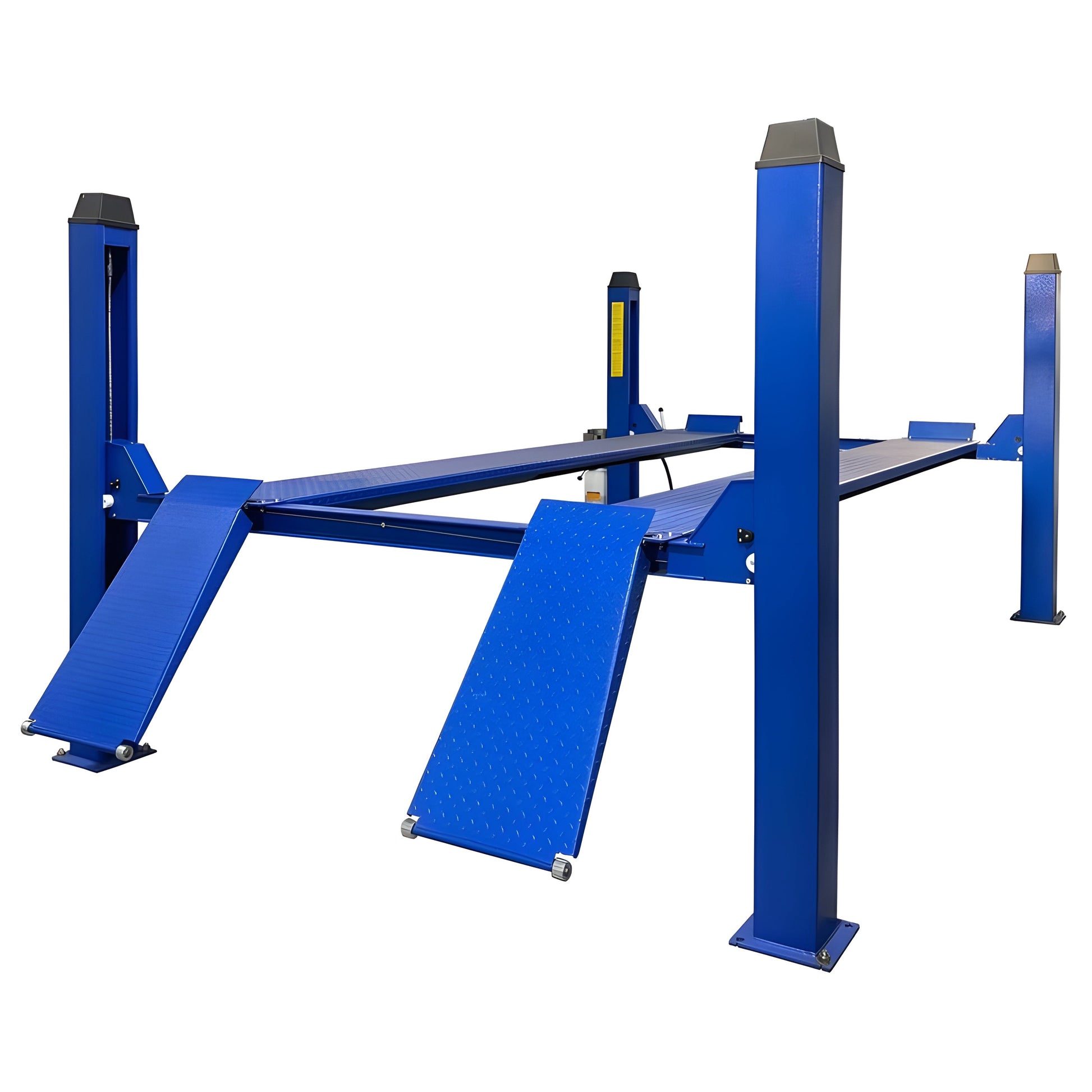

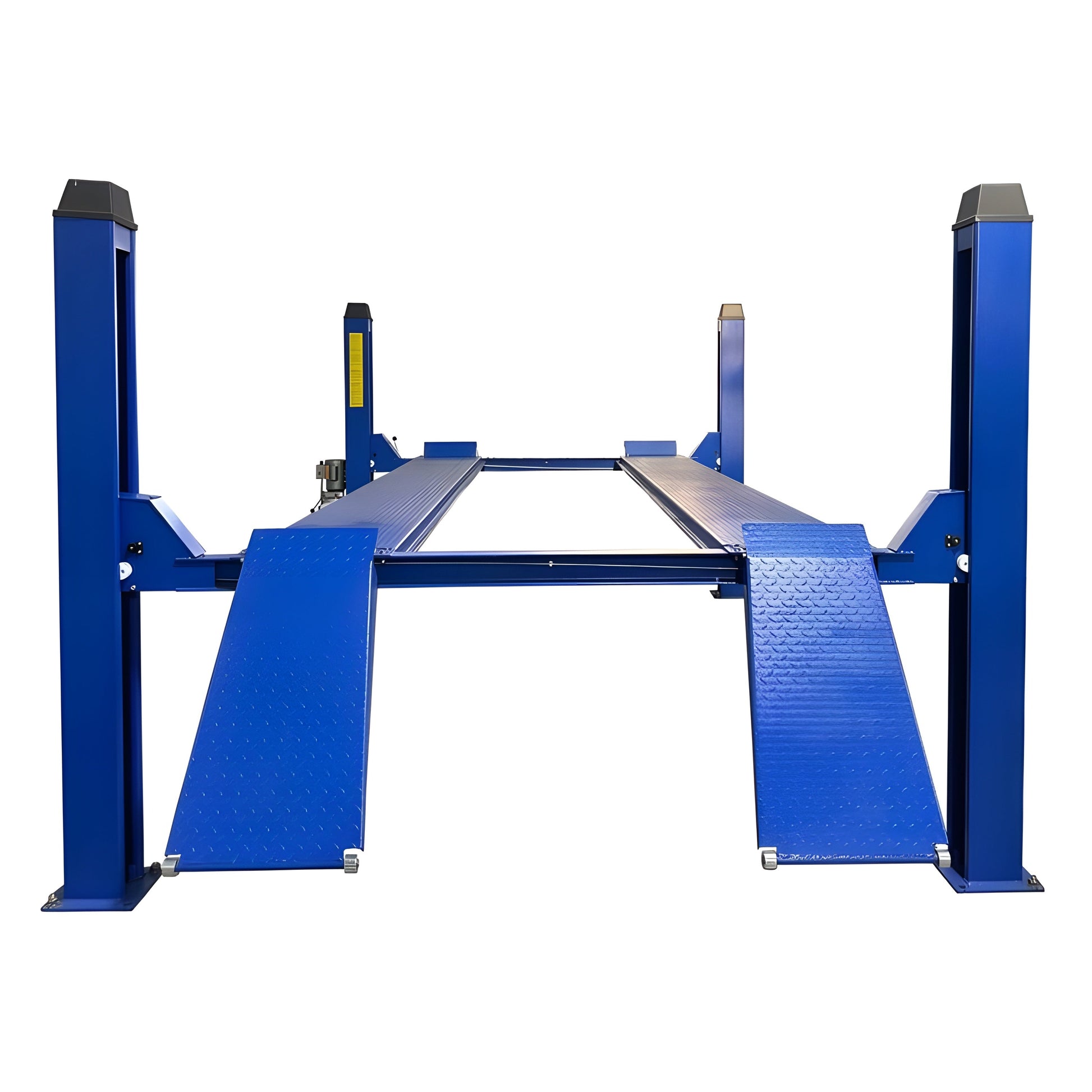

Tuxedo FP14K 14,000 lb Four Post Lift - Chain Driven - FP14K
Tuxedo 14,000 lb Four Post Lift - Chain Driven
These heavy-duty chain-driven lifts are designed for many years of trouble-free service. Our four post lifts are constructed with a heavy gauge C channel.
Features
- 14,000 lbs Capacity
- Chain Driven
- 182 max wheelbase

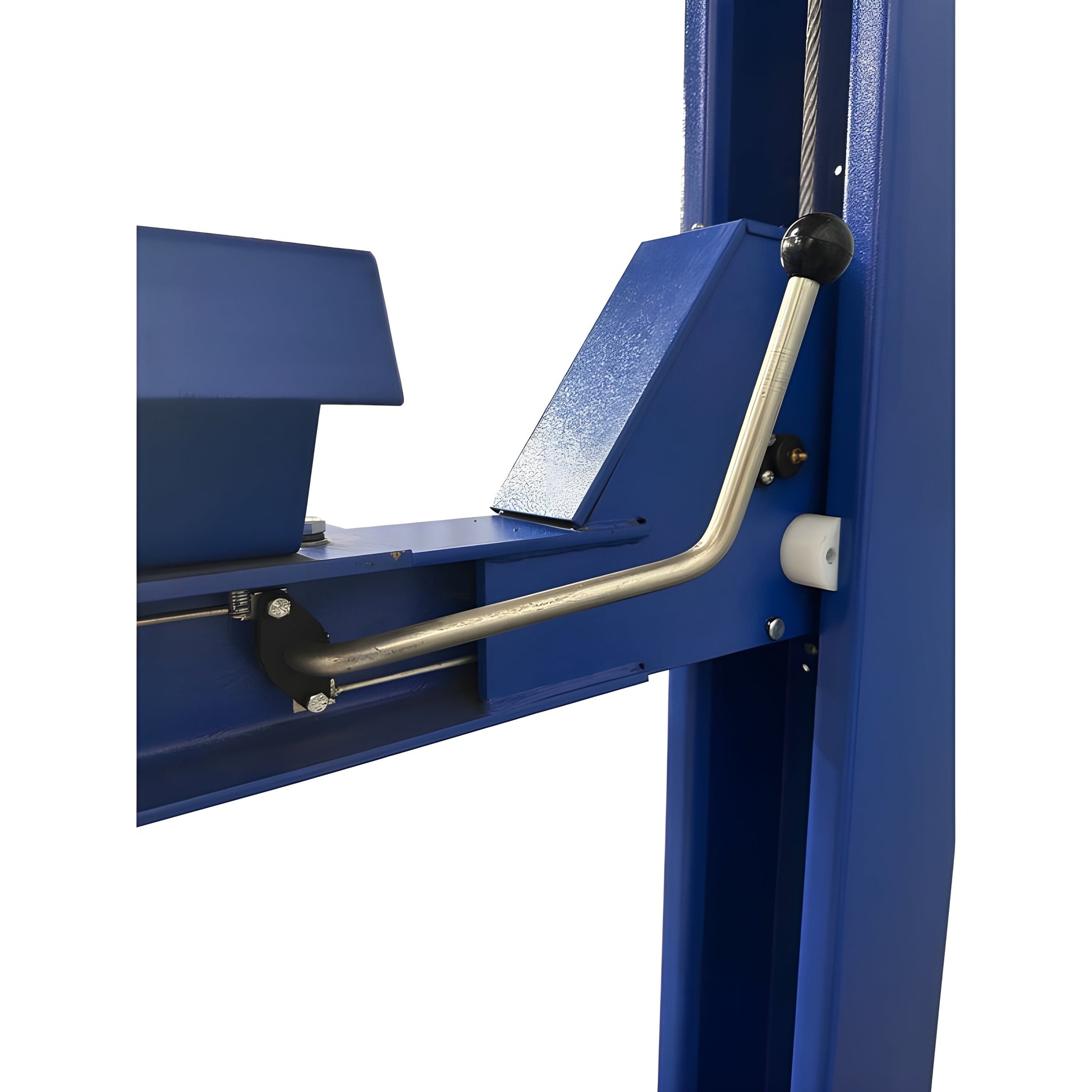

- Single Point Pneumatic Lock Release
- Powder Coat Finish
Specifications
| Capacity |
14,000 lbs. |
| Overall Length w/Ramp |
237" |
| Overall Width (Without Power Unit) |
123" |
| Overall Width (WithPower Unit) |
129" |
| Overall Height |
99" |
| Max Rise Height |
65 - 1/4" |
| MinHeight |
7 - 1/2" |
| Width Between Posts |
108" |
| LengthBetween Posts |
187" |
| Width Between Runways |
41" |
| Width of Runways |
20" |
| Max. Wheel Base |
182" |

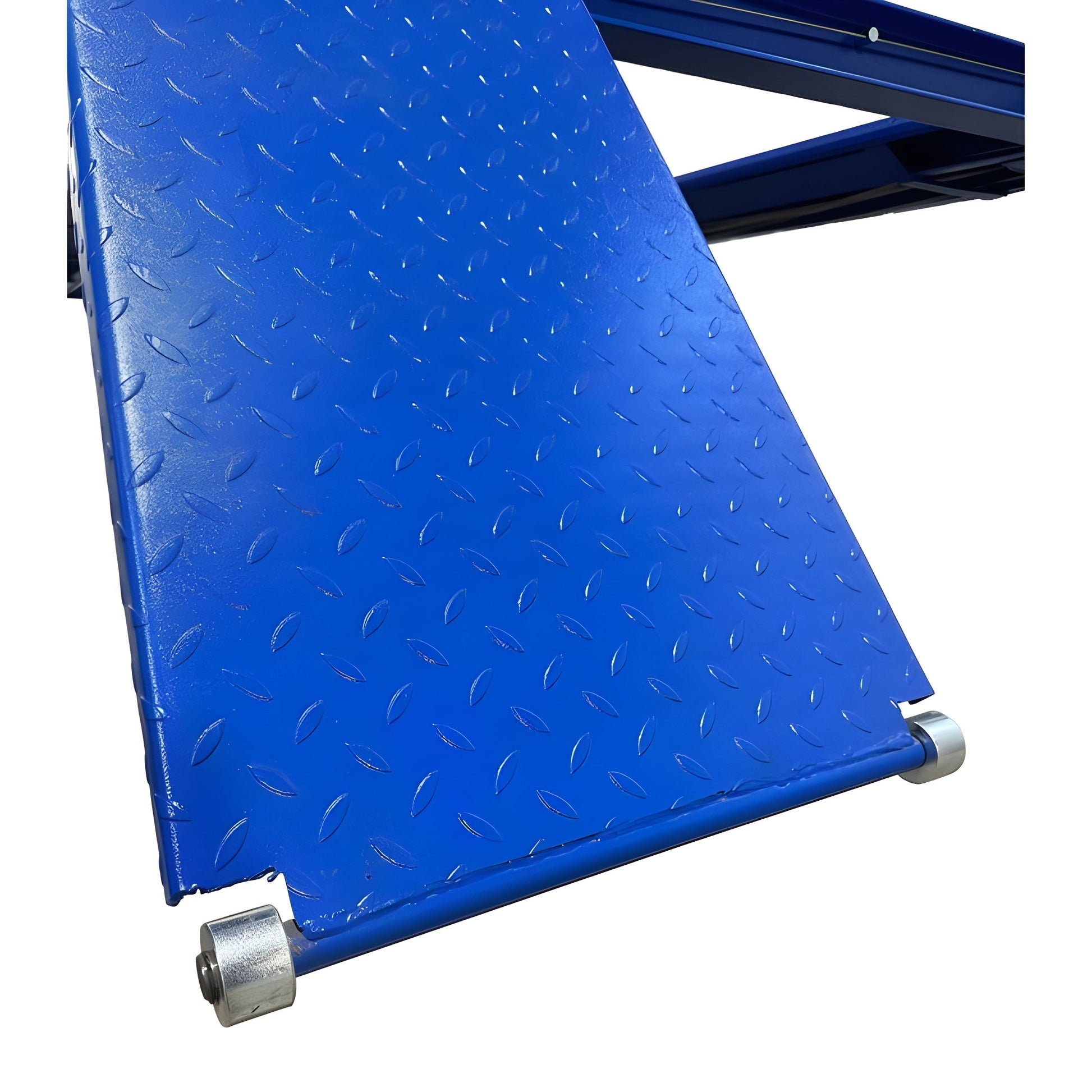

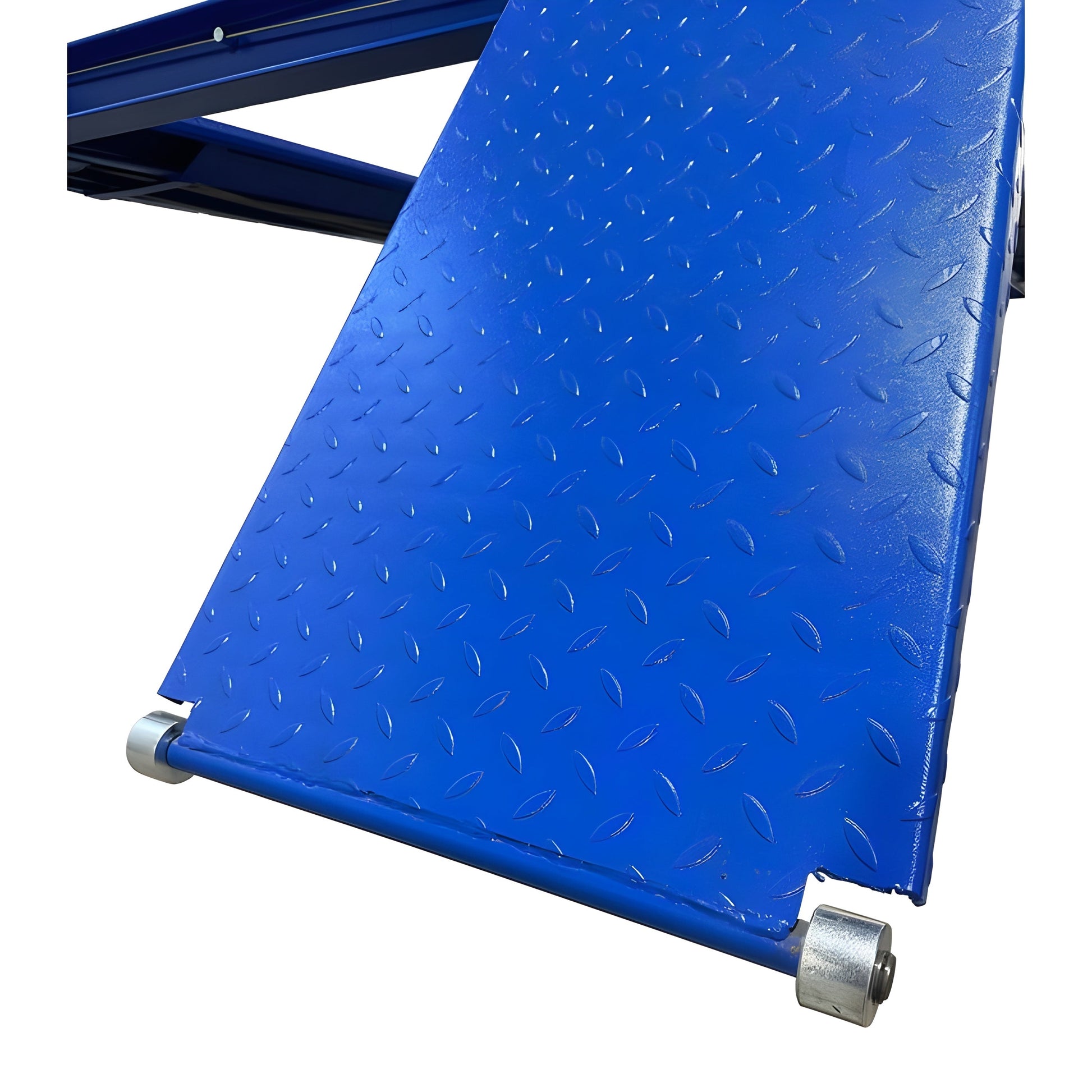

| Ramp Length |
30" |
| Max. Clearance Under Runway |
60" |
| Drive-Thru Clearance |
99" |
| Base Plate |
10-1/2" x 10-1/2" |
| Power Requirement |
220V-20 Amp |
| Ship Weight |
2,615 lbs. |
| Min Bay Size |
15x 24 |
Recommended RAJ-8K & Tuxedo Lift Combo
Manual
Tuxedo FP14K 14,000 lb Four Post Lift - Chain Driven
What Our Experts Think
-
Heavy-Duty 14,000 lb Capacity – The Tuxedo FP14K Four Post Lift is designed to handle larger vehicles, including commercial trucks and heavy-duty SUVs, with ease.
-
Chain-Driven Power – Features a robust chain-driven system that provides smooth, reliable lifting and long-lasting performance.
-
Maximized Vertical Storage – Ideal for maximizing floor space, allowing for safe and efficient vertical lifting and storage of multiple vehicles.
-
Built for Durability – Constructed with high-quality steel and industrial-grade components to withstand heavy use in professional environments.
-
Safety & Stability – Equipped with safety locks, anti-slip ramps, and secure lifting mechanisms to ensure a safe operation every time.
Q&A
Q: What is the Tuxedo FP14K Four Post Lift?
A: The Tuxedo FP14K is a 14,000 lb chain-driven four-post lift designed for lifting heavy-duty vehicles in auto repair shops, garages, and commercial facilities.
Q: What is the weight capacity of the FP14K?
A: The FP14K supports a maximum weight capacity of 14,000 lbs, making it ideal for lifting larger vehicles, including trucks, vans, and SUVs.
Q: What type of drive system does the lift use?
A: The FP14K is equipped with a chain-driven system, offering durability, smooth lifting performance, and reliability for heavy-duty applications.
Q: What are the key benefits of the FP14K?
A: This lift provides high lifting capacity, smooth operation, and durable chain-driven mechanics, making it perfect for both personal and commercial use.
Q: Is the lift easy to install?
A: Yes, the FP14K comes with detailed installation instructions. However, professional installation is recommended to ensure optimal performance and safety.
Q: Is this lift suitable for large commercial use?
A: Yes, the FP14K is specifically designed for high-capacity use, making it well-suited for commercial auto repair shops or facilities that require frequent heavy lifting.
Maintenance Tips
-
Lubricate Chains Regularly – Apply chain oil to maintain smooth lifting and prevent wear.
-
Inspect Chains and Pulleys – Check for signs of wear or damage on chains and pulleys, and replace if needed.
-
Check Hydraulic Fluid – Keep the hydraulic fluid at proper levels to ensure reliable lift performance.
-
Tighten All Fasteners – Periodically inspect bolts, nuts, and fasteners for tightness to ensure structural integrity.
-
Clean Lift Posts and Rails – Regularly remove dirt and debris from the posts and rails to prevent malfunction.
-
Test Safety Features – Ensure safety locks and emergency stop functions are working properly.
-
Inspect Electrical Components – Check for any wiring issues or loose connections to maintain electrical safety.
