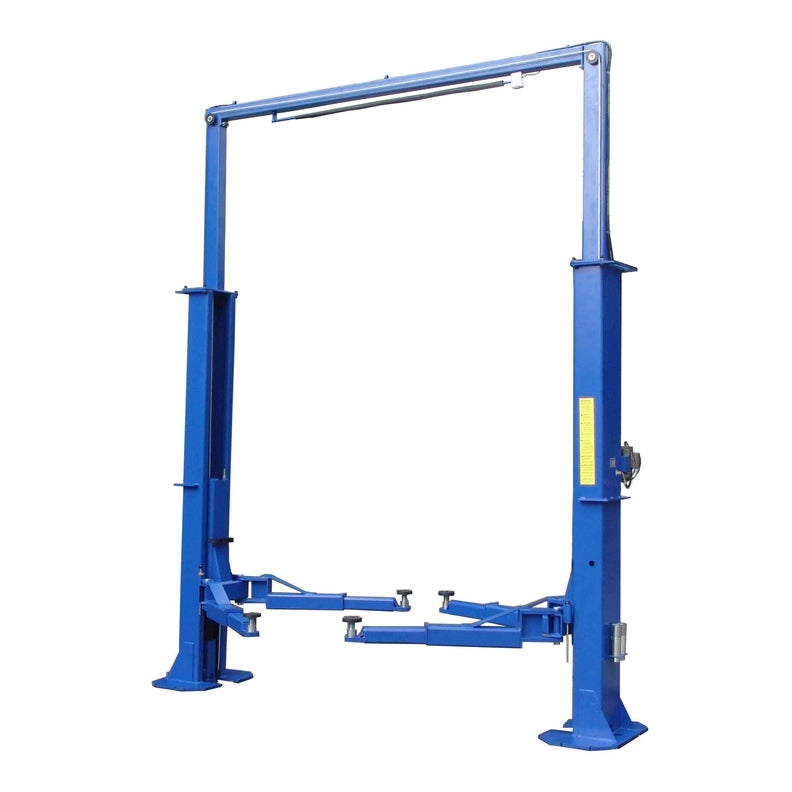

Tuxedo 15,000 lb Heavy Duty Two Post Lift - TP15KCX
Tuxedo 15,000 Lb Heavy Duty Two Post Lift
A Texas-style two-post floor plate lift with 12,000 lbs. lifting capacity, large twin 3" cylinders with low friction chain rollers, and a "big foot" base plate for extra stability. Built rugged for trucks, but now with low profile arms to reach under smaller passenger cars. This thing is a beast. It can handle the big jobs with ease.
A fresh new design and upgraded features for the TP15KCX Two Post Clear Floor truck and vehicle Lift now come standard with low profile 'drop-in' adjustable swivel pads with height adapters, internal hose routing, padded overhead shut-off bar with a kill switch, and reduced overall width with rubber door guards to protect the vehicle from dings and scratches. The newly designed heavy-duty lift model with added features makes it one of the best values in the lift industry market. Professional quality at an economical price.
Features
- 15,000 lbs Capacity
- Symmetric Arms

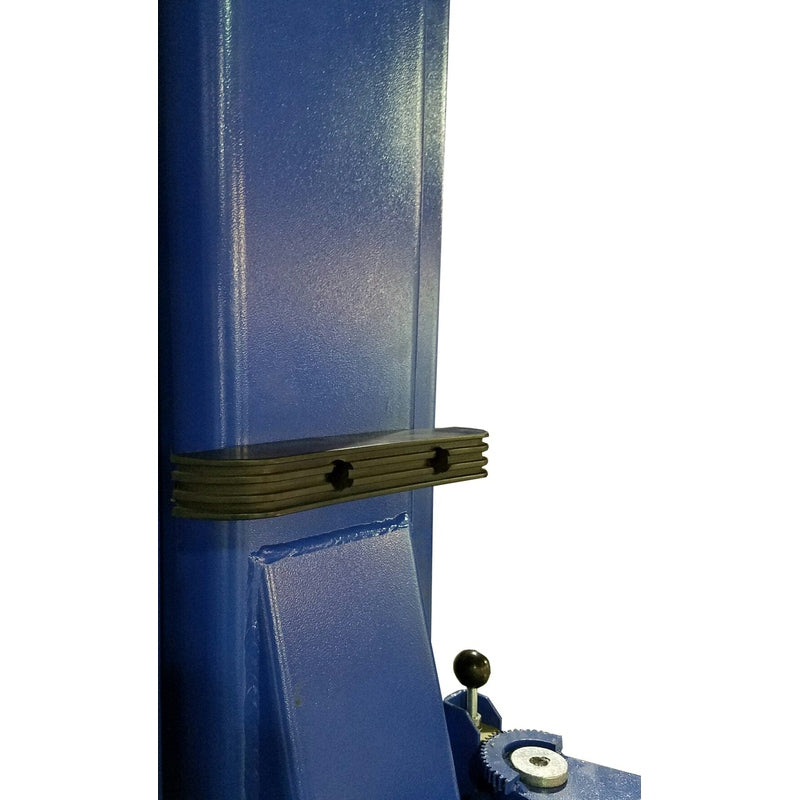

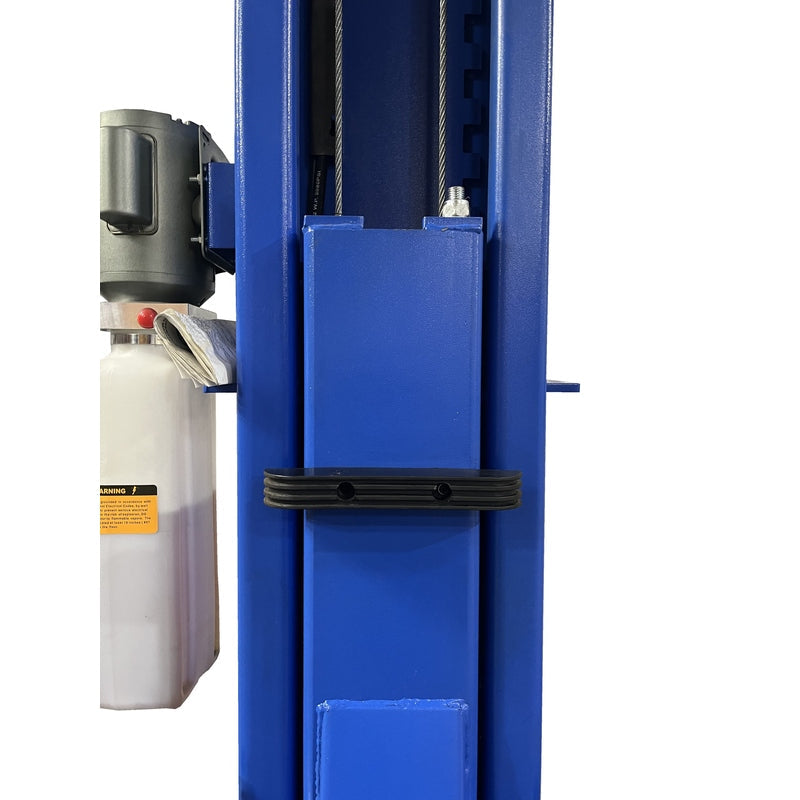

- Rubber Door Guards
- Chain Drive Cylinders
- Dual Point Lock Release
- auto Arm Restraint System

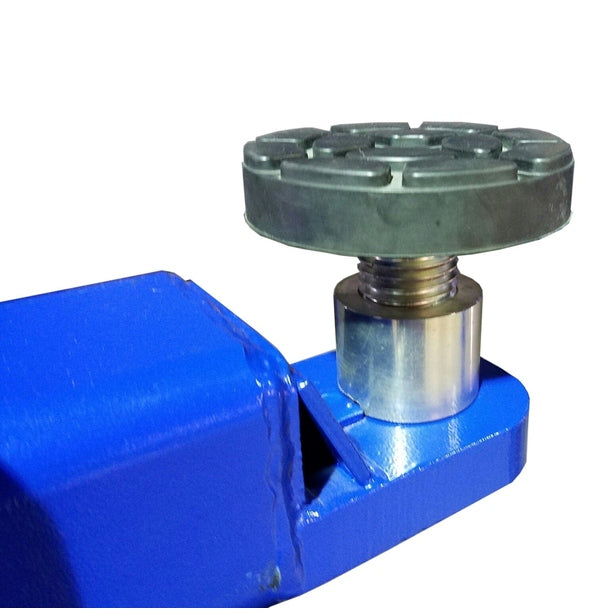

- Spin Up Lift Pads

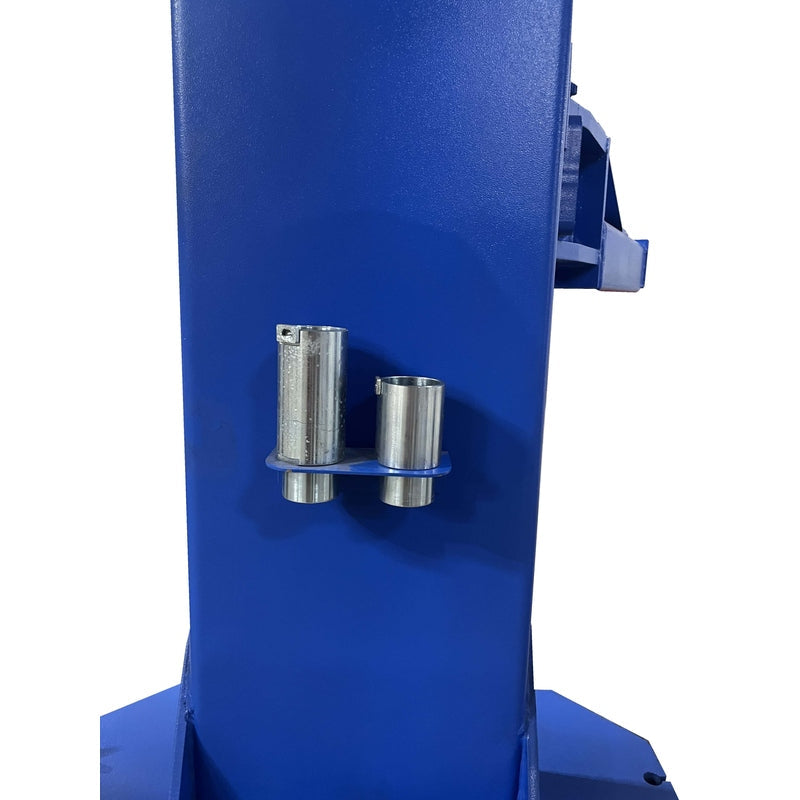

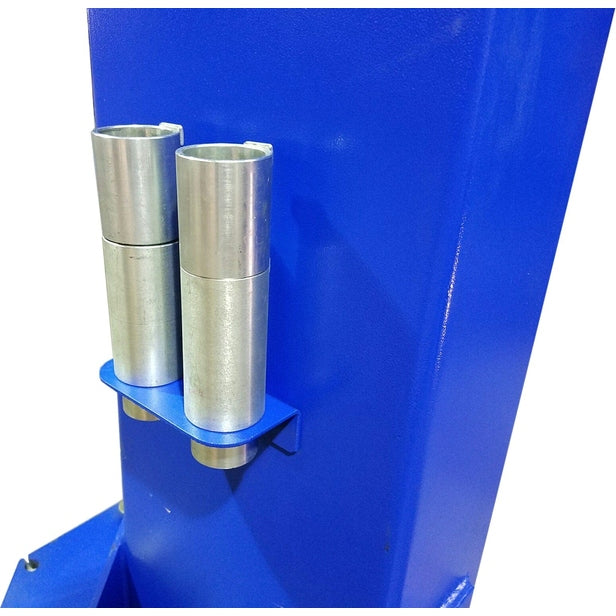

- Stackable Adapter Included

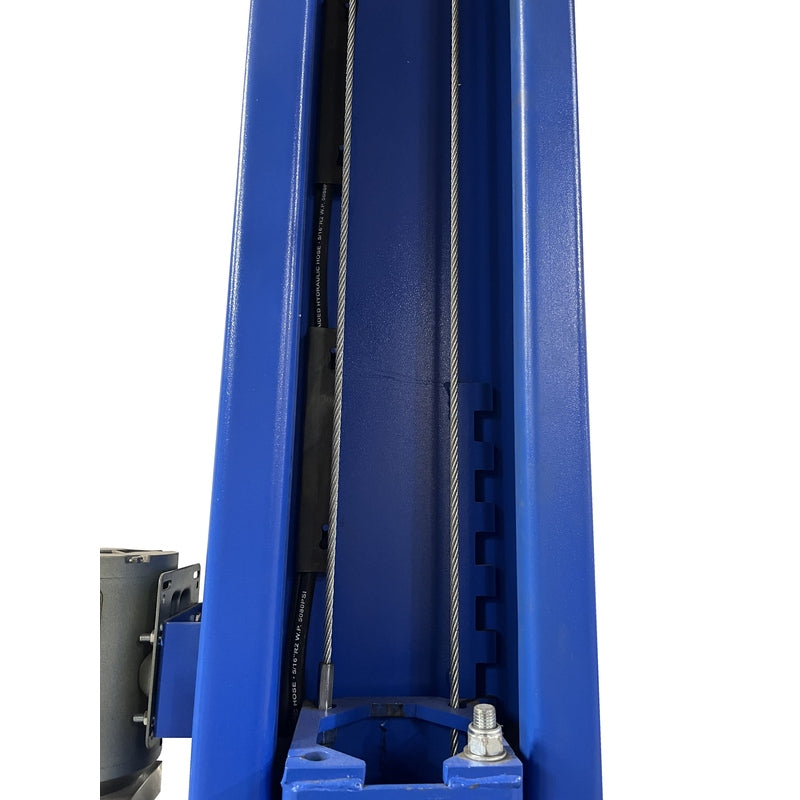

- Internal Hose routing
- Heavy Duty Lock Release

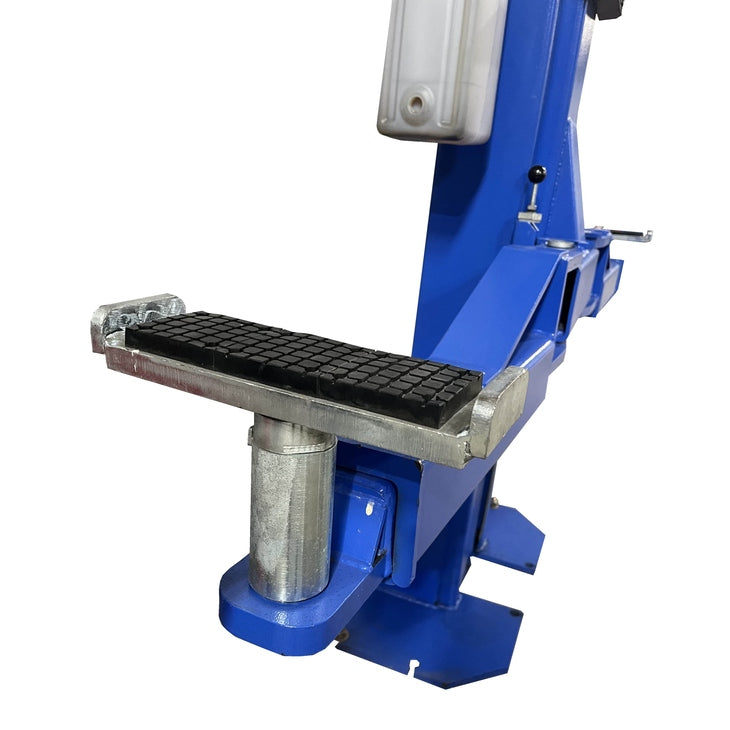

- Low Pad Height

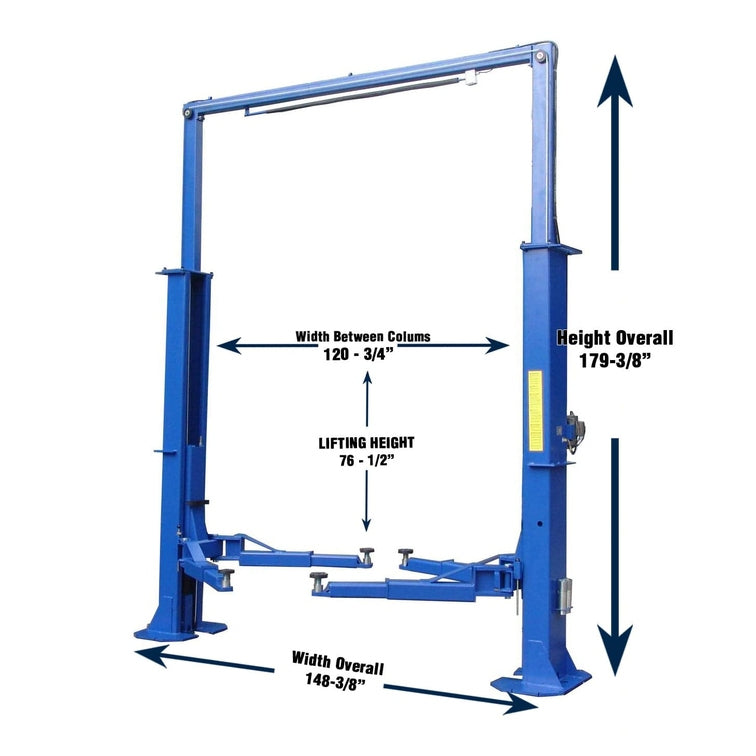

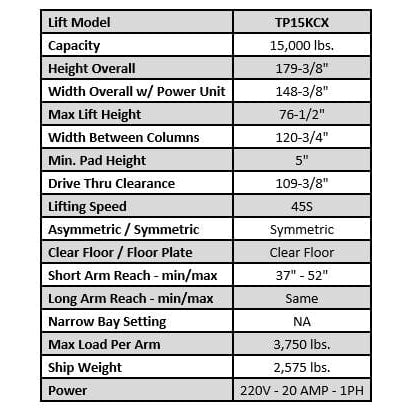

Specifications
| Lift Model |
TP15KCX |
| Capacity |
15,000 lbs. |
| Height Overall |
179-3/8" |
| Width Overall w/ Power Unit |
148-3/8" |
| Max Lift Height |
76-1/2" |
| Width Between Columns |
120-3/4" |
| Min. Pad Height |
5" |
| Drive Thru Clearance |
109-3/8" |
| Lifting Speed |
45S |
| Asymmetric / Symmetric |
Symmetric |
| Clear Floor / Floor Plate |
Clear Floor |
| Short Arm Reach min/max |
37" 52" |
| Long Arm Reach min/max |
Same |
| Narrow Bay Setting |
NA |
| Max Load Per Arm |
3,750 lbs. |
| Ship Weight |
2,575 lbs |
| Power |
220V 20 AMP 1 PH |
Manual
Tuxedo TP15KCX 15,000 lb Heavy Duty Two Post Lift Manual
What Our Experts Think
-
15,000 lb Lifting Capacity – Built for heavy-duty vehicles, including large trucks and commercial vans.
-
Robust Two-Post Design – Provides maximum stability and lifting power for demanding applications.
-
Symmetric Arm Configuration – Ensures even weight distribution for secure lifting.
-
Heavy-Duty Construction – Industrial-grade steel frame designed for long-term durability.
-
Dual-Point Lock Release – Enhances safety with a reliable locking mechanism.
Q&A
Q: What is the Tuxedo TP15KCX Two-Post Lift used for?
A: The Tuxedo TP15KCX is a 15,000 lb capacity heavy-duty two-post lift, ideal for lifting large trucks, vans, and commercial vehicles for service and repairs.
Q: What makes this lift heavy-duty?
A: It features reinforced steel columns, oversized hydraulic cylinders, and extra-wide drive-through clearance, making it perfect for heavy-duty applications.
Q: What type of vehicles can it lift?
A: It is designed for full-size trucks, service vehicles, fleet vehicles, and commercial trucks with its extended capacity and adjustable arm design.
Q: What is the lift height and clearance?
A: The TP15KCX provides a high lifting range, ensuring easy undercarriage access for large vehicles.
Q: Is this lift suitable for commercial use?
A: Absolutely! Its high weight capacity, durable build, and professional-grade features make it ideal for auto shops, fleet maintenance, and commercial garages.
Maintenance Tips
-
Inspect Before Use – Check hydraulic lines, cables, and bolts for leaks, wear, or looseness.
-
Lubricate Moving Parts – Apply grease to lift arms, carriage slides, and pulleys regularly.
-
Monitor Hydraulic Fluid – Maintain proper levels and replace if contaminated.
-
Test Safety Locks – Ensure all locks engage properly before lifting heavy loads.
-
Keep It Clean – Remove dirt and debris to prevent corrosion and ensure smooth function.
-
Follow Load Limits – Do not exceed the 15,000 lb capacity for safe operation.
