Tuxedo Wheel Balancer - WB-CB66-VE
Tuxedo WB-CB66-VE Wheel Balancer

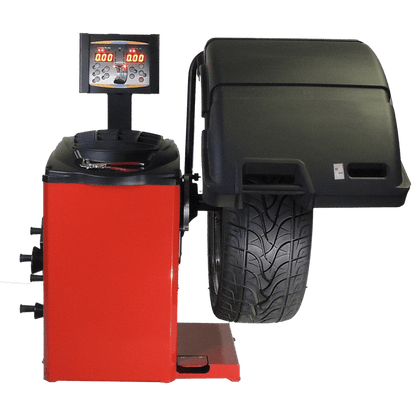

The CB66-VE Wheel Balancer is a highly accurate & reliable wheel balancing system designed to accommodate large rims up to 28" in diameter and overall wheel diameters up to 44". A 40mm Balancing Shaft provides incredible durability. At the same time, the exclusive Laser & Light feature illuminates the inside of the wheel at the unbalanced weight position, for convenient & precise wheel weight applications. The CB66-VE also comes standard with Multi-Mode Balancing options, along with Power Saving Mode, while allowing the user to choose between 5 Standard & 2 ALU Smart balancing configurations. A high-performance balancer at an unbeatable value!

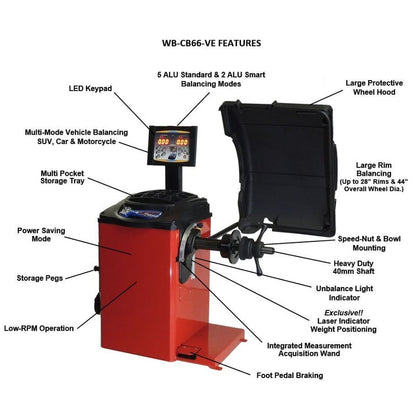

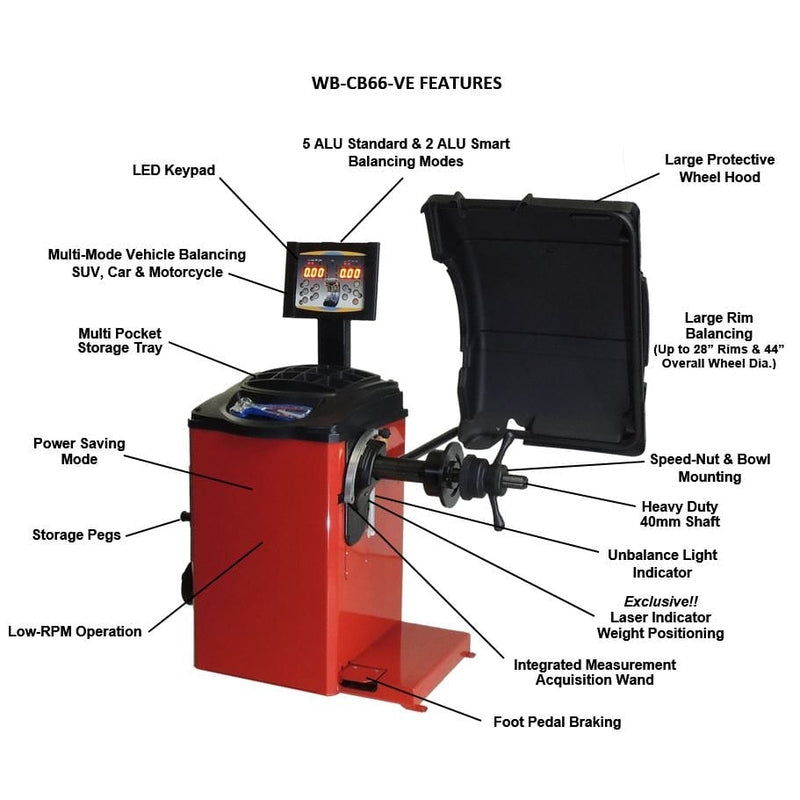

Features

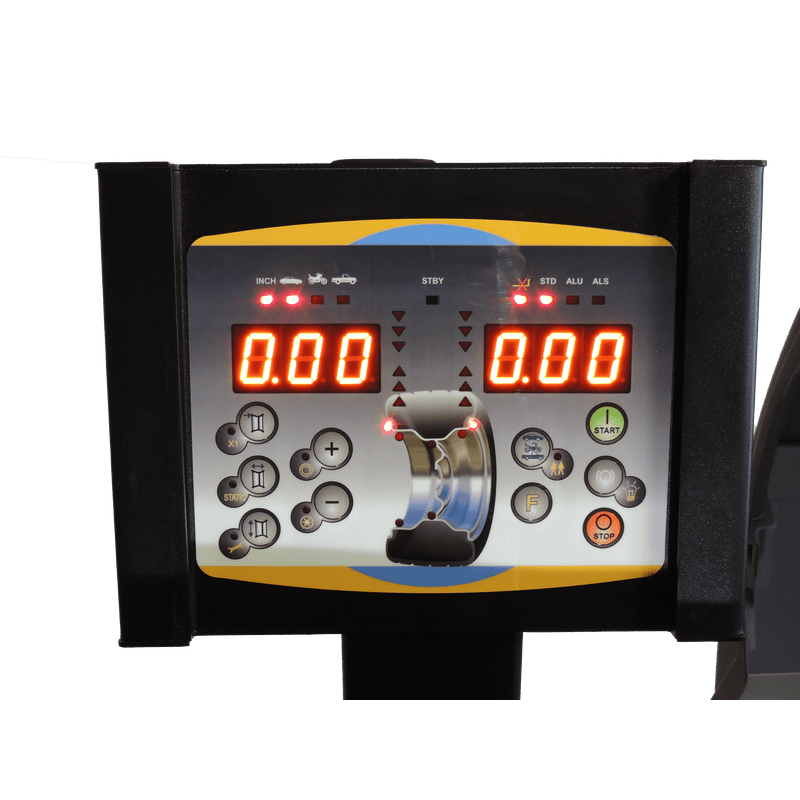

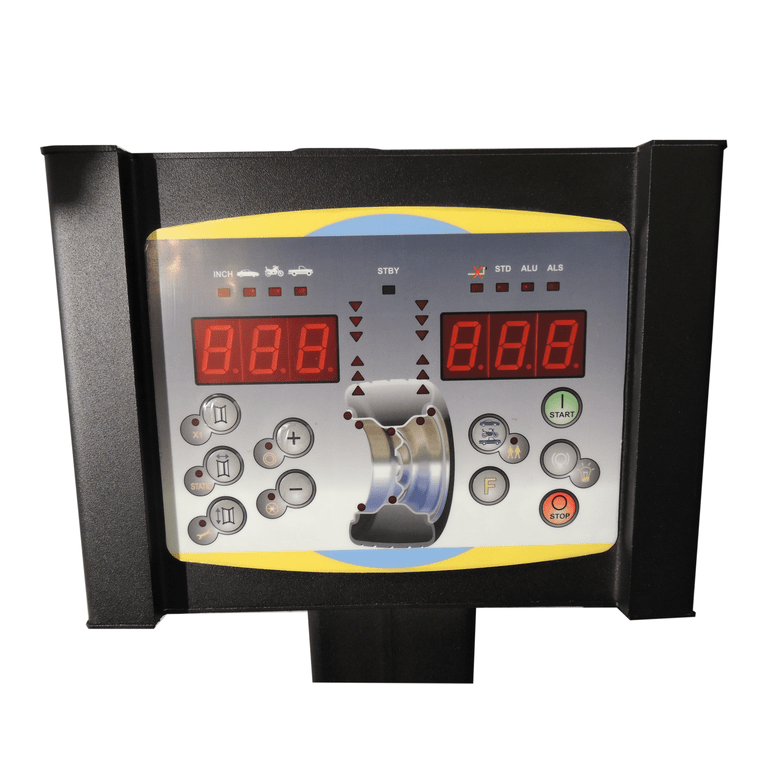

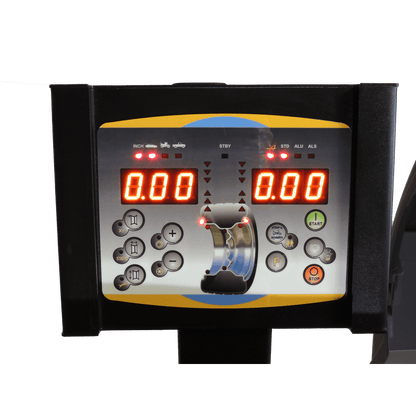

- 1. User Friendly Operation LED, touch-panel Keypad with easy to read icons assisting operators utilizing all balancing functions.

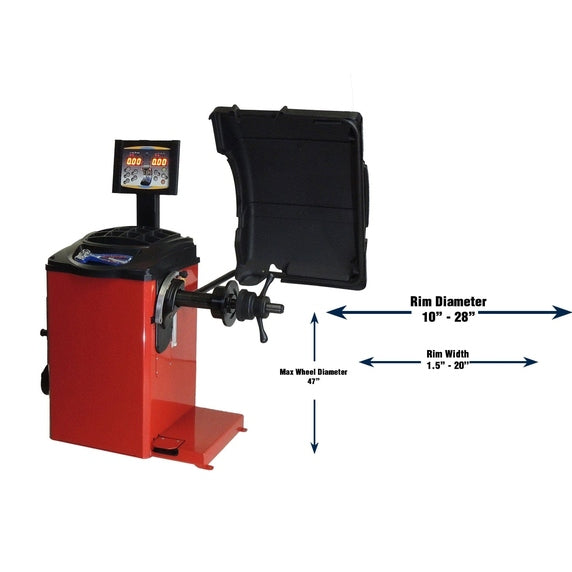

- Large Rim Diameter Balancing able to balance up to 28 Rim diameter & 44 overall Wheel Diameter.
- Multi-Mode Vehicle Balancing standard with SUV, Car & Motorcycle balancing modes.
- Low-RPM Operation at 140 RPM, the balancers life is further extended for sensitive electronics & moving components, all while providing highly accurate wheel balancing.
- Ease-Of-Use with manual measurement input for distance & diameter with 5 ALU Standard modes and 2 ALU Smart modes.
- Exclusive Laser Indicator lights up automatically at the unbalance weight position under ALUS mode in the 6 oclock wheel position.
- Integrated Measurement Acquisition Wand allows for ease of acquiring measurement data with a retractable, stylish measuring tool, integrated into the machine.
- Light Indicator illuminates inside of wheel automatically at the unbalanced weight position, for improved wheel weight applications.

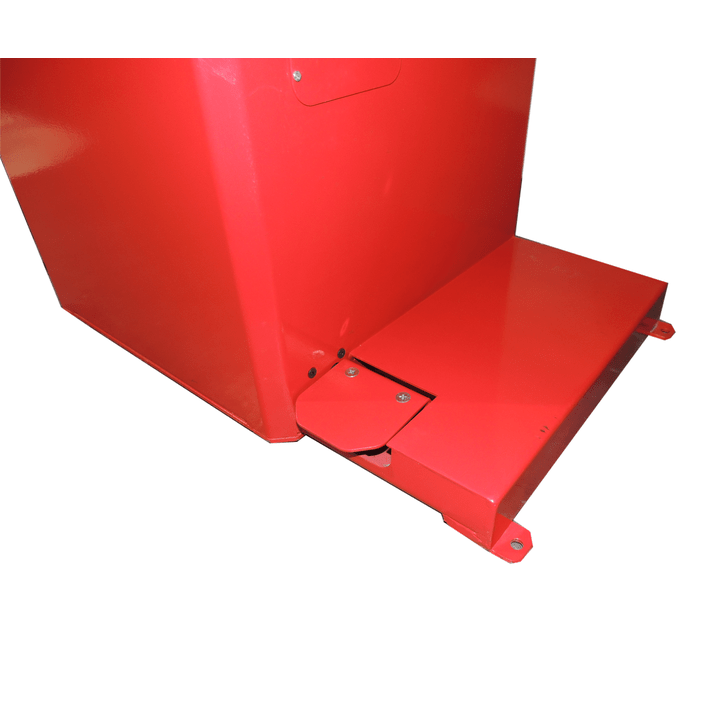

- Foot Pedal Braking System conveniently secures the wheel in the unbalanced position to accurately apply balance wheel weights.

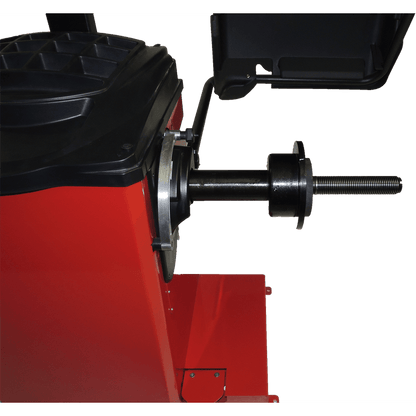

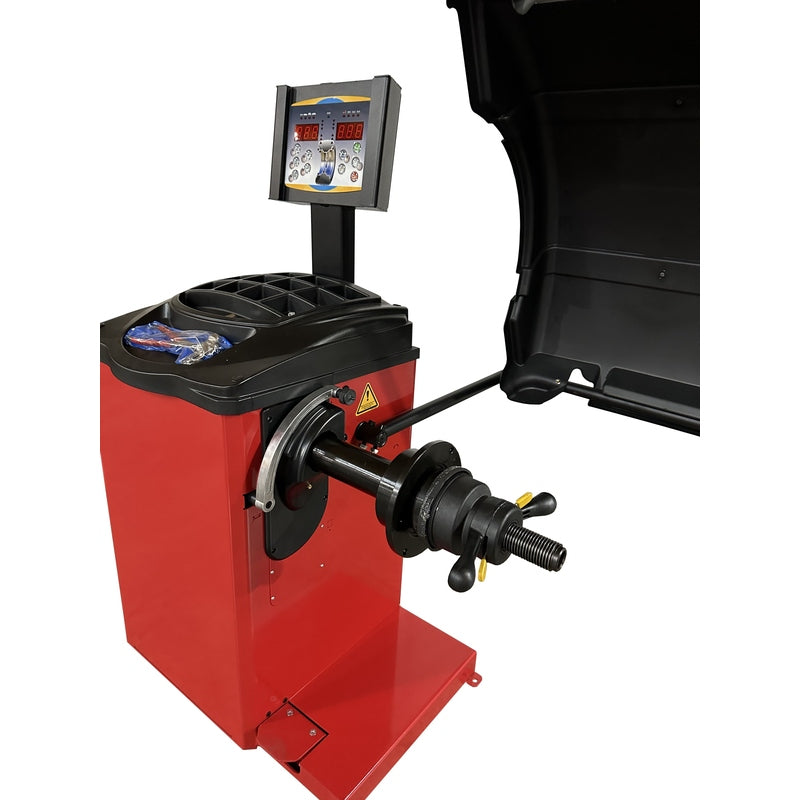

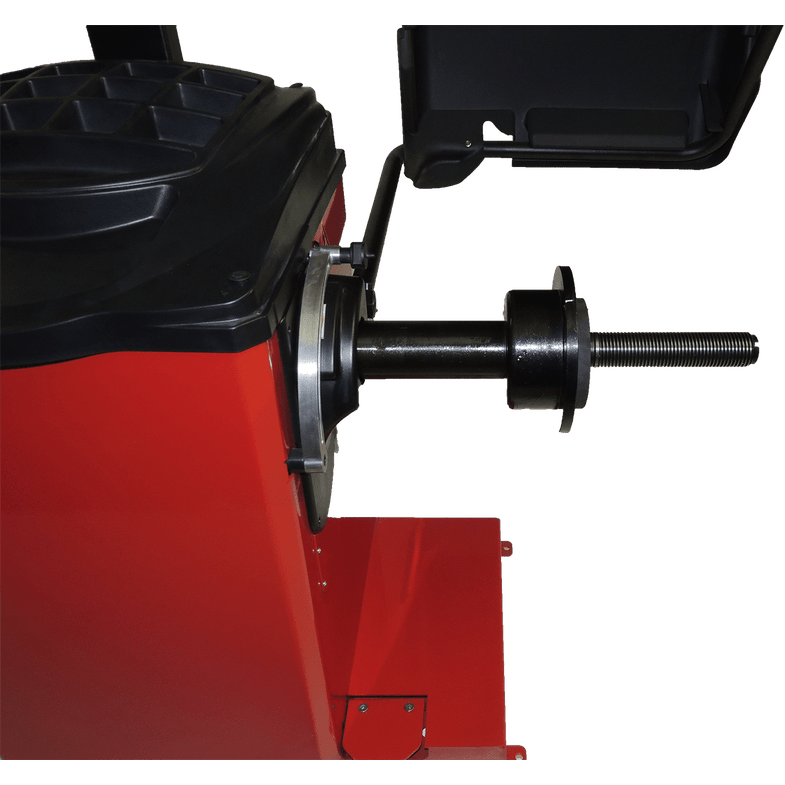

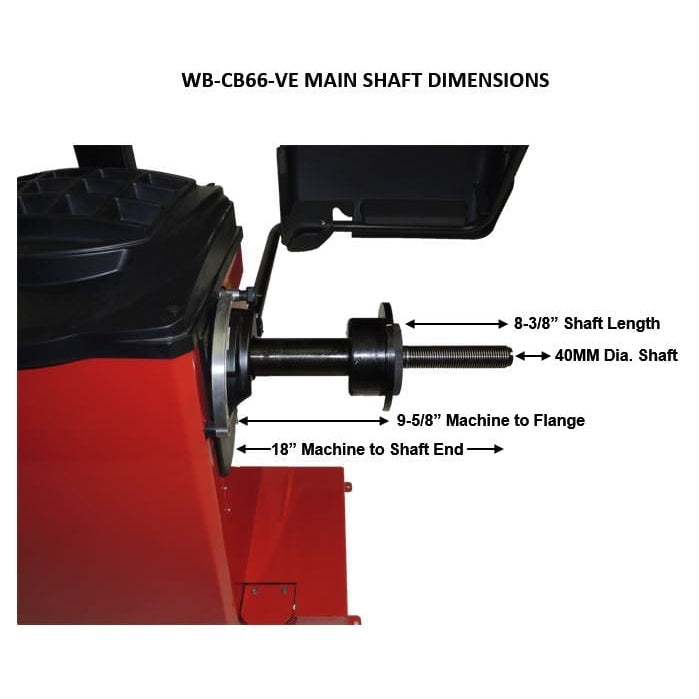

- Extra Long, Heavy Duty Balancing Shaft the 12" long, 40mm diameter balancing shaft accommodates wide range of wheels, including unique aftermarket wheels of different sizes & shapes.

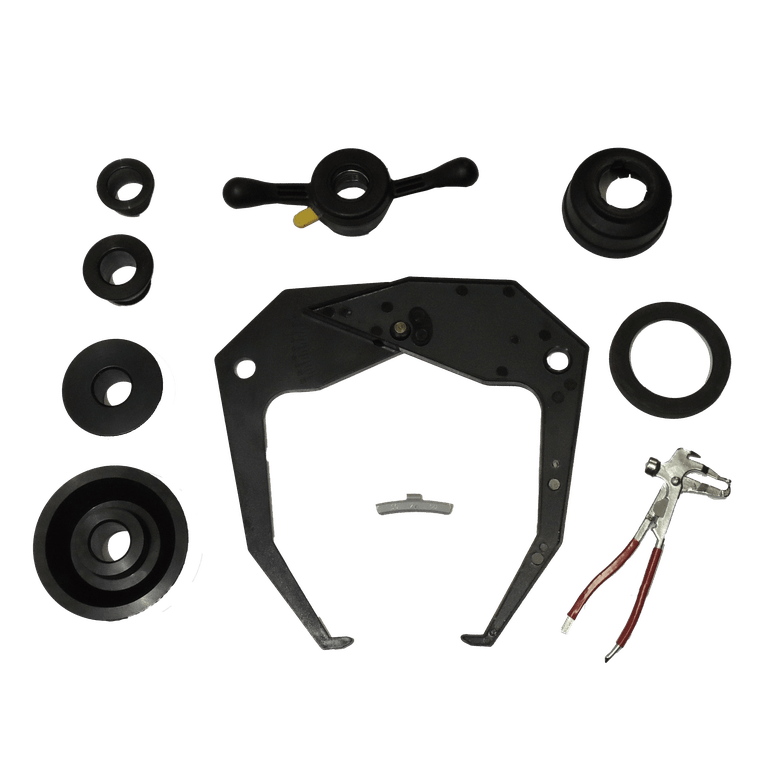

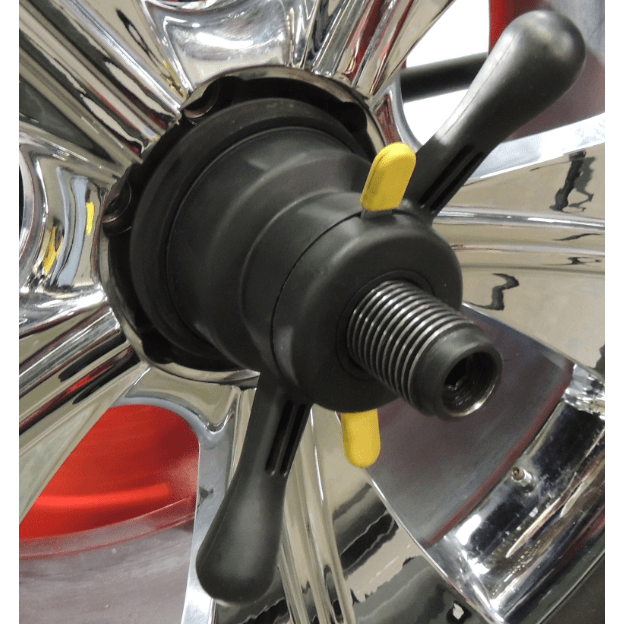

- Speed-Nut Mounting the Speed-Nut allows for quick & efficient wheel mounting, easily securing the wheel to the spindle with convenient lead-in screw.

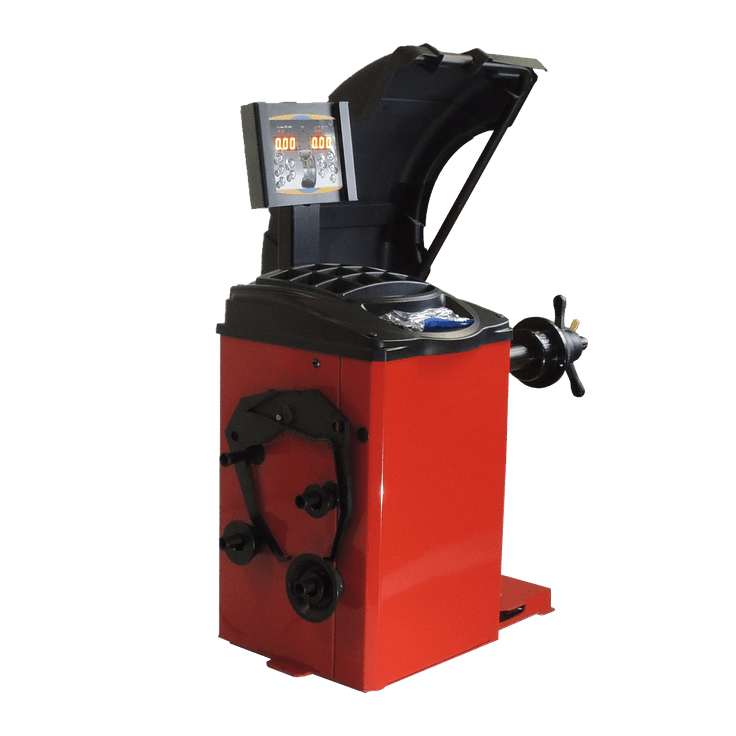

- Multi Pocket Wheel Weight Shelf 14 articulated pockets, over 1.5" deep, allowing plenty of storage for weights & tooling.

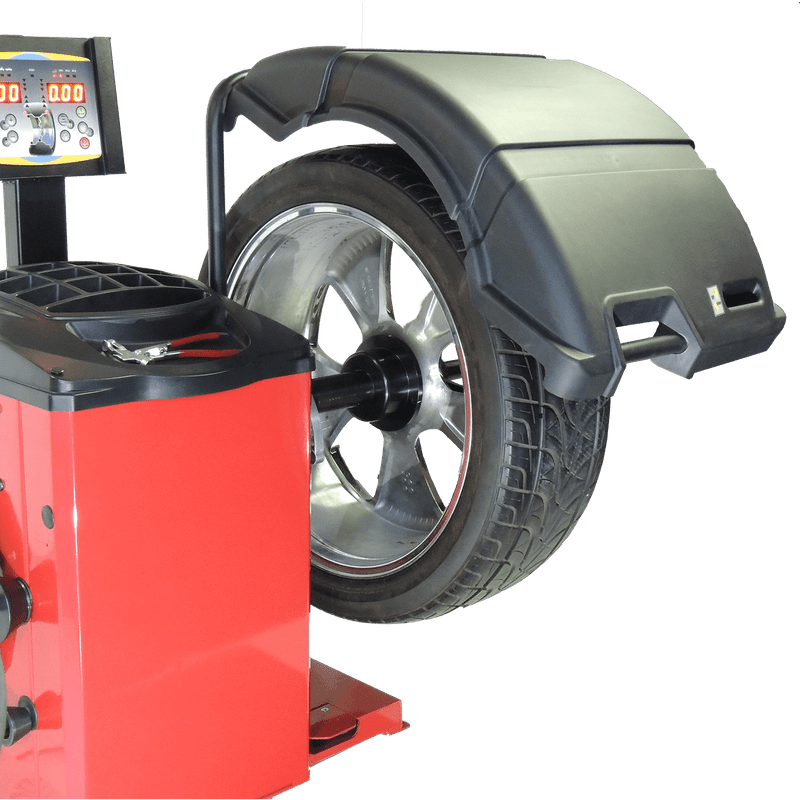

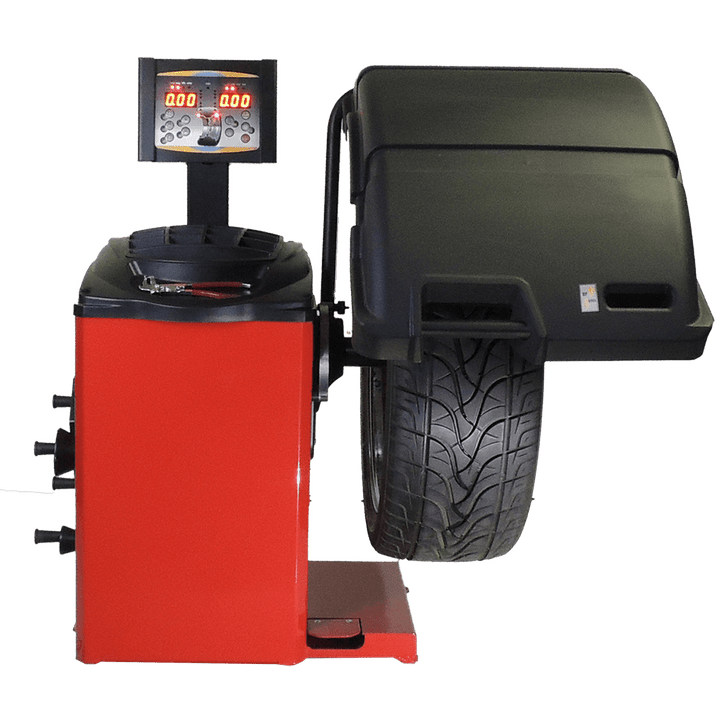

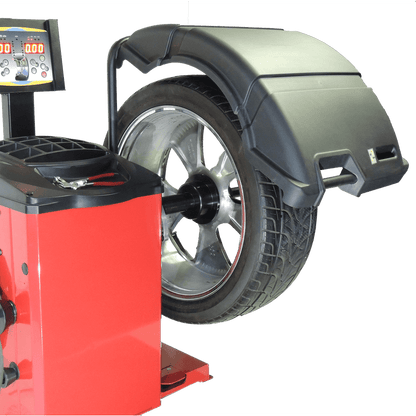

- Large Wheel Shroud the large 38 wheel hood prevents debris from flying off the tire while in use.
- Power Saving Mode automatically puts machine in stand-by mode after 5 minutes of non-usage.

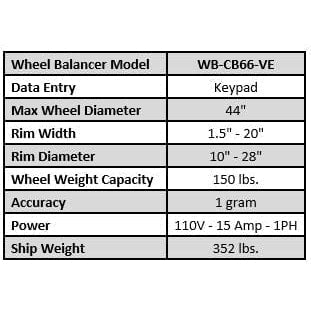

Specifications
| Wheel Balancer Model |
WB-CB66-VE |
| Data Entry |
Keypad |
| Max Wheel Diameter |
44" |
| Rim Width |
1.5" 20" |
| Rim Diameter |
10" 28" |
| Wheel Weight Capacity |
150 lbs |
| Accuracy |
1 gram |
| Power |
110V 15 Amp 1PH |
| Ship Weight |
352 lbs |
Manual
Tuxedo WB-CB66-VE Wheel Balancer Manual
What Our Experts Think
-
High-Precision Balancing – Ensures smooth rides and extended tire life with accurate weight placement.
-
Versatile Compatibility – Handles a wide range of wheel sizes, making it ideal for various vehicle types.
-
User-Friendly Digital Display – Provides clear readings for fast and efficient balancing.
-
Automatic Data Entry – Speeds up workflow by reducing manual input errors.
-
Heavy-Duty Construction – Built for durability in high-volume shops.
Q&A
Q: What is the Tuxedo WB-CB66-VE Wheel Balancer used for?
A: The Tuxedo WB-CB66-VE is a high-precision wheel balancer designed for cars, light trucks, and SUVs, ensuring smooth and accurate balancing for optimal vehicle performance.
Q: What size wheels can it accommodate?
A: It supports wheels with a rim diameter range of 10" – 28" and a rim width of 1.5" – 20", making it versatile for various vehicle types.
Q: Is this balancer suitable for professional use?
A: Yes! Its high-accuracy sensors, user-friendly interface, and durable construction make it ideal for tire shops, auto service centers, and repair garages.
Q: What power source does it require?
A: It operates on 110V power, making it compatible with standard shop electrical setups.
Maintenance Tips
-
Inspect Before Use – Check the balancing shaft, cones, and adapters for wear or damage.
-
Keep It Clean – Wipe down sensors, display panels, and moving parts to prevent dust buildup.
-
Calibrate Regularly – Perform self-calibration to maintain accuracy.
-
Monitor Power Supply – Ensure stable voltage and secure electrical connections.
-
Check Wheel Mounting – Properly secure wheels to prevent misalignment.
-
Lubricate Moving Parts – Apply light grease to necessary components for smooth operation.
