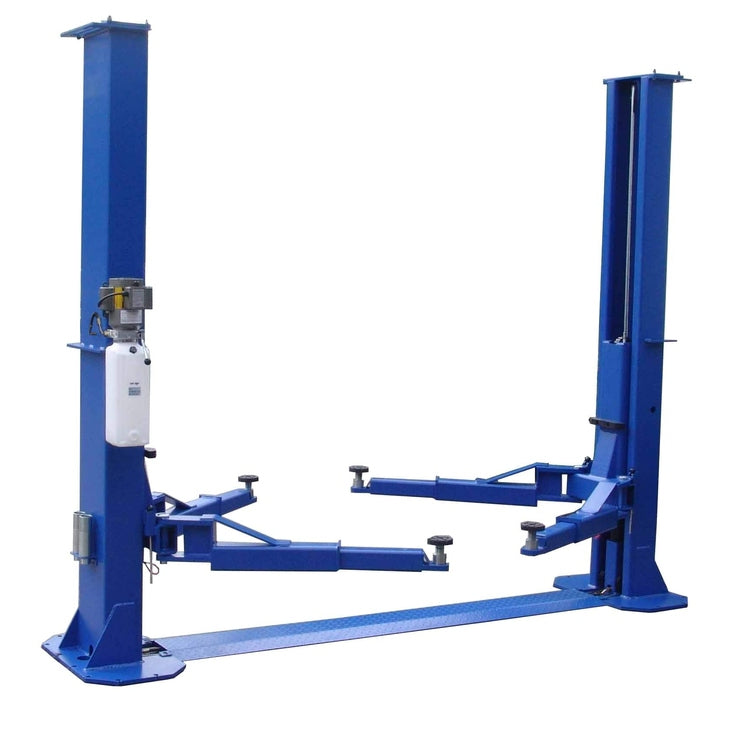

Tuxedo 12,000 lb Two Post Floor Plate Lift - TP12KFX
Tuxedo 12,000 lb Two Post Floor Plate Lift
Introducing the New TP12K & TP15K 'X HD Series Two Post Lifts!! The new TP12KFX & TP15KCX Two Post Floor Plate & Clear Floor Lifts have been redesigned and now come standard with Low profile Drop-In Adjustable Swivel Pads with Height Adapters, Internal Hose Routing, Padded Overhead Shut-Off Bar with Kill Switch, reduced overall Width, & Rubber Door Guards, making these models some of the best heavy duty Two Post Lift values in the industry!
Features
- 12,000 lbs Capacity
- Symmetric Arms

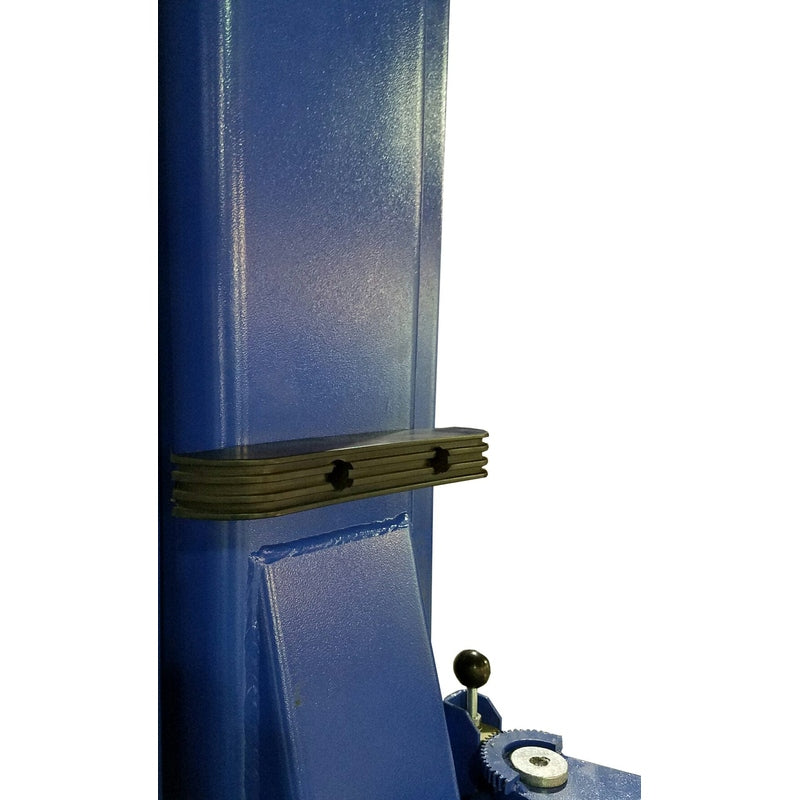

- Rubber Door Guards
- Chain Drive Cylinders
- Dual Point Lock Release
- auto Arm Restraint System

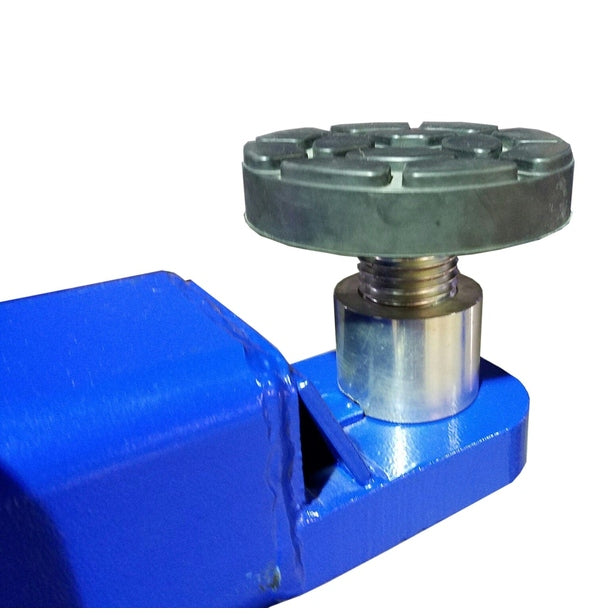

- Spin Up Lift Pads

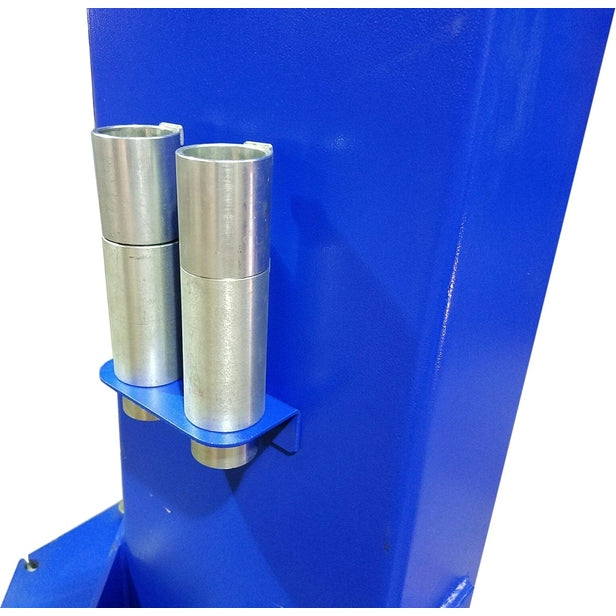

- Stackable Adapters Included
- Internal Hose routing

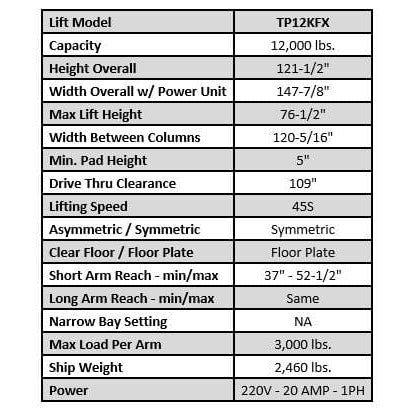

Specifications
| Lift Model |
TP12KFX |
| Capacity |
12,000 lbs. |

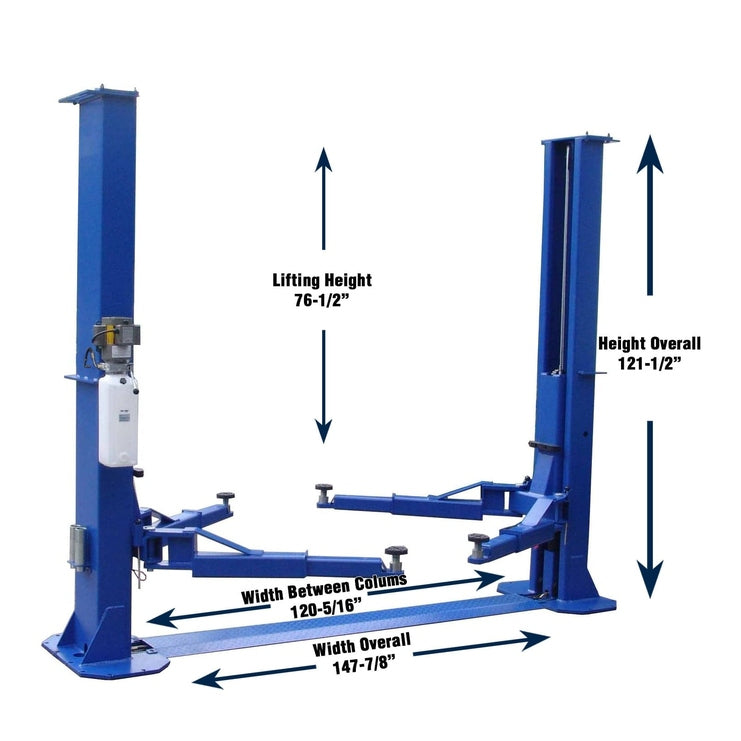

| Height Overall |
121-1/2" |
| Width Overall w/ Power Unit |
147-7/8" |
| Max Lift Height |
76-1/2" |
| Width Between Columns |
120-5/16" |
| Min. Pad Height |
5" |
| Drive Thru Clearance |
109" |
| Lifting Speed |
45S |
| Asymmetric / Symmetric |
Symmetric |
| Clear Floor / Floor Plate |
Floor Plate |
| Short Arm Reach min/max |
37" 52-1/2" |
| Long Arm Reach min/max |
Same |
| Narrow Bay Setting |
NA |
| Max Load Per Arm |
3,000 lbs. |
| Ship Weight |
2,460 lbs |
| Power |
220V 20 AMP 1 PH |
Manual
Tuxedo TP12KFX 12,000 lb Two Post Floor Plate Lift Manual
What Our Experts Think
-
12,000 lb Lifting Capacity – Handles a wide range of vehicles, including trucks and commercial vans.
-
Floor Plate Design – Ideal for low-ceiling garages while maintaining strong structural support.
-
Symmetric Arm Configuration – Provides balanced lifting for stable vehicle positioning.
-
Heavy-Duty Steel Construction – Built for durability and long-term professional use.
-
Dual-Point Lock Release – Ensures safety with an easy-to-operate locking system.
Q&A
Q: What is the Tuxedo TP12KFX Two-Post Lift used for?
A: The Tuxedo TP12KFX is a 12,000 lb capacity two-post floor plate lift, designed for lifting cars, trucks, and commercial vehicles in auto repair shops and service centers.
Q: What is a "Floor Plate" lift?
A: A floor plate lift has a reinforced plate across the floor, housing the hydraulic lines and equalization cables, making it ideal for low-ceiling garages.
Q: What is the lift height and clearance?
A: The TP12KFX provides a maximum lift height of approximately 72 inches, ensuring ample workspace underneath the vehicle.
Q: Is this lift suitable for commercial use?
A: Yes! Its high weight capacity, reinforced frame, and reliable lifting power make it perfect for auto repair shops, fleet maintenance, and commercial garages.
Maintenance Tips
-
Inspect Before Use – Check hydraulic lines, cables, and bolts for leaks, wear, or looseness.
-
Lubricate Moving Parts – Apply grease to lift arms, carriage slides, and pulleys regularly.
-
Monitor Hydraulic Fluid – Maintain proper levels and replace if contaminated.
-
Test Safety Locks – Ensure locks engage correctly before lifting.
-
Keep It Clean – Remove dirt and debris to prevent corrosion and ensure smooth function.
-
Follow Load Limits – Do not exceed the 12,000 lb capacity for safe operation.
