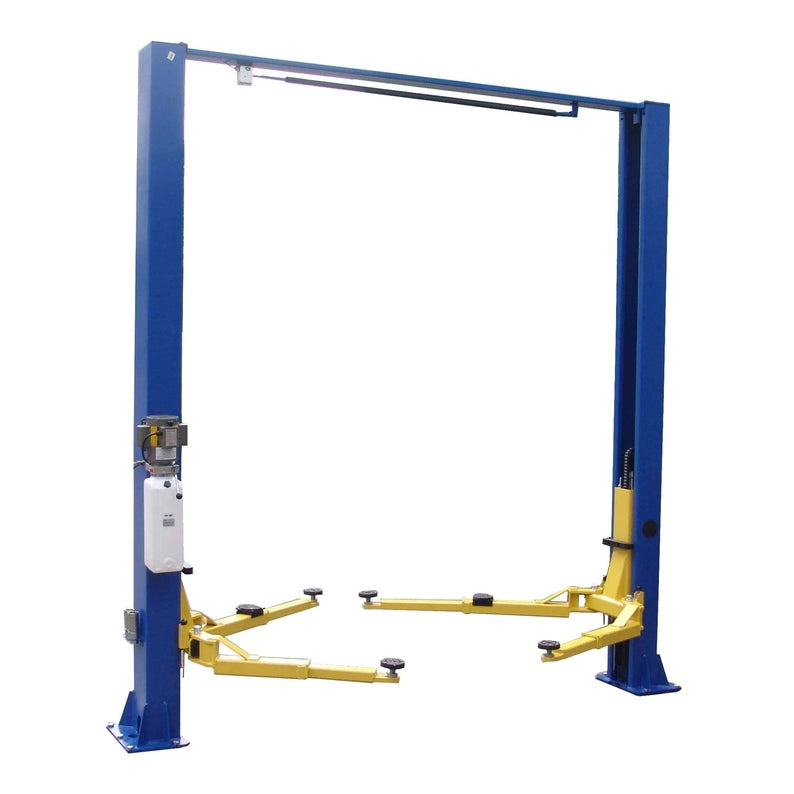

Tuxedo 9,000 lb Two Post Clear Floor - Asymmetric - TP9KACX
The new TP9KACX Two Post, Clear Floor & Floor Plate Lifts have been redesigned to now include standard features with Single Piece Column construction, Internal Hose routing, Padded Overhead Shut-Off Bar with Kill Switch, Reduced overall Width, Drop-In Adjustable Swivel Pads with Height Adapters & Rubber Door Guards, making these models one of the bestTwo Post Lift values in the industry!
Features
- 9,000 lbs capacity
- ASymmetric Arms

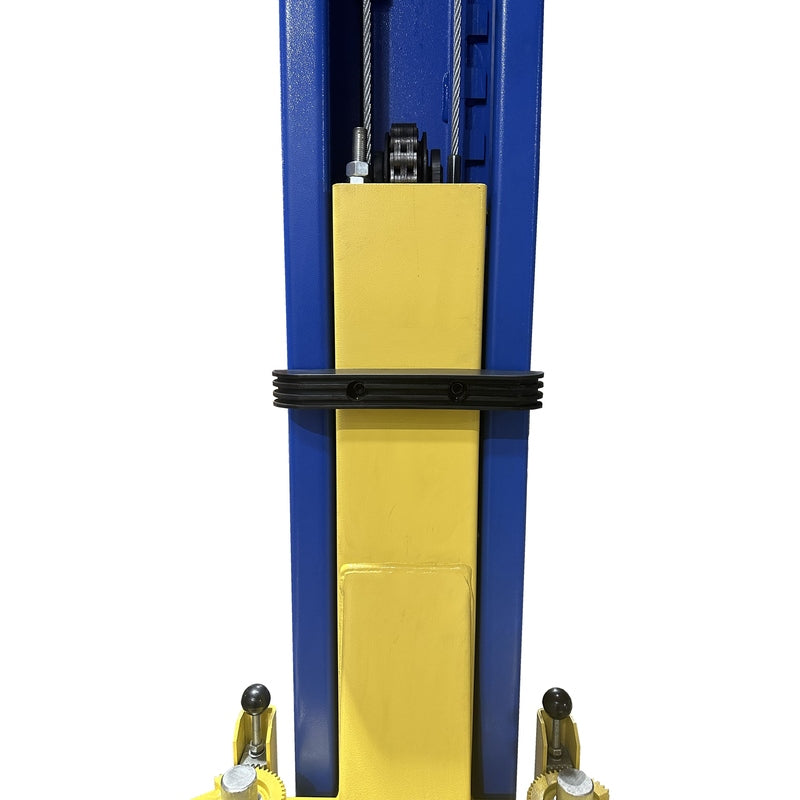

- Rubber Door Guards
- Chain Drive Cylinders
- Dual Point Lock Release

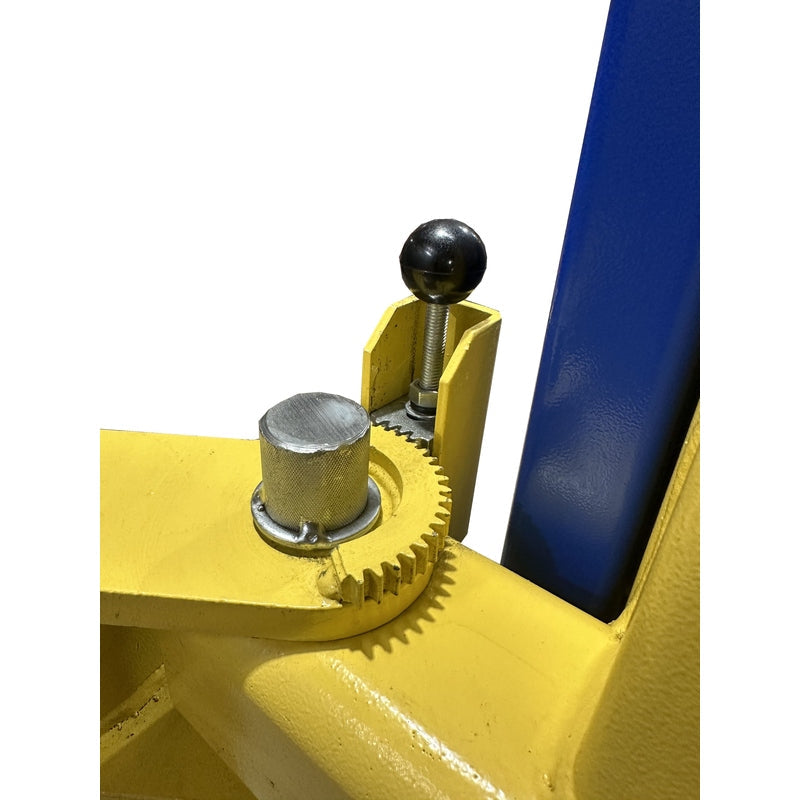

- Auto Arm Restraint System

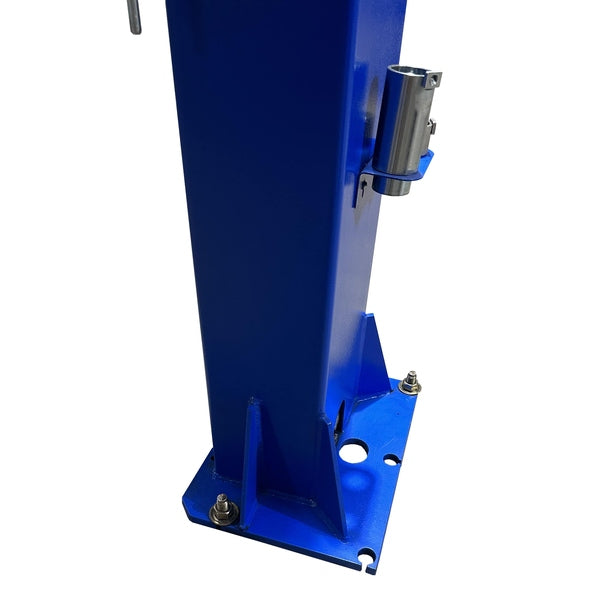

- Single Piece Column
- Internal Hose routing

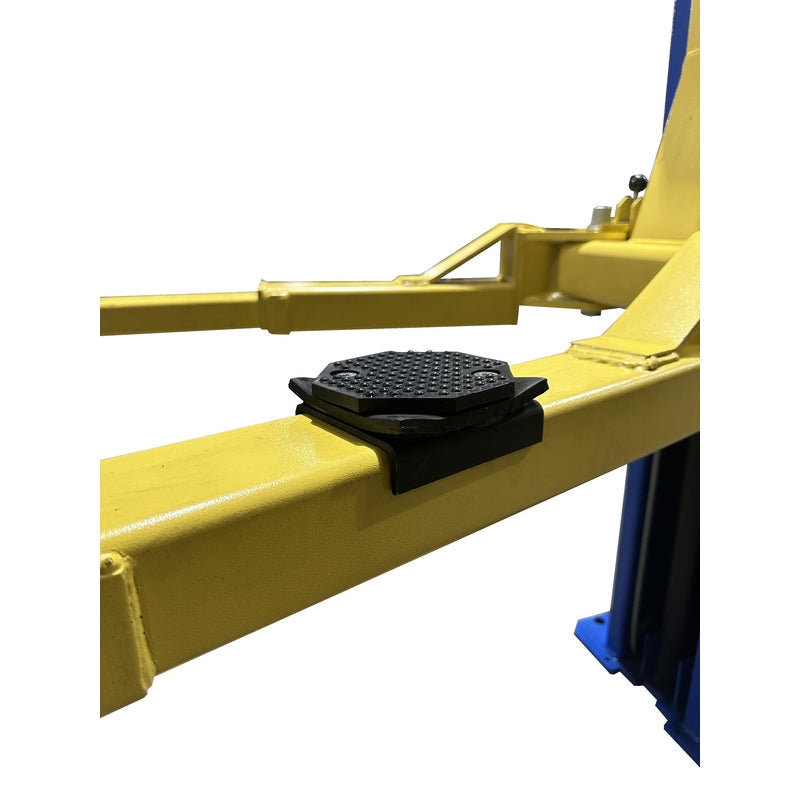

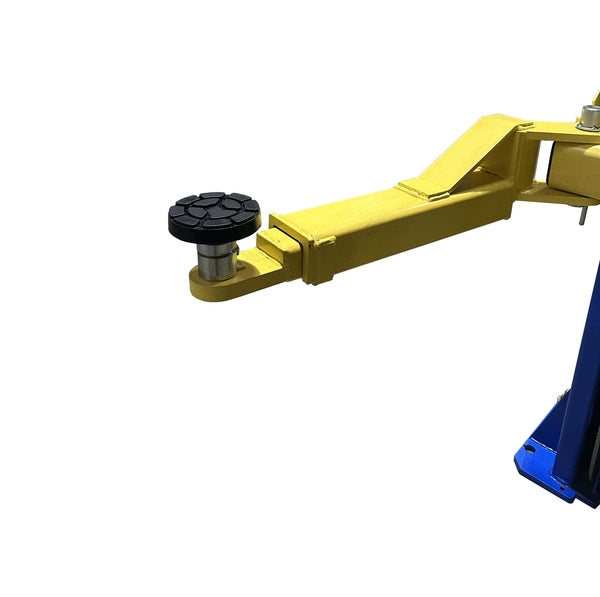

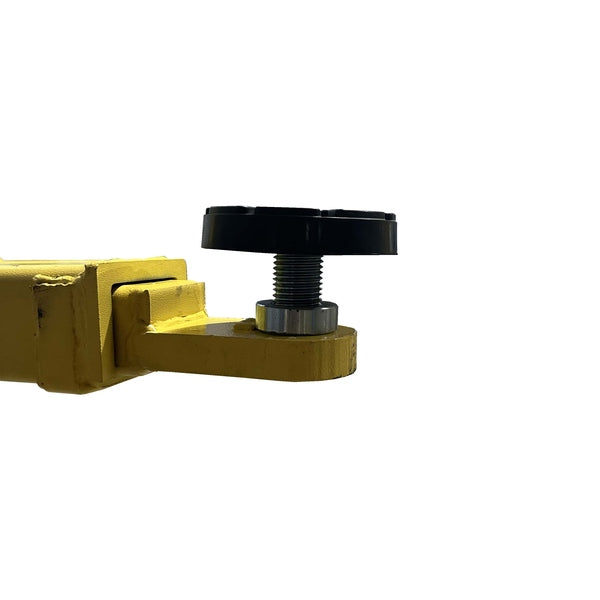

- Low profile Spin Up Lift Pads

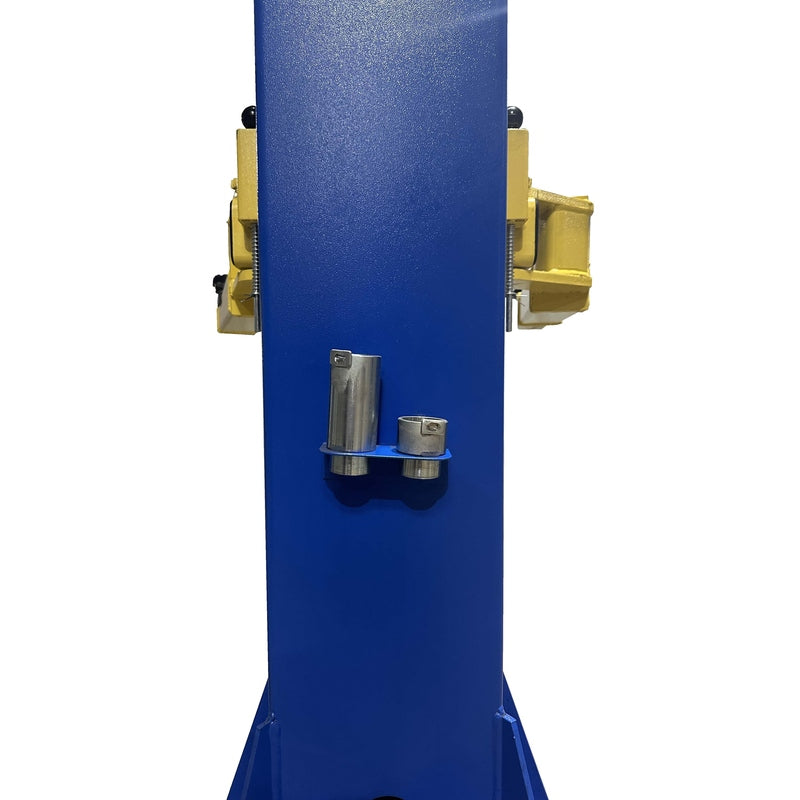

- Stackable Adapters Included

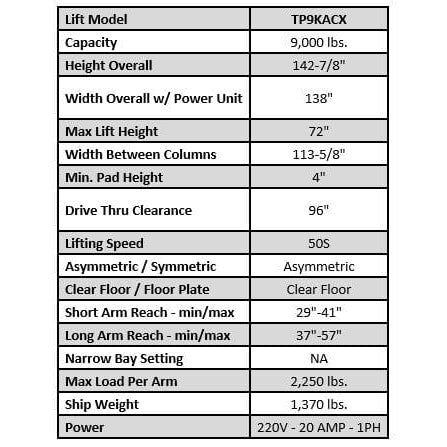

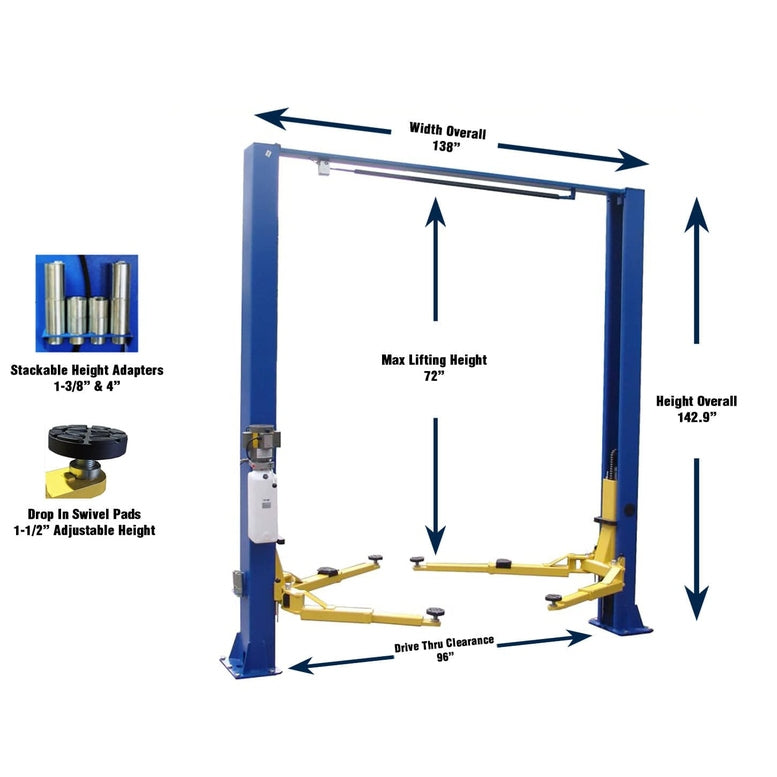

Specifications
| Lift Model |
TP9KACX |
| Capacity |
9,000 lbs. |
| Height Overall |
142-7/8" |
| Width Overall w/ Power Unit |
138" |
| Max Lift Height |
72" |
| Width Between Columns |
113-5/8" |
| Min. Pad Height |
4" |
| Drive Thru Clearance |
96" |
| Lifting Speed |
50S |
| Asymmetric / Symmetric |
Asymmetric |
| Clear Floor / Floor Plate |
Clear Floor |
| Short Arm Reach min/max |
29"-41" |
| Long Arm Reach min/max |
37"-57" |
| Narrow Bay Setting |
NA |
| Max Load Per Arm |
2,250 lbs. |
| Ship Weight |
1,370 lbs |
| Power |
220V 20 AMP 1 PH |
Manual
Tuxedo TP9KACX 9,000 lb 2 Post Lift Manual
What Our Experts Think
-
9,000 lb Lifting Capacity – Suitable for cars, SUVs, and light trucks.
-
Asymmetric Arm Design – Provides better door clearance and easier vehicle entry.
-
Clear Floor Design – Allows unobstructed movement of tools and equipment beneath the lift.
-
Heavy-Duty Steel Construction – Built for durability and long-term shop use.
-
Single-Point Lock Release – Ensures quick and secure operation.
Q&A
Q: What is the Tuxedo TP9KACX Two-Post Lift used for?
A: The Tuxedo TP9KACX is a 9,000 lb capacity two-post clear-floor lift, designed for cars, SUVs, and light trucks, making it ideal for professional auto shops and home garages.
Q: What does "Clear Floor" mean?
A: "Clear Floor" means there is no floor plate, allowing unobstructed movement of tools and equipment under the vehicle.
Q: Is this lift asymmetric or symmetric?
A: The TP9KACX is an asymmetric lift, meaning the front arms are shorter than the rear, allowing for easier vehicle entry and door clearance.
Q: What is the maximum lifting height?
A: It lifts vehicles up to 72 inches, providing ample workspace.
Q: Is this lift suitable for commercial use?
A: Yes! Its heavy-duty design, clear-floor accessibility, and reliable performance make it perfect for auto repair shops, dealerships, and fleet service centers.
Maintenance Tips
-
Inspect Before Use – Check hydraulic lines, cables, and bolts for leaks, wear, or looseness.
-
Lubricate Moving Parts – Apply grease to lift arms, carriage slides, and pulleys regularly.
-
Monitor Hydraulic Fluid – Maintain proper levels and replace if contaminated.
-
Test Safety Locks – Ensure locks engage properly before operating the lift.
-
Keep It Clean – Remove dirt and debris to prevent corrosion and ensure smooth function.
-
Follow Load Limits – Do not exceed the 9,000 lb capacity for safe operation
