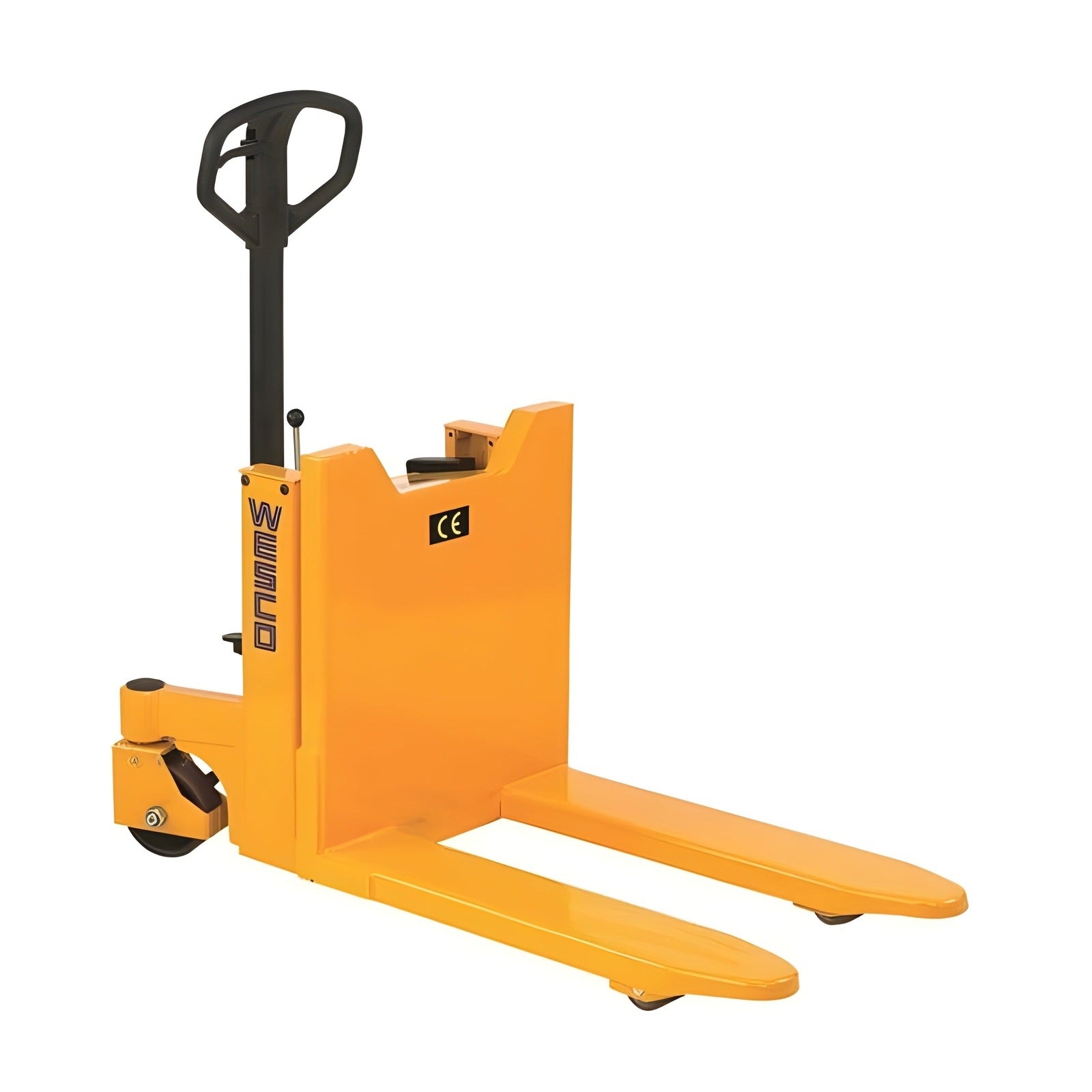

Wesco ERGONOMIC PALLET TILTER - 272950
Features
- 1 year pump warranty.
- 5" polyurethane swivel casters and 3" polyurethane load wheels.
- Handle height: 44 1/4".
- Load center: min 7 1/2", max. 15 1/2".
- Lifting range with forks in horizontal position: 3 1/4" to 11".

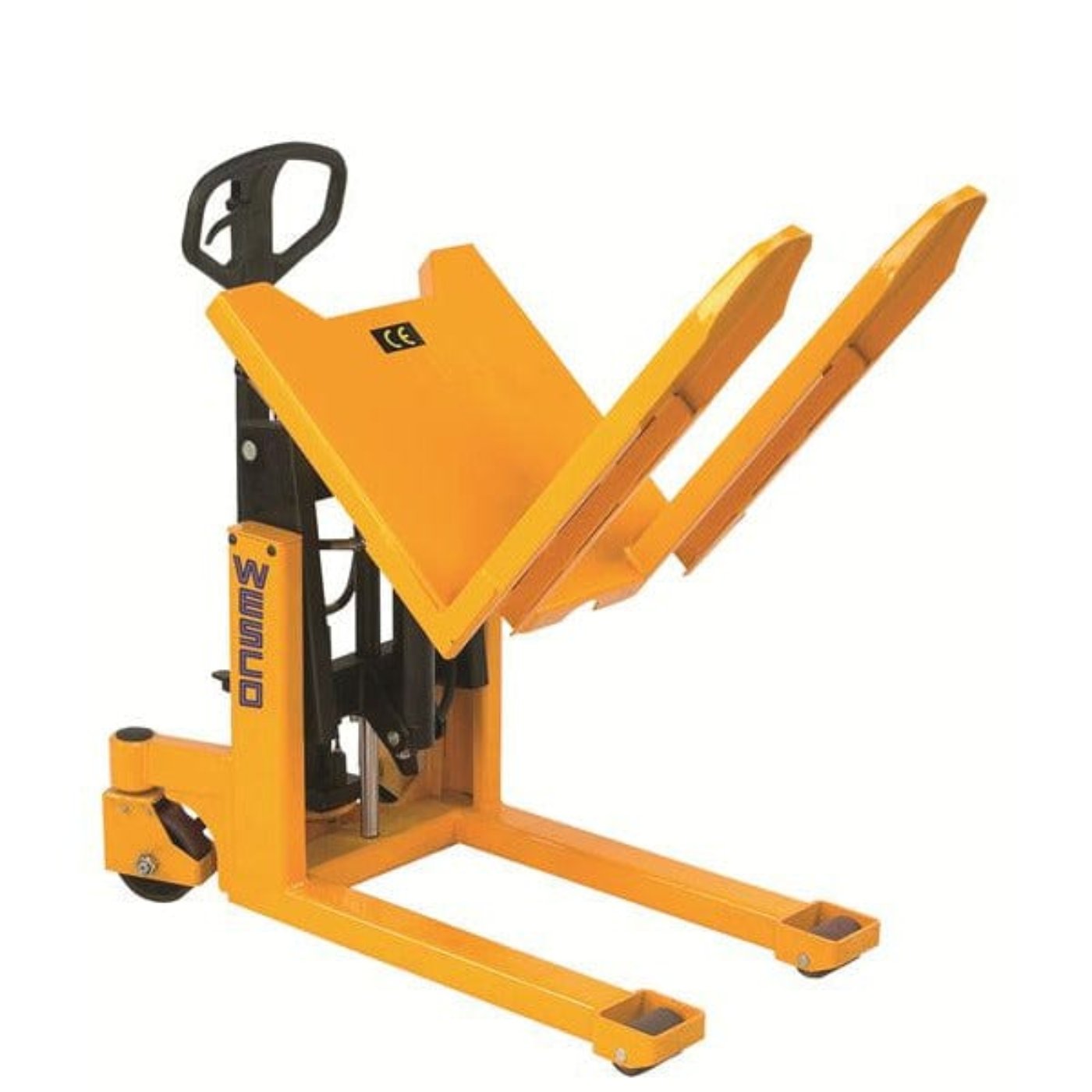

- Forks tilt up to 90º for accurate load positioning.
- Lifting range with back rest in horizontal position: 29" to 37".
- 6 1/2" wide forks.
Specifications
| PART NUMBER |
272950 |
| MODEL |
ERPT |
| FORK DIMENSION |
21.5" x 31" |
| CAPACITY |
2200 lb |
| SWIVEL CASTER |
(2) 5" Polyurethane |
| LOAD WHEEL |
(2) 3" Polyurethane |
| WIDTH FORKS |
6.5" |
| HANDLE HEIGHT |
44.25" |
| LOAD CENTER |
7.5" |
| MAX. LOAD CENTER |
15.5" |
| LIFTING RANGE WITH FORKS IN HORIZONTAL POSITION |
3.25" to 11" |
| LIFTING RANGE WITH BACK REST IN HORIZONTAL POSITION |
29" to 37" |
| W1 |
21.5" |
| L1 |
31" |
| W2 |
6.5" |
| L2 |
51.67" |
| WHL1 |
5" |
| WHL2 |
3" |
| H1 |
44.25" |
| H2 |
3.25" |
| H3 |
11" |
| TILT BACK |
90 º |
| WEIGHT |
392 lb |

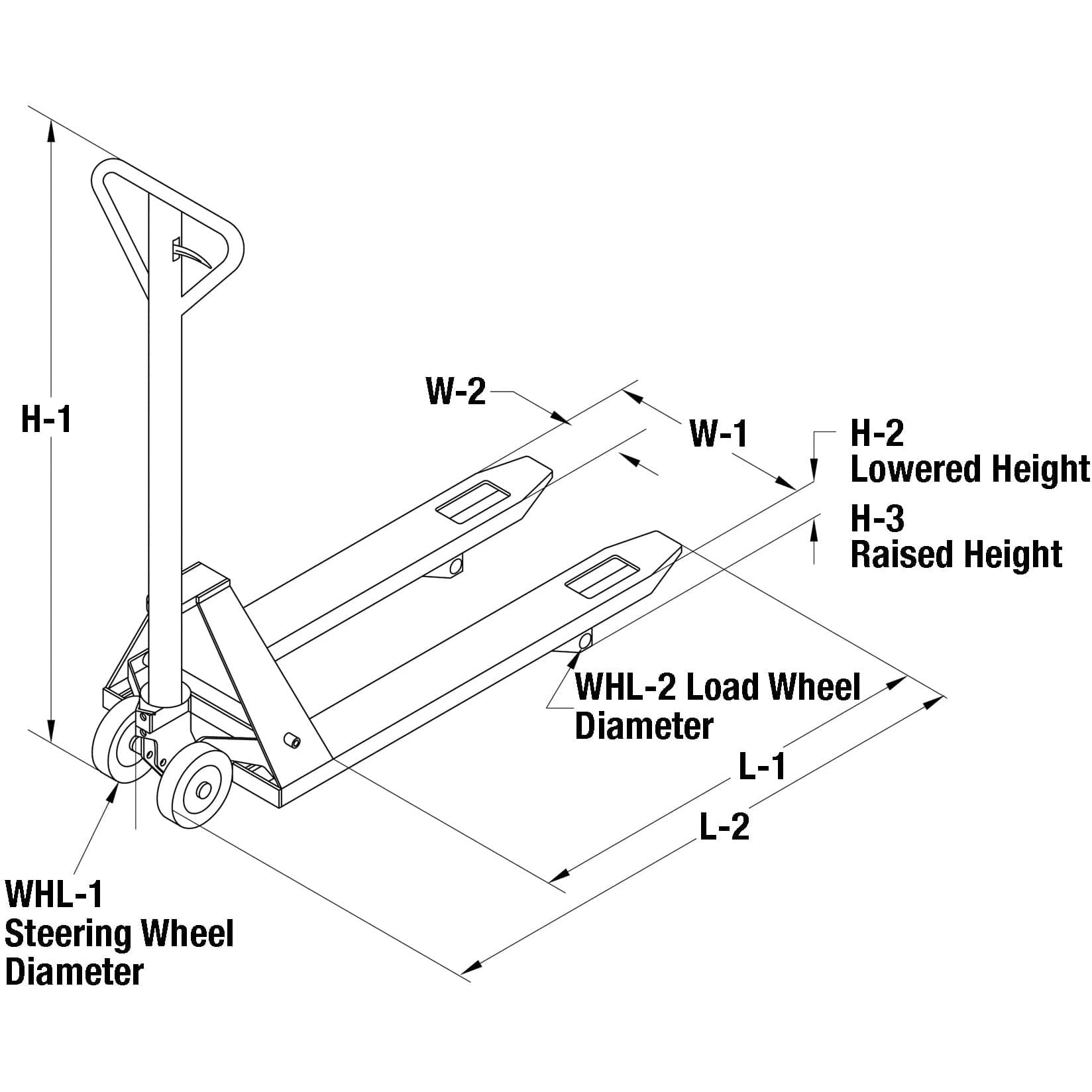

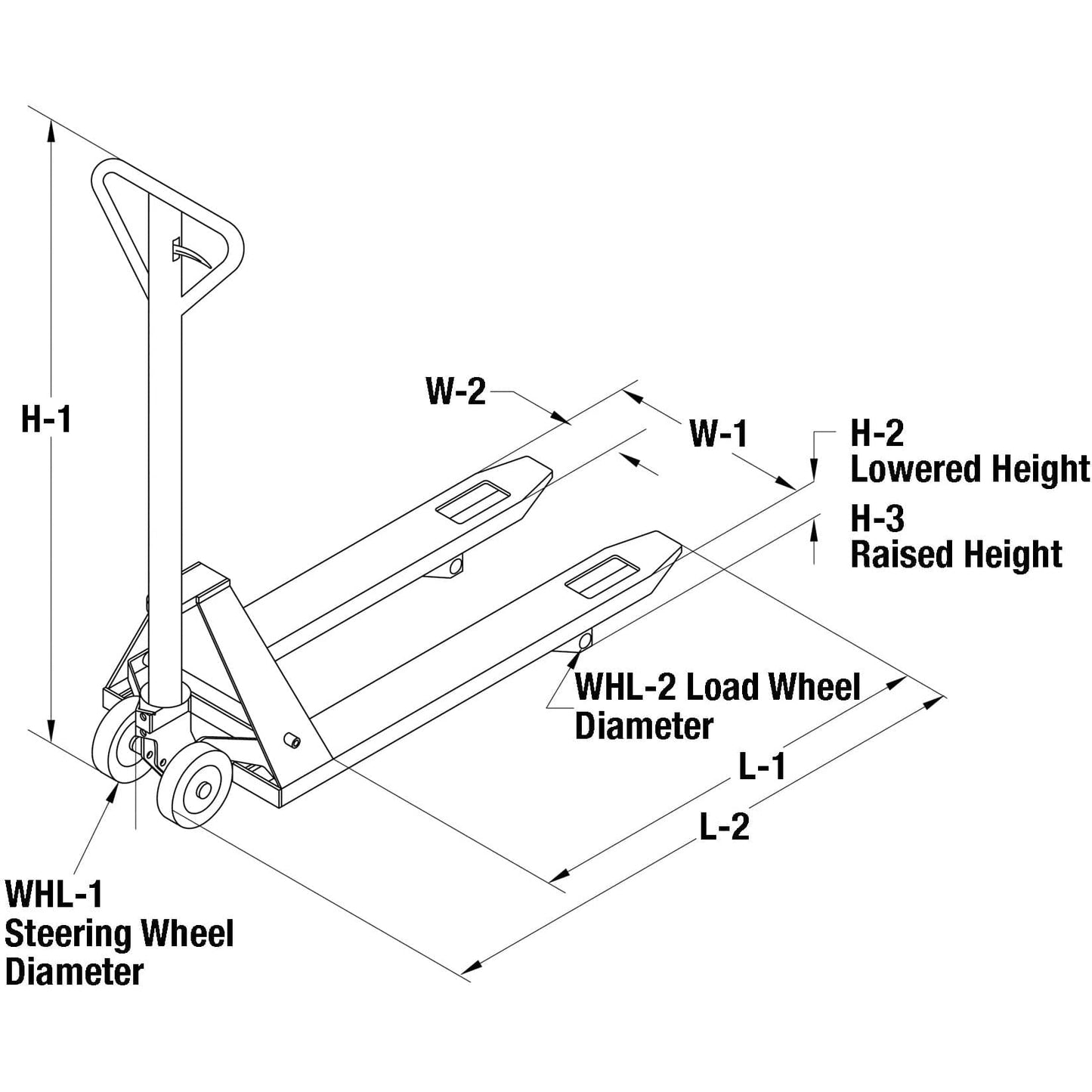

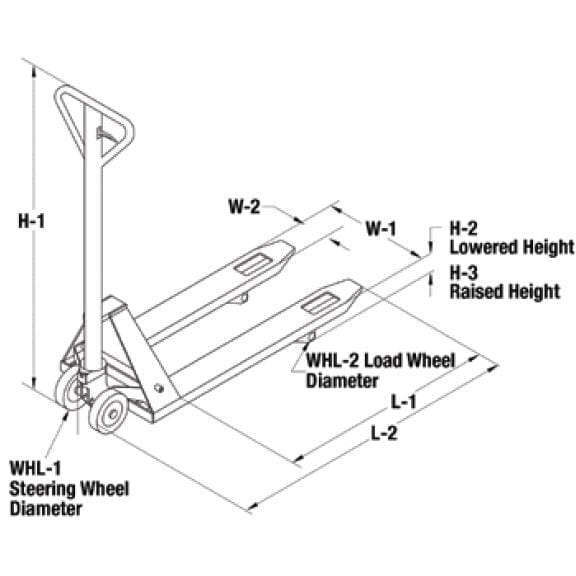

Drawing
What Our Experts Think
-
Heavy-Duty Capacity: The Wesco 272950 Ergonomic Pallet Truck has a 2,200 lb. capacity, making it perfect for heavy-duty material handling in warehouses and industrial settings.
-
Ergonomic Design: Designed to reduce operator strain, offering comfortable handling and maneuverability, even in tight spaces.
-
90° Tilting Forks: The innovative 90-degree tilting feature allows for easy loading and unloading of pallets at various angles, increasing versatility.
-
Durable Construction: Built with high-quality materials for maximum durability, ensuring reliable performance in demanding environments.
-
Smooth Operation: The ergonomic handle and advanced hydraulic system ensure smooth lifting and lowering, even with heavy loads.
-
Versatile Use: Ideal for warehouses, manufacturing facilities, and distribution centers requiring efficient pallet handling with added flexibility.
Q&A
Q: What is the maximum load capacity?
A: 2,200 lbs.
Q: What is the size of the forks?
A: The forks measure 21 1/2" x 31".
Q: What makes this pallet truck ergonomic?
A: It features an ergonomic design that minimizes strain on the operator, including a 90-degree tilting function for easy load handling.
Q: How is the pallet truck operated?
A: It uses a manual hydraulic lift system for easy and controlled lifting.
Q: Is it suitable for maneuvering in tight spaces?
A: Yes, its ergonomic design and tilting function allow for easy maneuverability in narrow or confined spaces.
Q: What industries is this pallet truck ideal for?
A: Perfect for warehouses, distribution centers, and light-duty industrial environments.
Q: Does it have any safety features?
A: Yes, it includes secure handling features and a stable hydraulic system for safe operation.
Q: How can I purchase or get more details?
A: Visit our website or contact our sales team for more information.
Maintenance Tips
-
Inspect Hydraulic System: Regularly check for leaks, and ensure hydraulic fluid levels are within the recommended range for smooth operation.
-
Lubricate Moving Parts: Grease the tilting mechanism, fork joints, and caster wheels to reduce friction and ensure smooth movement.
-
Examine Forks: Check for any signs of wear, cracks, or damage to the forks and frame.
-
Test Tilting Mechanism: Ensure the tilting function operates smoothly, allowing forks to tilt without resistance.
-
Inspect Wheels and Casters: Regularly check wheels for wear and smooth rolling; replace if damaged or excessively worn.
-
Check Fasteners: Tighten any loose bolts, nuts, or screws to maintain the integrity and safety of the pallet truck.
-
Clean Regularly: Remove dust, dirt, and debris from all moving parts, particularly the hydraulic system and fork area.
-
Store Properly: Store in a dry, indoor environment to avoid rust and prolong the truck's lifespan.
